Product Description

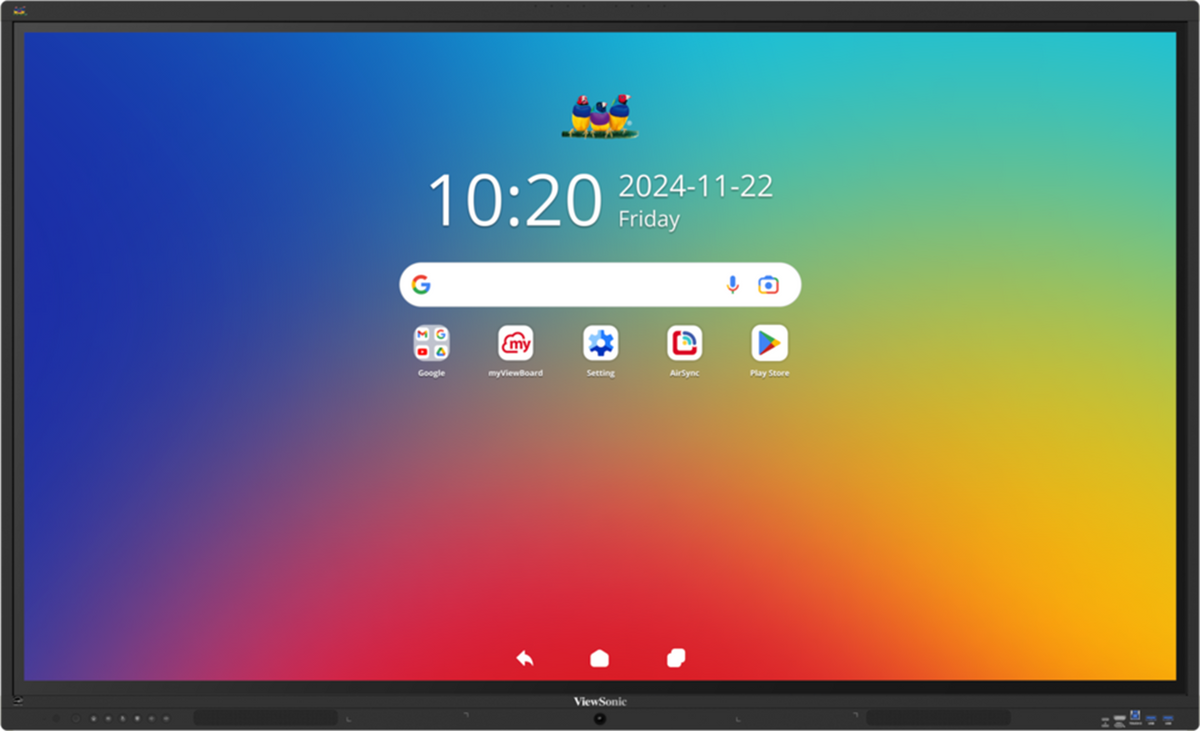

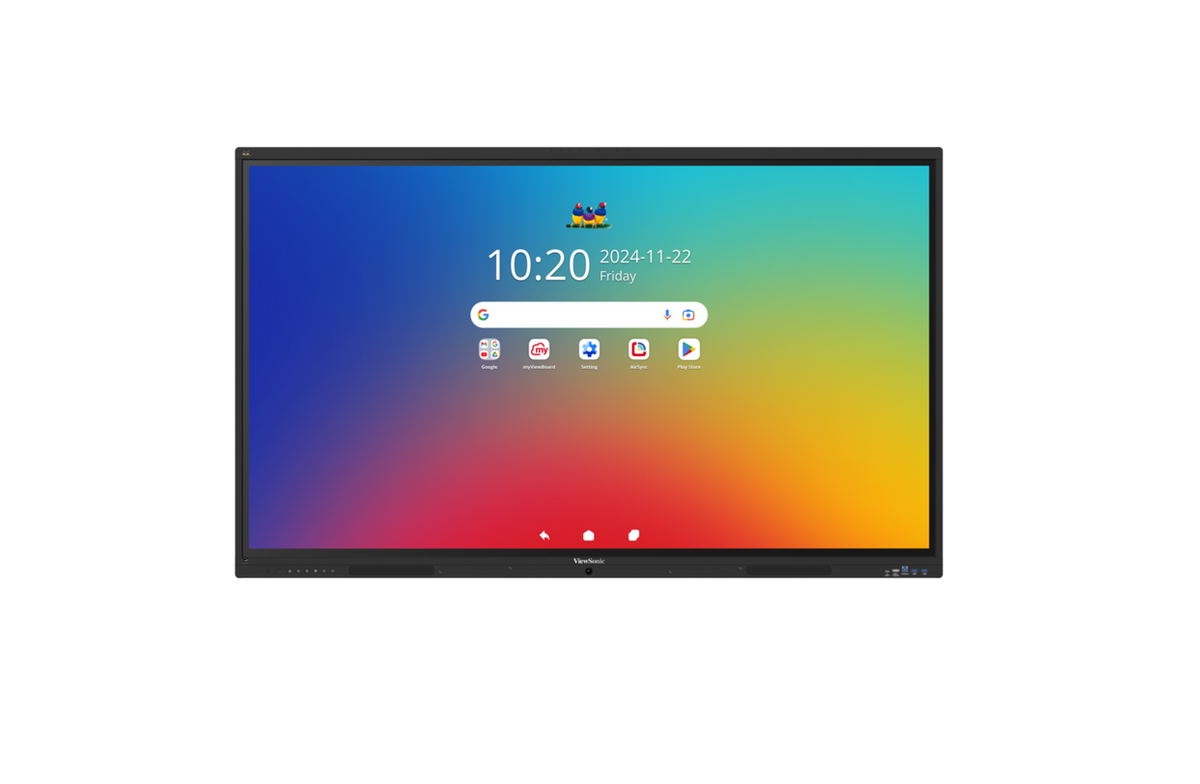

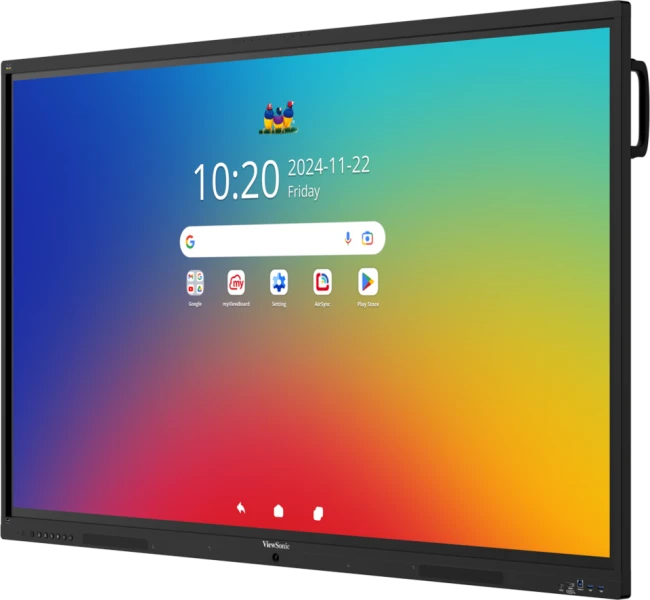

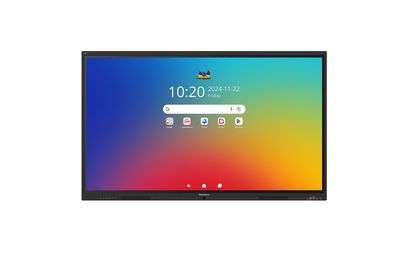

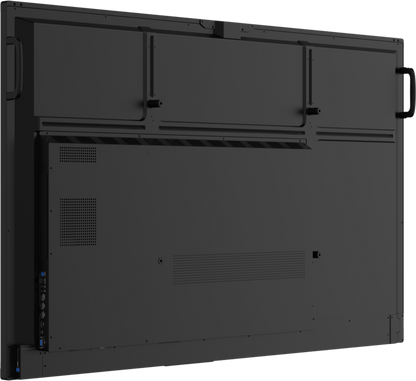

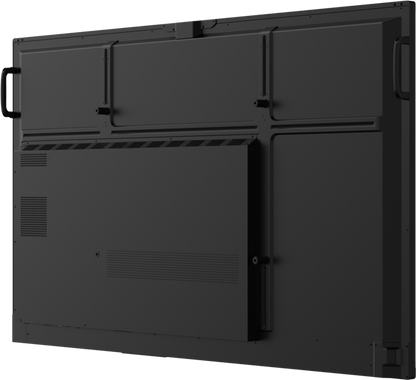

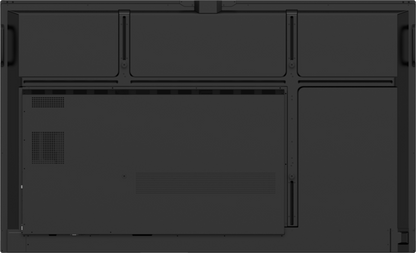

ViewSonic ViewBoard IFP8641-1-1C
86" 4K UHD Interactive Display | Android 16 EDLA-Certified | 64-Point Touch | 8-Microphone Array
The ViewSonic ViewBoard IFP8641-1-1C is a next-generation interactive display designed for modern classrooms, lecture halls, training environments, and collaborative workspaces. Featuring a large 86-inch 4K UHD display, Android 16 with Google EDLA certification, and 64-point Ultra Fine Touch technology, it delivers a seamless and engaging teaching experience with powerful collaboration tools and enterprise-grade security.
Powered by an Octa-Core processor, 8GB RAM, and 128GB storage, the IFP8641-1-1C offers smooth multitasking, instant annotation, wireless content sharing, and integrated classroom software. Built-in ambient light and PIR motion sensors help optimize energy consumption, while dual USB-C ports with up to 100W Power Delivery simplify connectivity for teachers and students.
Key Features
- 86" 4K UHD interactive display with Android 16
- Google EDLA-certified for secure access to Google Workspace and Google Play Store
- 64-point Ultra Fine Touch technology with palm rejection
- Write Away instant annotation functionality
- Octa-Core processor with 8GB RAM and 128GB storage
- Dual USB-C ports with up to 100W Power Delivery
- Integrated myViewBoard whiteboarding software
- AirSync wireless casting with support for up to 9 shared screens
- 2.1-channel sound system with 20W x2 speakers and 15W subwoofer
- Built-in 8-array microphone system with echo cancellation and noise reduction
- Ambient light sensor and PIR motion sensor
- Advanced security with Google Play Protect, encryption, and authentication
- Centralized device management via ViewSonic Manager

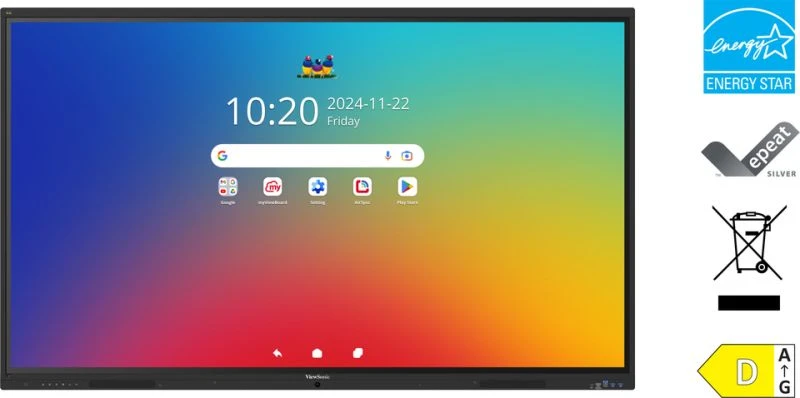

- ENERGY STAR® 8.0 certified for improved energy efficiency
Specifications
Display
- Panel Size: 86"
- Panel Type: TFT LCD Module with DLED Backlight
- Display Area: 1895.04mm (H) x 1065.96mm (V)
- Aspect Ratio: 16:9
- Resolution: UHD 3840 x 2160
- Colors: 1.07 Billion Colors
- Brightness: 400 nits (typ.)
- Contrast Ratio: 5000:1 (Max. with DCR Enabled)
- Response Time: 6.5ms
- Viewing Angles: 178° (H) / 178° (V)
- Backlight Life: 50,000 Hours
- Surface Treatment: 9H Hardness, Anti-Glare Coating
- Orientation: Landscape
Platform
- Processor: Octa-Core CPU
- RAM: 8GB
- Storage: 128GB
Touch
- Touch Technology: Ultra Fine Touch (IR Recognition)
- Touch Resolution: 32767 × 32767
- Touch Points: Up to 64-Point Touch
- Palm Rejection: Yes
Input Ports
- HDMI: 3 x HDMI 2.1 (4K@60Hz, CEC, ARC Support)
- VGA: 1 x RGB/VGA
- DisplayPort: 1 x DisplayPort
- Audio Input: 1 x Audio In
- RS232: 1 x RS232
- TF Card Slot: 1 x Micro SD
- OPS Slot: 1 x PC Slot
Output Ports
- HDMI Output: 1 x HDMI 2.1 (4K@60Hz)
- Audio Output: 1 x Line Out
- SPDIF: 1 x Optical
Network & Connectivity
- LAN: 2 x RJ45
- USB Type-A: 5 x USB
- USB Type-B: 3 x USB-B
- USB Type-C:
- Front: USB 3.2 Gen 1, DP 1.2, Ethernet 100M, PD 100W
- Rear: USB 3.2 Gen 1, DP 1.2, Ethernet 100M, PD 15W
Audio
- Speakers: 20W x2 Front Soundbar
- Subwoofer: 15W x1
- Microphone: Built-in 8-Array Microphone
Operating System
- Android 16 (EDLA-Certified)
Bundled Software
- myViewBoard for Android
- myViewBoard for Windows (Embedded in VPC)
- AirSync Wireless Presentation
- ViewSonic Manager
- ViewSonic Launcher
Special Features
- SmartPort USB Support
- LAN Sharing (10/100/1000M)
- Ambient Light Sensor
- PIR Motion Sensor
Power
- Voltage: 100-240V AC ±10%
- Power Consumption: 93.99W (Typical)
- Power Off: <0.5W
Ergonomics

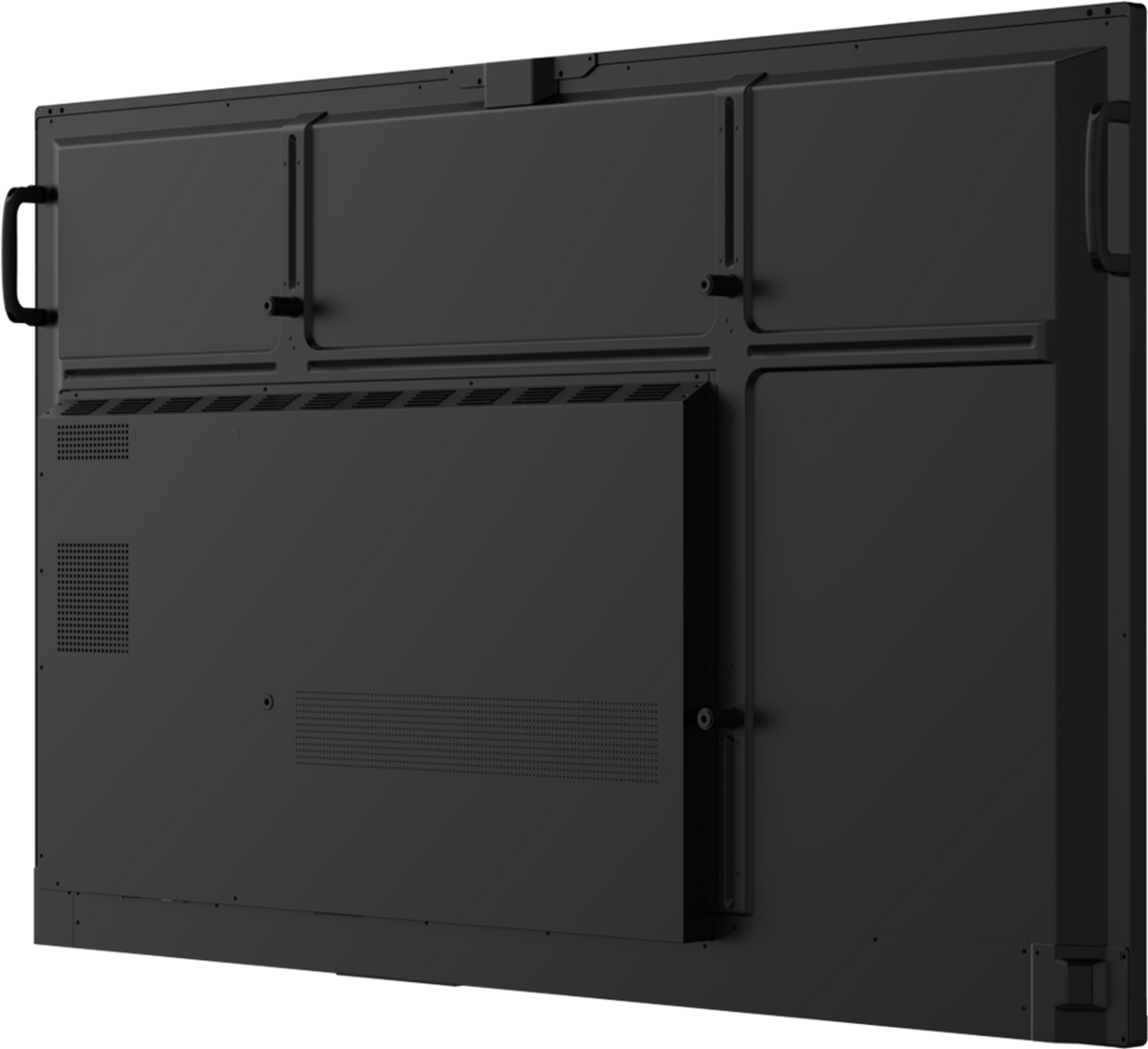

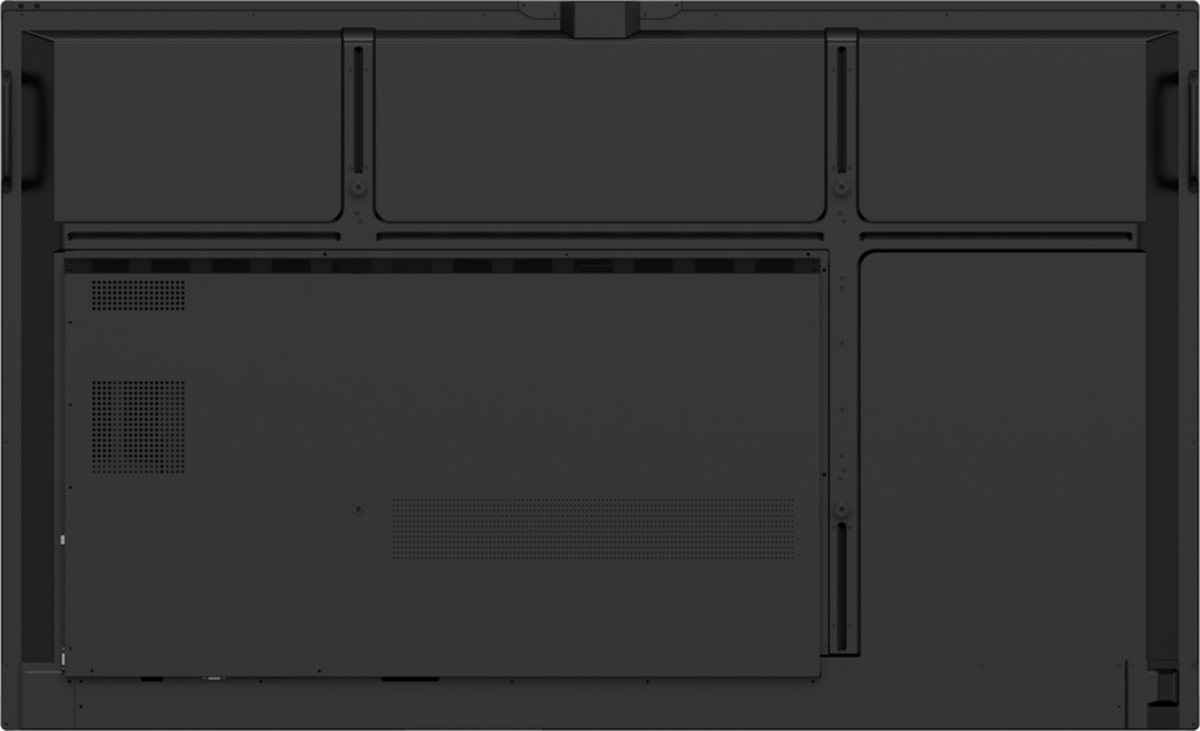

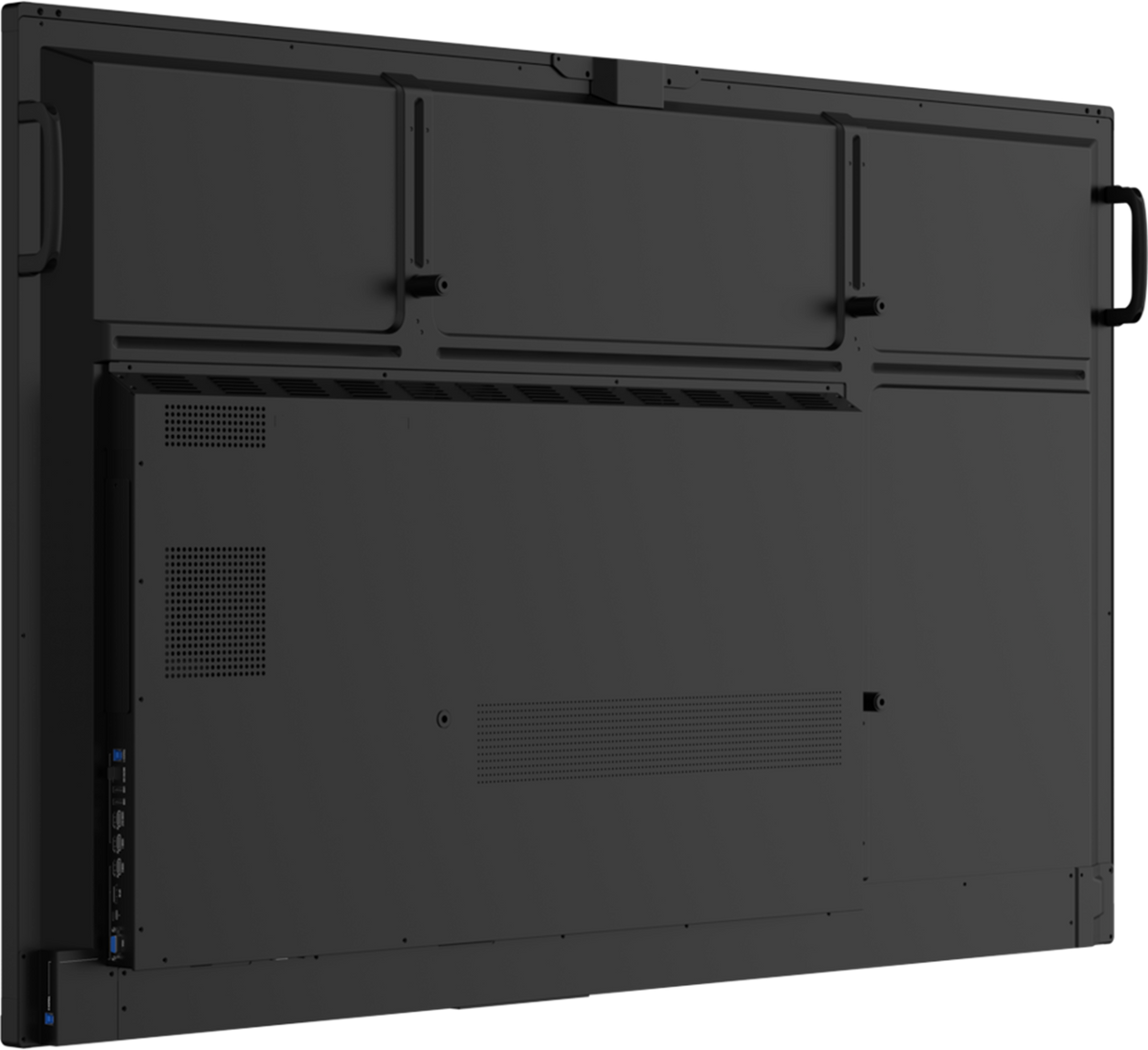

- VESA Mount: 800 x 600mm
Operating Conditions
- Temperature: 0°C to 40°C
- Humidity: 20% to 80% RH Non-Condensing
Dimensions & Weight
- Physical Dimensions: 1956.7 x 1170.5 x 87.4 mm
- Packaging Dimensions: 2100 x 1293 x 176 mm
- Net Weight: 58.2 kg
- Gross Weight: 72.9 kg
Certifications
- cTUVus
- EPEAT Silver
- BSMI
- TGM
- LBL
- FF
- REACH
- WEEE
- FCC/ICES003
- ENERGY STAR 8.0
- CE EMC
- CB
- EAC
- Ukr
- ErP-EEL
Energy Efficiency
- ENERGY STAR Version: 8.0
- EEI Rating: D
Package Contents
- Power Cord x1 (3m, region-specific)
- USB Type-C Cable x1 (1.8m, USB-IF Certified)
- USB Touch Cable x1 (3m)
- Passive Touch Pen x2
- Quick Start Guide
- Wall Mount Screws x4
- HDMI Cable x1 (3m, HDMI Certified)
- Remote Controller x1
- AAA Batteries x2
