Product Description

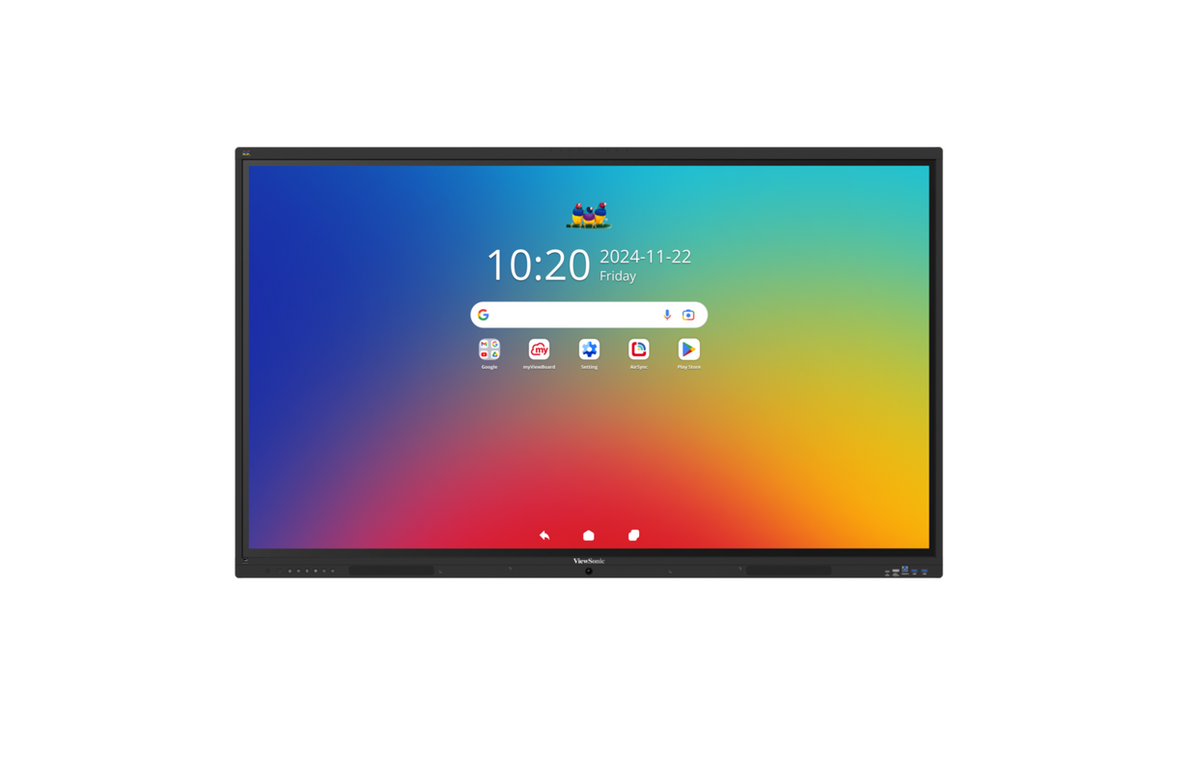

ViewSonic ViewBoard IFP6541-1-1C
65" 4K UHD Interactive Display | Android 16 EDLA-Certified | 64-Point Touch | 8-Microphone Array
The ViewSonic ViewBoard IFP6541-1-1C is a next-generation interactive display designed to deliver engaging, secure, and collaborative learning experiences. Powered by Android 16 with Google EDLA certification, an Octa-Core processor, and 8GB RAM, it provides smooth performance for teaching, presentations, and content sharing. The 64-point Ultra Fine Touch technology, instant Write Away annotation, and integrated myViewBoard software create an intuitive digital whiteboarding experience for modern classrooms.
Built with sustainability and user convenience in mind, the IFP6541-1-1C features integrated ambient light and PIR motion sensors, helping reduce energy consumption while extending panel lifespan. Enhanced connectivity, dual USB-C ports with up to 100W Power Delivery, built-in 2.1-channel speakers with subwoofer, and an 8-array microphone system make it a complete hybrid learning and collaboration solution.
Key Features
- 65" 4K UHD interactive display with Android 16
- Google EDLA-certified for Google Play Store access and enhanced security
- 64-point Ultra Fine Touch technology with palm rejection
- Write Away instant annotation functionality
- Octa-Core processor with 8GB RAM and 128GB storage
- Dual USB-C ports with up to 100W Power Delivery
- Integrated myViewBoard whiteboarding software
- AirSync wireless casting with support for up to 9 shared screens
- 2.1-channel sound system with 20W x2 speakers and 15W subwoofer
- Built-in 8-array microphone system with noise reduction
- Light sensor and PIR motion sensor for power optimization
- Native Google Workspace integration
- Remote device management with ViewSonic Manager
- Advanced security with Google Play Protect, encryption, and authentication
- ENERGY STAR® 8.0 certified
Specifications
Display
- Panel Size: 65"
- Panel Type: TFT LCD Module with DLED Backlight
- Display Area: 1428.48mm (H) x 803.52mm (V)
- Aspect Ratio: 16:9
- Resolution: UHD 3840 x 2160
- Colors: 1.07 Billion Colors
- Brightness: 400 nits (typ.)
- Contrast Ratio: 5000:1 (Max. with DCR Enabled)
- Response Time: 6.5ms
- Viewing Angles: 178° (H) / 178° (V)
- Backlight Life: 50,000 Hours
- Surface Treatment: 9H Hardness, Anti-Glare Coating
- Orientation: Landscape
Platform
- Processor: Octa-Core CPU
- RAM: 8GB
- Storage: 128GB
Touch
- Touch Technology: Ultra Fine Touch (IR Recognition)
- Touch Resolution: 32767 x 32767
- Touch Points: Up to 64-Point Touch
- Palm Rejection: Yes
Input Ports
- HDMI: 3 x HDMI 2.1 (4K@60Hz, CEC, ARC support)
- VGA: 1 x RGB/VGA
- DisplayPort: 1 x DisplayPort
- Audio Input: 1 x Audio In
- RS232: 1 x RS232
- TF Card Slot: 1 x Micro SD
- OPS Slot: 1 x PC Slot
Output Ports
- HDMI Output: 1 x HDMI 2.1 (4K@60Hz)
- Audio Output: 1 x Line Out
- SPDIF: 1 x Optical
Network & Connectivity
- RJ45: 2 x LAN Ports
- USB Type-A: 5 x USB
- USB Type-B: 3 x USB-B
- USB Type-C:
- Front: USB 3.2 Gen 1, DP 1.2, Ethernet, 100W PD
- Rear: USB 3.2 Gen 1, DP 1.2, Ethernet, 15W PD
Audio
- Speakers: 20W x2 Front Soundbar
- Subwoofer: 15W x1
- Microphone: Built-in 8-Array Microphone
Operating System
- Android 16 (EDLA-Certified)
Bundled Software
- myViewBoard for Android
- myViewBoard for Windows (via embedded VPC)
- AirSync Wireless Presentation
- ViewSonic Manager
- ViewSonic Launcher
Special Features
- SmartPort USB Support
- LAN Sharing (10/100/1000M)
- Ambient Light Sensor
- PIR Motion Sensor
Power
- Voltage: 100-240V AC ±10%
- Power Consumption: 69.56W (Typical)
- Power Off: <0.5W
Ergonomics
- VESA Mount: 600 x 400mm
Operating Conditions
- Temperature: 0°C to 40°C
- Humidity: 20% to 80% RH Non-Condensing
Dimensions & Weight
- Physical Dimensions: 1488.3 x 907.2 x 88.1 mm
- Packaging Dimensions: 1620 x 1011 x 179 mm
- Net Weight: 34.4 kg
- Gross Weight: 42.4 kg
Certifications
- cTUVus
- EPEAT Silver
- BSMI
- TGM
- LBL
- FF
- REACH
- WEEE
- FCC/ICES003
- ENERGY STAR 8.0
- CE EMC
- CB
- EAC
- Ukr
- ErP-EEL
Energy Efficiency
- ENERGY STAR Version: 8.0
- EEI Rating: D
Package Contents
- 3m Power Cord x1
- USB Type-C Cable (1.8m) x1
- USB Touch Cable (3m) x1
- Passive Touch Pen x2
- Quick Start Guide
- Wall Mount Screws x4
- HDMI Cable (3m) x1
- Remote Controller x1
- AAA Batteries x2
