Product Description
ViewSonic IN21C Series 75" Interactive Display
75" 4K UHD | 50-Point Touch | 50MP 4K Camera | EDLA-Certified Android 14 | Interactive Collaboration Display
The ViewSonic IN21C Series 75" Interactive Display is an all-in-one collaboration solution designed for modern classrooms, training environments, and meeting spaces. Featuring a stunning 75-inch 4K UHD display, 50-point Ultra Fine Touch technology, and a built-in 50MP 4K camera, it delivers an immersive experience for hybrid learning, presentations, and video conferencing.
Powered by an Octa-Core processor, Android 14 with Google EDLA certification, and advanced wireless casting capabilities, the IN21C Series enables seamless collaboration across multiple devices and platforms. With built-in microphones, powerful front-facing speakers, USB-C connectivity, and optional AI-powered tools, it enhances engagement while simplifying classroom and meeting room workflows.
Key Features
- 75" 4K UHD interactive display with Ultra Fine Touch technology
- 50-point multi-touch support for collaborative learning and presentations
- Built-in 50MP 4K camera with auto-framing, voice tracking, and digital zoom
- 8-array beamforming microphone system with up to 8m voice pickup
- Wireless casting via AirPlay, Chromecast, Miracast, PIN sharing, and web casting
- Supports up to 9 simultaneous screen shares
- Integrated whiteboarding and interactive teaching tools
- Optional AI-powered OCR, Chatbot, Mind Map, Topic Generator, and Question Generator
- Google EDLA-certified with native Google Workspace integration
- Octa-Core processor with 8GB RAM and 128GB storage
- USB-C connectivity with up to 65W Power Delivery
- 20W x 2 front-facing soundbar speakers
- Advanced security with Google Play Protect, encryption, and authentication
- Remote device management and firmware updates
- Anti-glare 9H hardened glass for enhanced durability
Specifications
- Panel Size: 75"
- Panel Type: TFT LCD Module with DLED Backlight
- Display Area: 1650.24mm (H) x 942.01mm (V)
- Aspect Ratio: 16:9
- Resolution: UHD 3840 x 2160
- Colors: 1.07 Billion Colors
- Brightness: 450 nits (typ.)
- Contrast Ratio: 5000:1 (typ.)
- Response Time: 6.5 ms
- Viewing Angles: 178° (H) / 178° (V)
- Backlight Life: 50,000 Hours
- Surface Treatment: 9H Hardness, Anti-Glare
- Orientation: Landscape
- Processor: Octa-Core CPU
- GPU: Multi-Core Mali-G52
- RAM: 8GB
- Storage: 128GB
- Touch Technology: Ultra Fine Touch Technology (IR Recognition)
- Touch Resolution: 32767 x 32767
- Touch Points: 50-Point Touch (EDLA / Android / Windows)
- Palm Rejection: Yes
- HDMI Input: 3 x HDMI (4K@60Hz)
- VGA Input: 1 x RGB / VGA
- DisplayPort Input: 1 x DisplayPort
- Audio Input: 1 x Audio In
- RS232: 1 x RS232
- TF Card Slot: 1 x Micro SD
- OPS Slot: 1 x Optional Intel Standard OPS Slot
- HDMI Output: 1 x HDMI
- Audio Output: 1 x Line Out
- SPDIF Output: 1 x Optical
- LAN: 2 x RJ45
- USB Type-A: 5 x USB (USB 3.2 x4, USB 2.0 x1)
- USB Type-B: 2 x USB-B (Front x1, Rear x1)

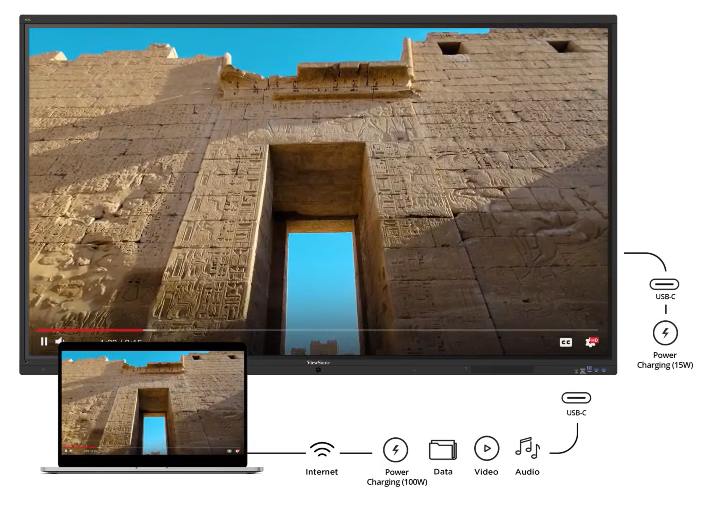

- USB Type-C: 2 x USB-C (PD 65W x1, PD 15W x1)
- Speakers: 20W x 2 Front Soundbar
- Built-in Camera: 50MP, 4K Resolution
- Built-in Microphone: 8-Array Microphone
- Light Sensor: Yes
- Embedded OS: EDLA-Certified Android 14
- SmartPort USB: USB 3.2 Gen 1
- LAN Sharing: 10/100/1000M
- Voltage: 100-240V AC ±10%
- Power Consumption: On 98.82W; Off <0.5W
- VESA Mount: 800 x 400mm
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 20% to 80% RH Non-Condensing
- Physical Dimensions: 1709.4 x 1038.9 x 99.4 mm
- Packaging Dimensions: 1863 x 1163 x 225 mm
- Net Weight: 44.25 kg
- Gross Weight: 54.15 kg
- Certifications: ES 8.0, WEEE, RoHS, REACH
Package Contents
- 3M Power Cord x1
- 3M USB Touch Cable x1
- Passive Pen x2
- Quick Start Guide
- 3M HDMI Cable x1
- Remote Controller x1
- AAA Battery x2
