Product Description
SX6632YF

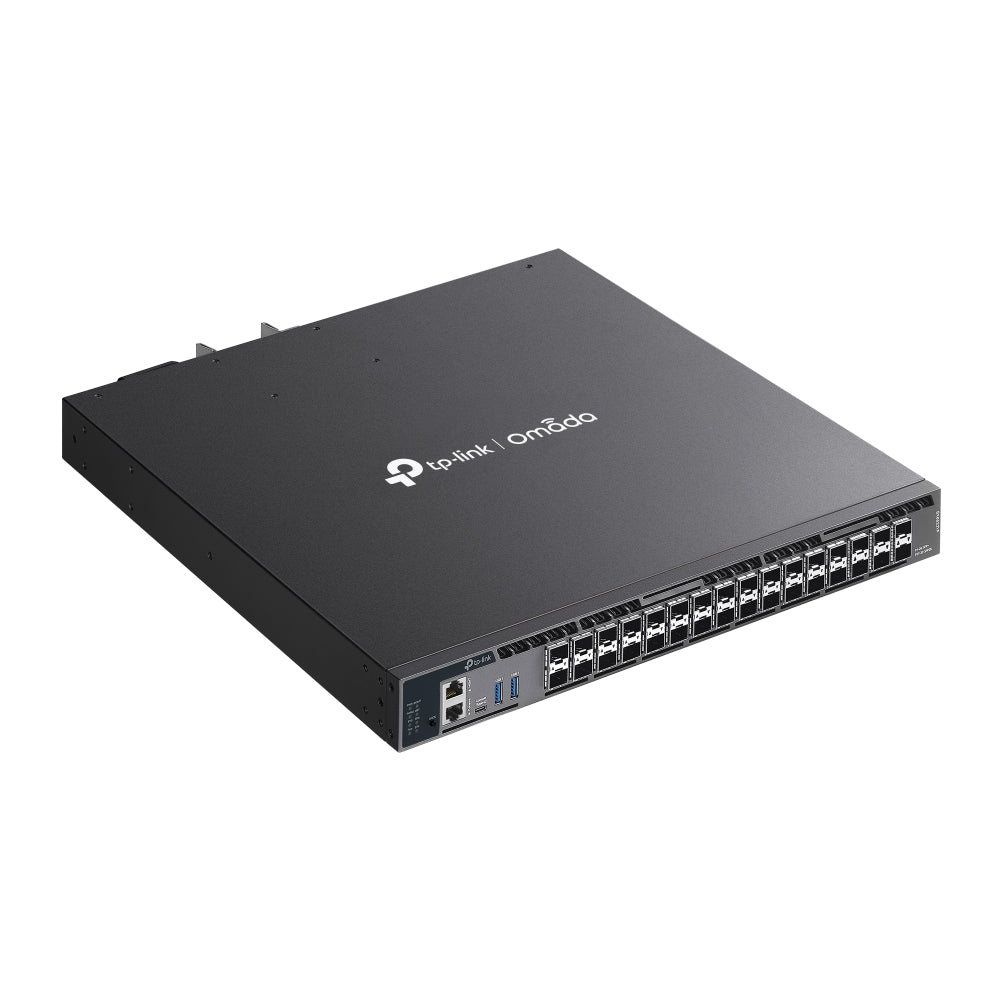

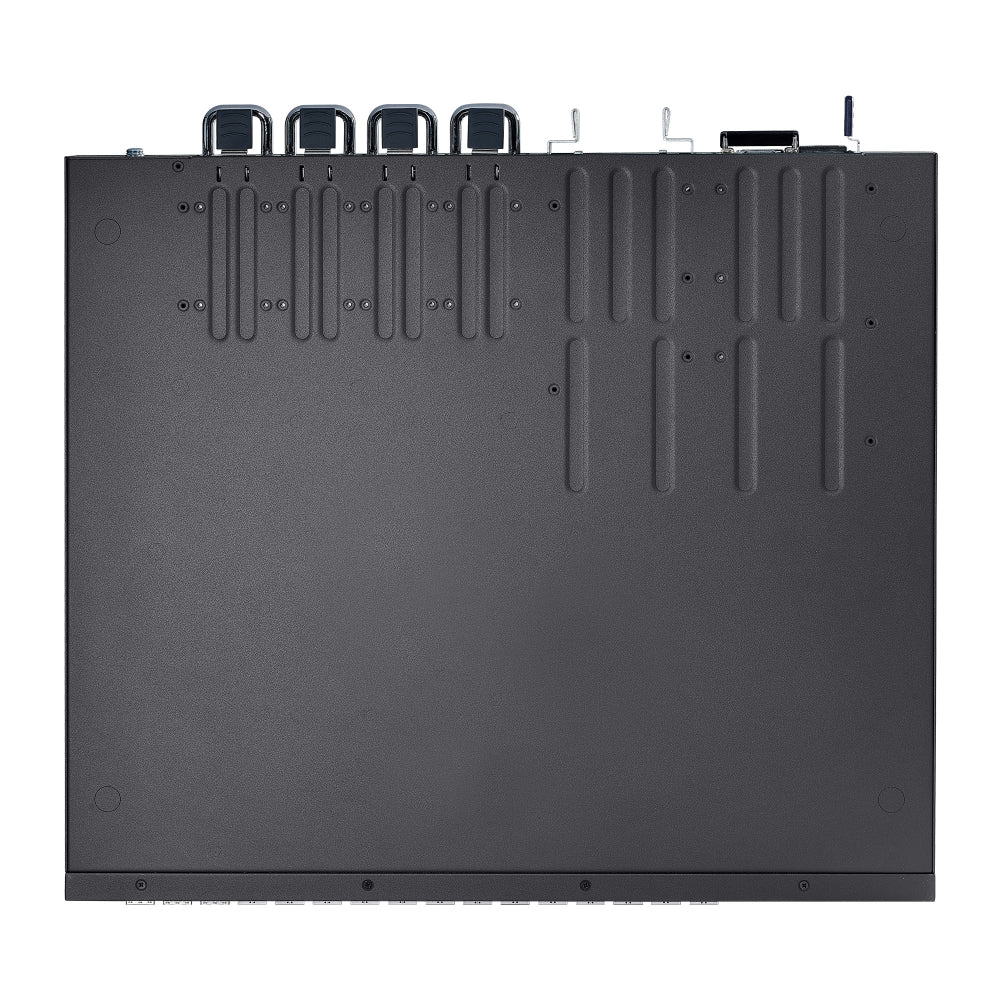

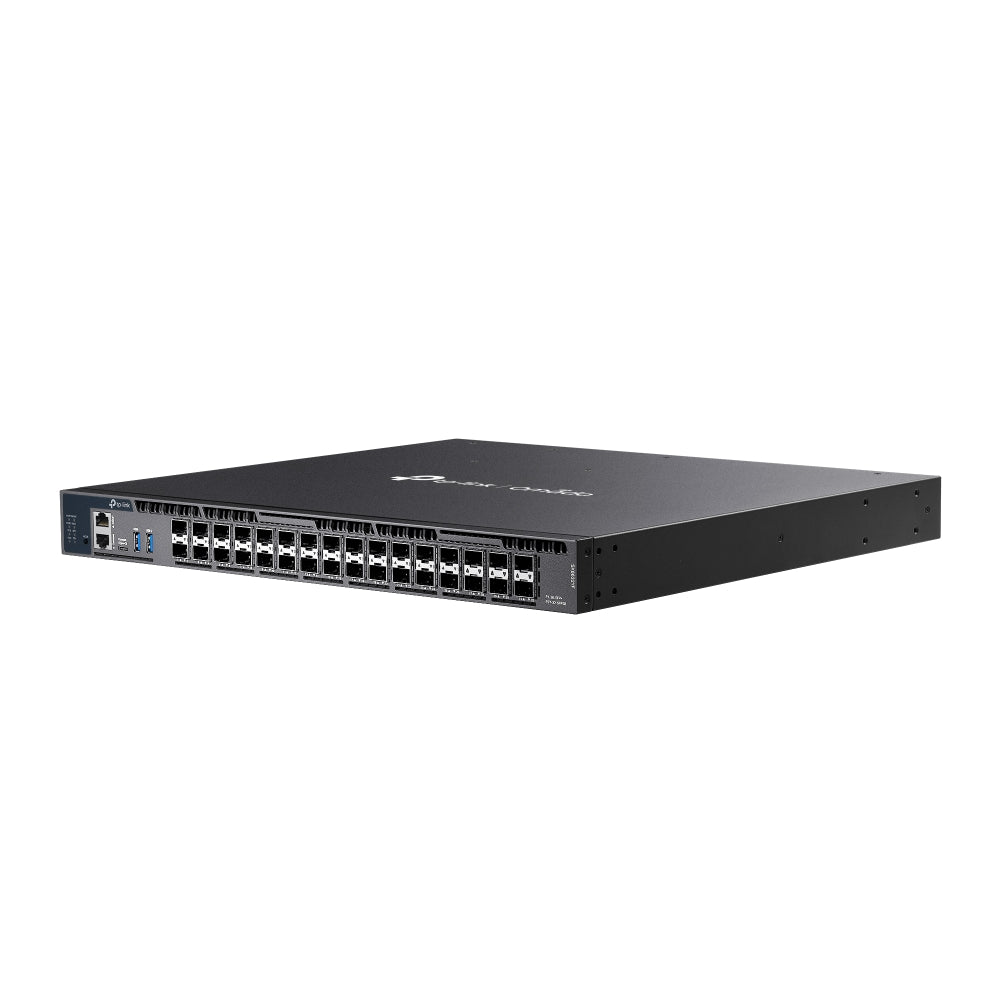

Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots
- 26× 10G SFP+ slots and 6× 25G SFP28 slots
- 820 Gbps switching capacity
- Physical Stacking up to 8 units for built-in redundancy and performance**
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies*, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Specifications:
HARDWARE FEATURES

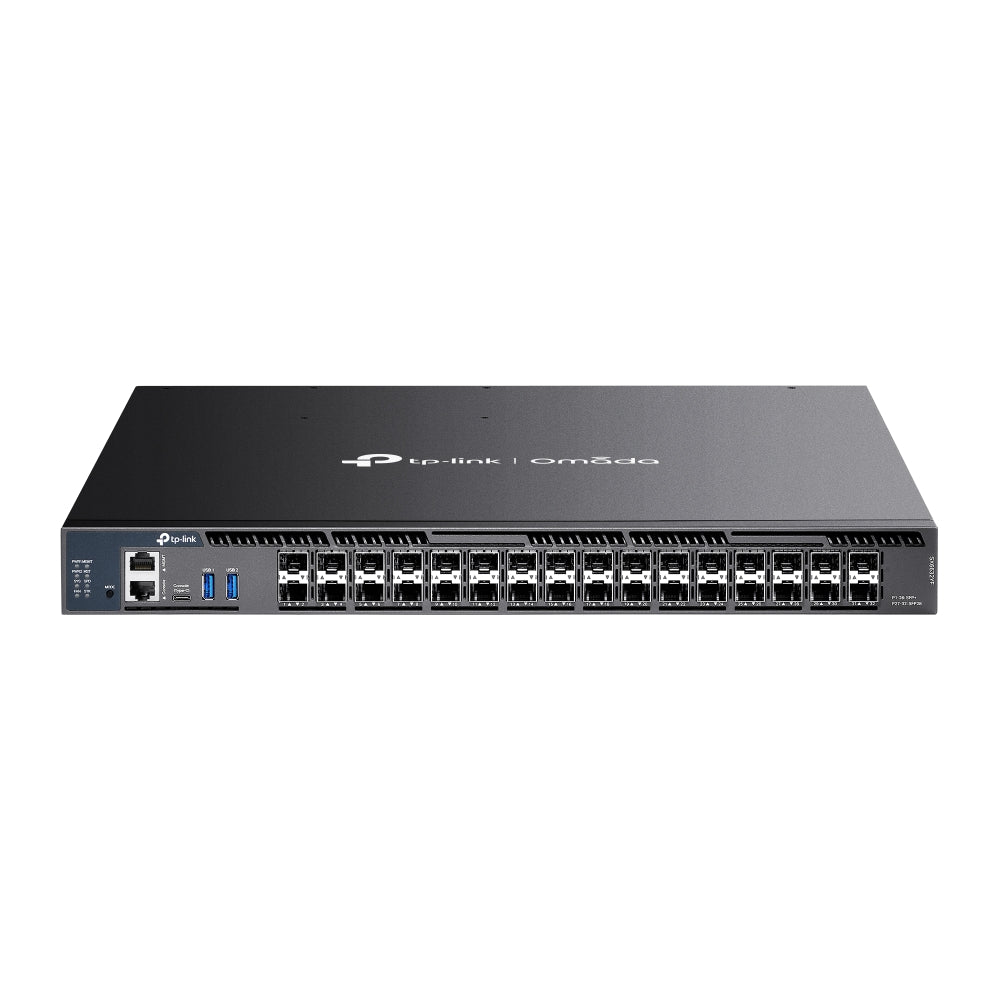

Interface: • 6× 10/25G SFP28 Slots • 26× 1/10G SFP+ Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type‑C Console Port • 1× RJ45 Management Port

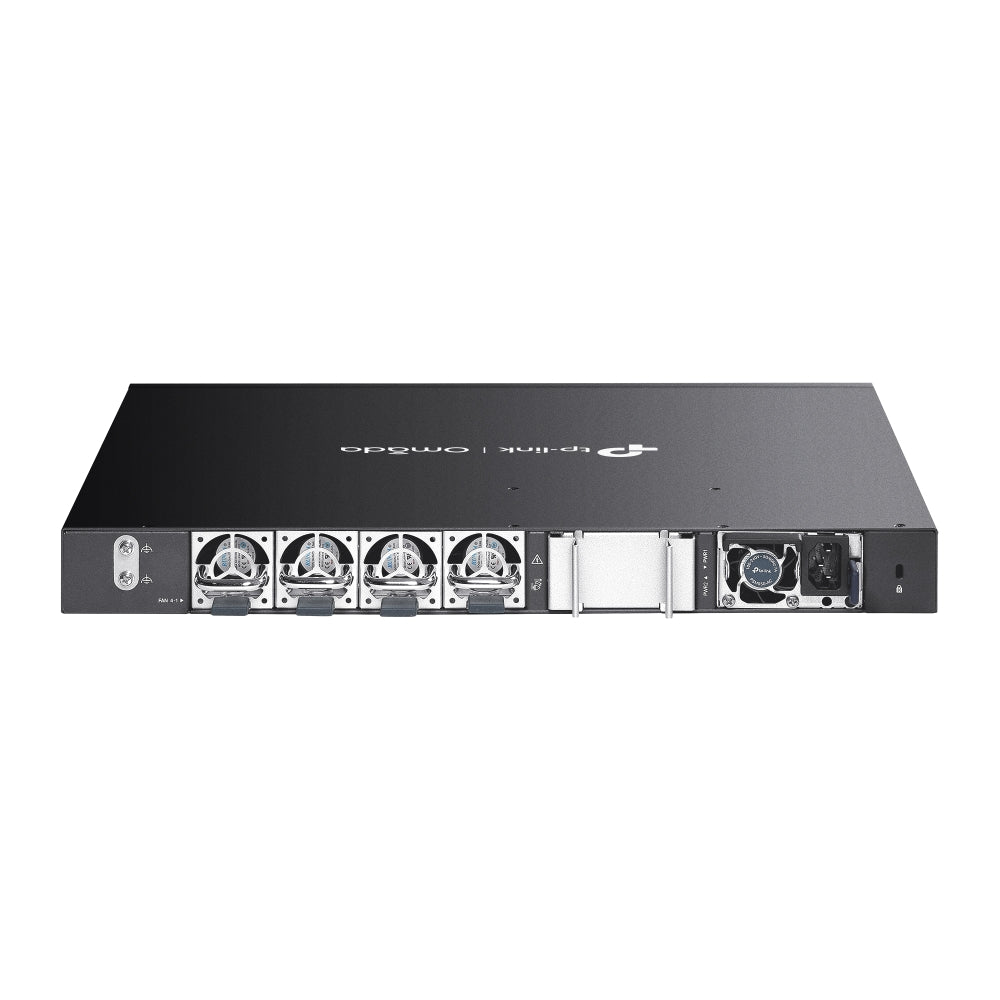

Fan Quantity: Four field‑replaceable and hot‑swappable fans (N+1 redundant)
Physical Security Lock: √
Power Supply: Two field‑replaceable and hot‑swappable redundant power supplies (100–240 VAC, 50/60 Hz)*
*Ships with one PSM550‑AC; second PSU sold separately.
Max. Power Consumption: 86.7 W (110 V/60 Hz)
Dimensions: 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting: Rack Mountable
Max. Heat Dissipation: 295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity: 820 Gbps
Stacking: • 8 Units • 25G SFP28 Ports • Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate: 610.1 Mpps
MAC Address Table: 128 K
Packet Buffer: 8 MB
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service: • 8 Priority Queues • Port/802.1p/DSCP Priority • Min‑Bandwidth Queue • SP/WRR/SP+WRR • Rate Limit • Storm Control • User‑Defined OUI • QoS Remarking (802.1P/DSCP)
L3 Features: • IP Interfaces (IPv4/IPv6): 256 • IPv4 Static Routes: 2,048 • IPv6 Static Routes: 1,024 • Host Routes: 15,300 • RIP (v1/v2 up to 102,400) • RIPng (51,200) • OSPFv2/v3 • VRRP v2/v3 (64 groups) • ECMP (256 entries, 32 nexthops) • ARP Static 1,024 / Dynamic 24,576 • Proxy ARP • DHCP Server (8K Pools, 1,000 Static Bindings) • DHCP Relay (Interface/VLAN)
L2 & L2+ Features: • Link Aggregation (Static / LACP, 8 ports per group, 120 groups) • STP (STP/RSTP/MSTP up to 64 MSTI; 4 MSTI under Omada) • STP Protections (TC/BPDU/Root/Loop) • Loopback Detection (Port/VLAN) • Flow Control (802.3x) • IGMP Snooping (4,093 Groups) • ERPS (64 Rings) • Mirroring (Port/CPU/One‑to‑One/Many‑to‑One/Tx/Rx/Both) • RSPAN • MAC Table • Static MAC (128 entries) • Dynamic MAC (128K) • Filtering MAC (128 entries) • Virtual MAC (Standalone Only)
Advanced Features: • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
ISP Features: • 802.3ah OAM • L2PT • DLDP • DDM • sFlow • PPPoE ID Insertion
VLAN: • 4K VLANs • 802.1Q • MAC VLAN (200 entries) • Multicast VLAN • Management VLAN • QinQ (256 entries) • GVRP • Protocol VLAN • VLAN VPN (Mapping / Replace) • Voice VLAN • Private VLAN
Security: • Port Isolation • CPU‑Defend • Dynamic ARP Inspection • DoS Defense • IP‑MAC‑Port Binding (1,024 entries) • DHCP Snooping • ARP Inspection • IPv4/IPv6 Source Guard • DHCP Filter • Port Security (64 MAC/port) • Storm Control • 802.1X (Port/MAC) • VLAN Assignment • MAB • Guest VLAN • RADIUS Authentication/Accounting • AAA/TACACS+ • HTTPS (SSLv3/TLS 1.2) • SSHv2 • ACL (IP/Port/MAC)
MANAGEMENT FEATURES
Omada App: Yes (requires Omada Controller / Cloud / Hardware / Software Controller)
Centralized Management: • Omada Cloud‑Based • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes (Omada Controller required)
Zero‑Touch Provisioning: Yes (Omada Cloud‑Based Controller required)
Management Tools: • Web GUI • CLI (console/telnet) • SNMPv1/v2c/v3 • RMON (1/2/3/9) • SDM Template • DHCP/BOOTP Client • LLDP/LLDP‑MED • DHCP Auto‑Install • Dual Image/Config • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log
OTHERS
Package Content: • SX6632YF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment:
• Operating Temp: −5°C to 50°C (300 m) / −5°C to 45°C (2000 m) / −5°C to 40°C (3000 m)
• Storage Temp: −40°C to 70°C
• Operating Humidity: 10–90% RH
• Storage Humidity: 5–90% RH
