Product Description

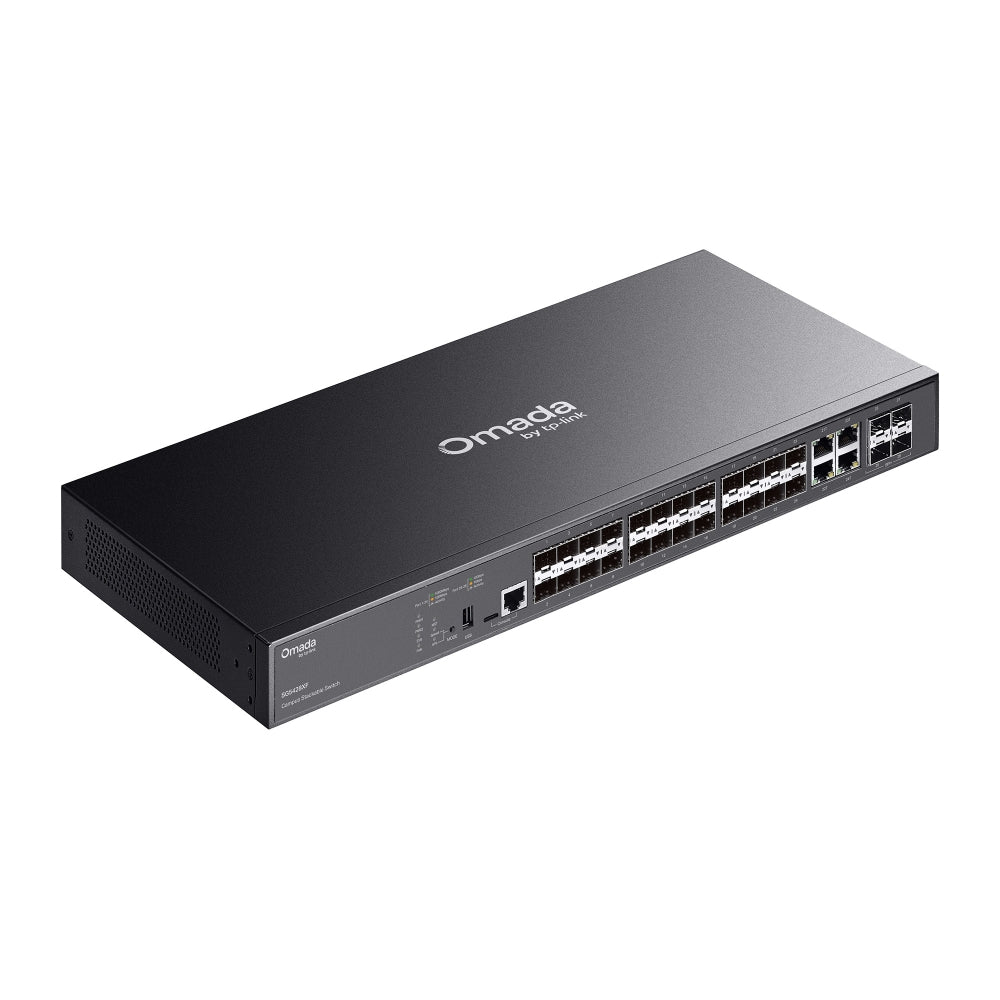

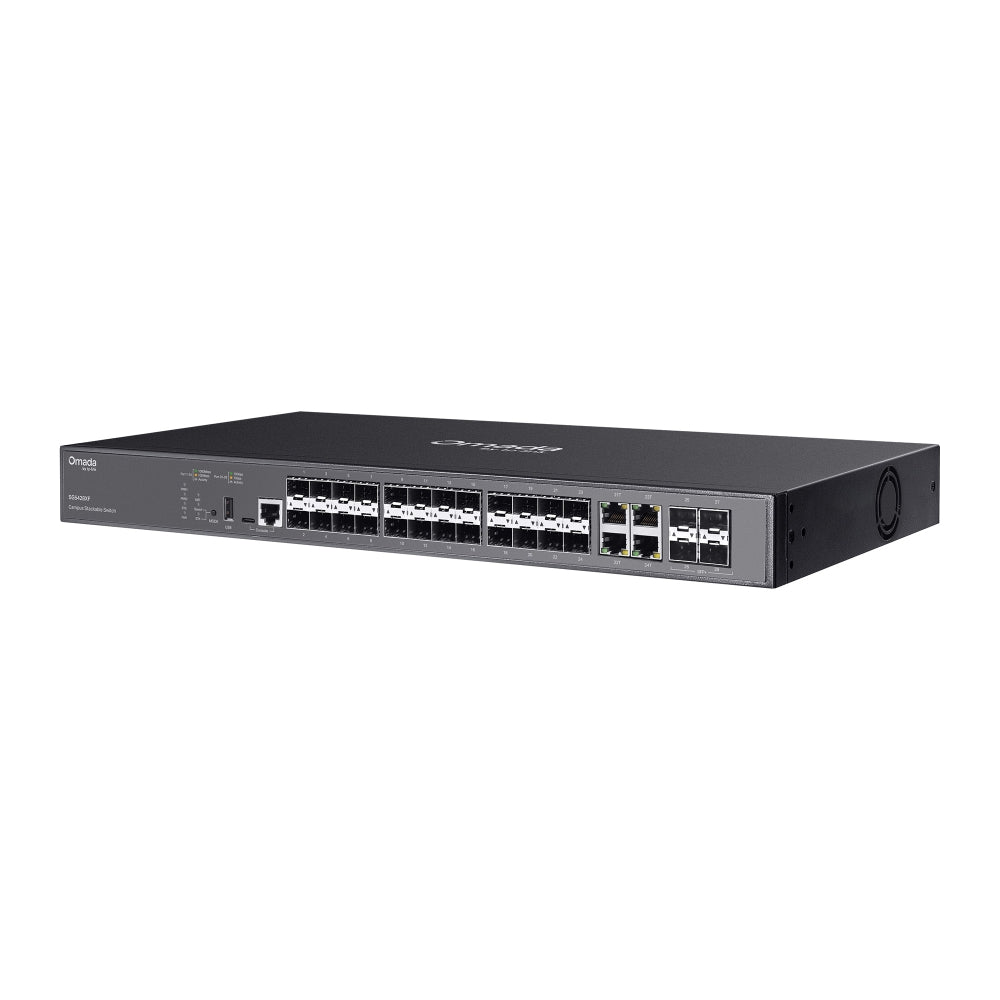

SG5428XF
Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots
- 20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports
- 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit

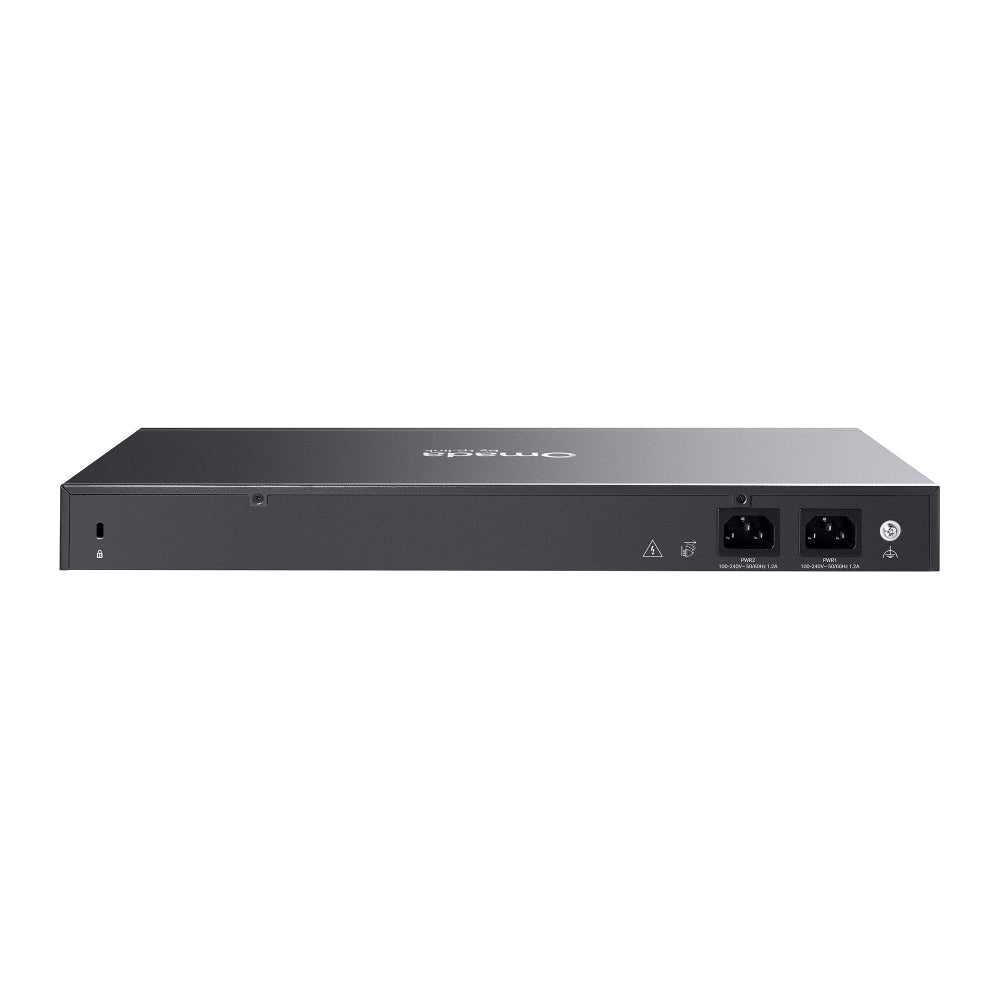

- Dual internal power supplies provide mutual backup
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Specifications:
HARDWARE FEATURES

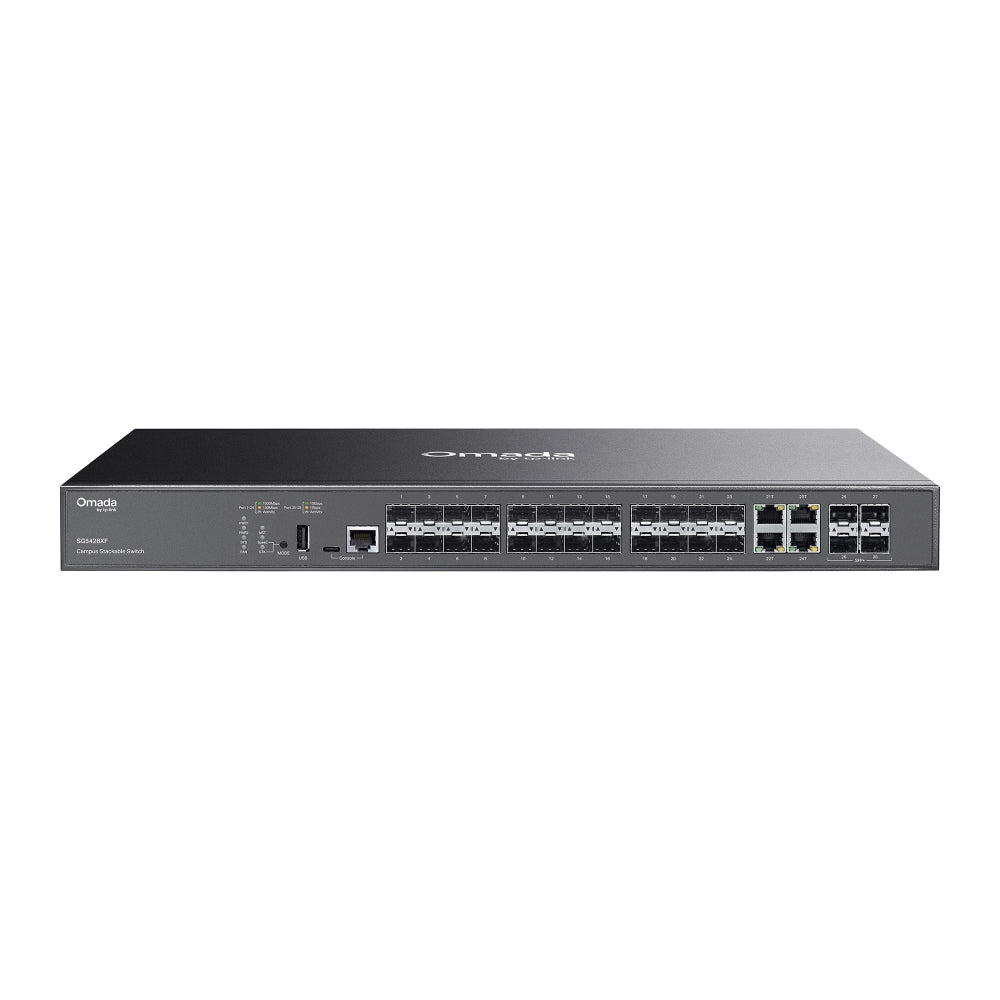

Interface: • 20× 100/1000 Mbps SFP Slots • 4× Gigabit RJ45/SFP Combo Ports • 4× 1/10 Gbps SFP+ Slots* • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type‑C Console Port
Fan Quantity: 1 Fan
Power Supply: 100–240 V~ 50/60 Hz
Dimensions: 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting: Rackmountable
Max. Power Consumption: • 28.3 W (220V/50Hz @ 25°C) • 28.98 W (110V/60Hz @ 25°C)
Max. Heat Dissipation: • 96.503 BTU/hr (220V/50Hz @ 25°C) • 98.822 BTU/hr (110V/60Hz @ 25°C)
PERFORMANCE
Switching Capacity: 128 Gbps per Unit
Stacking: • 4 Units • 10G SFP+ Ports for Stacking • Up to 80 Gbps (4 Ports)
Packet Forwarding Rate: 95.23 Mpps
MAC Address Table: 16 K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service: • 8 Priority Queues • Port / IEEE 802.1p / DSCP Priority • Min‑Bandwidth Queue • SP / WRR / SP+WRR • Bandwidth Control • Rate Limit • Storm Control • Voice VLAN • User‑Defined OUI • QoS Remarking (802.1P / DSCP)
L3 Features: • IP Interfaces IPv4/IPv6: 128 • ARP: 512 Static / 3,600 Dynamic • ND Dynamic: 3,600 • Static Routes: 512 IPv4 / 128 IPv6 • Host Routes: 1,024 IPv4 / 890 IPv6 • Network Routes: 1,796 IPv4 / 450 IPv6 • RIP v1/v2 • RIPng • OSPF v2/v3 • Proxy ARP • DHCP Server (64 Pools, 8,000 Leases, 1,000 Bindings) • DHCP Relay (Interface/VLAN)
L2 and L2+ Features: • Link Aggregation • Spanning Tree Protocol • VLAN/Port Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast (IGMP/MLD Snooping, 2,000 entries, Fast Leave, MVR, Static Groups, Filtering)
Advanced Features: • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
ISP Features: • 802.3ah OAM • L2PT • DLDP • DDM • sFlow
VLAN: • 4K VLAN Groups • 802.1Q Tagged • MAC VLAN (60 entries) • Multicast VLAN • Management VLAN • QinQ (256 entries) • GVRP • Protocol VLAN • Voice VLAN • Private VLAN
Security: • Port Isolation • CPU‑Defend • Dynamic ARP Inspection • DoS Defense • IP‑MAC‑Port Binding (1,024 entries) — DHCP Snooping / ARP Scanning / ARP Detection / IPv4 Source Guard • IPv6‑MAC‑Port Binding (1,024 entries) — DHCPv6 Snooping / ND Snooping / ND Detection / IPv6 Source Guard • DHCP Filter • Port Security (64 MAC/port) • Storm Control • 802.1X (Port/MAC) • VLAN Assignment • MAB • Guest VLAN • RADIUS Authentication/Accounting • AAA/TACACS+ • HTTPS (SSLv3/TLS1.2) • SSHv2 • IP/Port/MAC ACL
MANAGEMENT FEATURES
Omada App: Yes (requires Omada Hardware / Cloud‑Based / Software Controller)
Centralized Management: • Omada Cloud‑Based Controller (v5.15.22+) • Omada Hardware Controller (v5.15.20+) • Omada Software Controller (v5.15.20+)
Cloud Access: Yes (controller required)
Zero‑Touch Provisioning: Yes (via Omada Cloud‑Based Controller)
Management Tools: • Web GUI • CLI • SNMP v1/v2c/v3 • RMON (1/2/3/9) • SDM Template • DHCP/BOOTP Client • LLDP/LLDP‑MED • DHCP Auto‑Install • Dual Image/Config • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az EEE
OTHERS
Package Content: • SG5428XF Switch • Power Cords • Console Cable • Rackmount Kits • Rubber Feet • Quick Installation Guide
System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment: • Operating Temp: −5°C to 45°C (23°F–113°F) • Storage Temp: −40°C to 70°C (−40°F–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
