Product Description

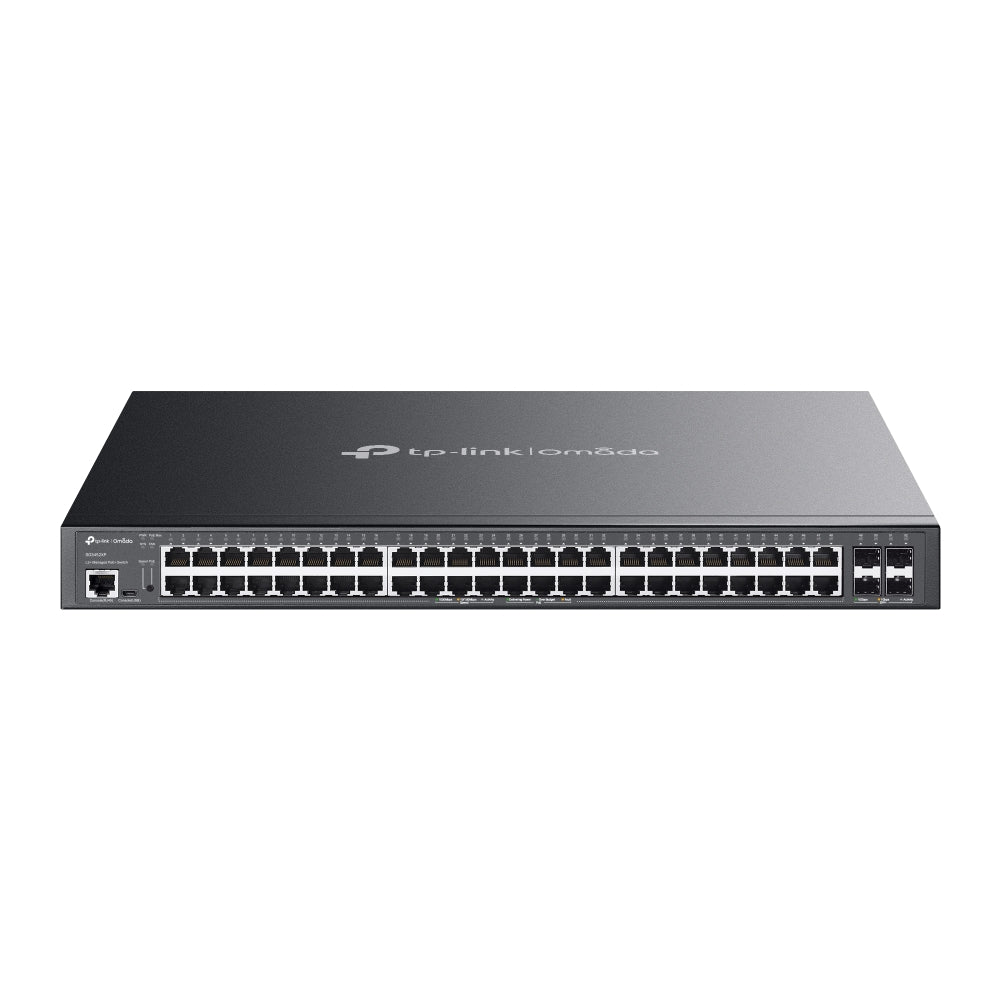

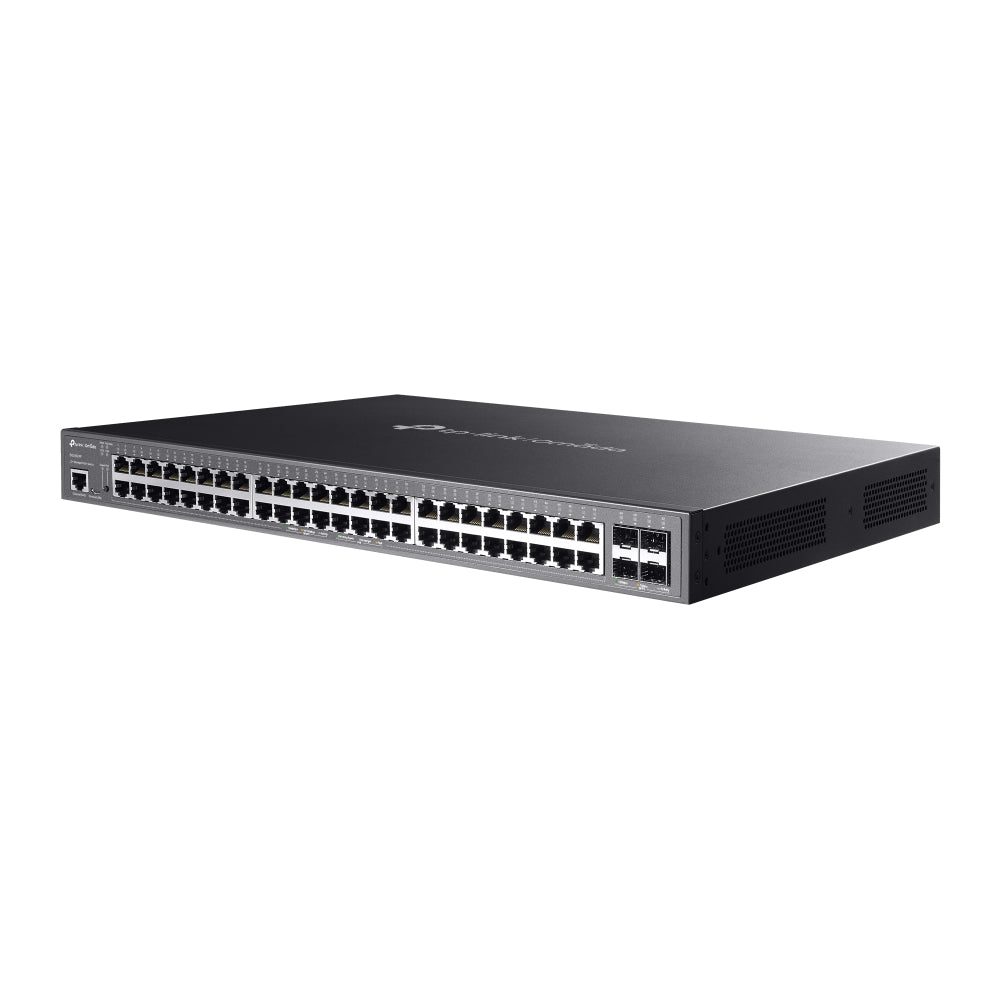

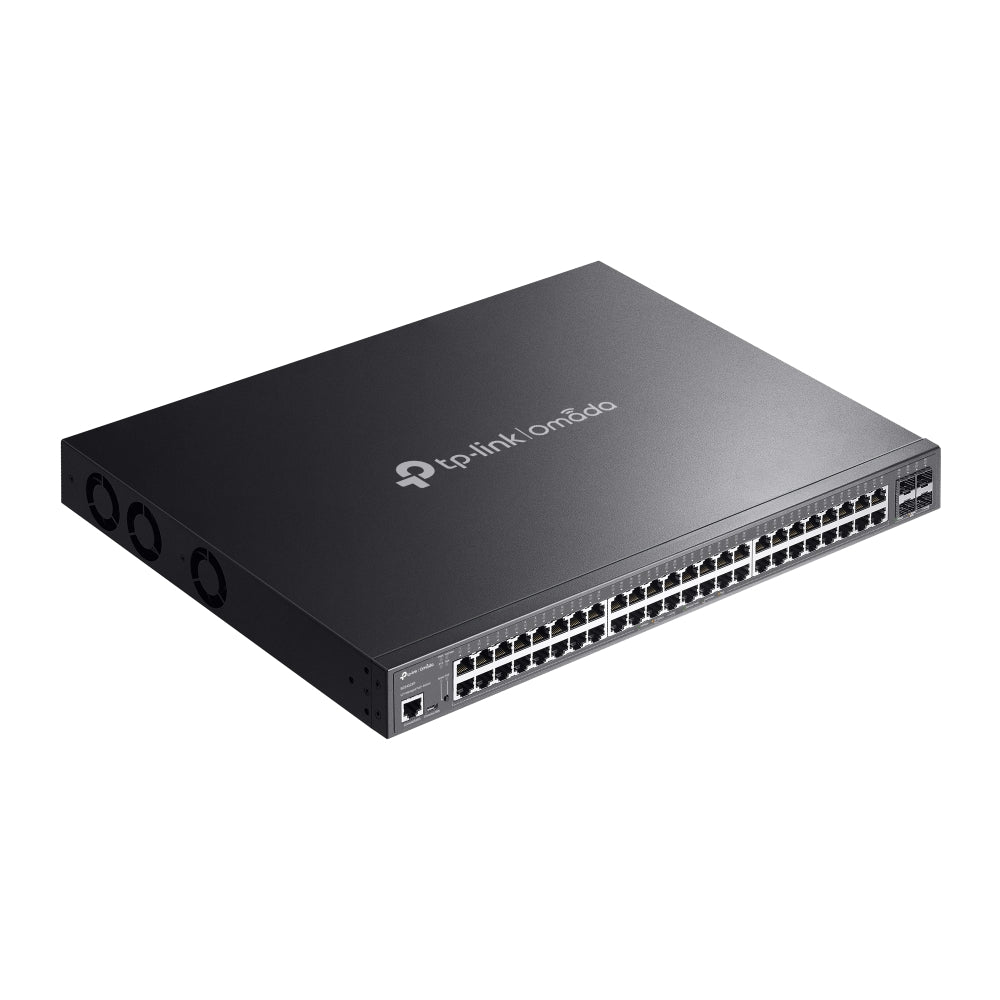

SG3452XP
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+
- 4× 10 Gbps SFP+ slots
- 48× Gigabit 802.3af/at PoE+ ports
- 500 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Specifications:
HARDWARE FEATURES
Interface: • 48× 10/100/1000 Mbps RJ45 PoE+ Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro‑USB Console Port
Fan Quantity: 3
Physical Security Lock: √
Power Supply: 100–240 V AC ~ 50/60 Hz
PoE Ports (RJ45): • 802.3af/at compliant • 48× PoE+ Ports (up to 30 W/port) • Total Power Budget: 500 W*
Dimensions: 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting: Rack Mountable
Max. Power Consumption: • 49.19 W (no PD, 110 V/60 Hz) • 635.7 W (500 W PD, 110 V/60 Hz)
Max. Heat Dissipation: • 167.85 BTU/hr (no PD) • 2169.2 BTU/hr (500 W PD)
PERFORMANCE
Switching Capacity: 176 Gbps
Packet Forwarding Rate: 130.9 Mpps
MAC Address Table: 16 K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service: • 8 priority queues • 802.1p CoS/DSCP Priority • SP/WRR/SP+WRR scheduling • Port/Flow Rate Limiting • Smoother Performance • QoS remark (802.1P/DSCP)
L2 and L2+ Features: • 128 IPv4/IPv6 Interfaces • 48 IPv4/IPv6 Static Routes • Static ARP: 128 • Dynamic ARP: 512 • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay (Interface/VLAN) • DHCP L2 Relay • Link Aggregation • STP • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast: • 1000 IGMP/MLD Groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering (256 profiles, 16 entries each)
Advanced Features: • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrade† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
ISP Features: • L2PT • DLDP • PPPoE ID Insertion • ERPS • 802.3ah OAM • DDM • sFlow
VLAN: • 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN (30 entries) • Protocol VLAN (16 templates / 16 entries) • Private VLAN • GVRP • VLAN VPN (Mapping/Replace) • Voice VLAN
Access Control List: • Time‑based ACL • MAC ACL • IP ACL • Combined ACL • Packet Content ACL • IPv6 ACL • ACL Policies (Mirror/Redirect/Rate Limit/QoS Remark) • ACL per Port/VLAN
Security: • IP‑MAC‑Port Binding (512 entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard 100 entries) • IPv6‑MAC‑Port Binding (512 entries; DHCPv6 Snooping; ND Snooping/Detection; IPv6 Source Guard 100 entries) • DoS Defense • DHCP Filter • Port Security (64 MAC/port) • Storm Control (kbps/ratio/pps) • 802.1X (Port/MAC) • VLAN Assignment • MAB • Guest VLAN • RADIUS Accounting • AAA/TACACS+ • Port Isolation • HTTPS (SSLv3/TLS1.2) • SSHv1/SSHv2 • IP/Port/MAC ACL
IPv6: • Dual‑Stack IPv4/IPv6 • MLD Snooping • IPv6 ACL • IPv6 Interfaces • Static IPv6 Routing • Neighbor Discovery (ND) • MTU Discovery • ICMPv6 • TCPv6/UDPv6 • DHCPv6 Client • Ping6 • Traceroute6 • Telnet(v6) • IPv6 SNMP/SSH/SSL • IPv6 TFTP • IPv6 HTTP/HTTPS
MIBs: • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q‑Bridge MIB (RFC2674) • RMON (RFC2819) • RMON2 (RFC2021) • Radius Accounting (RFC2620) • Radius Authentication (RFC2618) • Remote Ping/Traceroute (RFC2925) • TP‑Link Private MIB
MANAGEMENT FEATURES
Omada App: Yes (requires Omada Hardware/Cloud/Software Controller)
Centralized Management: • Omada Cloud‑Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes
Zero‑Touch Provisioning: Yes (via Omada Cloud‑Based Controller)
Management Tools: • Web GUI • CLI (console/telnet) • SNMP v1/v2c/v3 (Trap/Inform, RMON 1/2/3/9) • SDM Template • DHCP/BOOTP Client • LLDP/LLDP‑MED • DHCP AutoInstall • Dual Image/Config • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log
OTHERS
Certification: CE, FCC, RoHS
Package Content: • SG3452XP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements: Windows 98SE–11, macOS, NetWare, UNIX, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
