Product Description

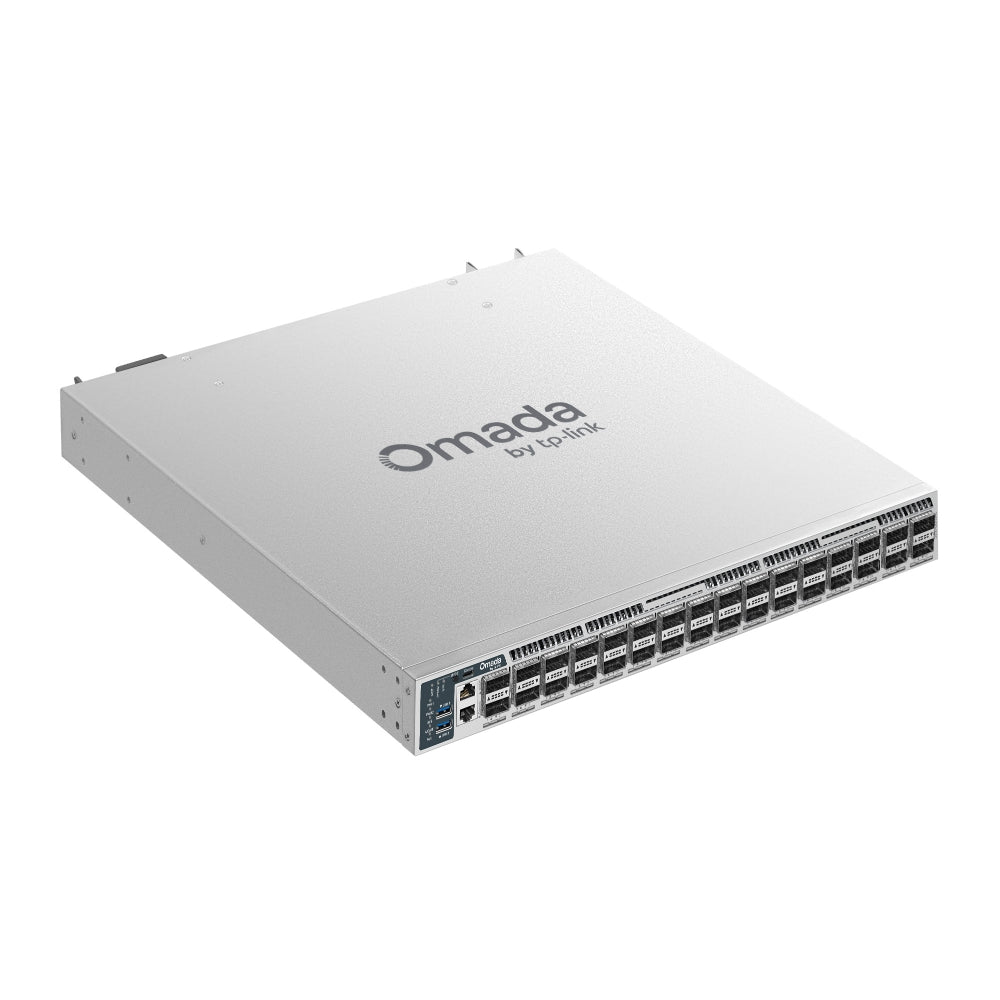

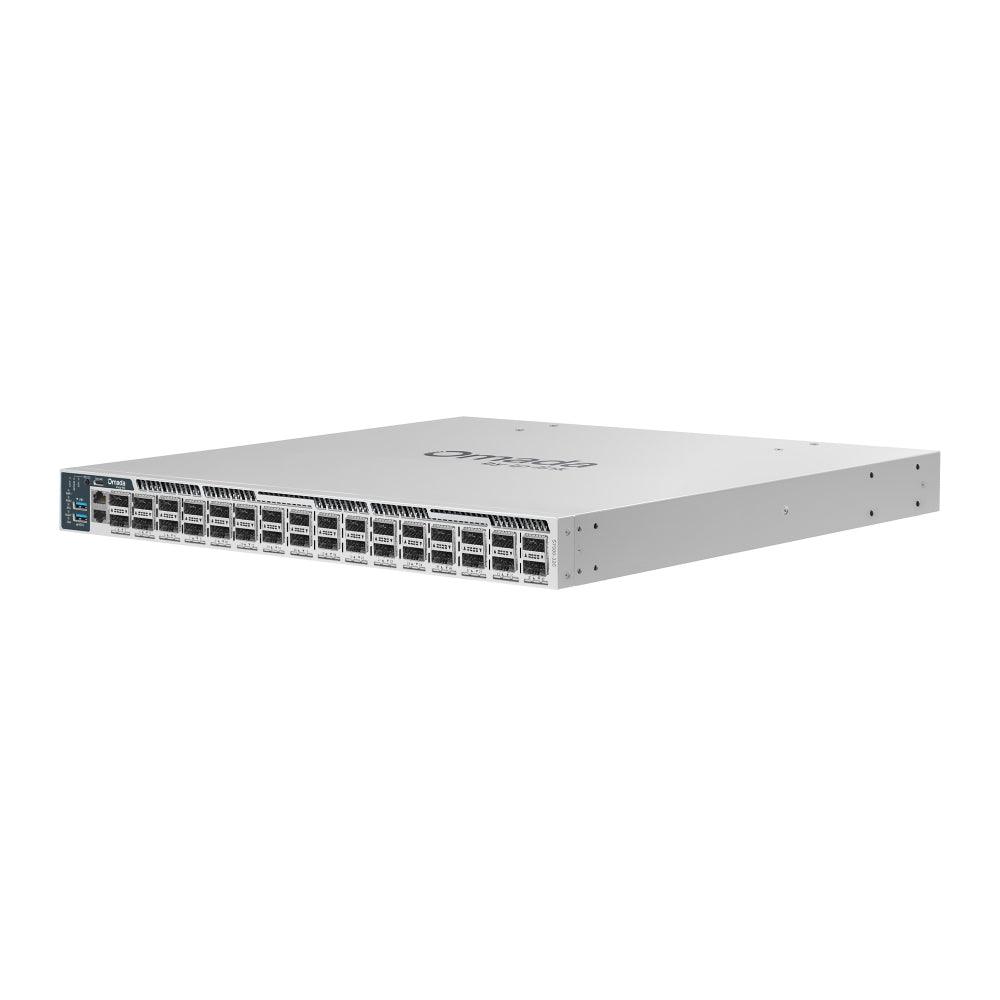

Omada Campus 32-Port 100G Stackable L3 Managed Core Switch
- 32× 100 Gbps QSFP28 slots
- Physical stacking for built-in redundancy and performance
- M-LAG improves link reliability from the card level to the device level
- L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies,* VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2
- Centralized cloud management via the web or the Omada app‡
HARDWARE FEATURES

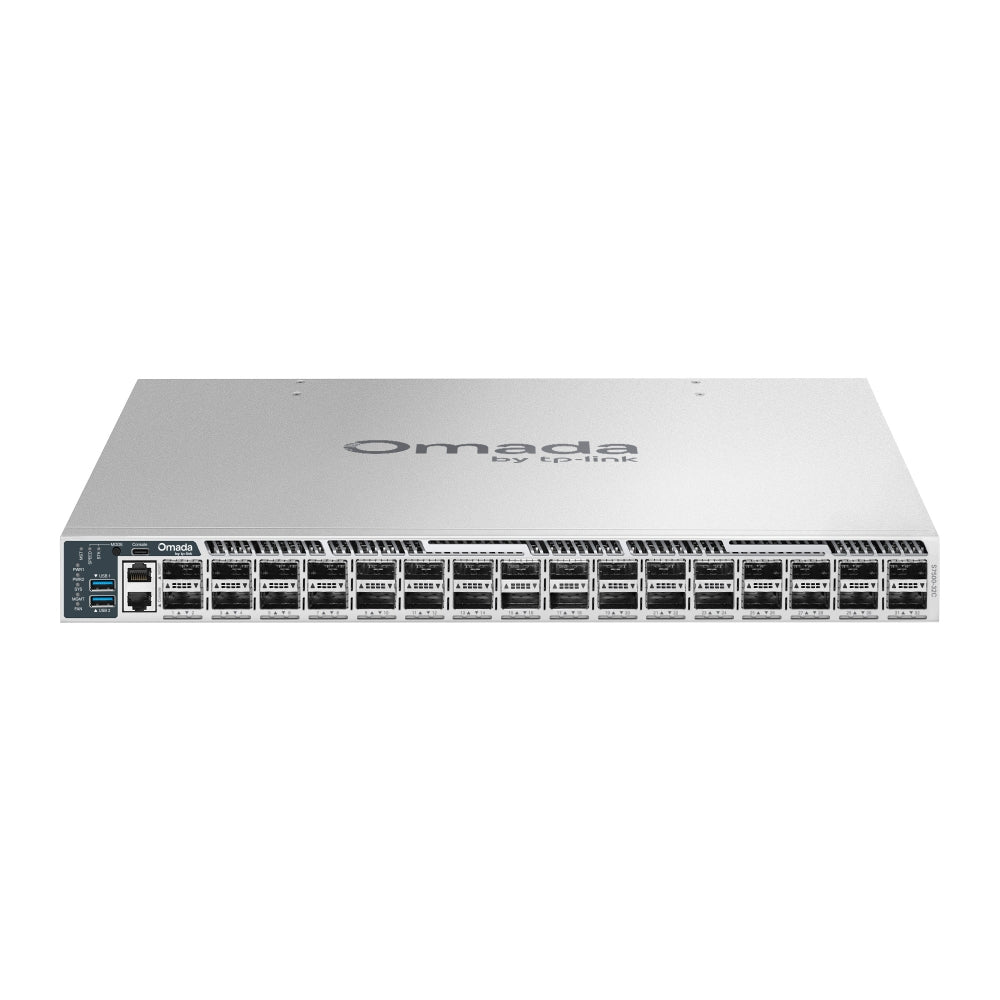

Interfaces: 32× 40/100G QSFP28 Slots, 2× USB 3.0, 1× RJ45 Console, 1× USB‑C Console, 1× RJ45 Management

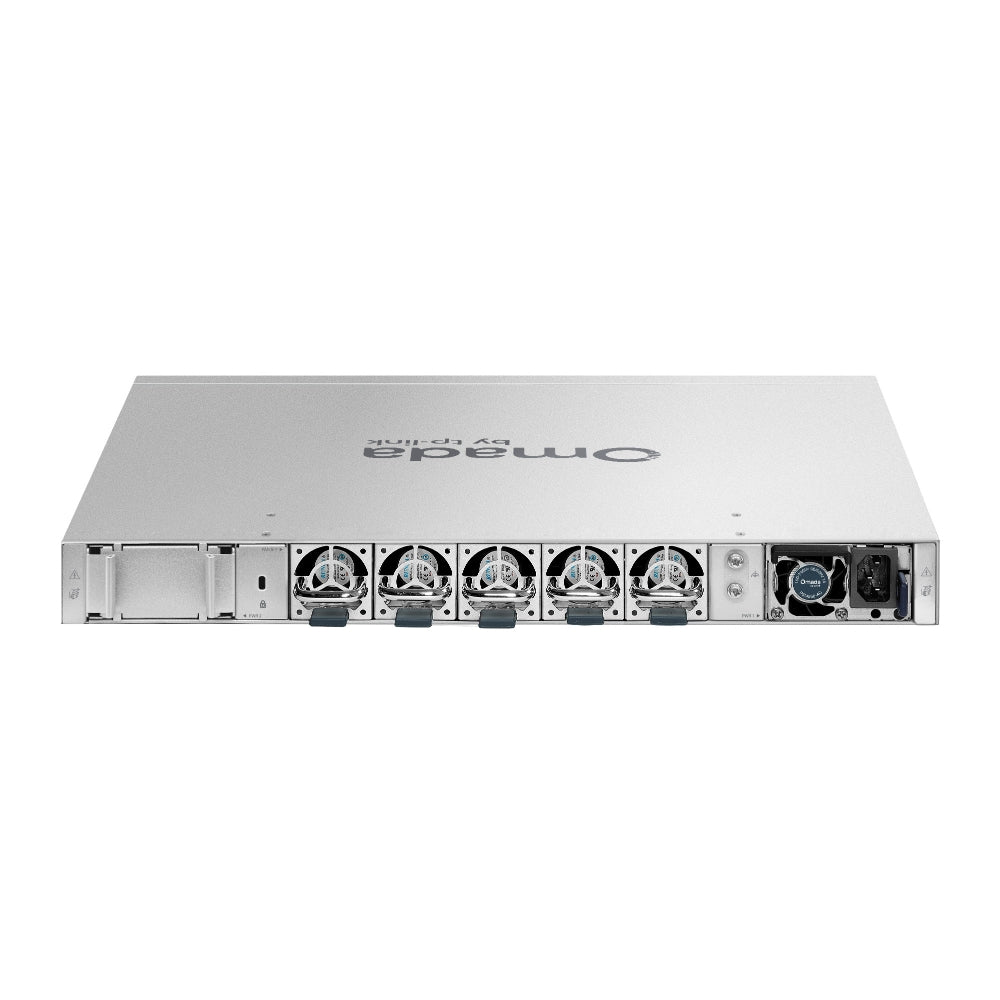

Cooling: Five field‑replaceable hot‑swappable fans
Power: Two hot‑swappable PSUs (100–240 VAC); ships with one PSM550‑AC, second optional
Dimensions: 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm), rackmountable
Max Power: 311.2 W (220V), 316.7 W (110V)
Max Heat: 1061.16 BTU/hr (220V), 1080.02 BTU/hr (110V)
PERFORMANCE
Switching Capacity: 6.4 Tbps
Stacking: 12 (standalone) / 4 (controller mode), all QSFP28 ports usable for stacking, 6.4 Tbps stacking BW
Forwarding Rate: 2.8 Bpps
MAC Table: 256K
Packet Buffer: 24 MB
Jumbo Frame: 9 KB
SOFTWARE FEATURES
M‑LAG / PTP: M‑LAG domain, DAD, peer‑link LAG; IEEE 1588v2 & 802.1AS with oc/bc/e2etc/p2ptc clock types
Quality of Service: 8 queues, 802.1p/DSCP priority, SP/WRR scheduling, configurable queue weights, rate limit, storm control, Voice VLAN, WRED
L3 FEATURES
4094 interfaces; static routes (2048 IPv4 / 1024 IPv6); 22,528 host routes; up to 516,096 IPv4 or 258,048 IPv6 network entries. Supports ECMP, ARP/ND (45,056 each), DHCPv4 server (512 pools), DHCP relay, VRRPv2/v3, OSPFv2/v3, RIP/RIPng, VRF, IS‑IS, BGP, PIM-SM/DM/SSM, IGMPv1/v2/v3 (2048 groups), BFD (16 templates/32 sessions), PBR, uRPF.
L2 AND L2+ FEATURES
LACP/Static LAG, STP/RSTP/MSTP, ERPS, port isolation, loop detection, port security, sticky MAC, 802.3x flow control, port mirror/RSPAN, LLDP/LLDP‑MED. Multicast: IGMP/MLD snooping, MVR, 1K table, fast leave, snooping querier, filtering, unknown multicast discard.
ADVANCED & ISP FEATURES
Auto device discovery, batch config/upgrade, intelligent monitoring, event warnings, unified configuration, reboot scheduling. ISP: 802.3ah OAM, L2PT, DLDP, DDM, sFlow.
VLAN FEATURES
802.1Q VLAN (4K), MAC VLAN (200), Protocol VLAN (16 templates / 12 groups), QinQ (256), Private VLAN, GVRP.
SECURITY
IP‑MAC‑Port Binding and IPv6‑MAC‑Port Binding (1024 each), DHCP/ND snooping, ARP inspection, ND detection, IP/IPv6 source guard, RA Guard (30). DoS defend, DHCP filter, 802.1X (RADIUS, accounting, load balancing, RADSEC, guest VLAN, VLAN assignment, MAB), AAA (TACACS+), ACL, secure boot.
MANAGEMENT
Omada Pro app/controller support, cloud access, zero‑touch provisioning. Web GUI, CLI (console/telnet), SNMPv1/v2c/v3 with trap/inform & RMON(1/2/3/9), SDM template, DHCP/BOOTP client, LLDP/LLDP‑MED, DHCP auto install, dual image/config, CPU monitoring, password recovery, SNTP, system log.
OTHERS
Package: Switch, power cord, RJ45 console cable, strap, rack kit, rubber feet, QIG
System Requirements: Windows 98SE–11, macOS, NetWare, UNIX, Linux
Environment: Operating −5°C to 45°C @300m / 40°C @2000m / 35°C @3000m; Storage −40°C to 70°C; Humidity 10–90% operating, 5–90% storage
