Product Description

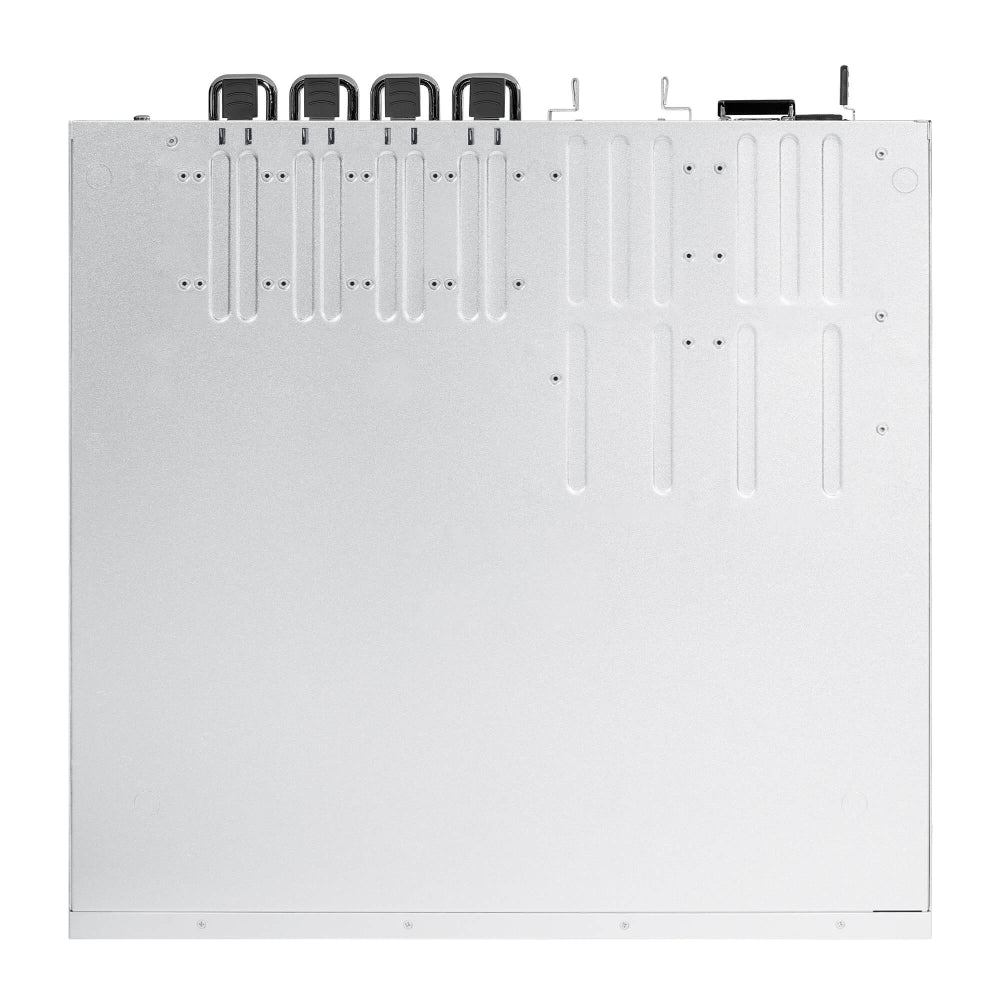

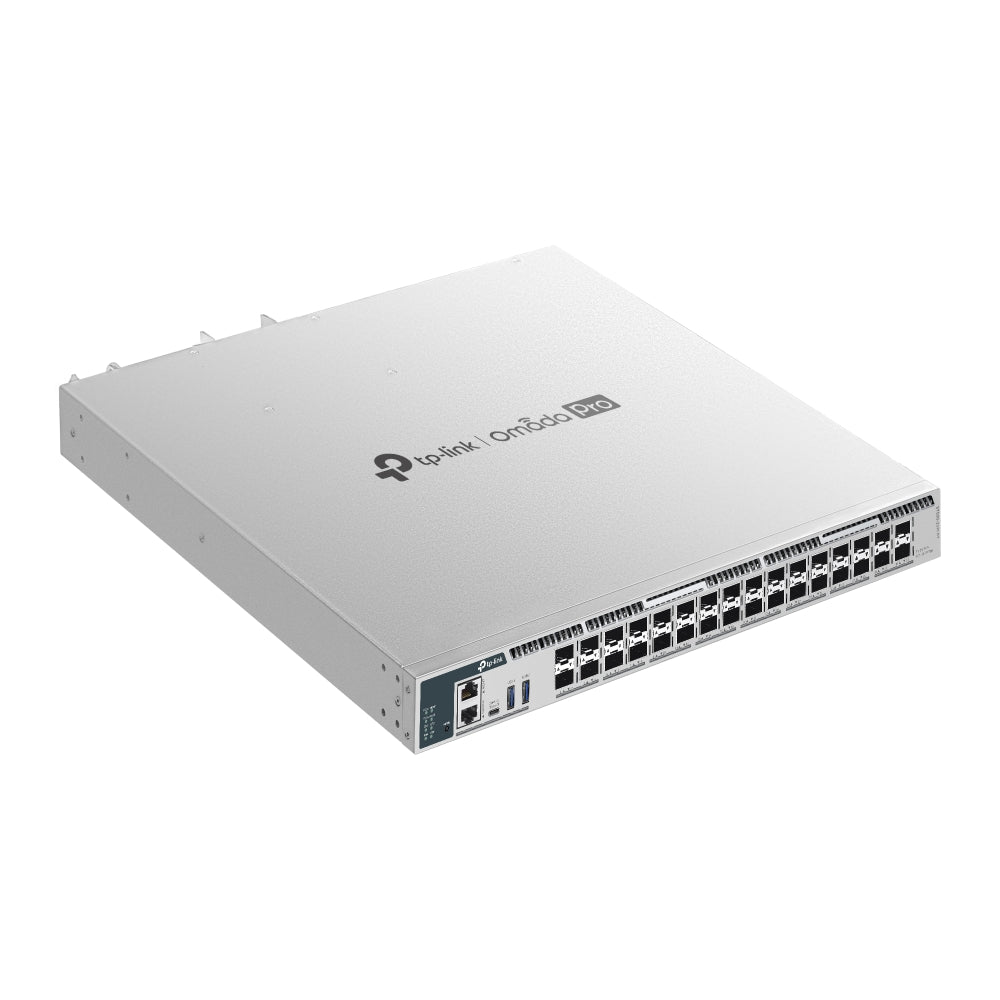

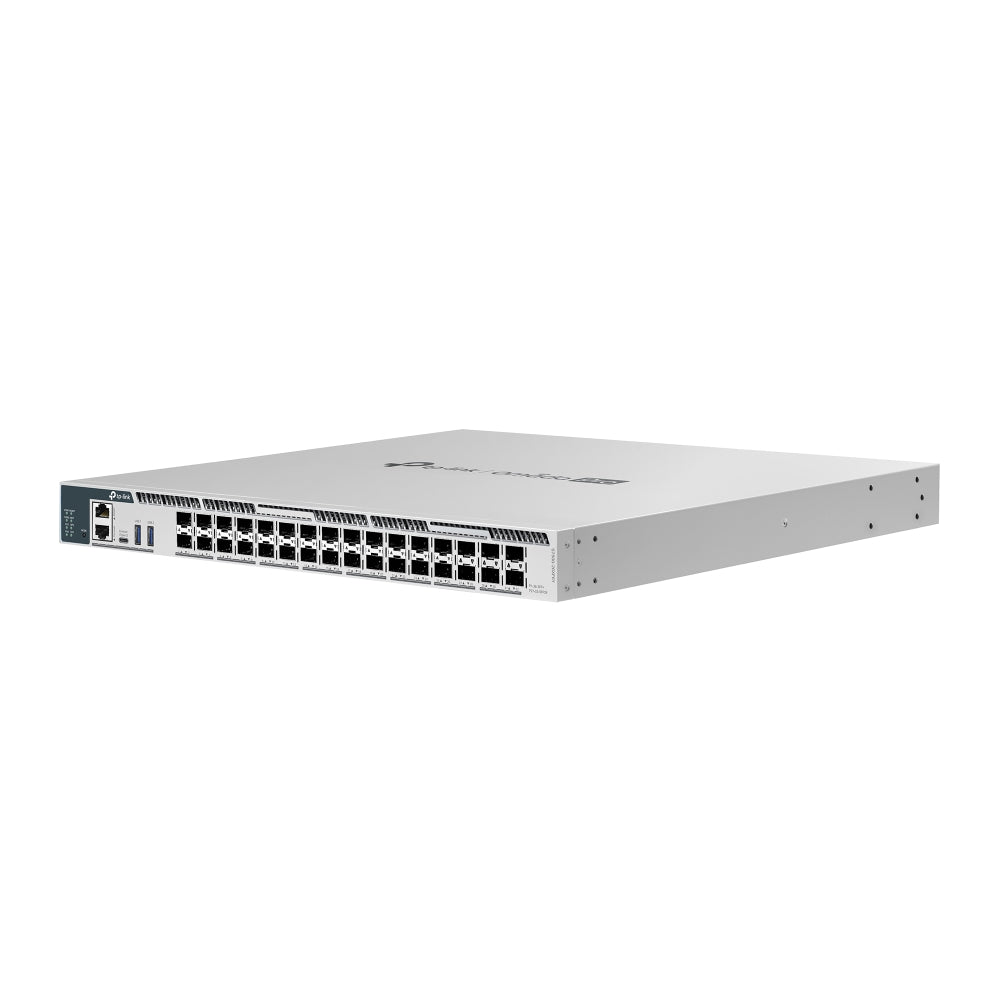

S7500-26XF6Y
Omada Pro 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots
- 26× 10 Gbps SFP+ slots and 6× 25 Gbps SFP28 slots
- Physical stacking for built-in redundancy and performance
- M-LAG improves link reliability from the card level to the device level
- L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies,* VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2
- Centralized cloud management via the web or the Omada app
Specifications:
HARDWARE FEATURES

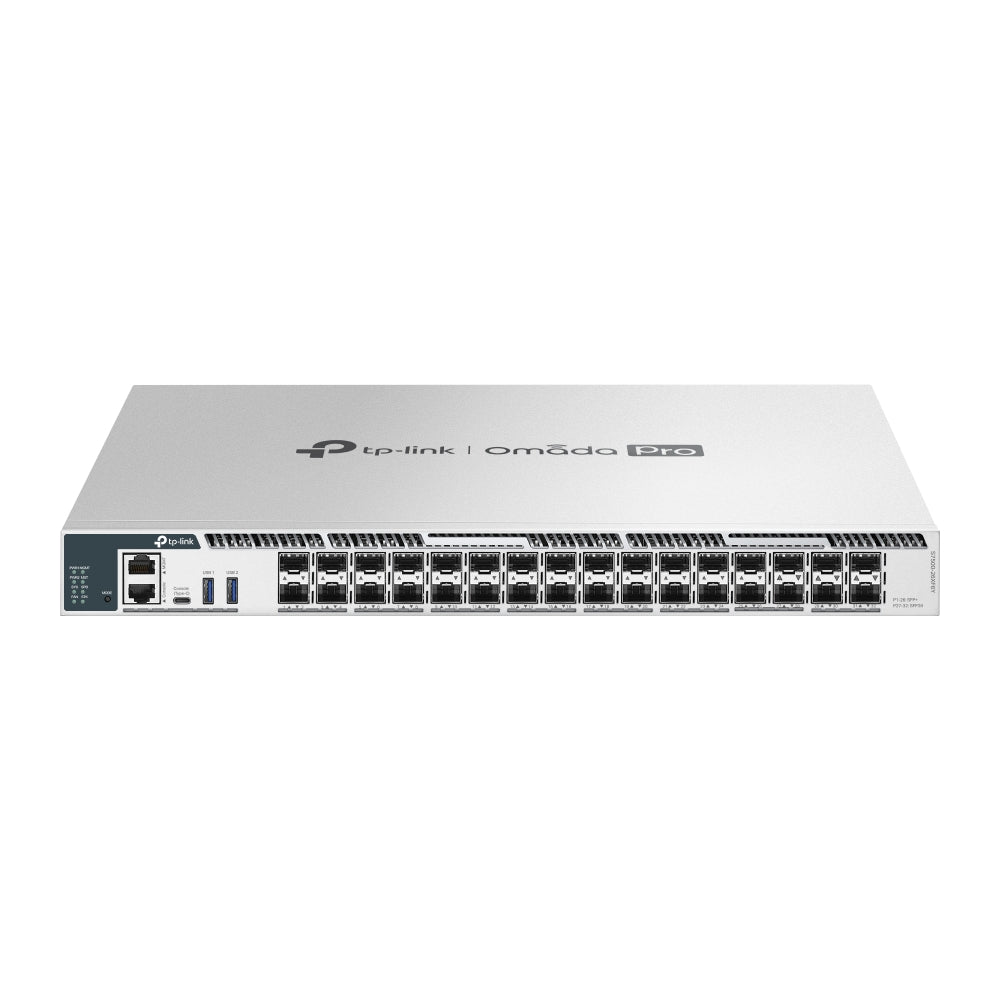

Interface: • 26× 1/10Gbps SFP+ Slots** • 6× 1/10/25Gbps SFP28 Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type‑C Console Port • 1× RJ45 Management Port

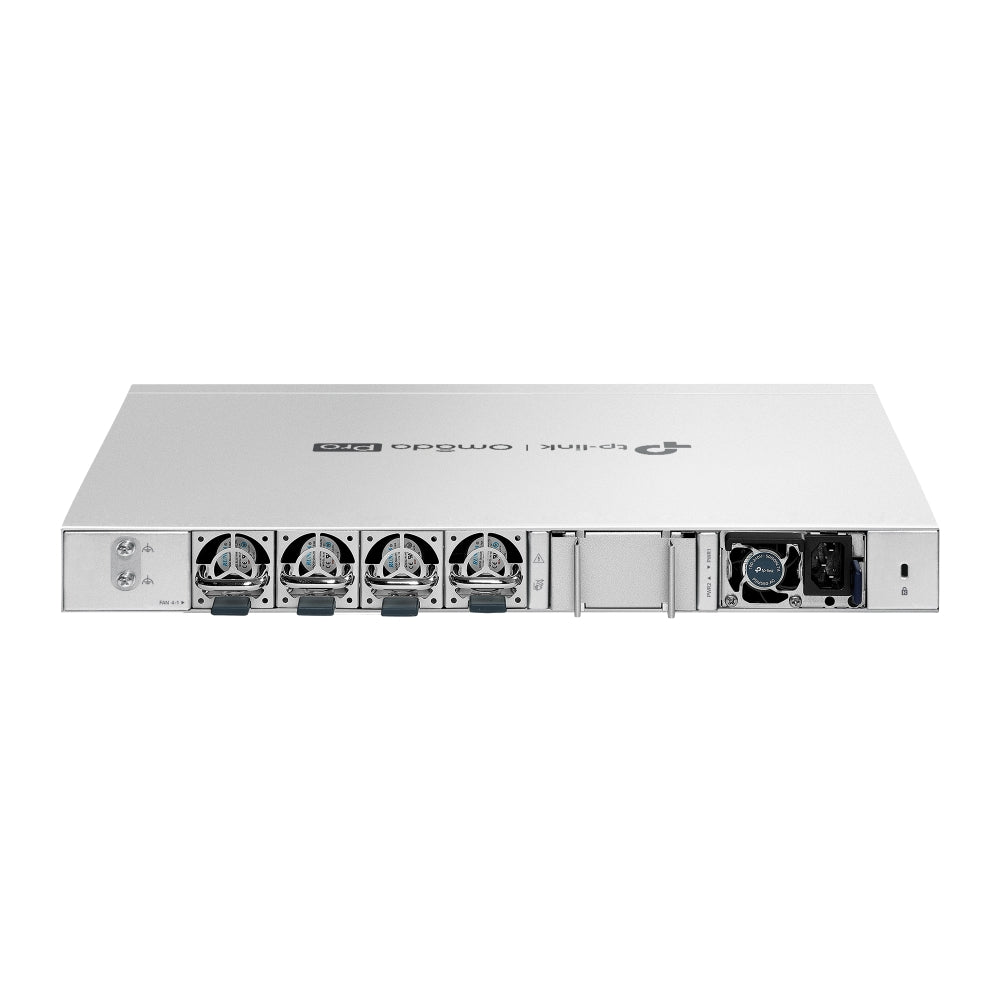

Fan Quantity: Four Field‑replaceable and Hot‑swappable Fans
Power Supply: Two Field‑replaceable and Hot‑swappable Modules* (100–240 VAC, 50/60 Hz)
*Ships with one PSM550‑AC; additional PSU sold separately.
Dimensions: 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting: Rackmountable
Max. Power Consumption: 86.7 W (110 V/60 Hz)
Max. Heat Dissipation: 295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity: 820 Gbps per Unit
Stacking: • 12 Units • 25G SFP28 Ports for Stacking*** • Up to 300 Gbps (6 Stacking Ports)
Packet Forwarding Rate: 610.1 Mpps
MAC Address Table: 128K
Packet Buffer: 8 MB
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service: • 8 Priority Queues • Port/802.1p/DSCP Priority • Min‑Bandwidth Queue • SP/WRR/SP+WRR Scheduling • Bandwidth Control • Storm Control • Voice VLAN • User‑Defined OUI • QoS Remarking (802.1p/DSCP) • 64 WRED Profiles
L3 Features: • 256 L3 Interfaces • IPv4 Static 2,048 / IPv6 Static 1,024 • Host Routes: 15,300 • IPv4 Router: 102,400 • IPv6 Router: 51,200 • ECMP 256 entries (32 nexthops) • ARP: Static 1,024 / Dynamic 24,576 • ND: 24,576 • DHCP Server: 64 Pools / 8,000 IPs • DHCP Relay v4/v6 • VRRP v2/v3 (64 Instances, 32 VIPs) • OSPFv2/v3 • RIP/RIPng • IS‑IS (IPv4/IPv6/BFD) • BGP (20 redistribute configs) • PIM‑SM/DM/SSM • IGMP v1/v2/v3 (2,048 groups) • BFD (16/8) • PBR • uRPF
L2 & L2+ Features: • Link Aggregation • STP • VLAN/Port Loopback Detection • Flow Control • ERPS • Mirroring • RSPAN • MAC Table • IGMP/MLD Snooping • MVR • Fast Leave • Static Multicast • Multicast Filtering • IGMP Authentication
Advanced Features: • Auto Device Discovery‡ • Batch Configuration‡ • Batch Firmware Upgrading‡ • Intelligent Monitoring‡ • Abnormal Event Warnings‡ • Unified Configuration‡ • Reboot Schedule‡
ISP Features: • 802.3ah OAM • L2PT • DLDP • DDM • sFlow
VLAN: • 4K VLAN Groups • 802.1Q • MAC VLAN (200 entries) • Multicast VLAN • Management VLAN • QinQ (256 entries) • GVRP • Protocol VLAN • Voice VLAN • Private VLAN
Security: • Port Isolation • CPU‑Defend • Dynamic ARP Inspection • DoS Defense • IP‑MAC‑Port Binding (1,024 entries) • DHCP Snooping • Source Guard (IPv4/IPv6) • DHCP Filter • Port Security (64 MAC/port) • Storm Control • 802.1X (Port/MAC) • VLAN Assignment • MAB • Guest VLAN • RADIUS Accounting • AAA/TACACS+ • HTTPS • SSHv2 • ACL (IP/Port/MAC) • Secure Boot • RADSEC
MANAGEMENT FEATURES
Omada App: Yes (via Omada Pro Controller)
Centralized Management: • Omada Pro Cloud‑Based Controller • Omada Pro Hardware Controller • Omada Pro Software Controller
Cloud Access: Yes (via Omada Pro Controller)
Zero‑Touch Provisioning: Yes (via Omada Pro Cloud Controller)
Management Tools: • Web GUI • CLI (console/telnet) • SNMP v1/v2c/v3 • RMON (1/2/3/9) • SDM Template • DHCP/BOOTP Client • LLDP/LLDP‑MED • DHCP Auto‑Install • Dual Image & Config • CPU Monitoring • Password Recovery • SNTP • System Log
OTHERS
Package Content: • S7500‑26XF6Y Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment:
• Operating Temp: −5°C to 50°C (300 m) / −5°C to 45°C (2000 m) / −5°C to 40°C (3000 m)
• Storage Temp: −40°C to 70°C
• Operating Humidity: 10–90% RH
• Storage Humidity: 5–90% RH
