Product Description
S7500-24Y4C

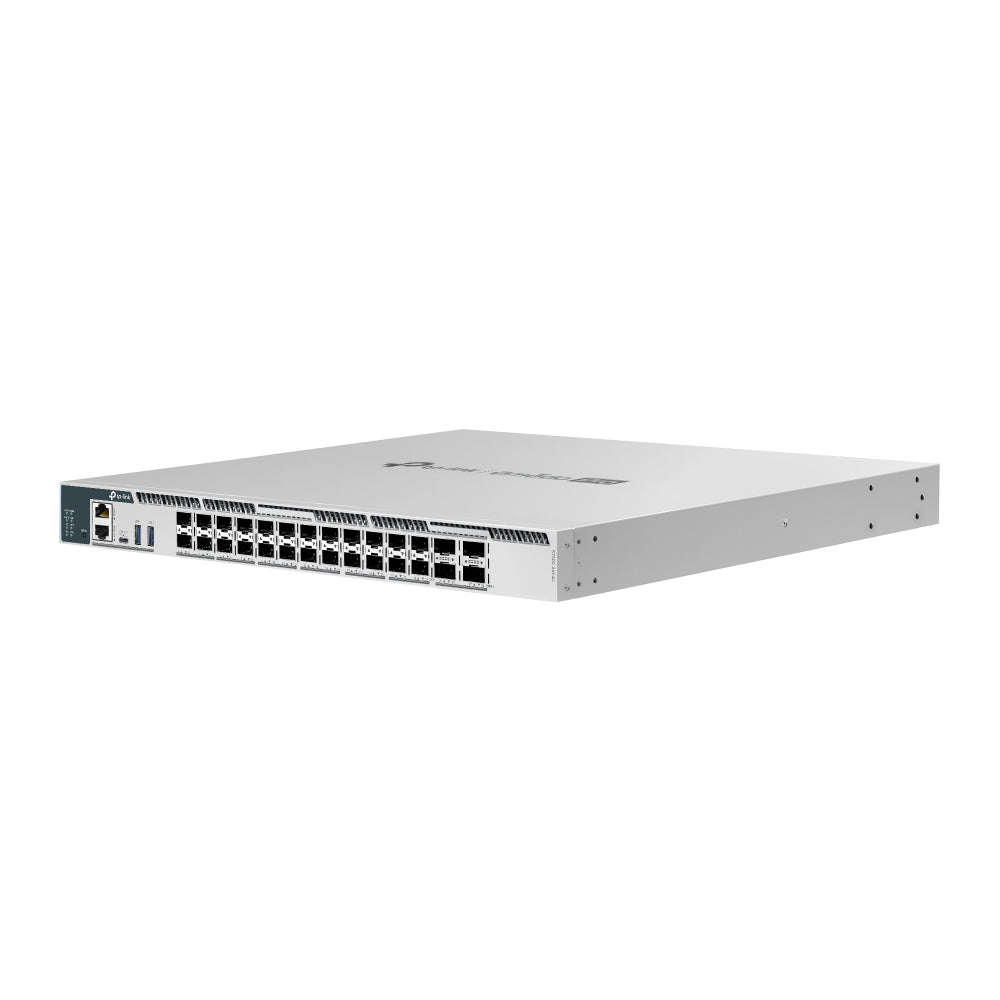

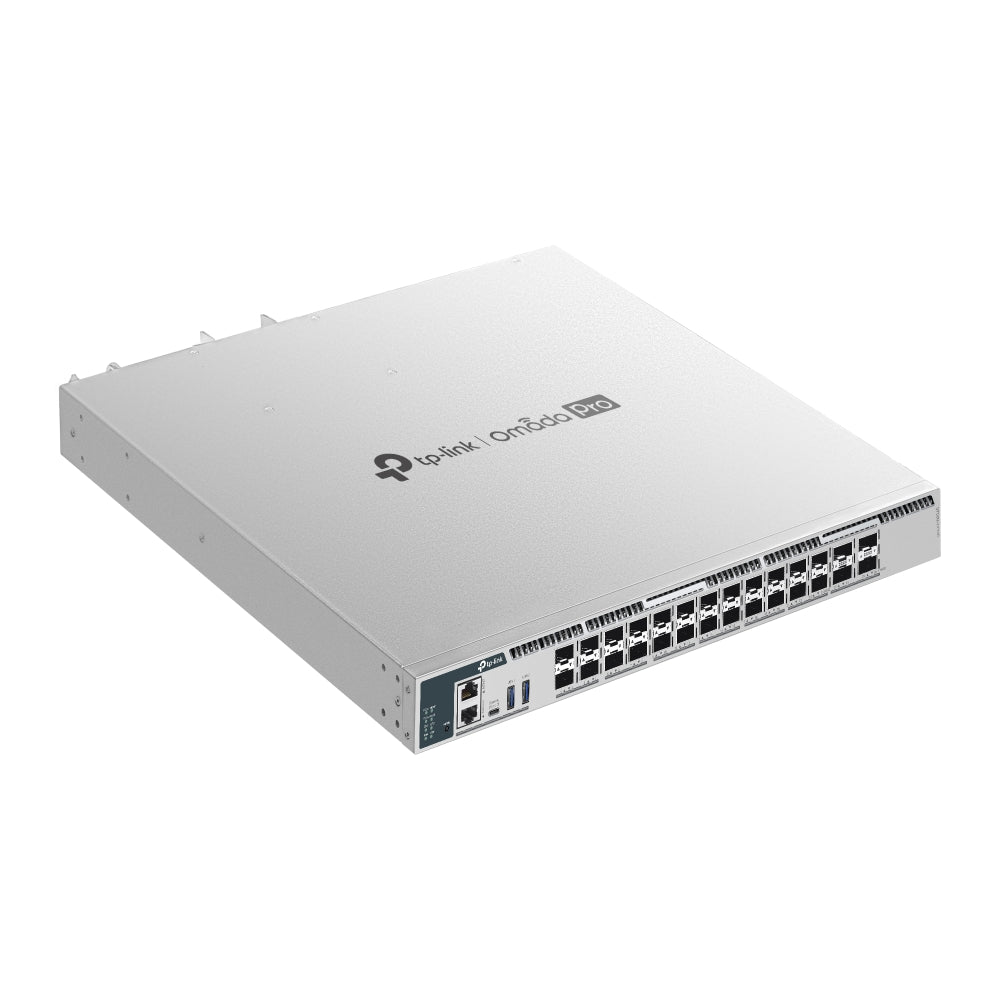

Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots
- 24× 25 Gbps SFP28 slots and 4× 100 Gbps QSFP28 slots
- Physical stacking for built-in redundancy and performance
- M-LAG improves link reliability from the card level to the device level
- L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies,* VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2
- Centralized cloud management via the web or the Omada app
Specifications
HARDWARE FEATURES

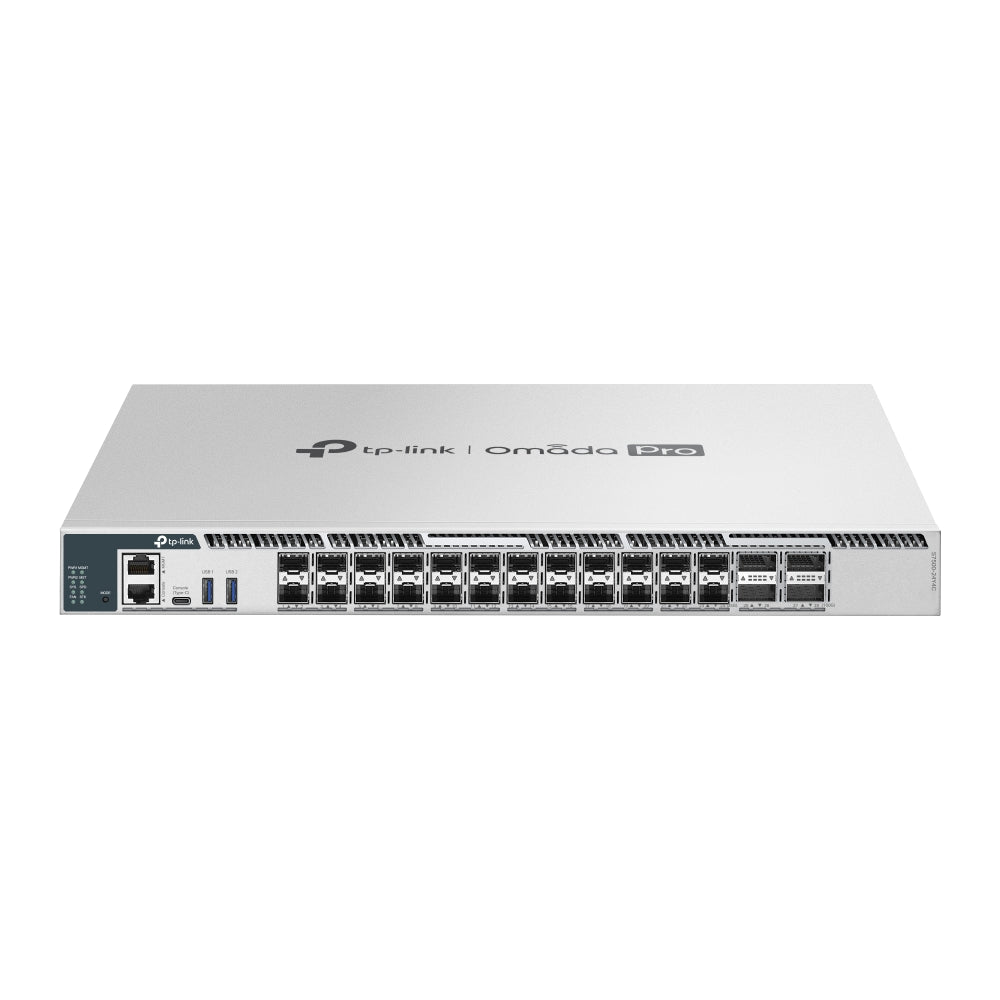

Interface: • 24× 1/10/25G SFP28 Slots • 4× 40/100G QSFP28 Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type‑C Console Port • 1× RJ45 Management Port

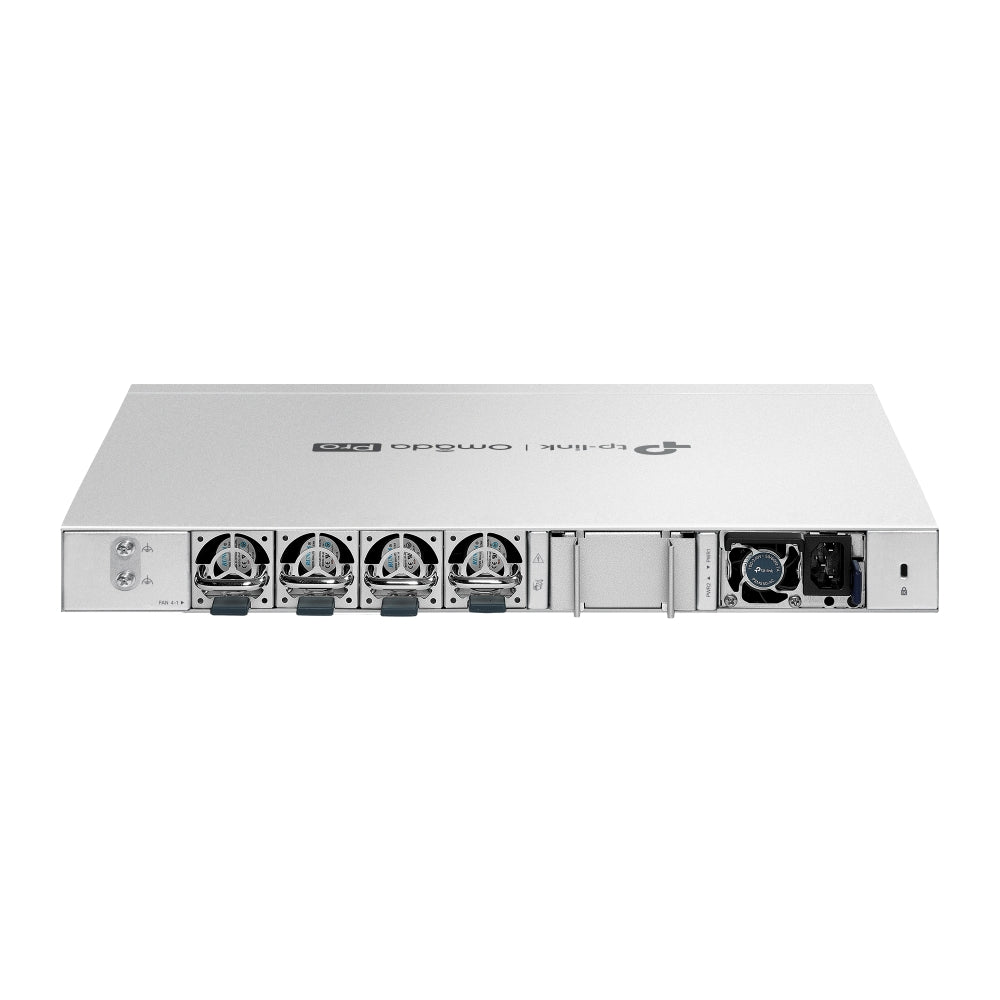

Fan Quantity: Four Field‑replaceable and Hot‑swappable Fans
Power Supply: Two Field‑replaceable and Hot‑swappable Modules* (100–240 VAC, 50/60 Hz)
*Ships with one PSM550‑AC; second PSU sold separately.
Dimensions: 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting: Rackmountable
Max. Power Consumption: 137.63W (220 V/50 Hz)
Max. Heat Dissipation: 469.6 BTU/hr (220 V/50 Hz)
PERFORMANCE
Switching Capacity: 2000 Gbps per Unit
Stacking: • 12 Units • 100G QSFP28 (all uplinks usable for stacking)** • Up to 800 Gbps (4 ports)
Packet Forwarding Rate: 810 Mpps
MAC Address Table: 128K
Packet Buffer: 8 MB
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service: • 8 Priority Queues • Port/802.1p/DSCP Priority • Min‑Bandwidth Queue • SP/WRR/SP+WRR • Bandwidth Control • Storm Control • Voice VLAN • User‑Defined OUI • QoS Remarks • 64 WRED Profiles
L3 Features: • 256 L3 Interfaces • IPv4 Static: 2,048 • IPv6 Static: 1,024 • Host Route: 15,300 • IPv4 Router: 102,400 • IPv6 Router: 51,200 • ECMP (256 entries, 32 nexthops) • ARP (Static 1,024 / Dynamic 24,576) • ND: 24,576 • DHCP Server (64 Pools / 8,000 IPs) • DHCPv4/v6 Relay • VRRP v2/v3 (64 Instances; 32 VIPs each) • OSPFv2/v3 • RIPv1/v2 • RIPng • IS‑IS • IS‑IS IPv6 • BGP (20 redistribute configs) • PIM‑SM/DM/SSM • IGMP v1/v2/v3 (2,048 groups) • BFD (16 templates, 8 sessions) • PBR • uRPF
L2 & L2+ Features: • Link Aggregation • STP • Loopback Detection • 802.3x • ERPS • Mirroring/RSPAN • MAC Table • IGMP/MLD Snooping • MVR • 4K Multicast Table • Filtering • Static Multicast
Advanced Features: • Auto Device Discovery‡ • Batch Config/Firmware‡ • Intelligent Monitoring‡ • Abnormal Event Warnings‡ • Unified Config‡ • Reboot Schedule‡
ISP Features: • 802.3ah OAM • L2PT • DLDP • DDM • sFlow
VLAN: • 4K VLANs • 802.1Q VLAN • MAC VLAN (200 entries) • Multicast VLAN • Mgmt VLAN • QinQ (256 entries) • GVRP • Protocol VLAN • Voice VLAN • Private VLAN
Security: • Port Isolation • CPU Defend • Dynamic ARP Inspection • DoS Defend • IP‑MAC‑Port Binding (1,024 entries) • DHCP Snooping • IPv4/IPv6 Source Guard • DHCP Filters • Static/Dynamic Port Security (64 MAC per port) • Storm Control • 802.1X (Port/MAC‑based) • VLAN Assignment • MAB • Guest VLAN • RADIUS Accounting • AAA (TACACS+) • HTTPS (SSLv3/TLS1.2) • SSHv2 • IP/Port/MAC ACL • Secure Boot • RADSEC
MANAGEMENT FEATURES
Omada App: Yes (via Omada Pro Controller)
Centralized Management: • Omada Pro Cloud • Omada Pro Hardware • Omada Pro Software
Cloud Access: Yes (via Omada Pro Controller)
Zero‑Touch Provisioning: Yes (via Pro Cloud Controller)
Management Tools: • Web GUI • CLI (console/telnet) • SNMPv1/v2c/v3 (Trap/Inform) • RMON (1/2/3/9) • SDM Template • DHCP/BOOTP Client • LLDP/LLDP‑MED • DHCP Auto Install • Dual Image & Config • CPU Monitoring • Password Recovery • SNTP • System Log
OTHERS
Package Content: • S7500‑24Y4C Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment:
• Operating Temp: −5°C to 50°C (23°F–122°F) @ 300 m; −5°C to 45°C (23°F–113°F) @ 2,000 m; −5°C to 40°C (23°F–104°F) @ 3,000 m
• Storage Temp: −40°C to 70°C (−40°F–158°F)
• Operating Humidity: 10–90% RH
• Storage Humidity: 5–90% RH
