Product Description

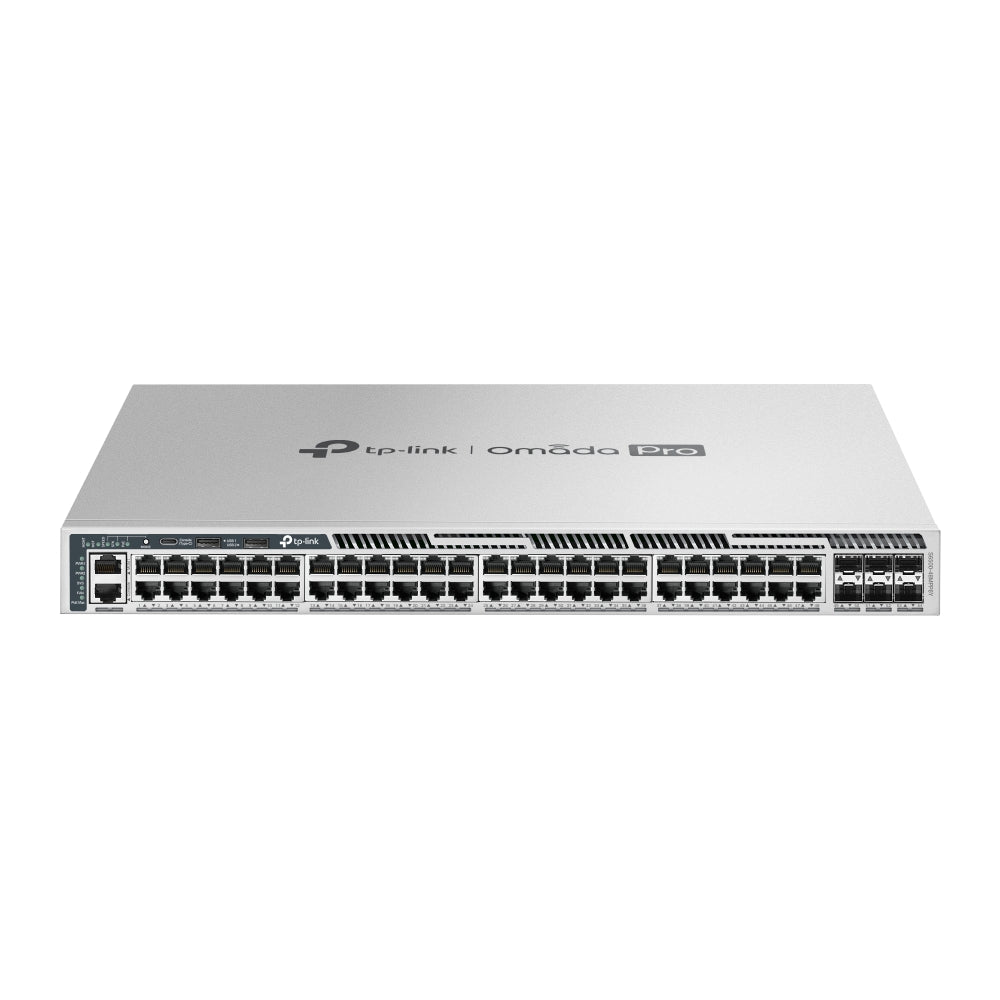

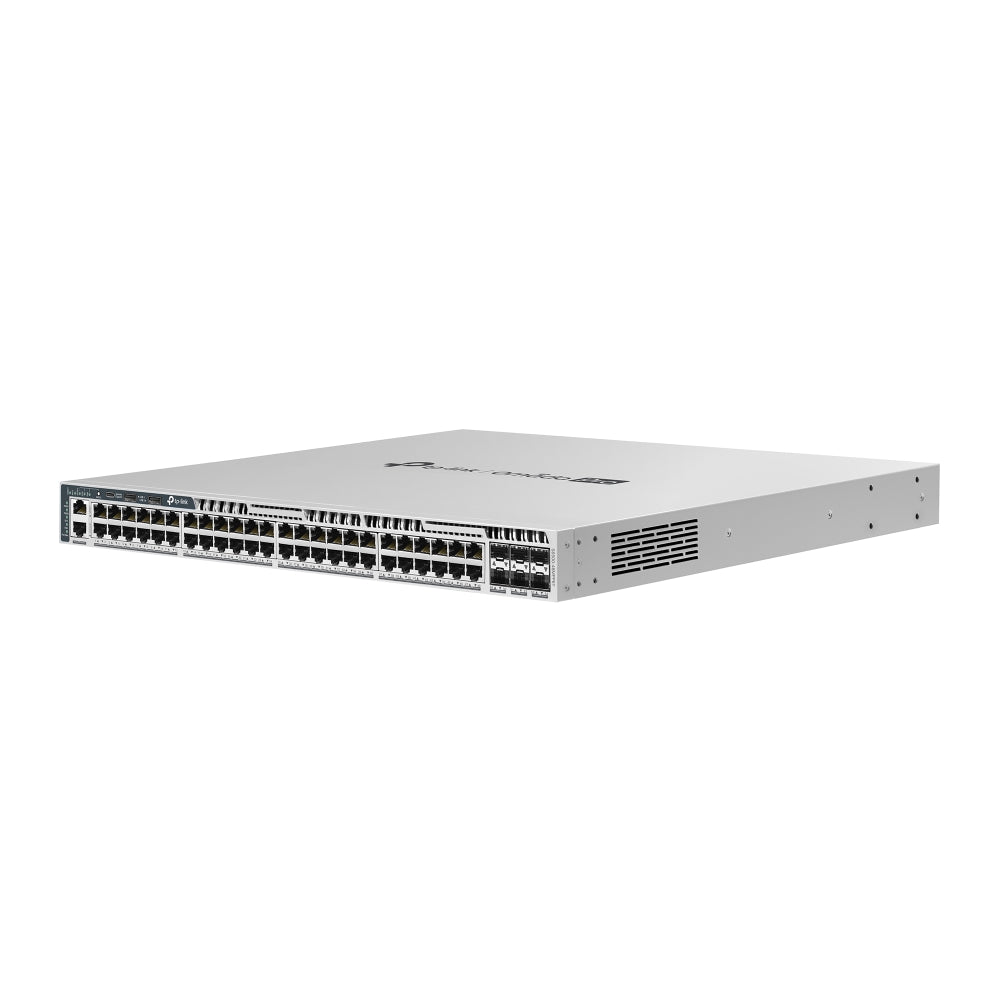

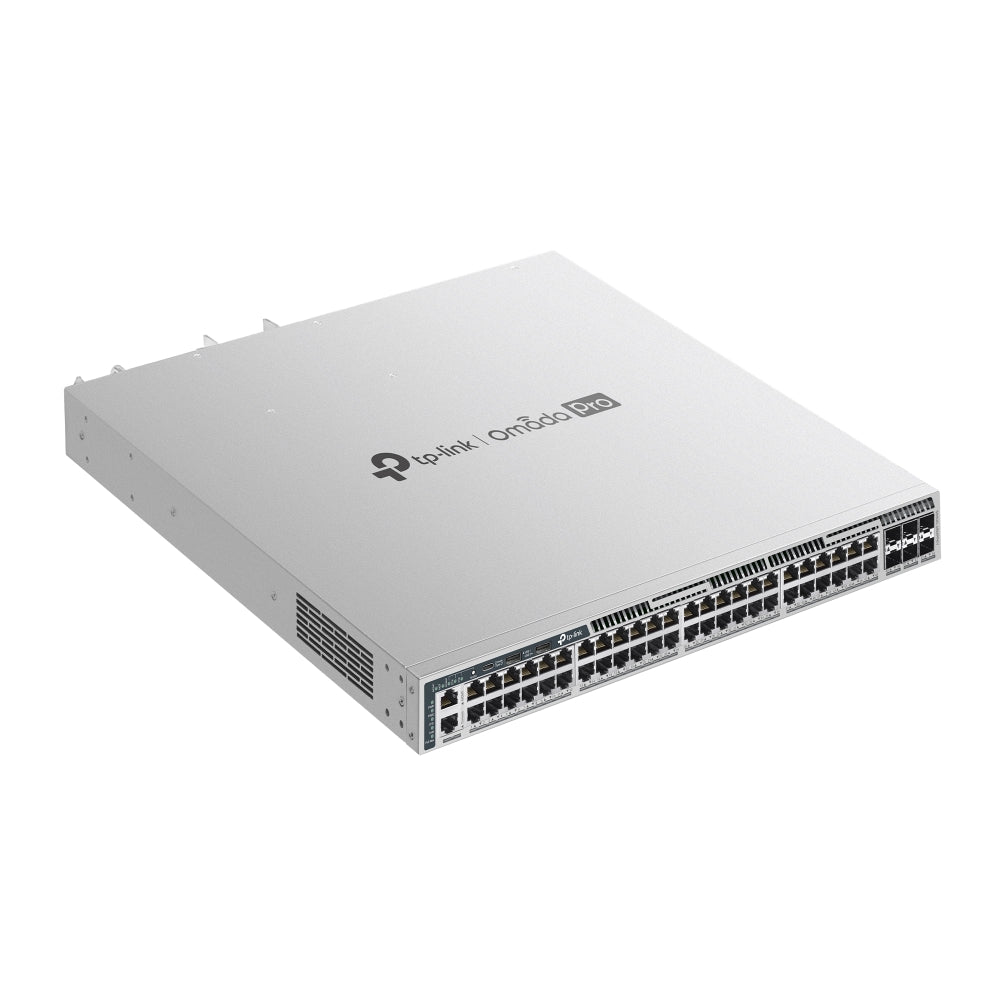

S6500-48MPP6Y
Omada Pro 48-Port 2.5G Stackable L3 Managed PoE++ Switch with 6 25G Slots
- 48× 2.5 Gbps PoE++ RJ45 ports (up to 60 W PoE out per port)
- 6× 25 Gbps SFP28 slots
- Up to 1484 W total PoE budget*
- Physical stacking for built-in redundancy and performance
- M-LAG improves link reliability from the card level to the device level
- L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies,** VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2
- Centralized cloud management via the web or the Omada app
Specifications:
HARDWARE FEATURES
Interface: • 48× 2.5G PoE++ RJ45 Ports • 6× 1/10/25G SFP28 Slots*** • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type‑C Console Port • 1× RJ45 Management Port

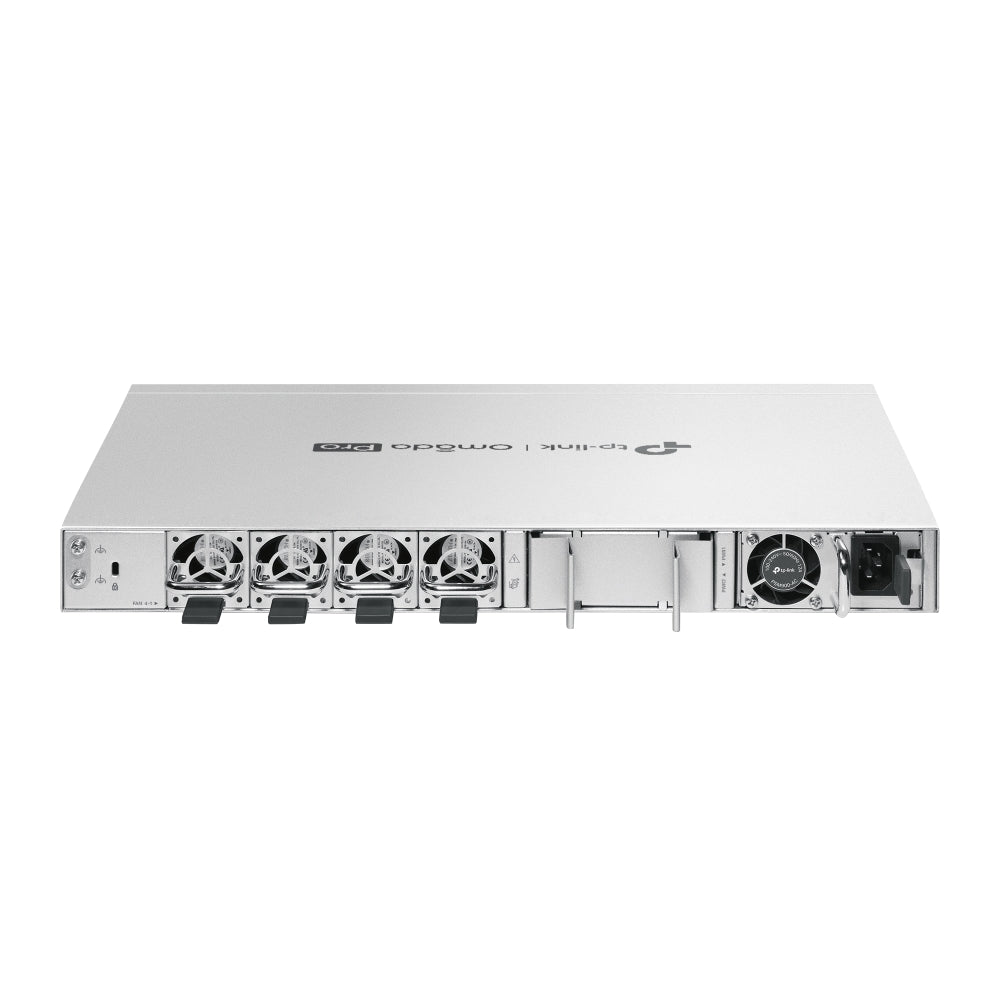

Fan Quantity: Four Field‑replaceable and Hot‑swappable Fans
Power Supply: Two Field‑replaceable and Hot‑swappable Modules** (100–240 VAC, 50/60 Hz)
**Ships with one PSM900‑AC; second PSU sold separately.
PoE Ports (RJ45): • 802.3at/af/bt • 48 PoE+ Ports (up to 60 W/port) • PoE Budget up to 1484 W*
*PoE budget depends on power modules.
Dimensions: 17.3 × 18.1 × 1.7 in (440 × 460 × 44 mm)
Mounting: Rackmountable
Max. Power Consumption: • 142.2 W (no PD) • 1,887.4 W (with 1484 W PD, 2× PSM900‑AC)
Max. Heat Dissipation: • 484.9 BTU/hr (no PD) • 6,436.03 BTU/hr (full PD load)
PERFORMANCE
Switching Capacity: 540 Gbps
Stacking: • 12 Units • 25G SFP28 Slots**** • Up to 300 Gbps (6 Ports)
Packet Forwarding Rate: 401.7 Mpps
MAC Address Table: 32K
Packet Buffer: 3 MB
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service: • 8 Priority Queues • Port/802.1p/DSCP Priority • Min‑Bandwidth Queue • SP/WRR/SP+WRR • Rate Limit • Storm Control • Voice VLAN • User‑Defined OUI • QoS Remarking • 16 WRED Profiles
L3 Features: • 256 L3 Interfaces • IPv4 Static 1,024 / IPv6 Static 512 • Host Routes: 6,100 • IPv4 Router: 10,240 • IPv6 Router: 5,120 • ECMP 256 entries (32 nexthops) • ARP: Static 512 / Dynamic 7,680 • ND: 7,680 • DHCP Server (64 Pools/8,000 IPs) • DHCP Relay v4/v6 • VRRP (64 Instances, 32 VIPs) • OSPFv2/v3 • RIP/RIPng • IS‑IS IPv4/IPv6/BFD • BGP (20 redistribute configs) • PIM‑SM/DM/SSM • IGMP (2,048 Groups) • BFD (16/8) • PBR • uRPF
L2 & L2+ Features: • Link Aggregation • STP • VLAN/Port Loopback Detection • Flow Control • ERPS • Mirroring • RSPAN • MAC Table • IGMP/MLD Snooping • MVR • Multicast Filtering • Fast Leave • Static Multicast • IGMP Snooping Auth
Advanced Features: • Auto Device Discovery‡ • Batch Config‡ • Batch Firmware‡ • Intelligent Monitoring‡ • Event Warnings‡ • Unified Config‡ • Reboot Schedule‡
ISP Features: • 802.3ah OAM • L2PT • DLDP • DDM • sFlow
VLAN: • 4K VLANs • 802.1Q • MAC VLAN (200 entries) • Multicast VLAN • Management VLAN • QinQ (256 entries) • GVRP • Protocol VLAN • Voice VLAN • Private VLAN
Security: • Port Isolation • CPU‑Defend • Dynamic ARP Inspection • DoS Defense • IP‑MAC‑Port Binding (1,024 entries) • DHCP Snooping • IPv4/IPv6 Source Guard • DHCP Filter • Port Security (64 MAC/port) • Storm Control • 802.1X (Port/MAC) • VLAN Assignment • MAB • Guest VLAN • AAA/TACACS+ • HTTPS (SSLv3/TLS1.2) • SSHv2 • ACL (IP/Port/MAC) • MACSec (gcm‑aes‑128/256) • Secure Boot • RADSEC
MANAGEMENT FEATURES
Omada App: Yes (via Omada Pro Controller)
Centralized Management: • Omada Pro Cloud‑Based • Omada Pro Hardware • Omada Pro Software
Cloud Access: Yes (via Omada Pro Controller)
Zero‑Touch Provisioning: Yes
Management Tools: • Web GUI • CLI (console/telnet) • SNMP v1/v2c/v3 • RMON (1/2/3/9) • SDM Template • DHCP/BOOTP Client • LLDP/LLDP‑MED • DHCP Auto‑Install • Dual Image/Config • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az EEE
OTHERS
Package Content: • S6500‑48MPP6Y Switch • Power Cords • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment:
• Operating Temp: −5°C to 45°C (2000 m) / −5°C to 40°C (3000 m)
• Storage Temp: −40°C to 70°C
• Operating Humidity: 10–90% RH
• Storage Humidity: 5–90% RH
