TP-Link Omada Fusion 2.5G Gateway (Fusion 2.5G)

Fusion 2.5G
Omada Fusion 2.5G Gateway

- Gateway & Controller in One
- License-Free Cloud Management
- Simplified Setup with Bluetooth

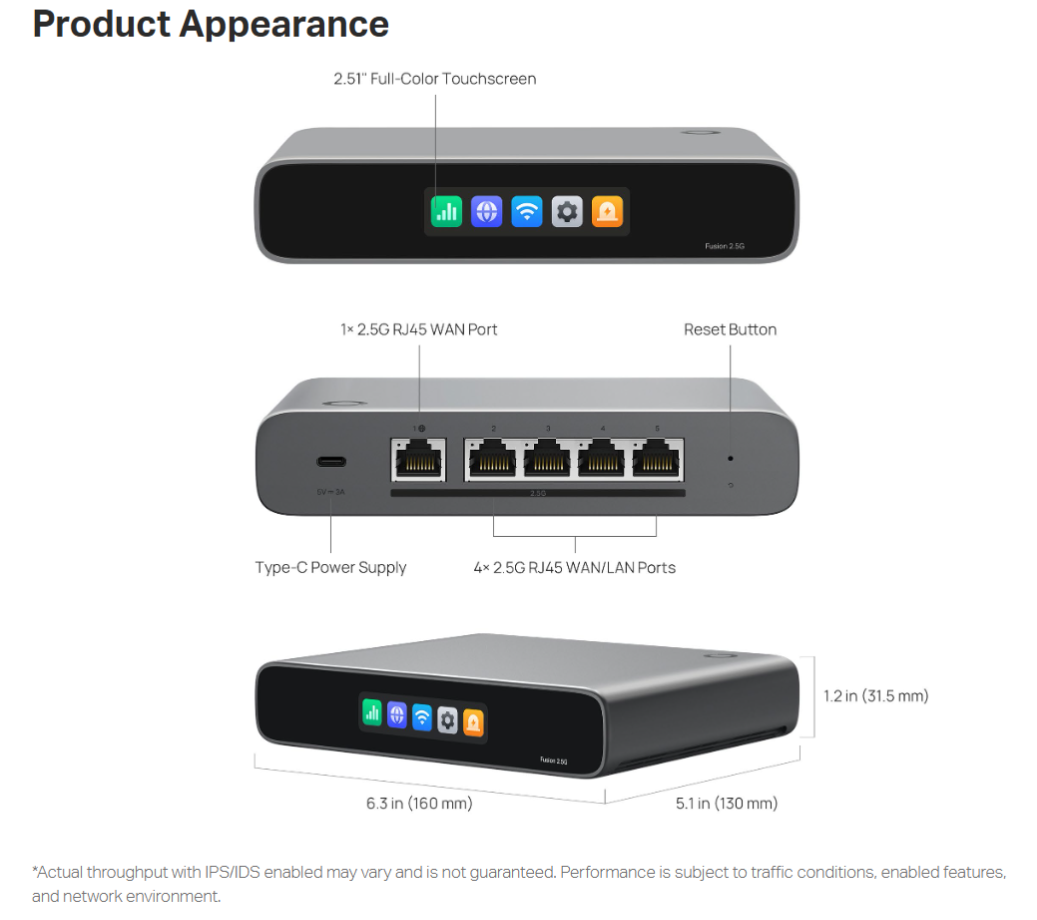

- 5× 2.5G RJ45 Ports (1× WAN, 4× WAN/LAN)
- 2.1 Gbps-Class IDS/IPS Throughput
- Secure Remote Access with Multiple VPN

Product Overview

Omada Fusion 2.5G Gateway integrates a gateway and controller into a single device. Positioned at the center of the Omada networking ecosystem, Fusion 2.5G unifies networking and centralized management with license- free cloud control straight out of the box. Bluetooth-based setup simplifies deployment, cuts installation time, and reduces on-site visits through touchscreen-based troubleshooting — helping increase profitability while delivering projects more efficiently.

• License-Free Cloud Management for Multi-Site Work
• Simplified Setup with Auto Device Detection via Bluetooth and One-Tap Bulk Device Adoption
• Enterprise-Grade Performance: High-Performance Quad-Core CPU, Five 2.5G Ports, IPS/IDS at 2.1 Gbps*
• Quick Troubleshooting via Touchscreen for Less On-Site Work
• Secure Remote Network Access in One Click with Omada LightLink VPN
• Advanced Software Capabilities: App-Based ACL, One-Click Auto QoS, Full Mesh SD-WAN, Content Filtering

Feature Descriptions
License-Free Cloud Management
Fusion 2.5G features a built-in controller, enabling full access to all functions from day one, with no additional license required. It supports centralized multi-site management and allows administrators to remotely access and control the network through the Omada Cloud portal via web or Omada app.

Simplified Setup via Bluetooth
Fusion 2.5G integrates Bluetooth-based provisioning, allowing automatic discovery and batch adoption of Omada networking devices through the Omada app

Enterprise-Grade Performance
Fusion 2.5G features five 2.5G Ethernet ports and a high-performance quad-core CPU, eliminating LAN bottlenecks and ensuring stable operation under load. It delivers up to 2.1 Gbps IPS/IDS-enabled throughput without impacting overall network performance.

Touchscreen for On-Site Troubleshooting
An integrated 2.51-inch touchscreen provides access to network health scores, speed tests, alerts, and real-time traffic, enabling basic diagnostics and troubleshooting directly on the device.

Secure Remote Network Access
Fusion 2.5G supports Omada LightLink VPN for secure remote access. Smart Split Tunneling routes only designated traffic through the VPN, reducing tunnel load while maintaining network performance.

Advanced Software Capabilities
Fusion 2.5G supports application- and category-level access control. QoS enables traffic prioritization through predefined profiles and custom rules, ensuring critical applications receive appropriate bandwidth.  It supports full-mesh SD-WAN connectivity across up to 20 sites — even without public IP addresses at each site — while content filtering provides flexible category- and time-based rules for centralized policy enforcement.
