Product Description

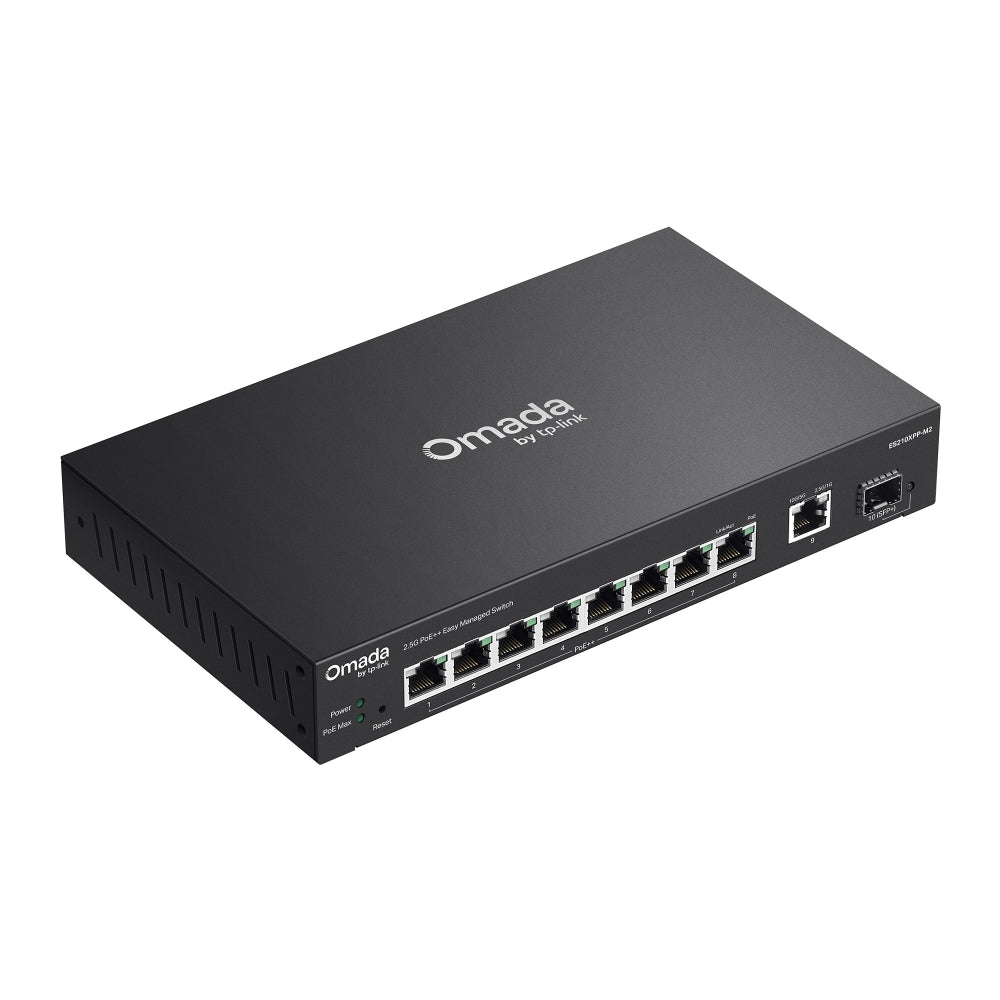

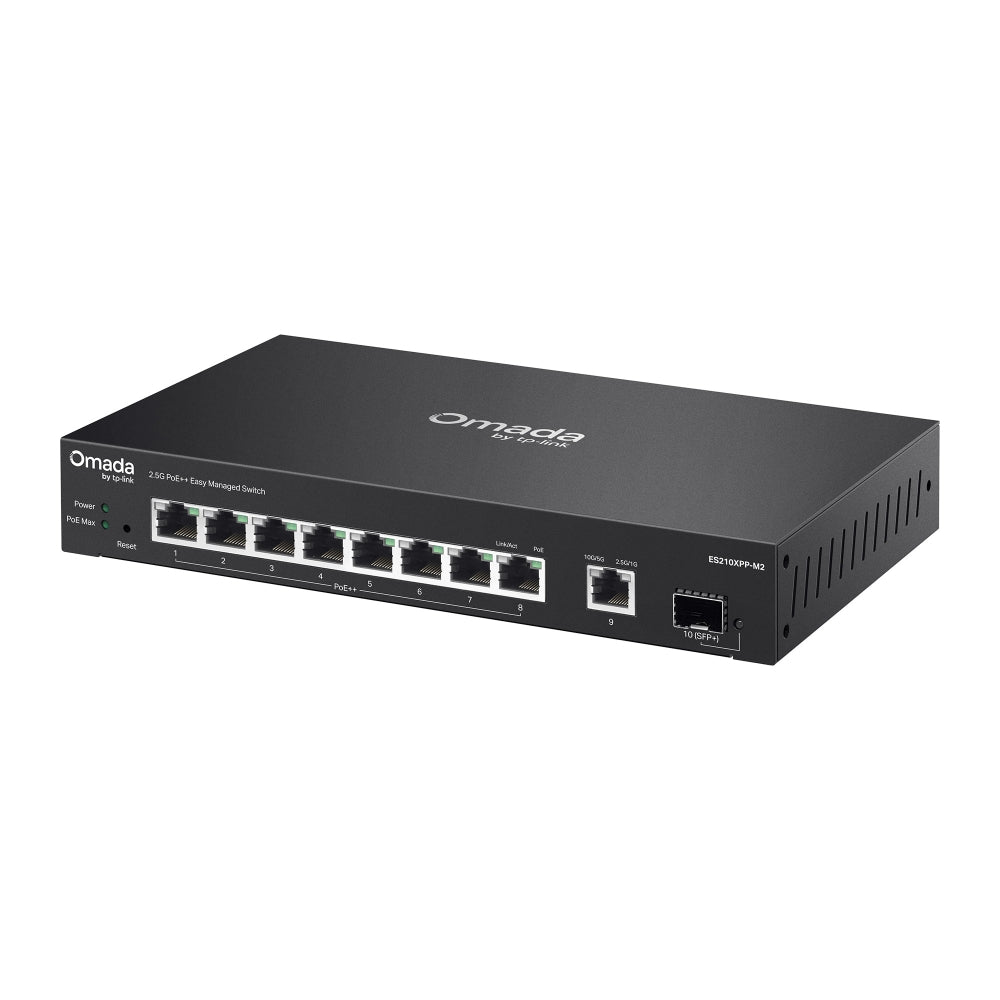

Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++
- 8× 2.5 Gbps RJ45 ports (8× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps RJ45 Port, 1× 10 Gbps SFP+ Slot
- 200W PoE budget, with up to 90W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
HARDWARE FEATURES

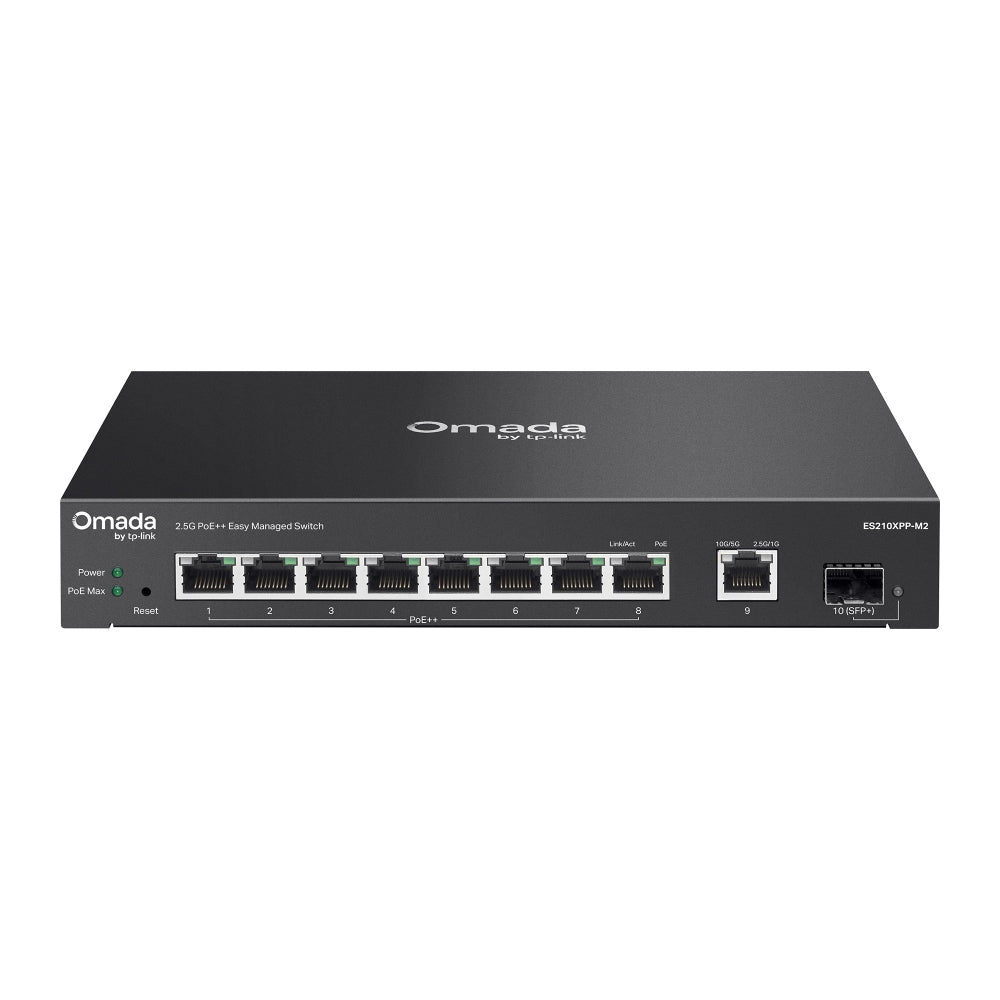

Interface
- 8× 2.5 Gbps RJ45 Ports (8× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps RJ45 Port
- 1× 10 Gbps SFP+ Slot
- Auto-Negotiation / Auto MDI/MDIX
Fan Quantity
- Fanless

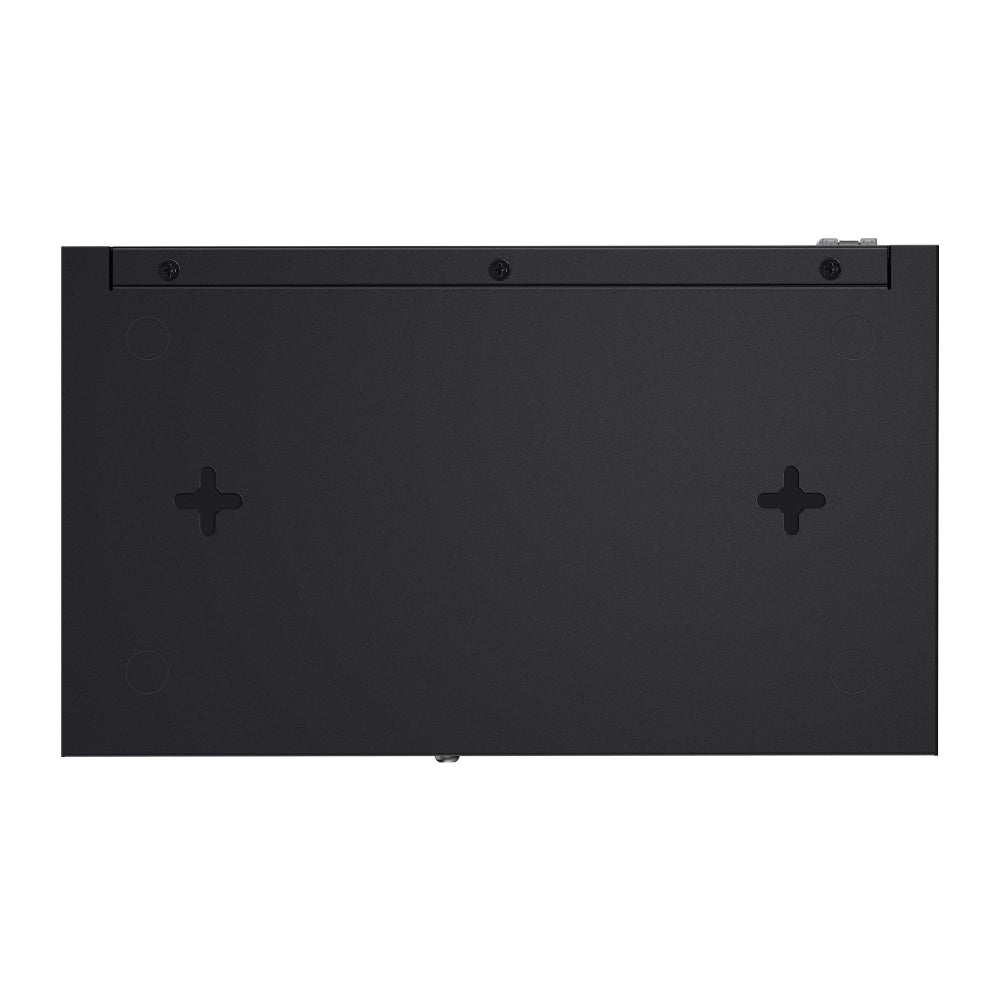

Installation
- Desktop
- Wall Mount
Physical Security Lock
- √

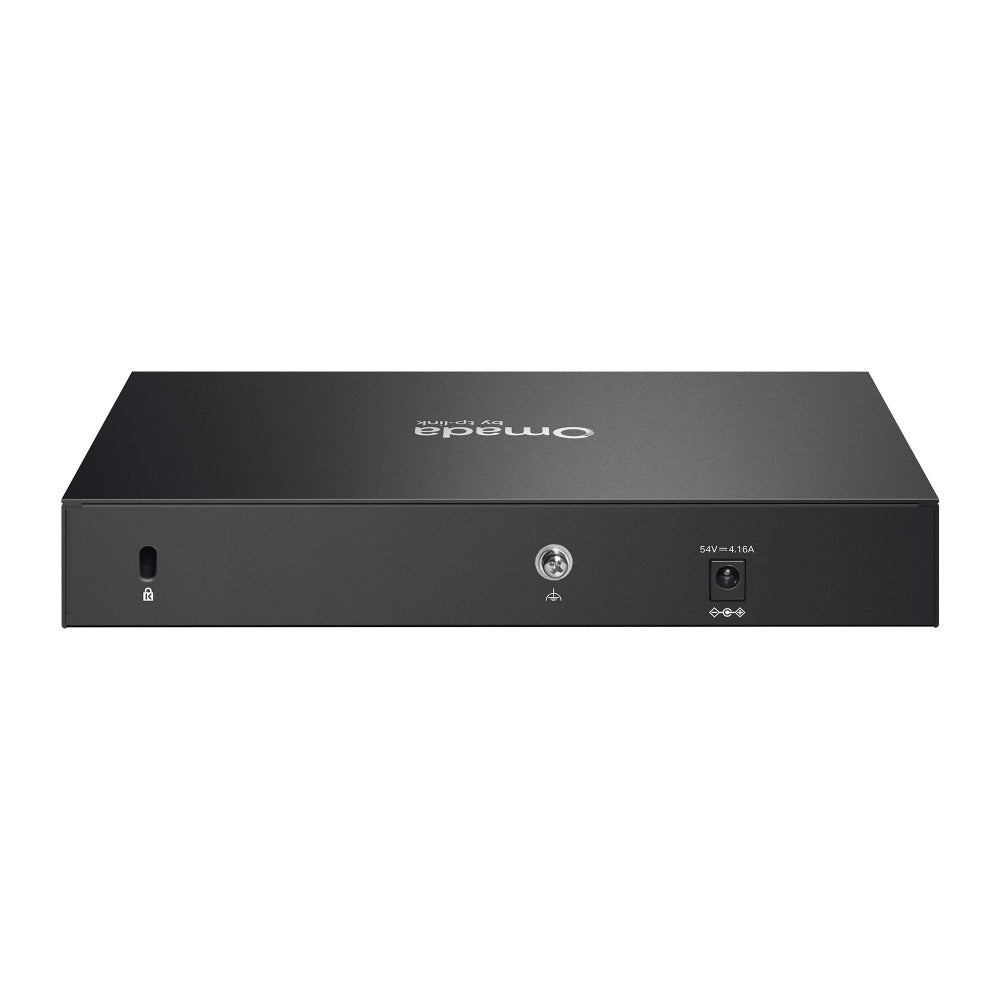

Power Supply
- AC/DC Adapter
- Input: 100–240V AC
- Output: 54V DC / 4.16A
PoE Ports (RJ45)
- Standard: 802.3af/at/bt PoE++ compliant
- PoE Ports: 8 Ports
- PoE Budget: 200W available for all PoE++ ports
- 90W max per port
- Fast PoE
- Perpetual PoE
- PoE Auto Recovery‡
Dimensions (W × D × H)
- 8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm)
Surge Protection
- ±6 kV
PERFORMANCE
- Packet Buffer Memory: 5 Mbit
- Jumbo Frame: 10 KB
- Switching Capacity: 80 Gbps
- Packet Forwarding Rate: 59.52 Mpps
- MAC Address Table: 16K
SOFTWARE FEATURES
Quality of Service
- Port-based / 802.1p / DSCP QoS
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Configuration
- Bandwidth Control
- Port-Based Rate Limit
- Storm Control
- Multiple Control Modes (kbps / pps)
- Broadcast / Multicast / Unknown-Unicast Control△
L2 Features
- Link Aggregation
- Static Link Aggregation
- Up to 6 aggregation groups
- Up to 4 ports per group
- Loop Prevention / Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress / Egress / Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
L2 Multicast
- IGMP Snooping
- IGMP v1 / v2 / v3 Snooping
- Fast Leave
VLAN
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
TRANSMISSION METHOD
- Store-And-Forward
MANAGEMENT FEATURES
Omada App
- Yes (requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller)
Centralized Management
- Omada Cloud-Based Controller (requires built-in version 5.15.22 or later)
- Omada Hardware Controller (requires built-in version 5.15.20 or later)
- Omada Software Controller (requires built-in version 5.15.20 or later)
Cloud Access
- Yes (requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller)
Zero-Touch Provisioning
- Yes (requires Omada Cloud-Based Controller)
Management Features
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Unified Configuration†
OTHERS
Certification
- FCC
- CE
- RoHS
Package Content
- ES210XPP-M2
- Power Adapter
- Power Cord
- Mounting Feet
- Installation Guide
Environment
- Operating Temperature: -10℃ to 40℃ (14℉ to 104℉)
- Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90%
