Product Description

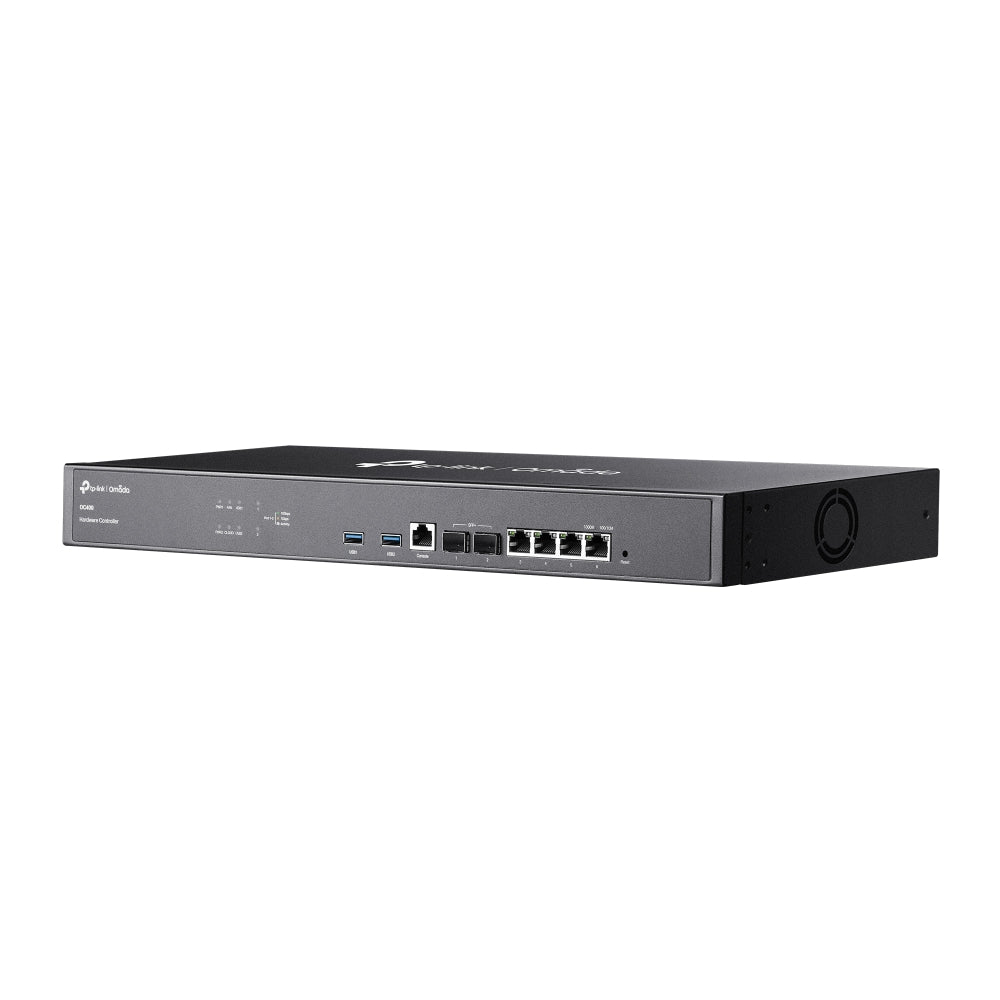

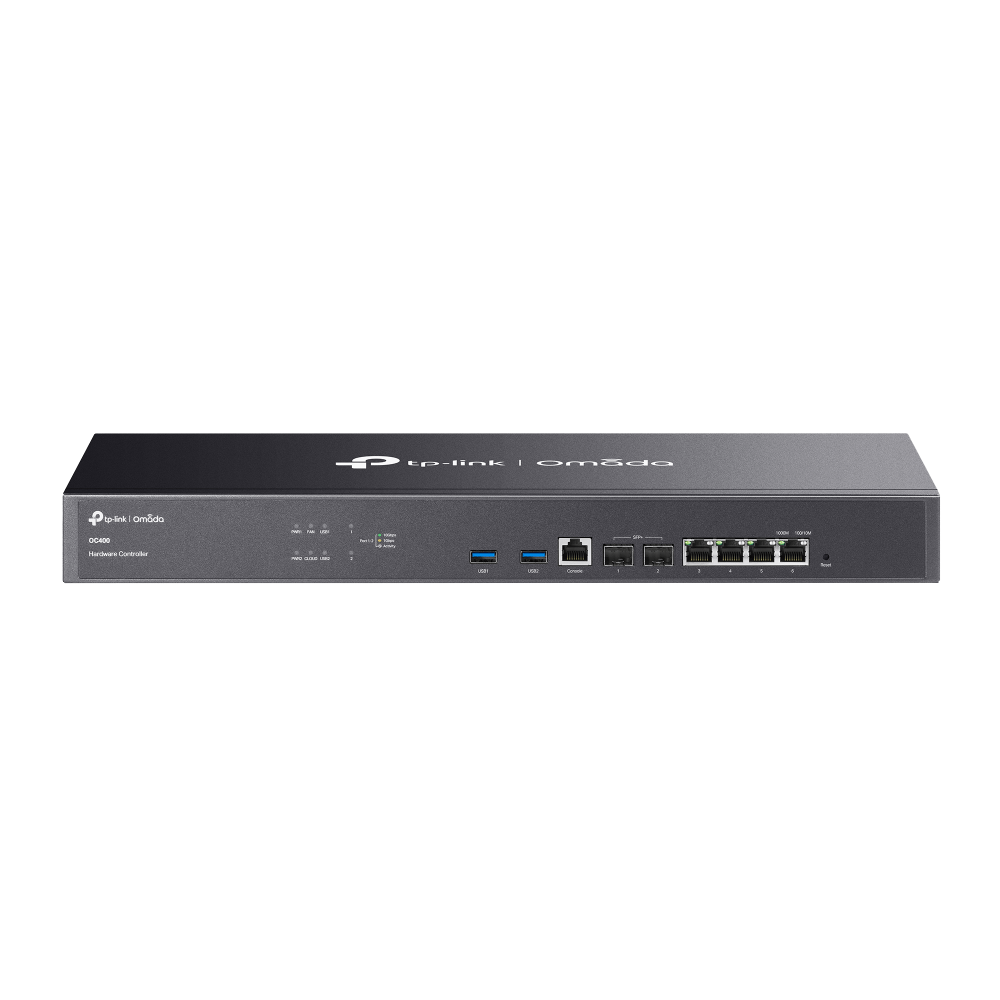

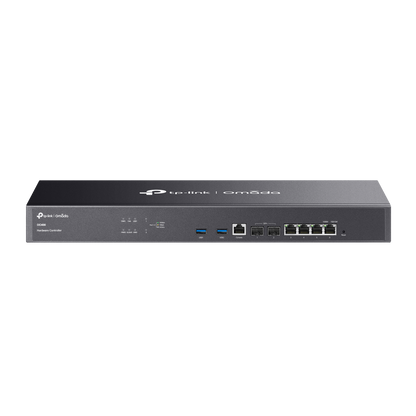

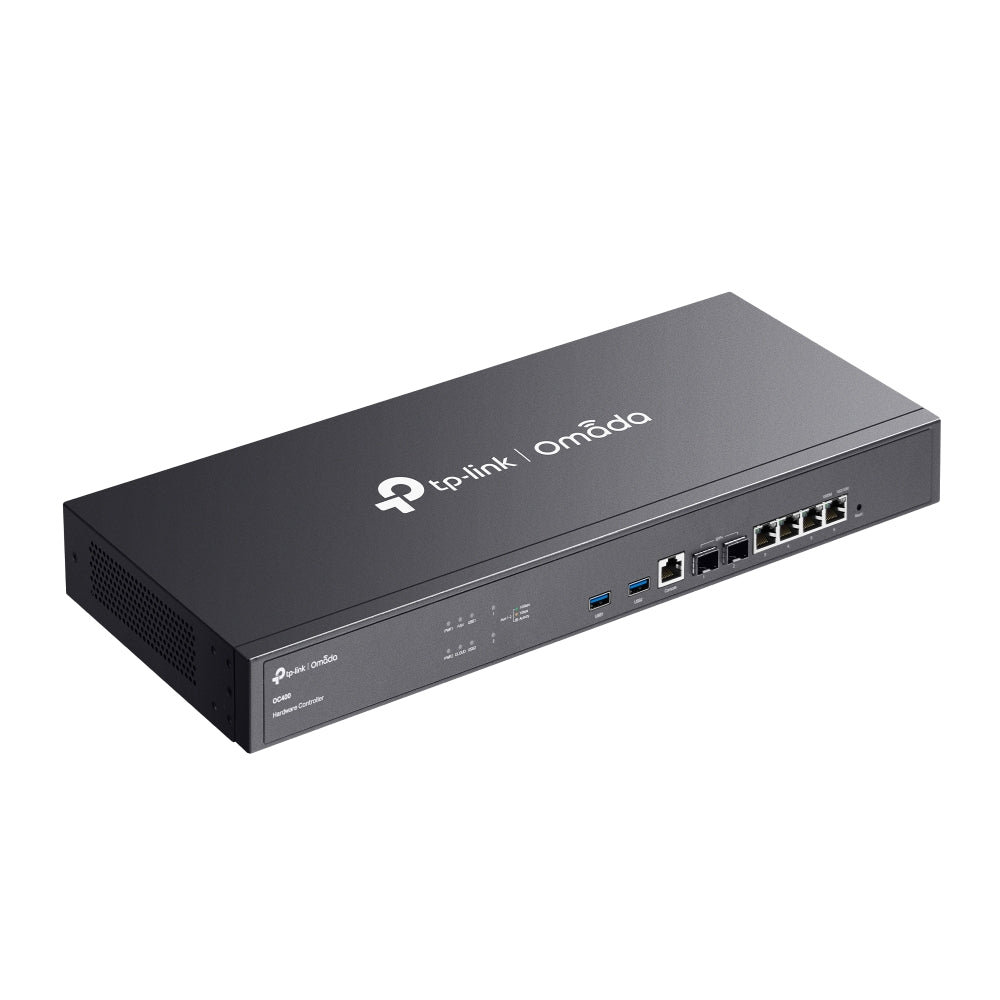

OC400
Omada Hardware Controller
- Centralized Management: for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.*
- 2× 10GE SFP+ Slots, 4× GE RJ45 Ports, and 2× USB 3.0 Ports.
- Redundant power supplies offer a reliable networking architecture.
- Free cloud access with the Omada app or Web UI from anywhere, anytime.
- On-premises manages to locally monitor and manage devices.
- The easy-to-use dashboard and real-time network topology make network monitoring easy.
- Batch and multi-site management benefit network maintenance.
Specifications:
HARDWARE FEATURES
Processor: Quad‑Core CPU
Memory: 4 MB Nor Flash; 32 GB eMMC; 8 GB DDR4
Interface: • 2× 10G SFP+ Ports • 4× GE RJ45 Ports • 2× USB 3.0 Ports • 1× GE Console Port
Fan Quantity: 1
Button: 1× Reset
Power Supply: 100–240 V ~ 50/60 Hz AC
Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Management Features
Omada App: Yes
Centralized Management: • Up to 1,000 Omada access points • 200 Omada switches • 100 Omada routers* • Up to 30,000 clients
*Refer to www.tp-link.com/en/business-networking/all-omada/ for supported OC400 models
Cloud Access: Yes
Multi‑site Management: Yes
Management Features: • Multi‑tenant Management (Role/Site/Device Privileges) • Migration (Site/Controller) • Account Management • Backup & Restore • Auto Backup • Customized UI • Automatic Device Discovery • Batch Configuration • Online Upgrade • Reboot Schedule • PoE Schedule • WLAN Schedule • Batch Firmware Upgrading • DDNS • SNMP • SSH

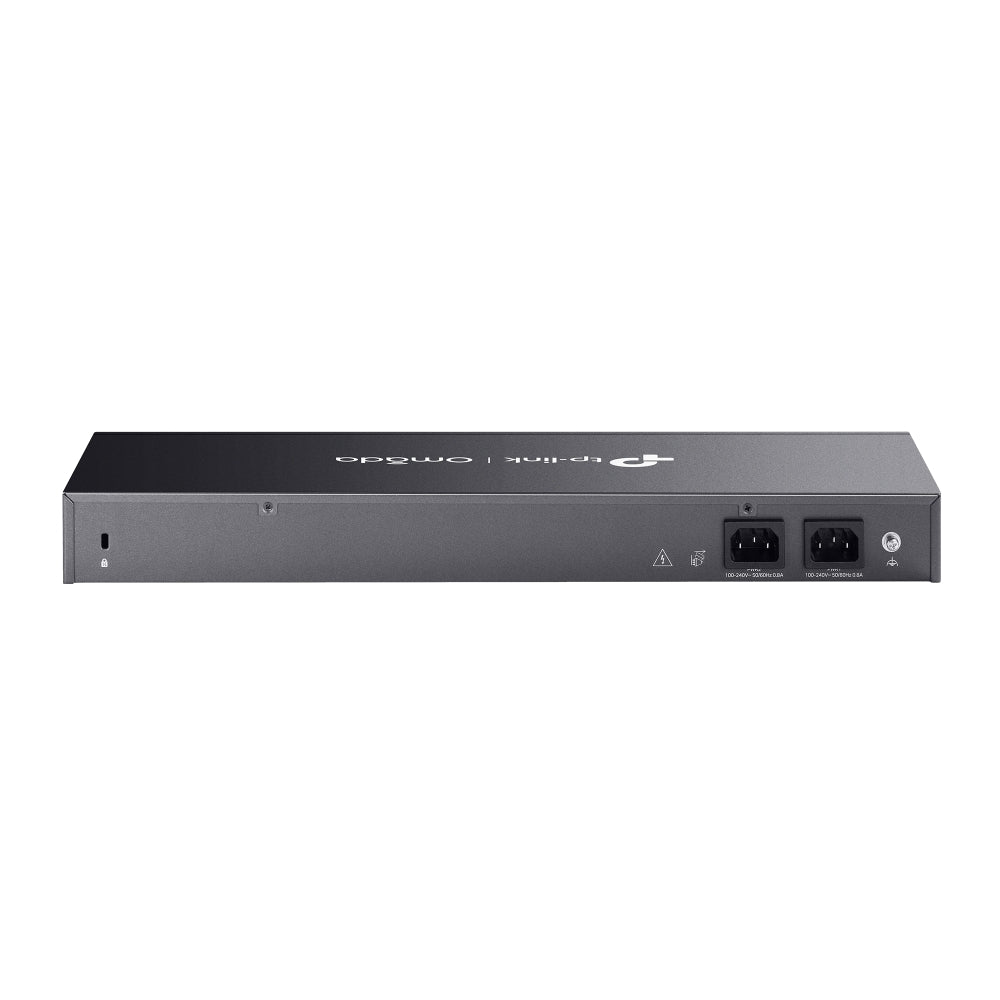

Redundant Power Supply
Redundant Power Supply: 2× Internal Fixed Power Supplies
MONITORING
Monitoring: • Custom Dashboard • Statistics (Performance/Switch) • Network Topology • Network Map • Devices List • Clients List • Insights • Logs
OTHERS
Certification: CE, FCC, RoHS
Package Content: • Omada Hardware Controller OC400 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit
System Requirements: Windows 10/8/7/Vista/XP or macOS, NetWare, UNIX, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
