Product Description
IES210GPP

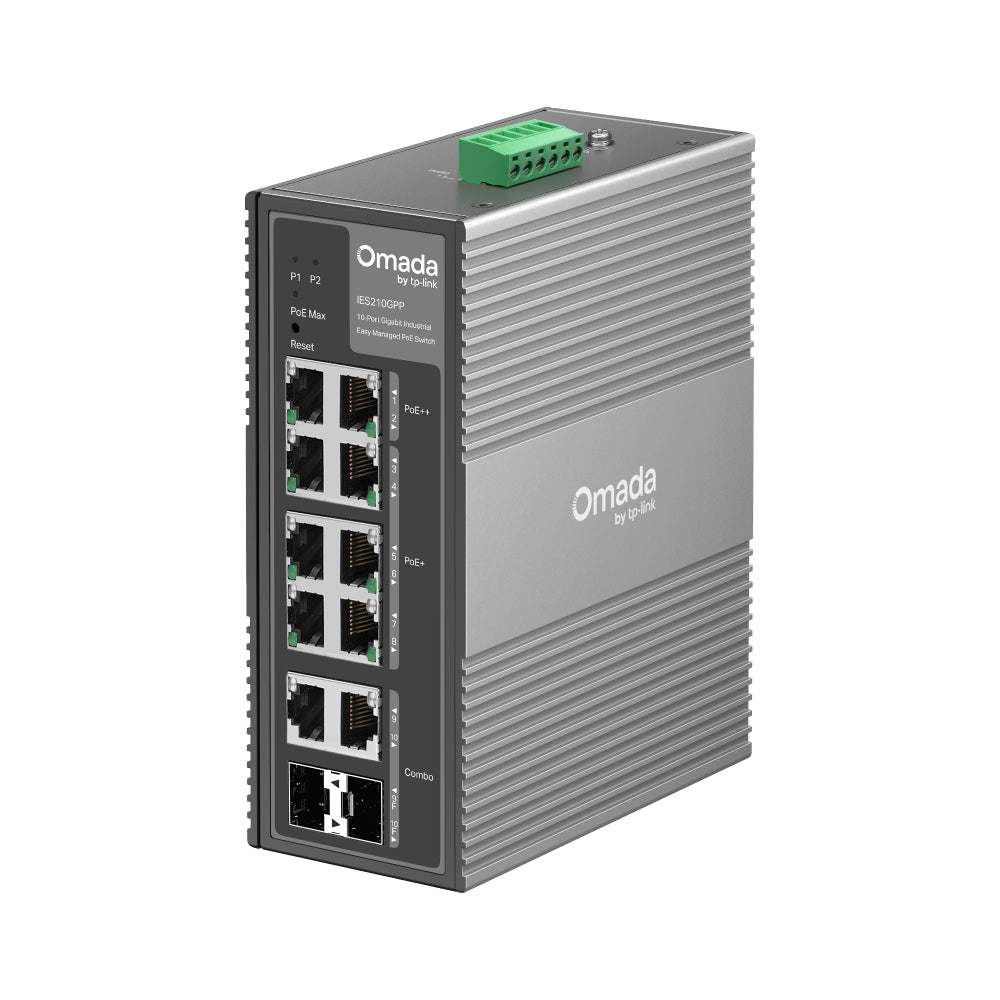

Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
- 8× Gigabit RJ45 Ports (2× PoE++, 6× PoE+)
- 2× Gigabit Combo RJ45/SFP Slots
- 240W Power Budget* with up to 60W for Each PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†

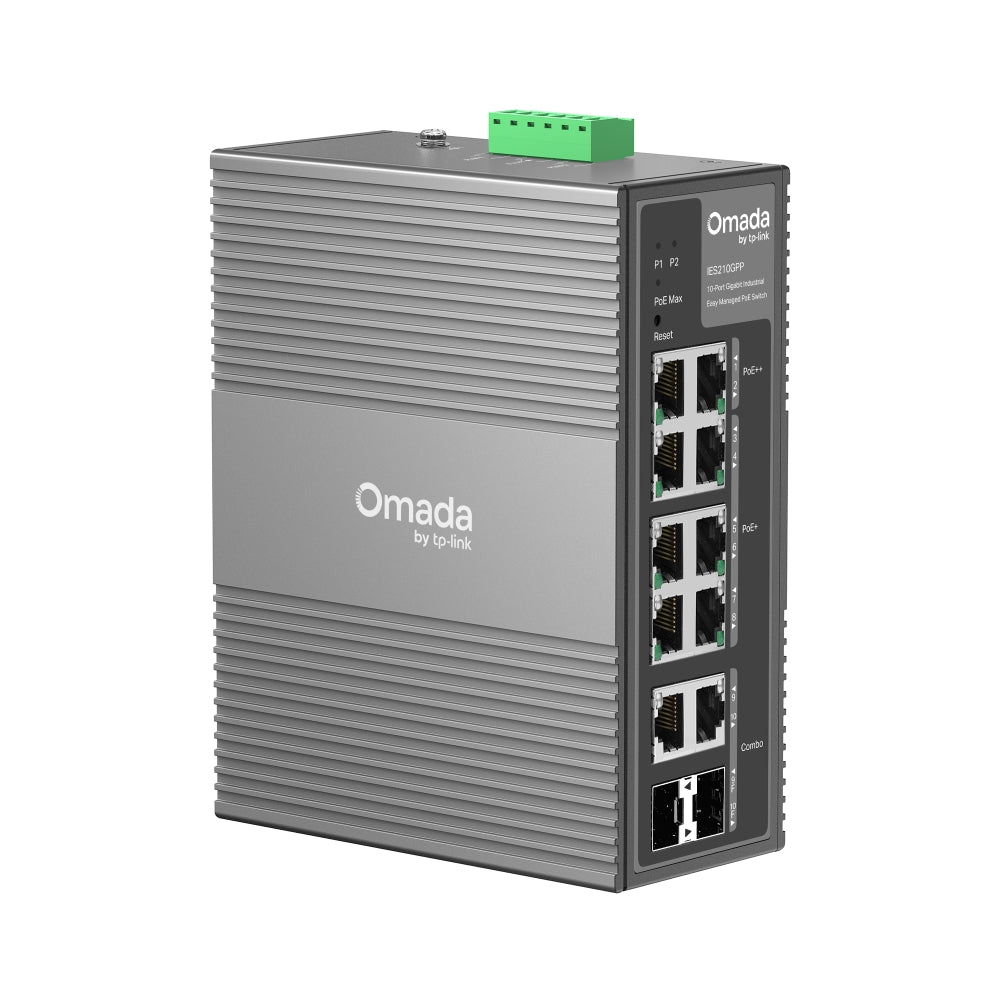

- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Specifications:
HARDWARE FEATURES

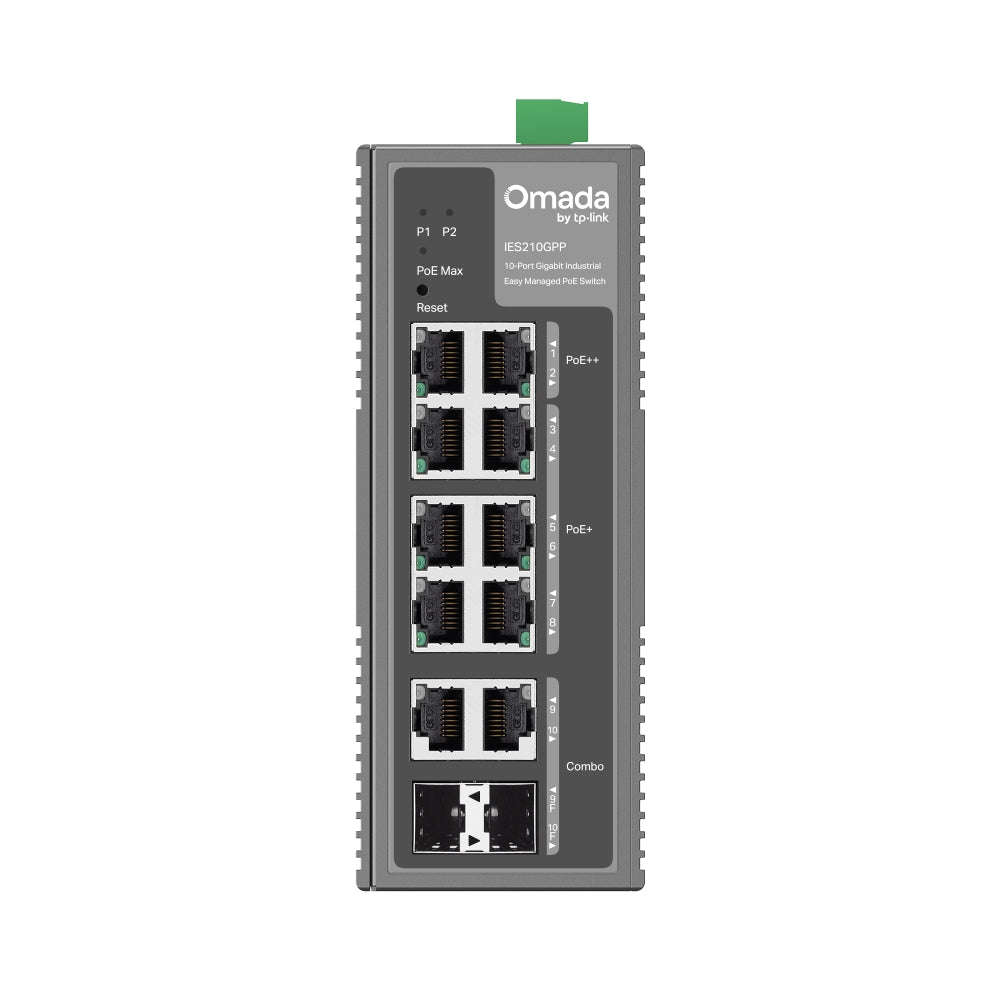

Interface: • 2× 10/100/1000 Mbps PoE++ RJ45 Ports • 6× 10/100/1000 Mbps PoE+ RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto‑Negotiation/Auto MDI/MDIX
Fan Quantity: Fanless

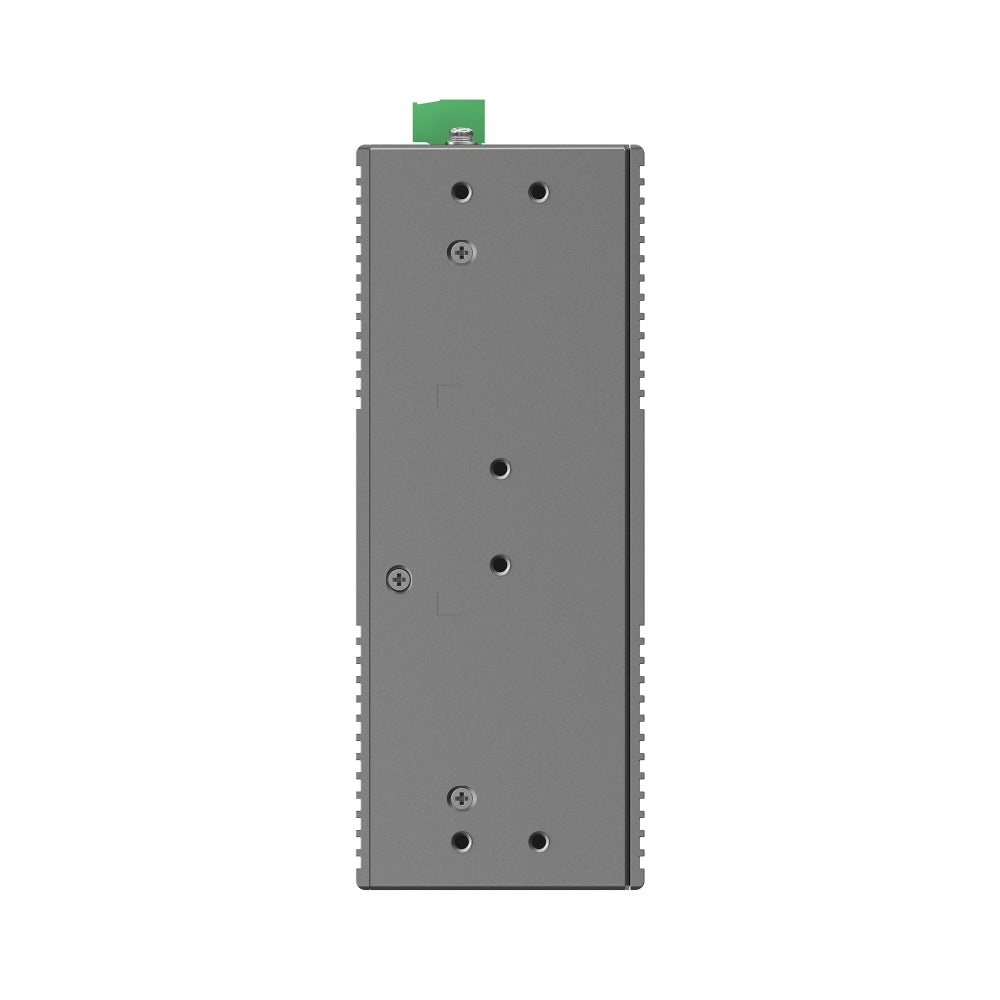

Installation: • DIN‑rail mounting • Wall mounting
Physical Security Lock: √

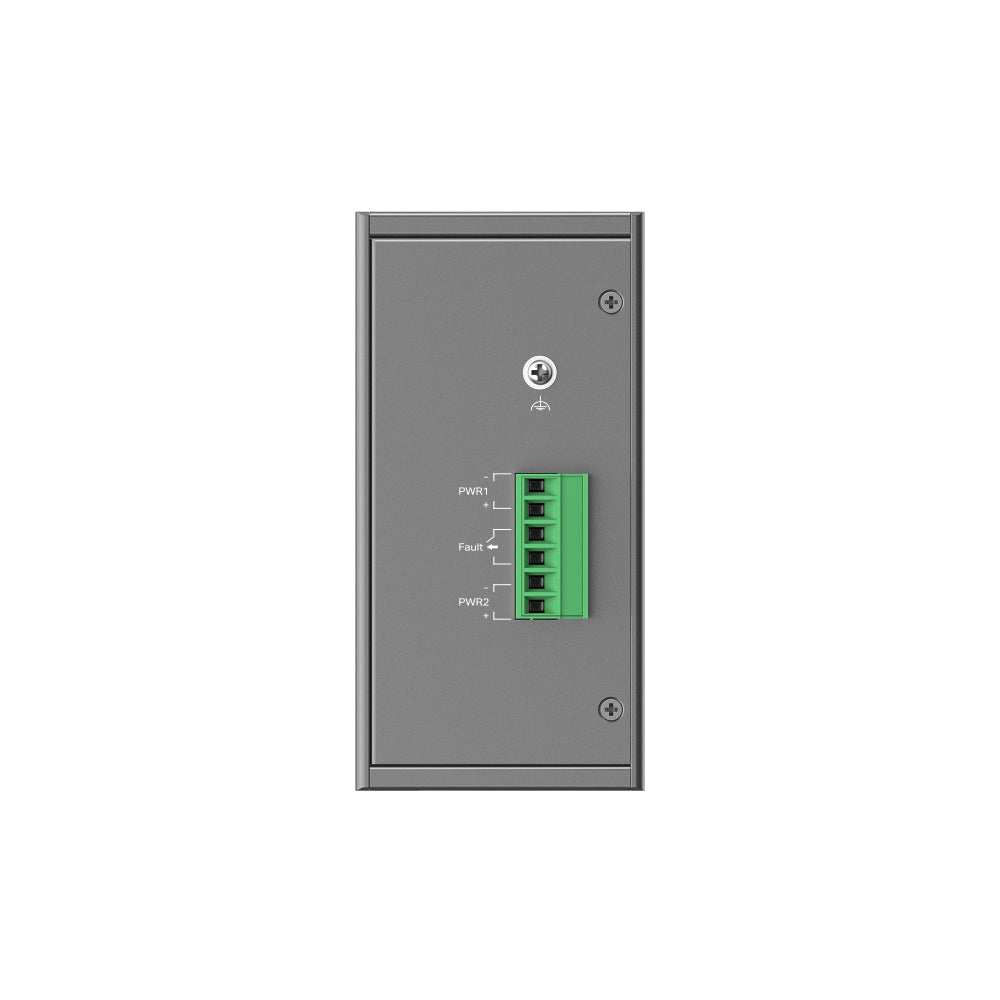

Power Supply: 12–57V 1+1 Redundant DC Power Input
PoE Ports (RJ45): • 802.3af/at/bt compliant • PoE++: 2 Ports up to 60 W each • PoE+: 6 Ports up to 30 W each • PoE Budget:
– 60 W (Input: 12V/7.2A–21V/3.7A)
– 120 W (Input: 21V/6.7A–46V/3.1A)
– 240 W (Input: 46V/5.7A–57V/4.4A)
Dimensions: 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection: • ±6 kV (Ethernet ports) • ±4 kV (DC power input)
PERFORMANCE
Switching Capacity: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
SOFTWARE FEATURES
Quality of Service: • 802.1p/DSCP Priority • 8 Priority Queues • WRR Scheduling • Queue Weight Config • Bandwidth Control (Port‑based) • Storm Control (kbps/pps) • Broadcast/Multicast/Unknown‑Unicast Control
L2 Features: • Link Aggregation (Static, 4 groups up to 6 ports each) • Loopback Detection • 802.3x Flow Control • Mirroring (One‑to‑One / Many‑to‑One / Ingress / Egress / Both) • Port Statistics (Mirror Status / Traffic) • LLDP • STP/RSTP
L2 Multicast: • IGMP Snooping v1/v2/v3 • Fast Leave
VLAN: • MTU VLAN • Port‑Based VLAN • 802.1Q VLAN • Max 32 VLAN Groups • 4K VIDs
Transmission Method: Store‑And‑Forward
MANAGEMENT FEATURES
Omada App: Yes (requires Omada Hardware / Cloud‑Based / Software Controller)
Centralized Management: • Omada Cloud‑Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes
Zero‑Touch Provisioning: Yes (via Omada Cloud‑Based Controller)
Management Features: • Web‑based GUI • DHCP Client • Cable Diagnostics • DDM • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrade† • Unified Configuration†
OTHERS
Certification: FCC, CE, RoHS
Package Content: • IES210GPP • DIN‑Rail Bracket • Wall‑Mount Plates • Installation Guide
Environment: • Operating Temp: −40°C to 75°C (−40°F to 167°F) • Storage Temp: −40°C to 85°C (−40°F to 185°F) • Operating Humidity: 5–95% RH • Storage Humidity: 5–95% RH
