Product Description
IES208G

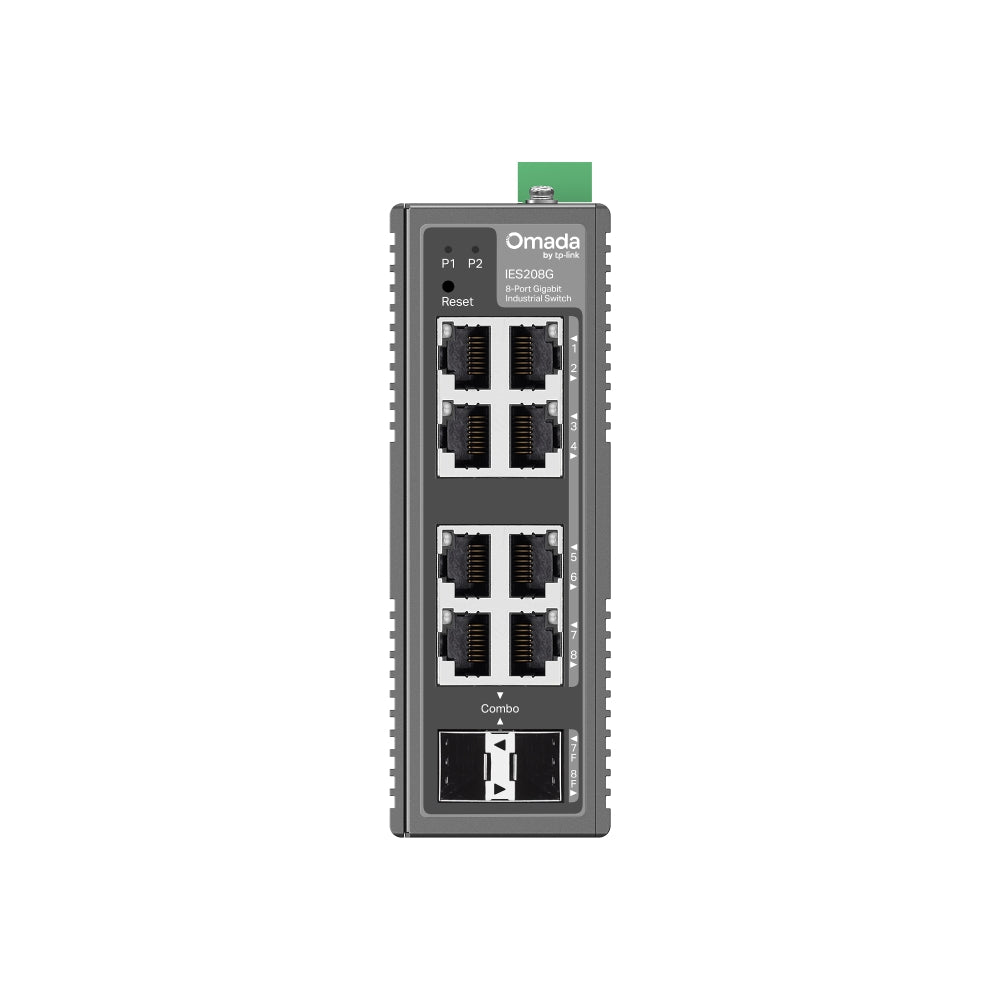

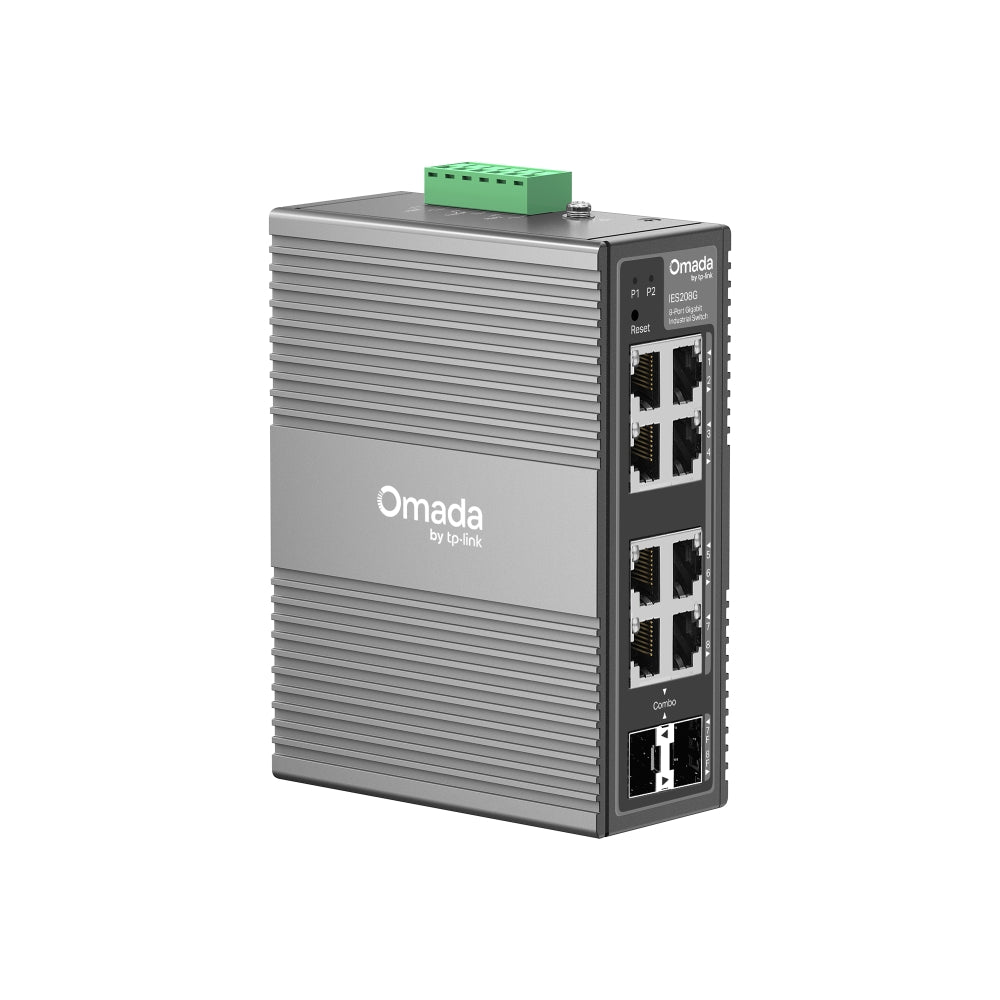

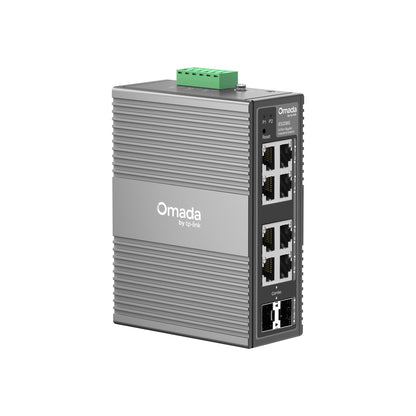

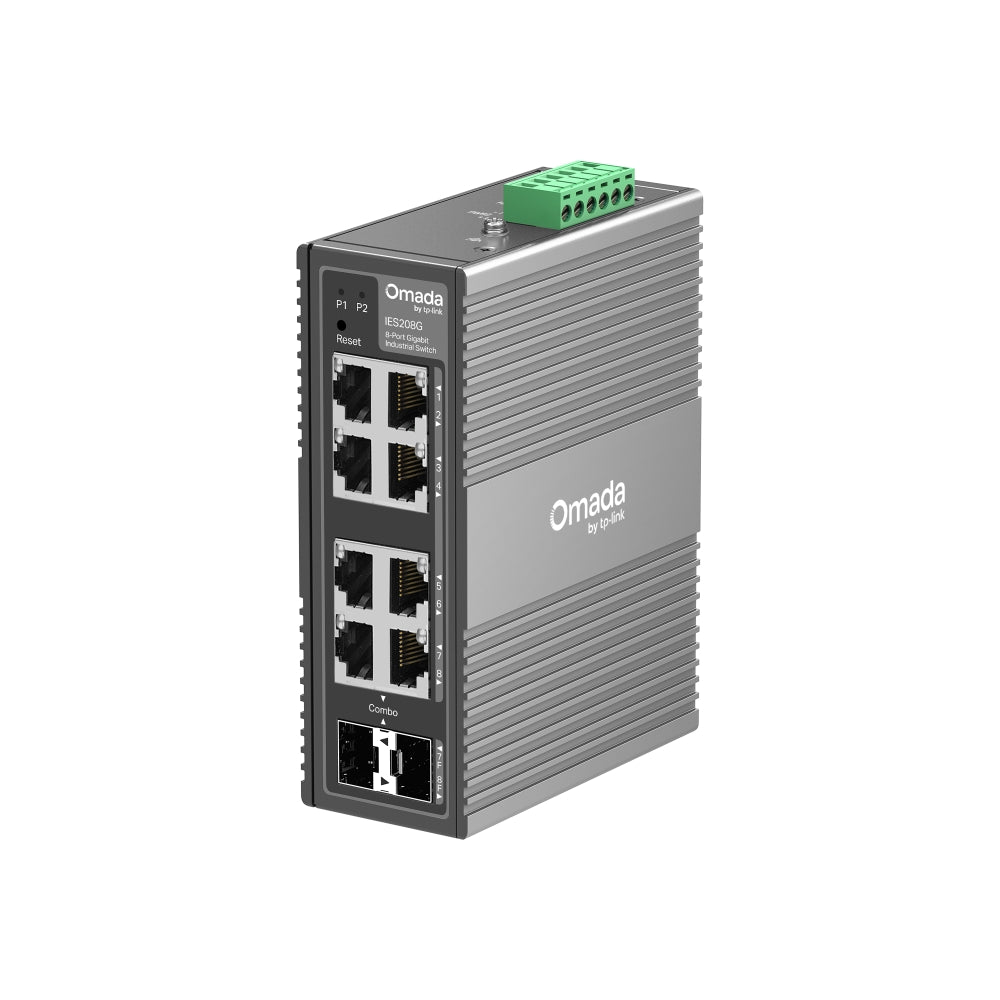

Omada 8-Port Gigabit Industrial Easy Managed Switch
- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Specifications:
HARDWARE FEATURES
Interface: • 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto‑Negotiation/Auto‑MDI/MDIX
Fan Quantity: Fanless

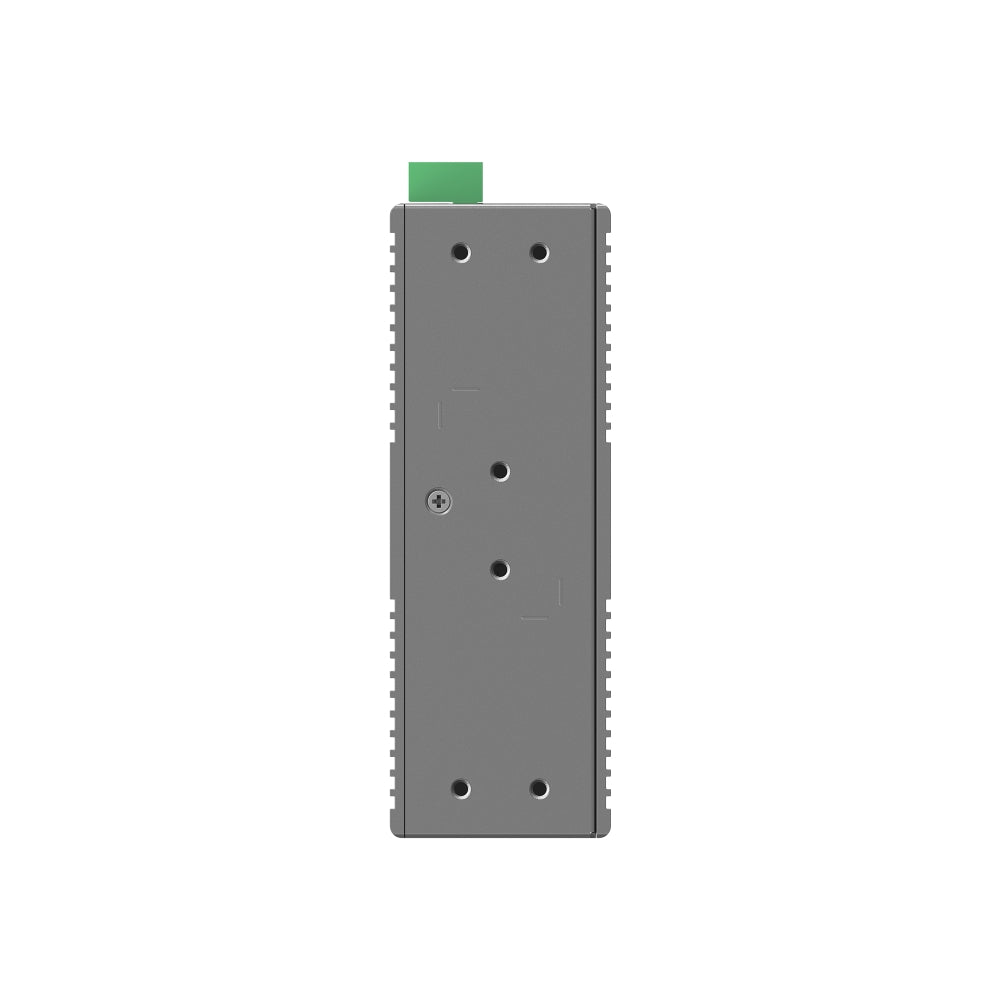

Installation: • DIN‑rail mounting • Wall mounting

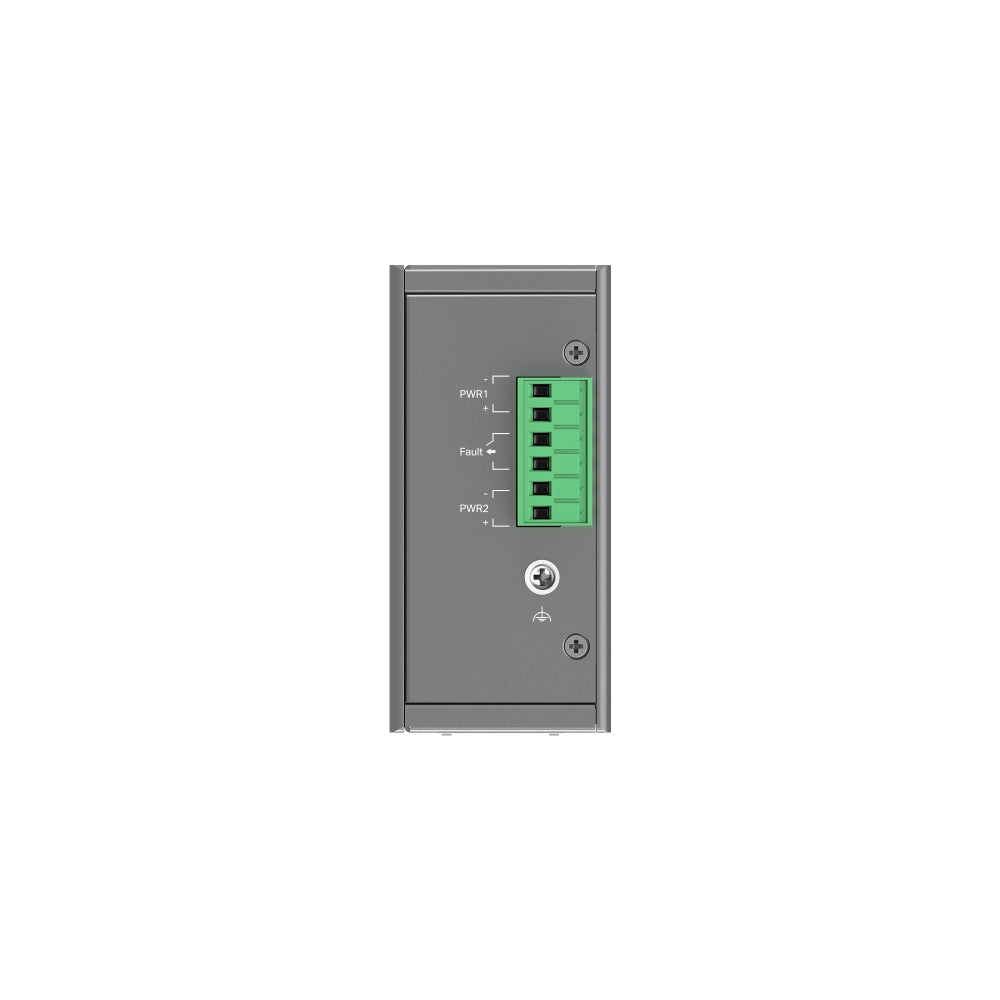

Power Supply: 9.6–60V 1+1 Redundant DC Power Input
Dimensions: 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection: • ±6 kV (Ethernet ports) • ±4 kV (DC power input ports)
PERFORMANCE
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
SOFTWARE FEATURES
Quality of Service: • 802.1p/DSCP Priority • 8 Priority Queues • WRR Scheduling • Queue Weight Config • Port‑Based Rate Limit • Storm Control (kbps/pps) • Broadcast/Multicast/Unknown‑Unicast Control
L2 Features: • Static Link Aggregation (2 groups, up to 4 ports/group) • Loopback Detection • 802.3x Flow Control • Mirroring (One‑to‑One / Many‑to‑One / Ingress / Egress / Both) • Port Statistics (Mirror Status, Traffic) • LLDP • STP/RSTP
L2 Multicast: • IGMP Snooping v1/v2/v3 • Fast Leave
VLAN: • MTU VLAN • Port‑Based VLAN • 802.1Q VLAN • Max 32 VLAN Groups • 4K VID
Transmission Method: Store‑And‑Forward
MANAGEMENT FEATURES
Omada App: Yes (requires Omada Hardware / Cloud‑Based / Software Controller)
Centralized Management: • Omada Cloud‑Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller)
Management Features: • Web‑based GUI • DHCP Client • Cable Diagnostics • DDM • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrade† • Unified Configuration†
OTHERS
Certification: FCC, CE, RoHS
Package Content: • IES208G • DIN‑Rail Mounting Bracket • Wall‑Mounting Plates • Installation Guide
Environment: • Operating Temp: −40°C to 75°C (−40°F to 167°F) • Storage Temp: −40°C to 85°C (−40°F to 185°F) • Operating Humidity: 5–95% RH (non‑condensing) • Storage Humidity: 5–95% RH (non‑condensing)
