Product Description

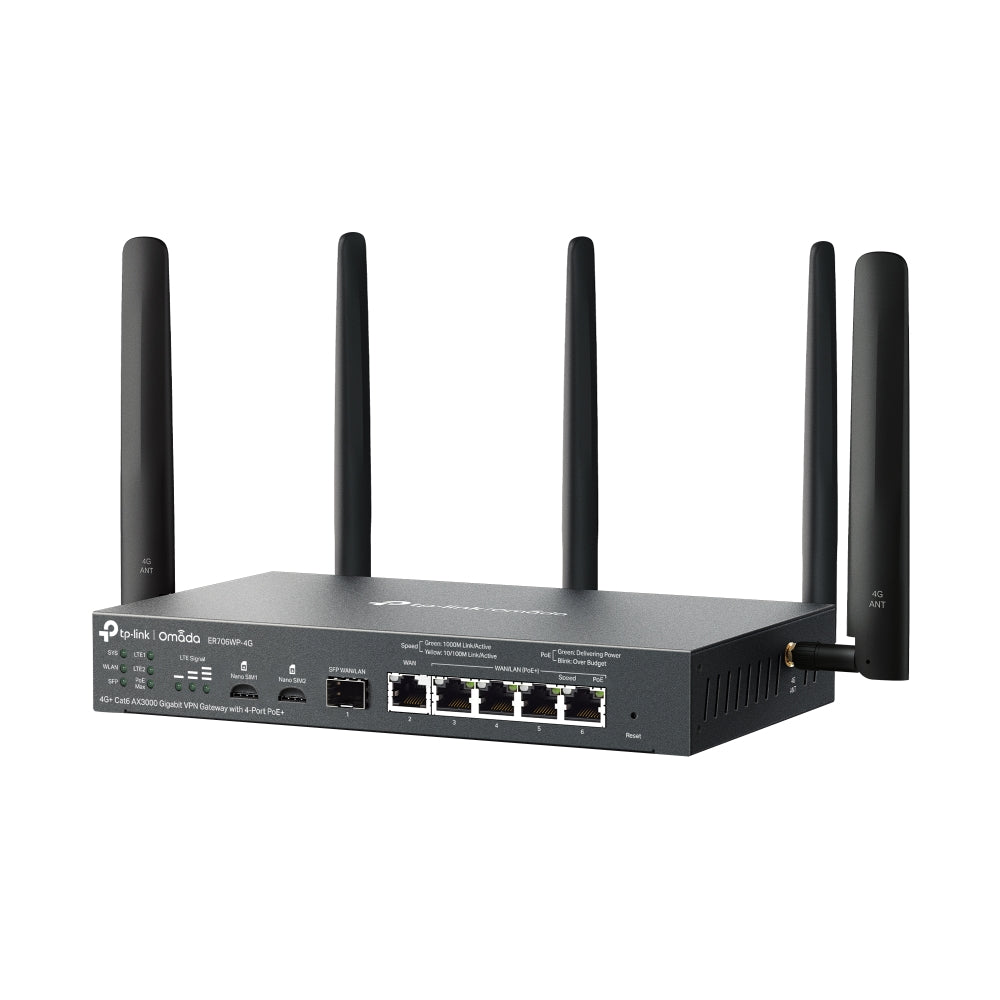

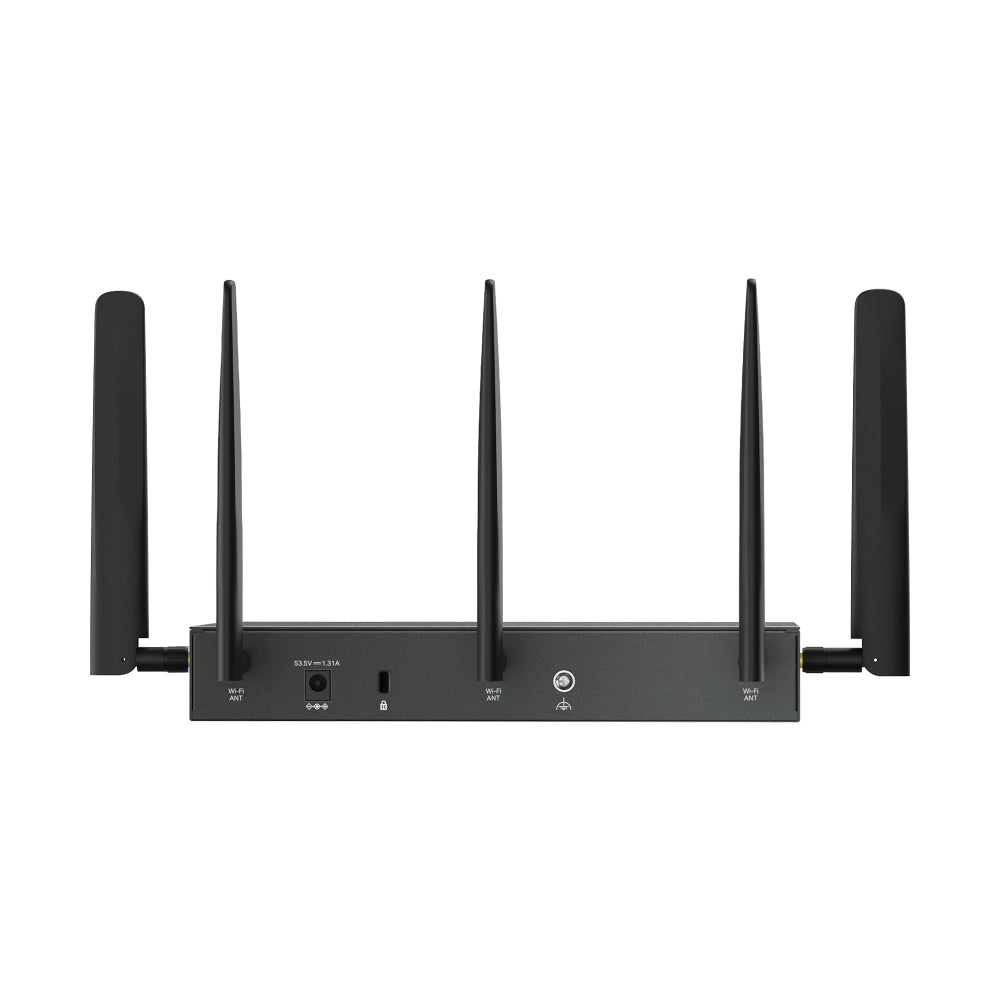

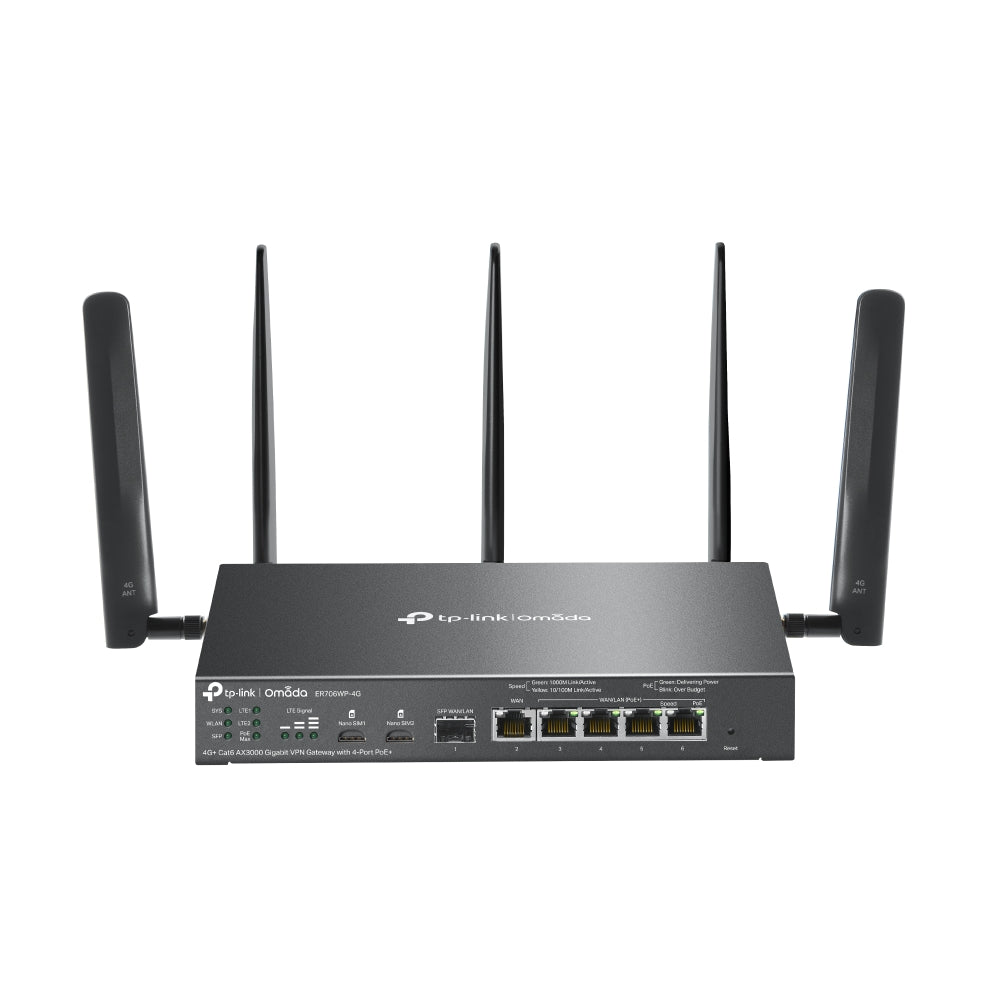

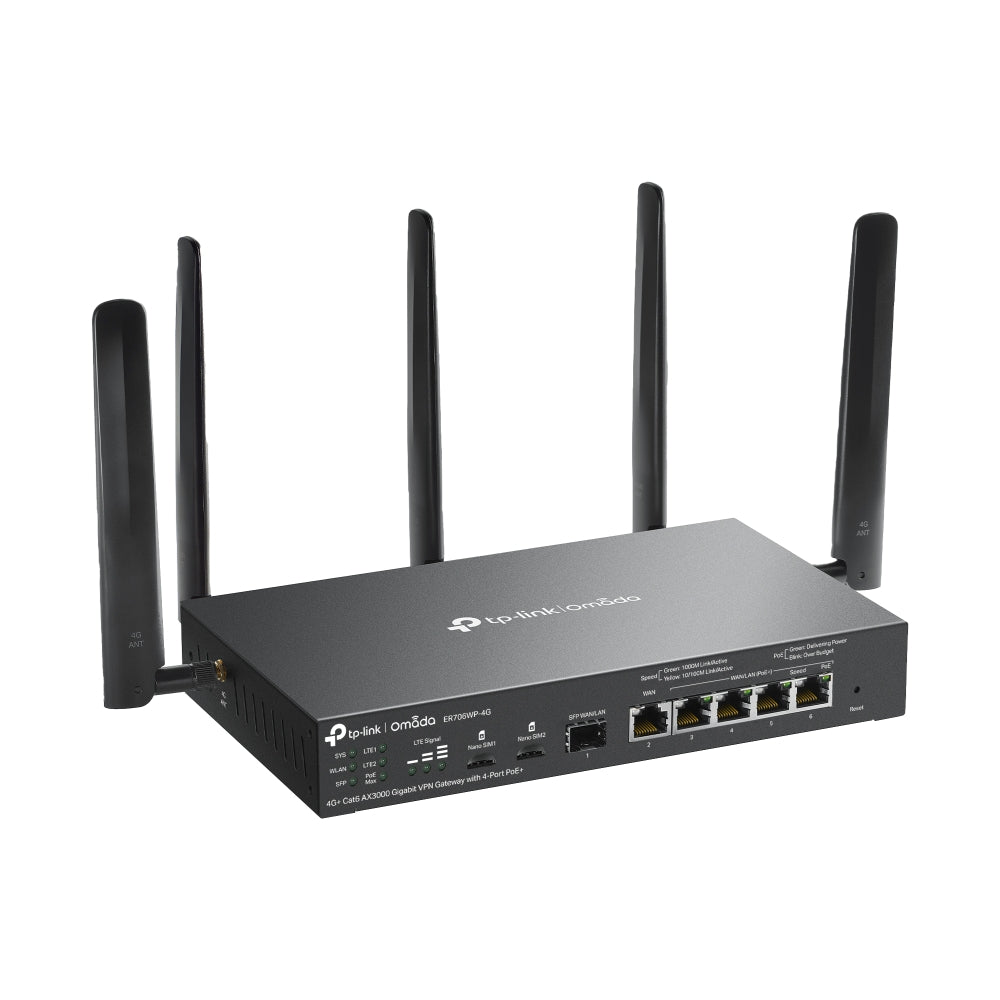

ER706WP-4G
Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+
- Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US).
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz***
- 5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
- Centralized Management: Cloud access and the Omada app for easy management.
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*△
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.△
Specifications:
4G
Network Type (EU):
- 4G LTE‑FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
- 4G LTE‑TDD: B38/B40/B41 (2600/2300/2500 MHz)
- 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Aggregation (EU):
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type: 2× Nano SIM (4G+ Cat6)
Frequency: Downlink 300 Mbps; Uplink 50 Mbps
SECURITY
DPI: Application control via DPI / Updated app library
IDS/IPS: Signature‑based threat detection
Access Control: Source/Destination IP
Filtering: Web Group Filtering†; URL Filtering; Web Security†
ARP Inspection: Sending GARP; ARP Scanning†; IP‑MAC Binding
Attack Defense: TCP/UDP/ICMP Flood; Block TCP Scan (FIN/Xmas/Null); Block Ping from WAN
HARDWARE FEATURES
Interface: 1× SFP WAN/LAN; 1× WAN; 4× LAN/WAN
Network Media:
- 10BASE‑T: Cat 3/4/5 UTP or 100Ω STP (100 m)
- 100BASE‑TX: Cat 5/5e UTP or 100Ω STP (100 m)
- 1000BASE‑T: Cat 5/5e/6 (100 m)
Button: Reset
Power Supply: 4‑Port PoE+ (45 W)
Wi‑Fi Rate: 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps (HE160)
Flash: 256 MB NAND
DRAM: 512 MB DDR4
LEDs: SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN/LAN indicators
PoE Ports: 4× PoE+ (45 W budget)
Dimensions: 226 × 131 × 35 mm (no antennas)
Antennas:
- Wi‑Fi: 3× dual‑band (5 GHz 5.5 dBi, 2.4 GHz 4.5 dBi)
- LTE: 2× 4.0 dBi detachable

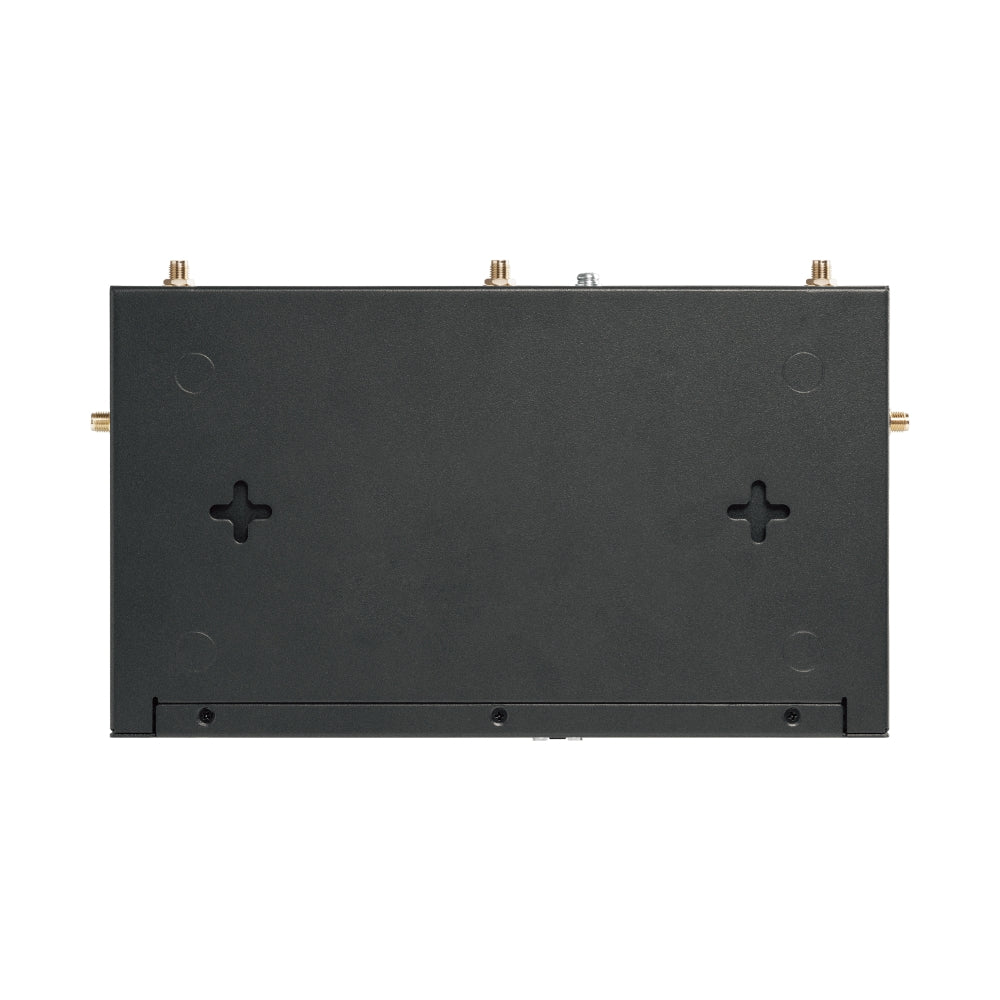

Mounting: Desktop / Wall / Rackmount
Max Power: 64.9 W (PoE Max); 19.8 W (PoE off)
PERFORMANCE
IPS: TCP 229 Mbps; UDP 188 Mbps
DPI: TCP 933 Mbps; UDP 927 Mbps
GRE: 545.3 Mbps unencrypted; 282.6 Mbps encrypted
WireGuard: 387.7 Mbps
Sessions: 150,000; 5,100 new/s
NAT:
- Static IP: 947.1 / 940.1 Mbps
- DHCP: 949.2 / 941.1 Mbps
- PPPoE: 942.6 / 941.1 Mbps
- L2TP: 875.4 / 892.0 Mbps
- PPTP: 881.2 / 895.8 Mbps
IPsec:
- SHA1‑AES256: 652.2 Mbps
- SHA256‑AES256: 654.4 Mbps
- SHA384‑AES256: 646.5 Mbps
- SHA512‑AES256: 670.5 Mbps
Other VPN:
- OpenVPN: 115.5 Mbps
- L2TP: 990.0 / 475.0 Mbps
- PPTP: 1177.9 / 177.4 Mbps
- SSL VPN: 122.5 Mbps
Forwarding:
- 66‑byte: 1,453,489 pps
- 1518‑byte: 81,274 / 91,275 pps
WIRELESS FEATURES
Advanced: Seamless Roaming; Mesh†; OFDMA; Beamforming; MU‑MIMO; Rate Limit; Airtime Fairness
Encryption: WPA/WPA2/WPA3 Personal & Enterprise
SSIDs: 16 total (8 per radio)
Guest Network: Supported
BASIC FUNCTIONS
WAN: Static IP; Dynamic IP; PPPoE; PPTP; L2TP
MAC Clone: Modify WAN MAC
DHCP: Server; DHCPv6 PD†; Options; Reservation; Multi‑IP; Multi‑Net
SMS: Send/Receive
IPv6: StaticIP; SLAAC; DHCPv6; PPPoE; 6to4; PassThrough; Non‑Address
VLAN: 802.1Q
IPTV: IGMP v2/v3 Proxy; Custom; Bridge
ADVANCED FEATURES
Access Control: IP/Port/Protocol/Domain Filtering
Routing: Static; Policy; RIP†; OSPF†
Bandwidth Control: IP‑based
Load Balance: Intelligent LB; App Routing; Link Backup; Online Detection
NAT: One‑to‑One; Multi‑Net; Virtual Server; Port Triggering†; NAT‑DMZ; ALG; UPnP
Session Limit: IP‑based
VPN
GRE: Standalone only
SSL VPN: 50 tunnels
IPsec: 100 tunnels; LAN‑LAN/Client‑LAN; DES/3DES/AES; IKEv1/v2; NAT‑T; DPD; PFS; MD5/SHA1/SHA2
PPTP: Server; Client (10)△; 50 tunnels; MPPE
L2TP: Server; Client (10)△; 50 tunnels; L2TP over IPsec
OpenVPN: Server; Client (5)△; 55 tunnels; Certificate+Account; Full Mode
WireGuard: 20 tunnels
AUTHENTICATION
No Auth; Simple Password§; Hotspot (Local/Voucher§/SMS§/Radius§); External Radius; External Portal Server§; LDAP
MANAGEMENT
Omada App: Yes
Controllers: Cloud / OC300 / OC200 / Software
Cloud Access: Yes
DDNS: Dyndns, No‑IP, Peanuthull, Comexe, Custom
Maintenance: Web UI; Remote Mgmt; Import/Export; SNMP; Diagnostics†; NTP Sync†; Port Mirroring; CLI†; Syslog
Zero‑Touch: Yes (Cloud Controller)
Management Tools: Auto Discovery; Monitoring; Event Warnings; Unified Config; Reboot Schedule; Captive Portal Config
OTHER
Default Network Services:
- Web Server: HTTP/HTTPS (80/443 TCP)
- TDP Server: Discovery (20003 UDP)
- DHCP Server: Port 67 UDP
- DNS: Port 53 TCP/UDP
Certification: CE, FCC, RoHS
Package: ER706WP‑4G; Power Adapter; Quick Guide
System Requirements: Windows 98SE–11; macOS; NetWare; UNIX; Linux
Environment:
- Operating: 0–40°C
- Storage: –40–70°C
- Humidity: 10–90% operating; 5–90% storage
