Product Description

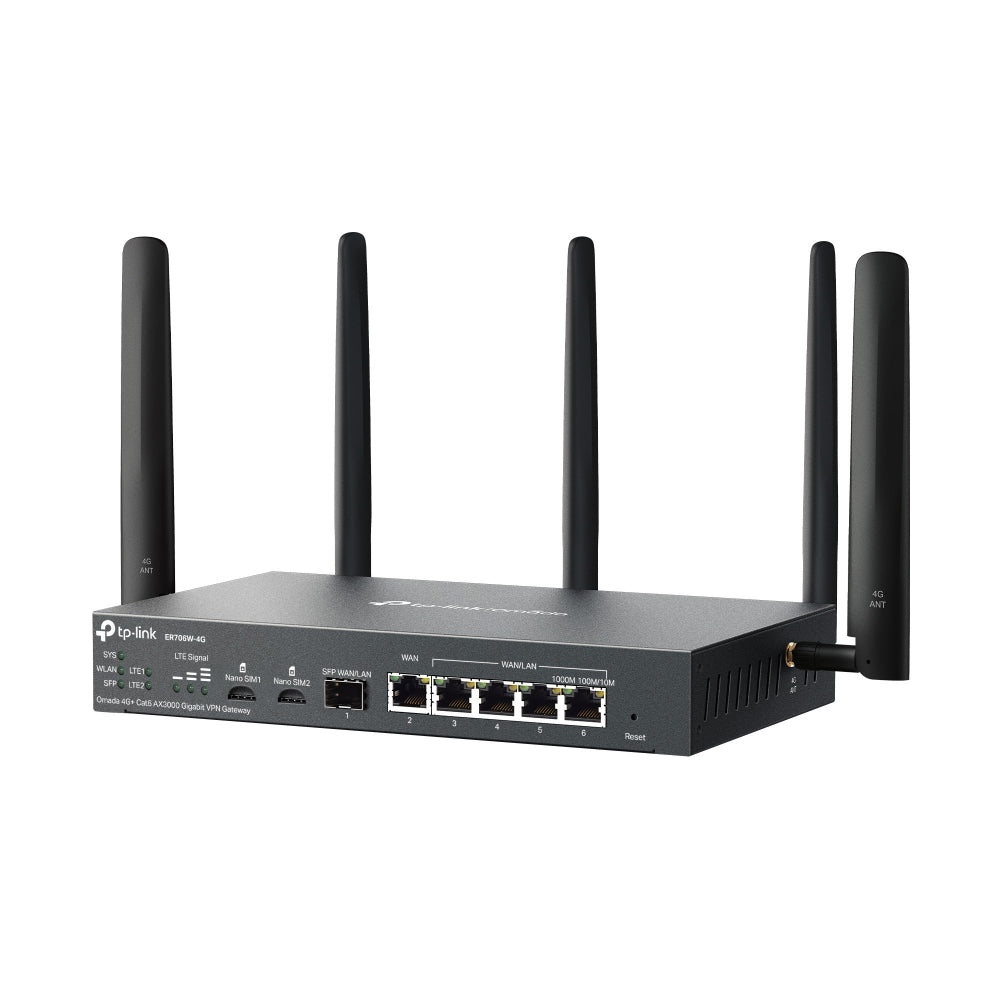

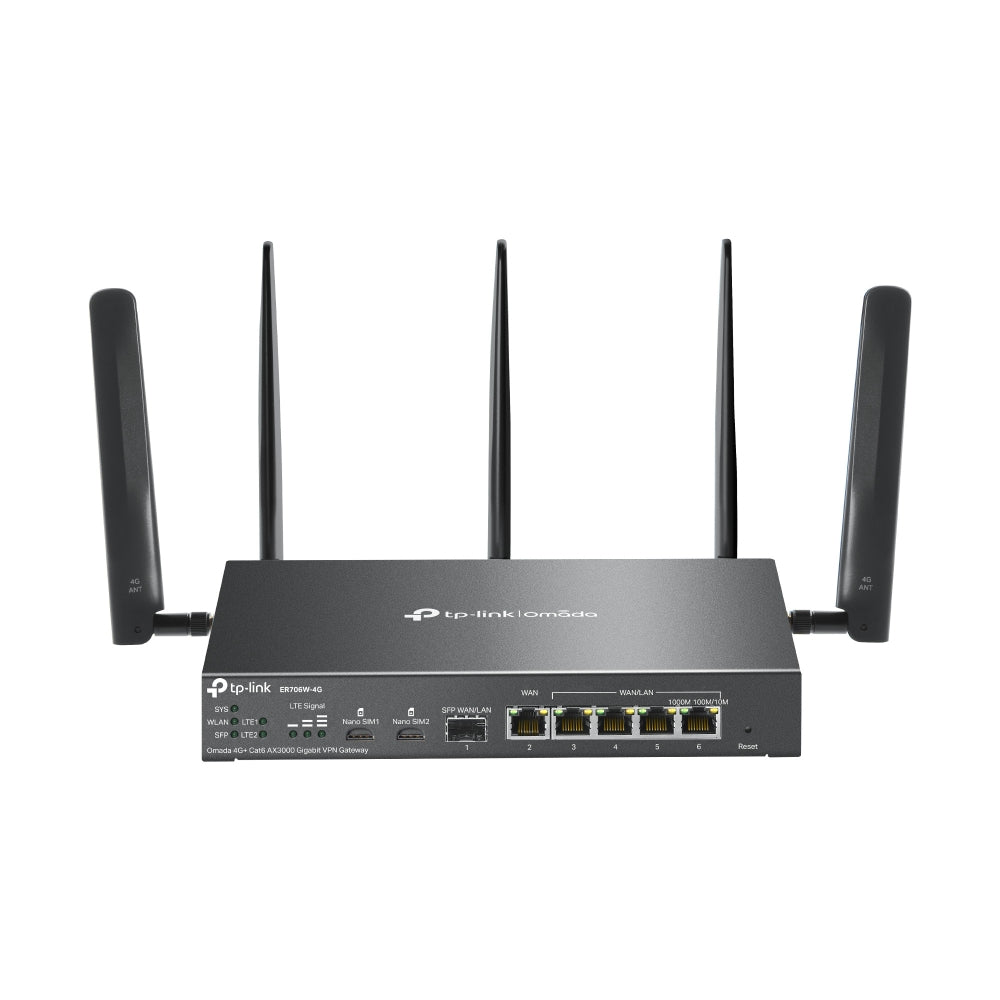

ER706W-4G V2
Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway
- Support 4G+ Cat6 up to 300 Mbps* (Not compatible with AT&T's Text & Data plans** in the US).
- AX3000 Dual-Band WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz***
- 1× Gigabit WAN Port, 5× Gigabit WAN/LAN Ports
- 5 × High-Gain Detachable Antennas
- Centralized Management
- Omada Mesh Technology.*△
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN.△
Specifications:
4G
Network Type (EU):
- 4G LTE‑FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
- 4G LTE‑TDD: B38/B40/B41 (2600/2300/2500 MHz)
- 3G DC‑HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Aggregation (EU):
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type: 2× Nano SIM slots (4G+ Cat6)
Frequency: Downlink 300 Mbps; Uplink 50 Mbps
SECURITY
DPI: Deep Packet Inspection; 2000+ application types; DPI throughput up/down: 942.7/937.3 Mbps
Access Control: Source/Destination IP ACL; Stateful ACL; IPv4/IPv6 ACL; National ACL; FQDN
DNS Proxy: DNSSEC; DoH; DoT; DNS Override
Filtering: Web Group Filtering†; URL Categories & URLs; Web Security†
ARP Inspection: Sending GARP; ARP Scanning†; IP‑MAC Binding; ARP Detection
Attack Defense: TCP/UDP/ICMP Flood Defense; TCP Scan Blocking (FIN/Xmas/Null); Block Ping from WAN
HARDWARE FEATURES
Standards: IEEE 802.3/3u/3ab/3z/3x/1q; TCP/IP; DHCP; ICMP; NAT; PPPoE; NTP; HTTP/HTTPS; DNS; IPSec; PPTP; L2TP; OpenVPN; WireGuard; GRE; SNMP; 802.11a/b/g/n/ac/ax; LLDP
Interfaces: 1× SFP WAN/LAN; 1× WAN; 4× LAN/WAN
Network Media:
- 10BASE‑T: Cat 3/4/5 UTP or 100Ω STP (100 m)
- 100BASE‑TX: Cat 5/5e UTP or 100Ω STP (100 m)
- 1000BASE‑T: Cat 5/5e/6 UTP (100 m)
Button: Reset
Power: 12VDC / 2A
Wi‑Fi: 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps (HE160)
Memory: 256 MB NAND; 512 MB DDR4
LEDs: SYS, WLAN, SFP, LTE Signal, WAN/LAN link & activity indicators
Dimensions: 226 × 131 × 35 mm

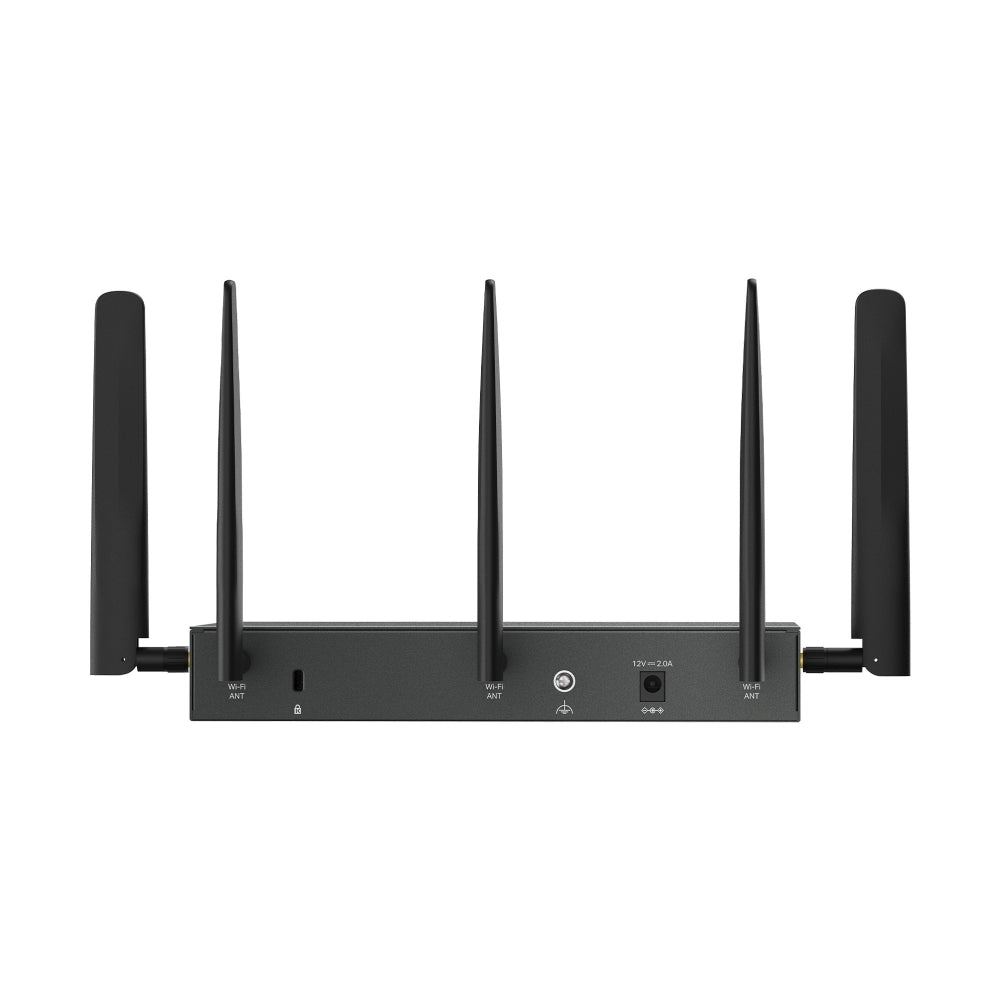

Antennas:
- Wi‑Fi: 3× dual‑band (5 GHz 5 dBi, 2.4 GHz 3.5 dBi)
- LTE: 2× 4.0 dBi omnidirectional

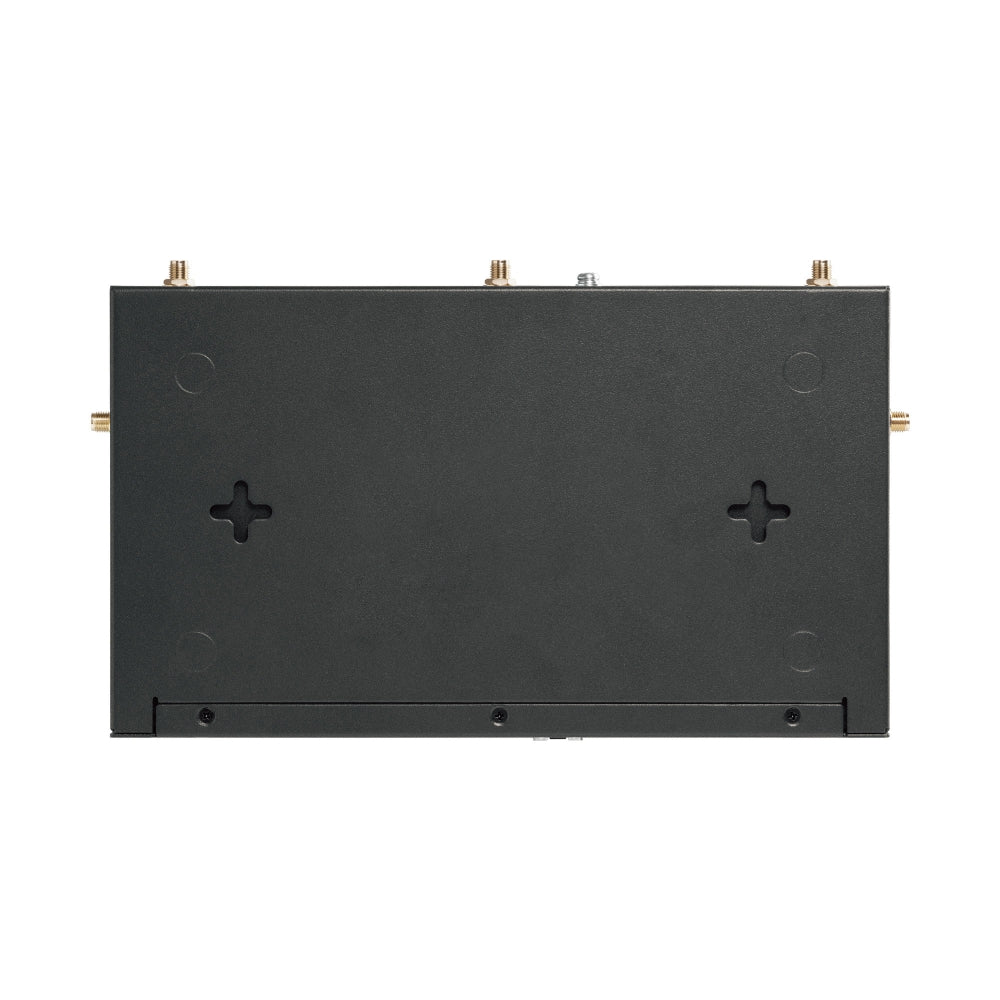

Mounting: Desktop / Wall / Rackmount (rack kit not provided)
Max Power: 15.4 W (EU)
PERFORMANCE
DPI Throughput: TCP 933 Mbps; UDP 927 Mbps
GRE: 532.2 Mbps (unencrypted); 289.1 Mbps (encrypted)
WireGuard: 335.1 Mbps
Sessions: 150,000; 5,100 new/s
NAT Performance:
- Static IP: Up 943 / Down 941 Mbps
- DHCP: Up 942 / Down 941 Mbps
- PPPoE: Up 940 / Down 937 Mbps
- L2TP: Up 868 / Down 877 Mbps
- PPTP: Up 845 / Down 889 Mbps
IPsec VPN Throughput:
- SHA1‑AES256: 627.5 Mbps
- SHA256‑AES256: 606.8 Mbps
- SHA384‑AES256: 620.0 Mbps
- SHA512‑AES256: 620.9 Mbps
Other VPN:
- OpenVPN: 101.8 Mbps
- L2TP: 990.0 / 502.5 Mbps
- PPTP: 1057.5 / 204.6 Mbps
- SSL VPN: 114.6 Mbps
Packet Forwarding:
- 66‑byte: 1,453,489 pps
- 1518‑byte: 81,274 / 81,275 pps
WIRELESS FEATURES
Seamless Roaming; Mesh†; OFDMA; Beamforming; MU‑MIMO; SSID/Client Rate Limit; WPA/WPA2/WPA3 Personal & Enterprise; 16 SSIDs (8 per radio); Load Balance; Airtime Fairness; Band Steering; RADIUS Accounting; MAC Authentication; Reboot/Schedule Controls; SSID Broadcast Control; Guest Network; Automatic Channel Selection; TX Power Control (dBm)
BASIC FUNCTIONS
LAN DNS √
WAN Types: Static IP; Dynamic IP; PPPoE; PPTP; L2TP
MAC Clone: Modify WAN Address
DHCP: DHCP Server; DHCPv6 PD†; Options; Reservation; Multi‑IP; Multi‑Net; WAN DHCP 60
Stateful ACL √
QoS √
Bridge VLAN √
SMS Send/Receive
mDNS Repeater √
IPv6: StaticIP; SLAAC; DHCPv6; PPPoE; 6to4; PassThrough; Non‑Address
VLAN: 802.1Q
IPTV: IGMP v2/v3 Proxy; Custom; Bridge Mode
ADVANCED FEATURES
Routing: Static; Policy; RIP†; OSPF†
Bandwidth Control: IP‑based
Load Balance: Intelligent LB; App‑Optimized Routing; Link Backup; Online Detection
NAT: One‑to‑One; Multi‑Net; Virtual Server; Port Triggering†; NAT‑DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP; Disable NAT
Session Limit: IP‑based
VPN
GRE (Standalone)
SD‑WAN (Controller Mode)
SSL VPN: 50 tunnels
IPsec: 100 tunnels; LAN‑LAN & Client‑LAN; DES/3DES/AES; IKEv1/v2; NAT‑T; DPD; PFS; MD5/SHA1/SHA2‑384/512
PPTP: Server; Client (10)△; 50 tunnels; MPPE Encryption
L2TP: Server; Client (10)△; 50 tunnels; L2TP over IPsec
OpenVPN: Server; Client (5)△; 55 tunnels; Certificate+Account; Full Mode
WireGuard: Supported
AUTHENTICATION
No Authentication; Simple Password§; Hotspot (Local/Voucher§/SMS§/Radius§); External Radius; External Portal Server§; LDAP
MANAGEMENT
Omada App: Yes
Controllers: Omada Central (Cloud); Hardware Controller; Software Controller
Cloud Access: Yes
DDNS: Dyndns; No‑IP; Peanuthull; Comexe; Custom
Maintenance: Web UI; Remote Management; Config Import/Export; SNMP; Diagnostics; NTP Sync†; Port Mirroring; CLI†; Syslog
Zero‑Touch: Yes (Omada Controller required)
Management Tools: Auto Discovery; Intelligent Monitoring; Event Warnings; Unified Config; Reboot Schedule; Captive Portal Config
OTHER
Default Services:
- Web Server (HTTP/HTTPS) – Ports 80/443 TCP
- TDP Server – Port 20003 UDP
- DHCP Server – Port 67 UDP
- DNS – Port 53 TCP/UDP
Certification: CE, RoHS
Package: ER706W‑4G; Power Adapter; Rubber Feet; Quick Installation Guide
System Requirements: Windows 98SE → 11; macOS; NetWare; UNIX; Linux
Environment:
- Operating: 0–40°C
- Storage: –40–70°C
- Humidity: 10–90% operating; 5–90% storage
