Product Description

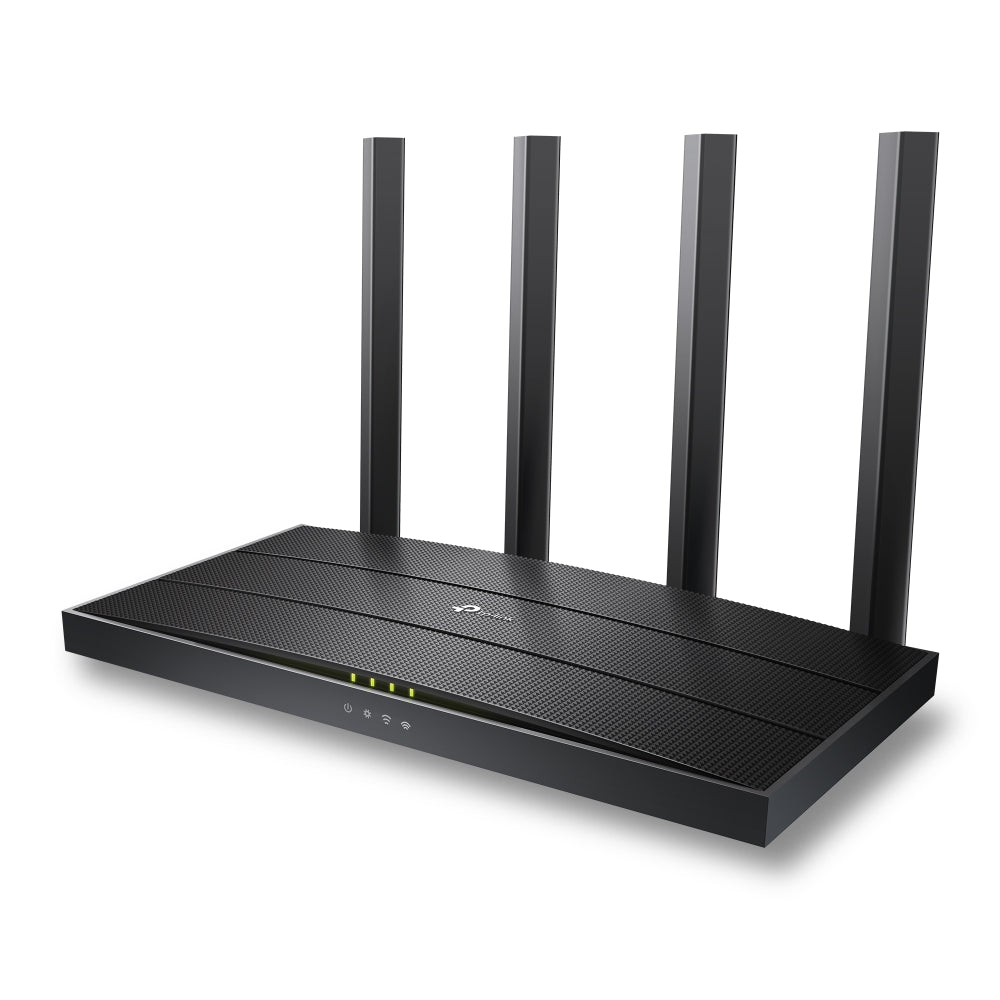

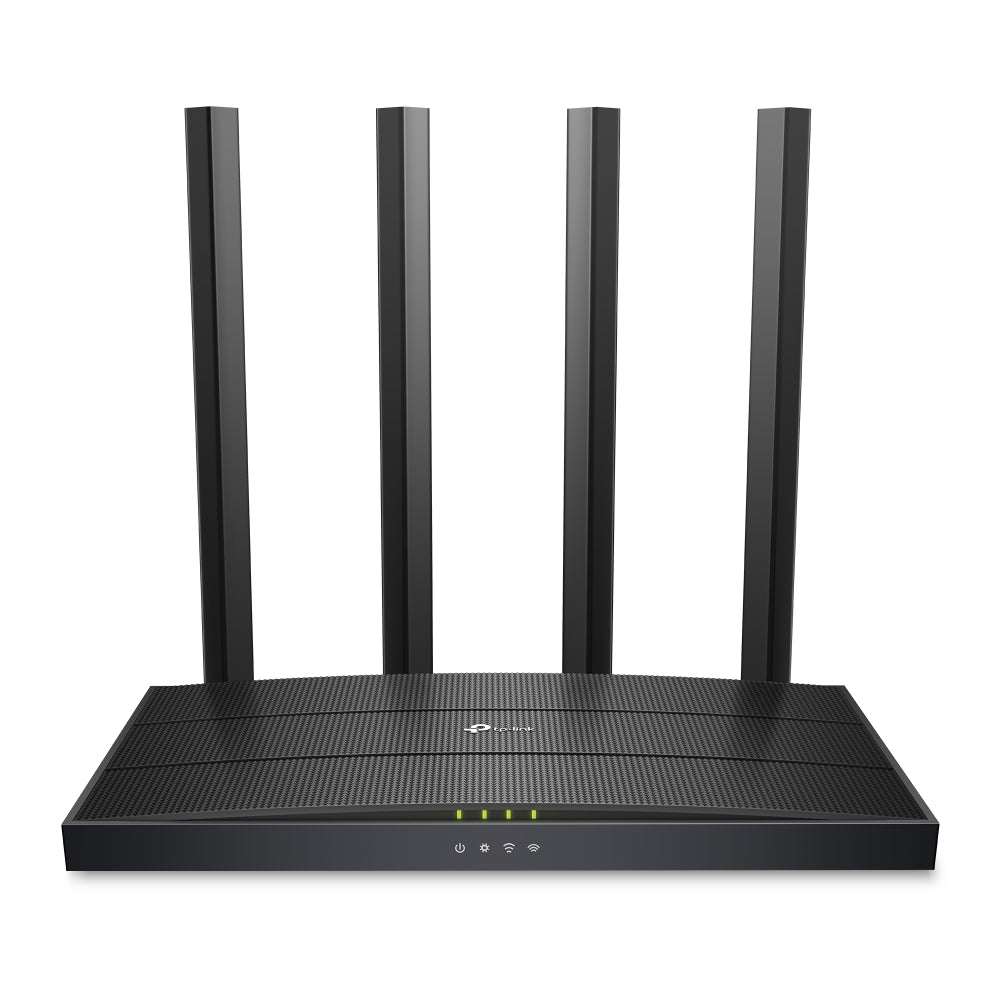

ER605W
Omada AC1350 Gigabit VPN Router
- AC1350 Dual-Band WiFi: Supports 867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz*
- 5× Gigabit Ethernet Ports: Provide high-speed wired connectivity.

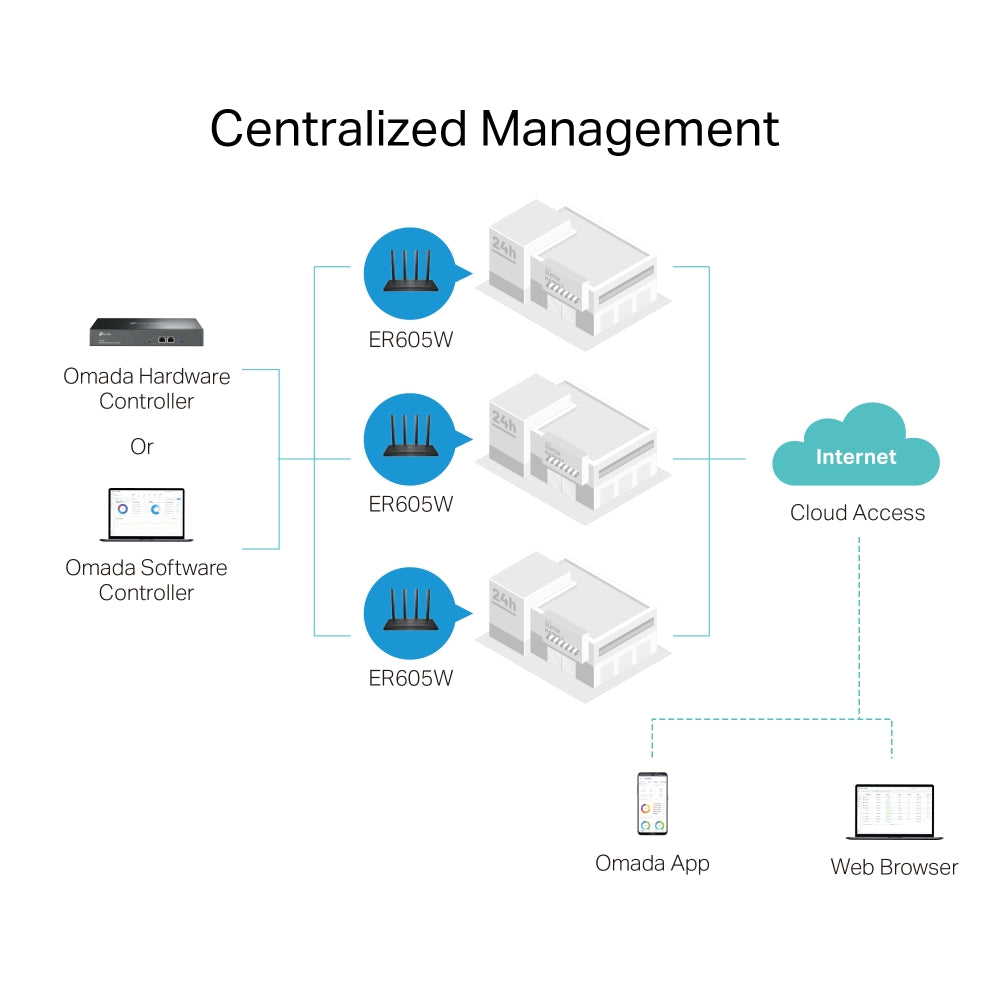

- Centralized Management: Cloud access and the Omada app for easy management.

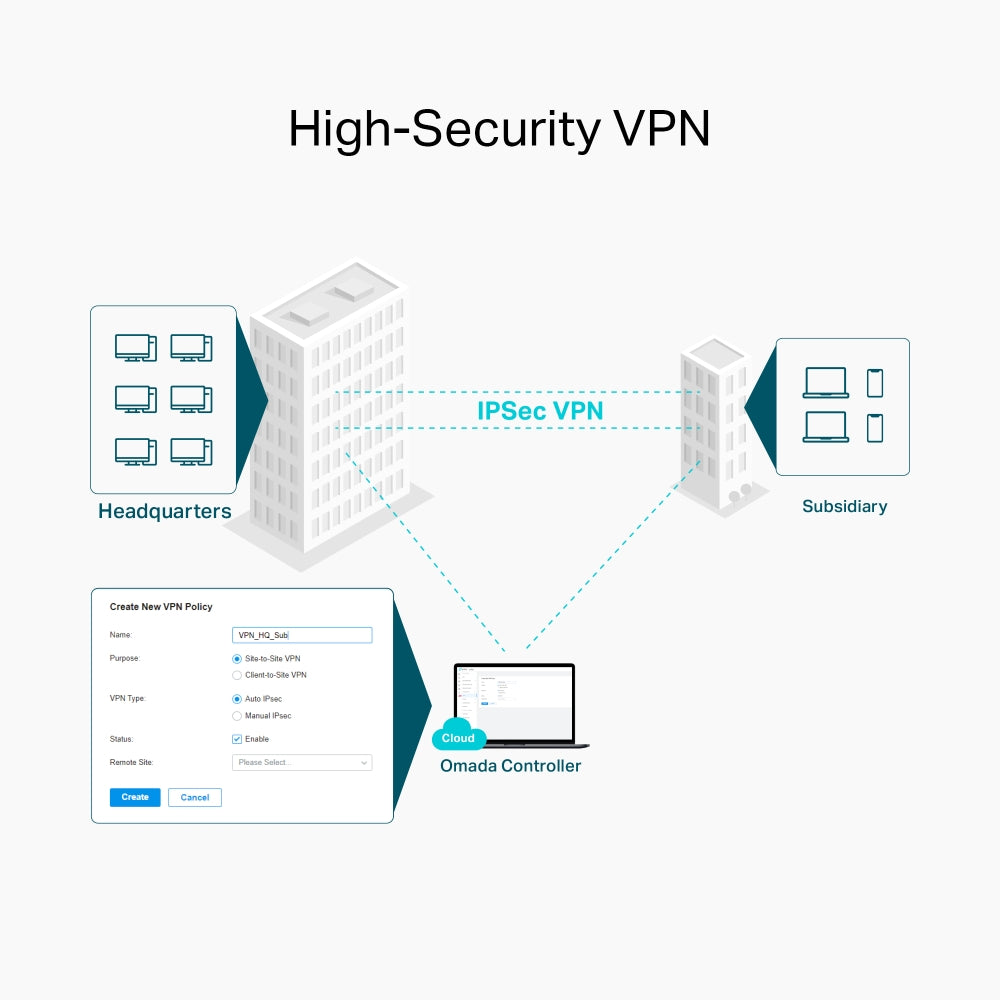

- High-Security VPN: Supports multiple VPN protocols, including IPSec/OpenVPN/PPTP/L2TP VPN.△

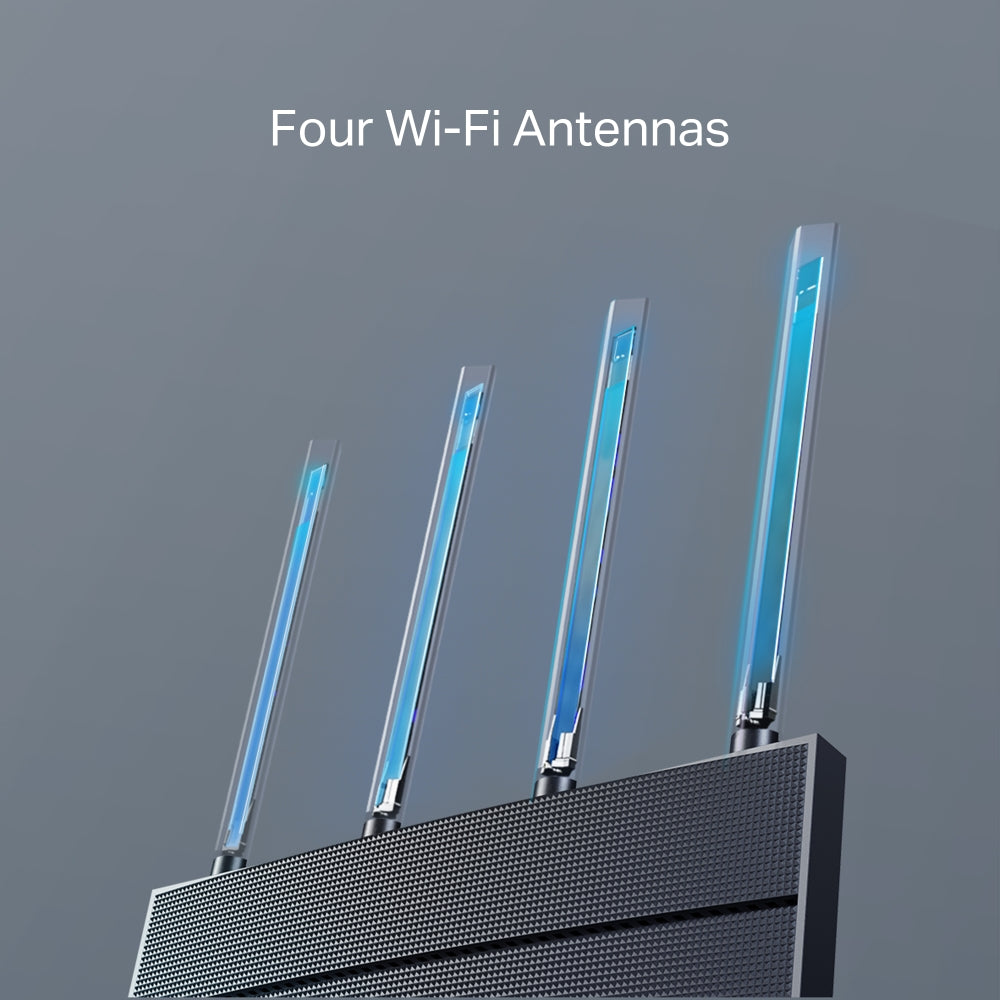

- Boosted Coverage: 4× external antennas extend and concentrate the Wi-Fi signals.
- Abundant Security Features: DoS defense,IP/MAC/URL filtering, and more protect your network and data.
Specifications:
SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering: • Web Group Filtering† • URL Filtering • Web Security†
ARP Inspection: • Sending GARP Packets • ARP Scanning† • IP-MAC Binding
Attack Defense: • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
HARDWARE FEATURES

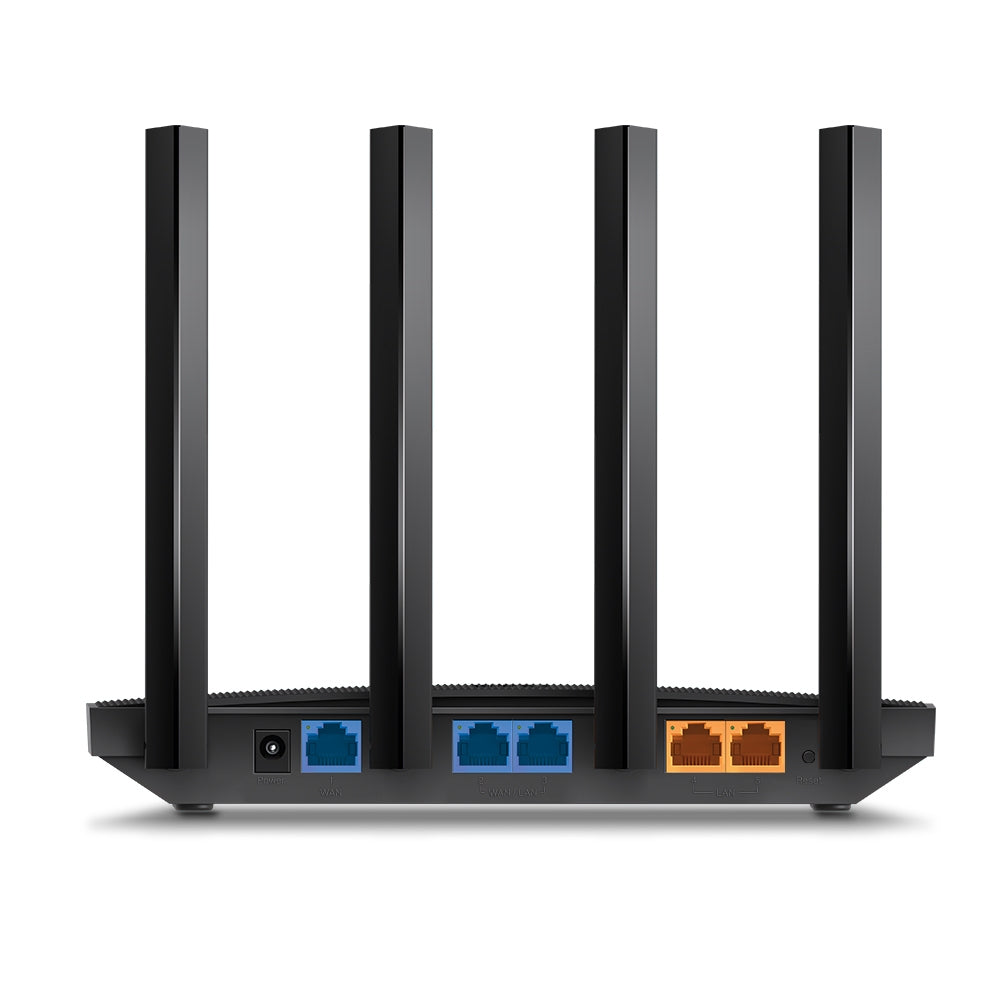

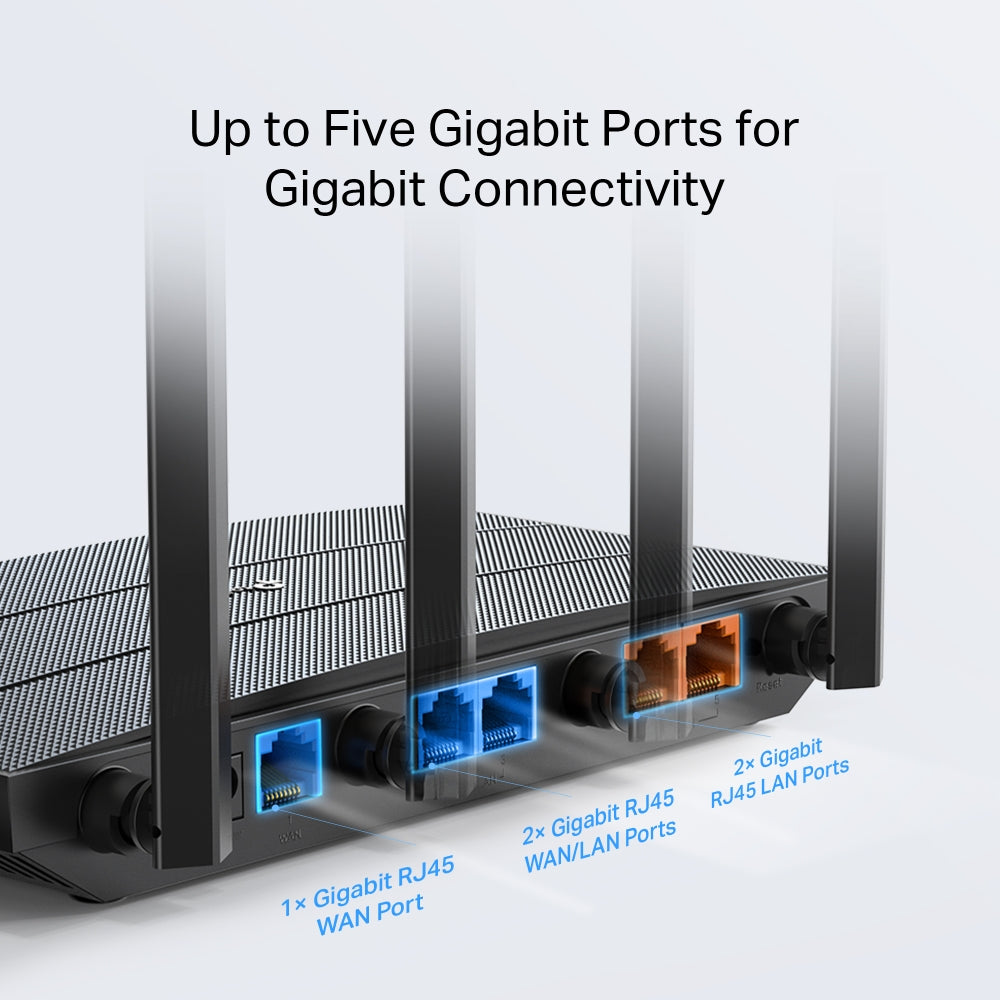

Interface: • 1× Gigabit WAN Port • 2× Gigabit WAN/LAN Ports • 2× Gigabit LAN Ports
Button: Reset Button
Power Supply: 12V DC / 1A Power Adapter
Wi‑Fi Frequency & Signal Rate: • 2.4 GHz: 450 Mbps • 5 GHz: 867 Mbps
Flash: 16 MB NORFLASH
DRAM: 128 MB DDR2
LED: Power, SYS, 2.4G, 5G, WAN (1000/100/10M), WAN/LAN (1000/100/10M)
Dimensions: 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)
Antenna: • 2.4 GHz: 2× 5 dBi non-detachable + 1 built‑in • 5 GHz: 2× 5 dBi non-detachable
Mounting: Desktop/Wall
Max. Power Consumption: EU: 10W; US: 12W
PERFORMANCE
Concurrent Sessions: 20,000
New Sessions/s: 1,300
NAT (Static IP): 941.2 / 937.6 Mbps
NAT (DHCP): 933.5 / 933.6 Mbps
NAT (PPPoE): 919.2 / 931.9 Mbps
NAT (L2TP): 333.2 / 387.4 Mbps
NAT (PPTP): 304.2 / 473.2 Mbps
IPsec VPN: • SHA1‑AES256: 19.7 Mbps • SHA256‑AES256: 17.5 Mbps • SHA384‑AES256: 13.9 Mbps • SHA512‑AES256: 13.9 Mbps
OpenVPN: 18.0 Mbps
L2TP VPN: 307.7 Mbps (unencrypted) / 9.8 Mbps (encrypted)
PPTP VPN: 319.6 Mbps (unencrypted) / 41.9 Mbps (encrypted)
66‑Byte Forwarding: 1,453,489 / 1,453,488 pps
1518‑Byte Forwarding: 81,274 / 81,275 pps
WIRELESS FEATURES
• Multiple SSIDs: 8 total (4 per radio) • Enable/Disable Radio • SSID Broadcast Control • Guest Network • Auto Channel Selection • TX Power Control • Seamless Roaming • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • RADIUS Accounting • WPA/WPA2 Personal/Enterprise
Guest Network: Supported
BASIC FUNCTIONS
WAN Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
MAC Clone: Modify WAN Address
DHCP: • DHCP Server • DHCPv6 PD† • DHCP Options • Reservation • Multi‑IP • Multi‑Net
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4 / PassThrough / Non‑Address
VLAN: 802.1Q
IPTV: IGMP v2/v3 Proxy / Custom / Bridge
ADVANCED FEATURES
Advanced Routing: Static / Policy
Bandwidth Control: IP‑Based
Load Balance: Intelligent LB / App Optimized Routing / Link Backup / Online Detection
NAT: One‑to‑One • Multi‑Net • Virtual Server • Port Triggering† • NAT‑DMZ • ALG • UPnP
Session Limit: IP‑Based
VPN
IPsec VPN: 3 tunnels; LAN‑LAN & Client‑LAN; DES/3DES/AES128/192/256; IKEv1/v2; MD5/SHA1/SHA2‑384/SHA2‑512; NAT‑T; DPD; PFS
PPTP VPN: Server; Client (3)△; 3 tunnels; MPPE
L2TP VPN: Server; Client (3)△; 3 tunnels; L2TP over IPsec
OpenVPN: Server; Client (3)△; 18 tunnels; Certificate + Account; Full Mode
AUTHENTICATION
No Authentication • Simple Password§ • Hotspot (Local/Voucher§/SMS§/Radius§) • External Radius • External Portal§ • LDAP (not in Standalone Mode)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: Cloud‑Based / OC300 / OC200 / Software Controller
Cloud Access: Yes
DDNS: Dyndns / No‑IP / Peanuthull / Comexe / Custom
Maintenance: Web UI • Remote Mgmt • Import/Export • Diagnostics† • NTP Sync† • Port Mirroring • Syslog
Zero‑Touch Provisioning: Yes (Cloud Controller)
Additional: Auto Discovery • Network Monitoring • Event Warnings • Unified Config • Reboot Schedule • Captive Portal Config
OTHERS
Certification: CE, FCC, RoHS
Package: ER605W; Power Adapter; Quick Installation Guide
System Requirements: Windows 98SE–11; macOS; NetWare; UNIX; Linux
Environment: Operating 0–40°C • Storage −40–70°C • Operating Humidity 10–90% • Storage Humidity 5–90%
