Product Description

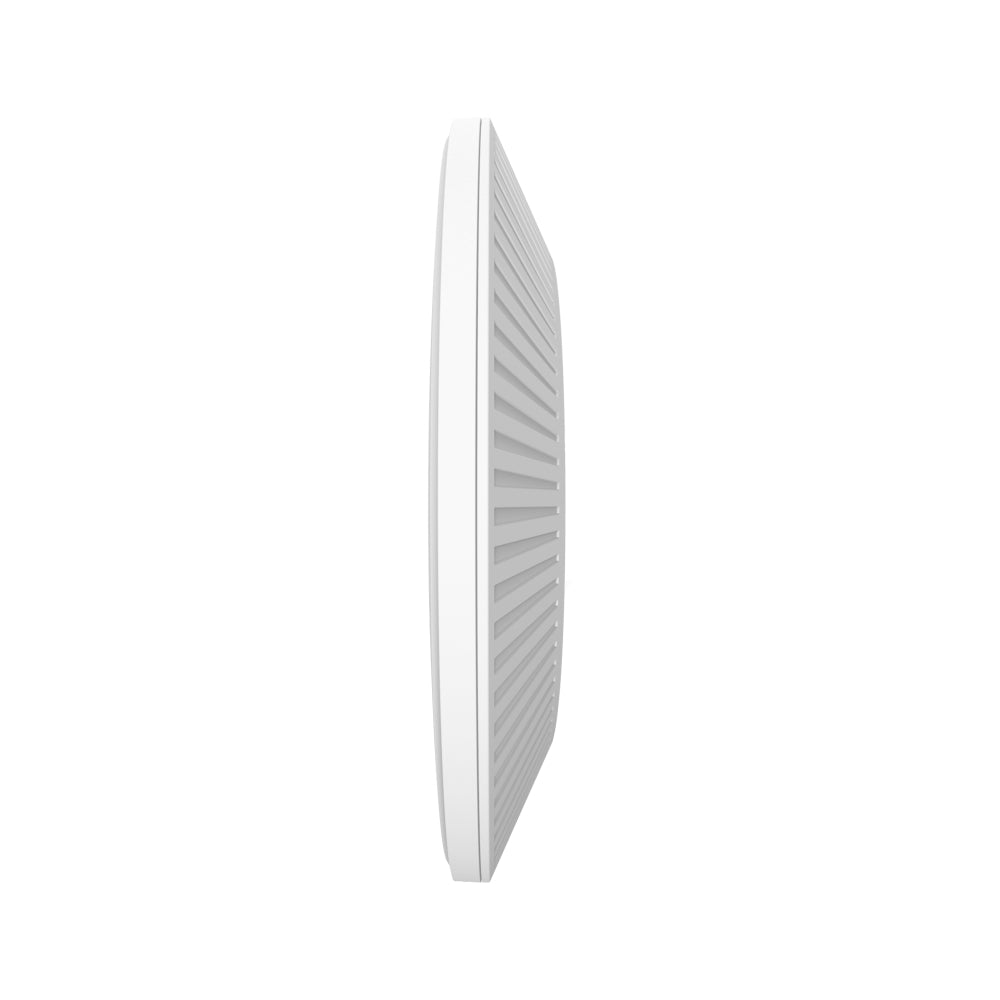

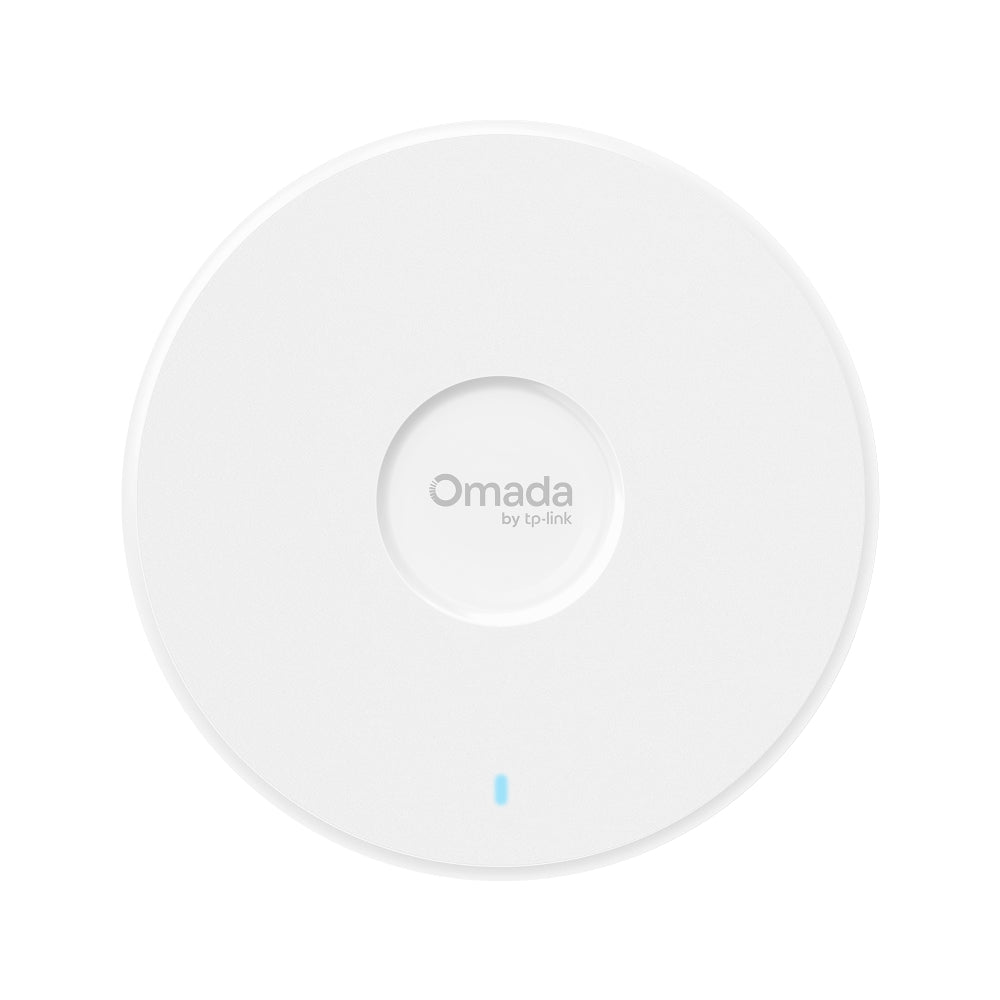

EAP770
BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE11000 Tri-Band Wi-Fi 7: 5765 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz). Buffering will no longer be a problem.†
- 1× 2.5G Port: Unlock the full potential of Wi-Fi 7.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.‡
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.‡
- Advanced Functions：Supports centralized management, Mesh, and Seamless Roaming.△
Specifications:
HARDWARE FEATURES

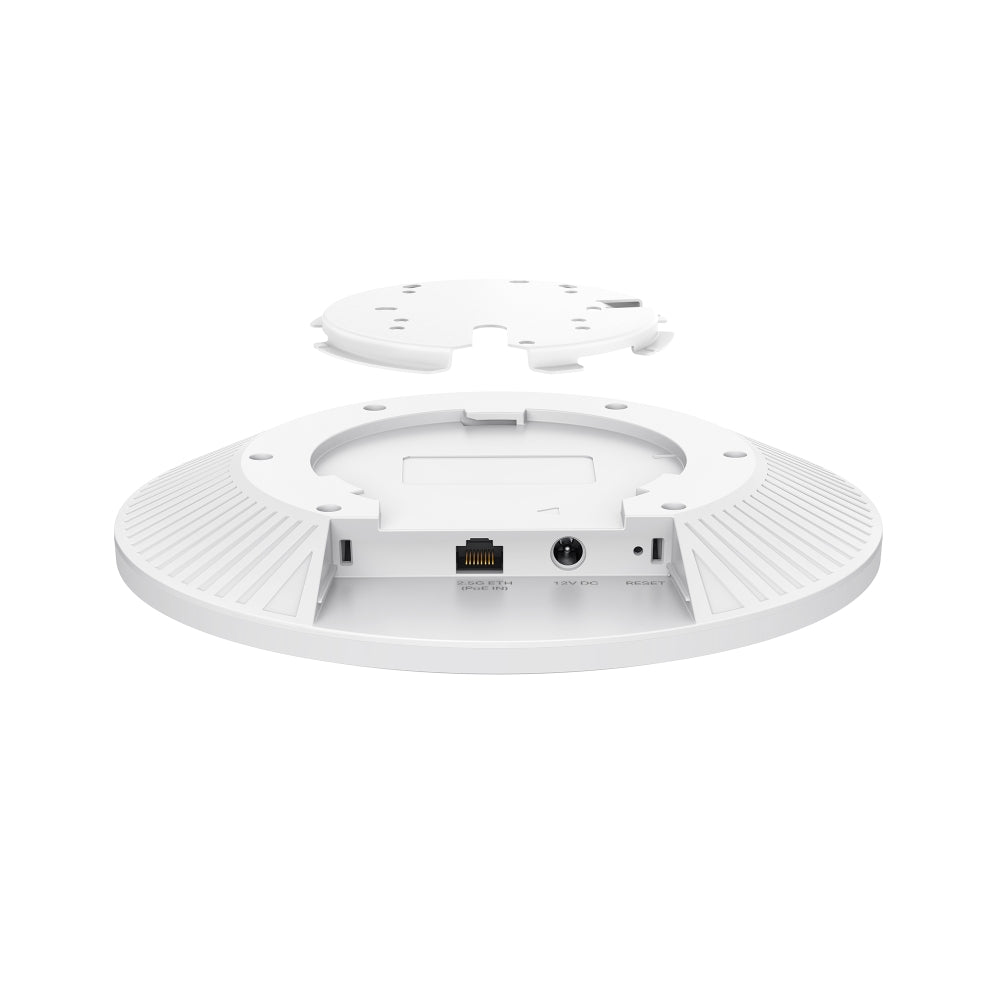

Interface: 1× 2.5G Ethernet Port
Button: Reset
Power Supply: 802.3at PoE or 12V/2.5A DC
Max. Power Consumption: • 25.4 W (PoE) • 21.8 W (DC)
Dimensions: 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna: • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi
Bluetooth: 1× 4.0 dBi (Bluetooth 5.2)*
*Firmware update may be required.

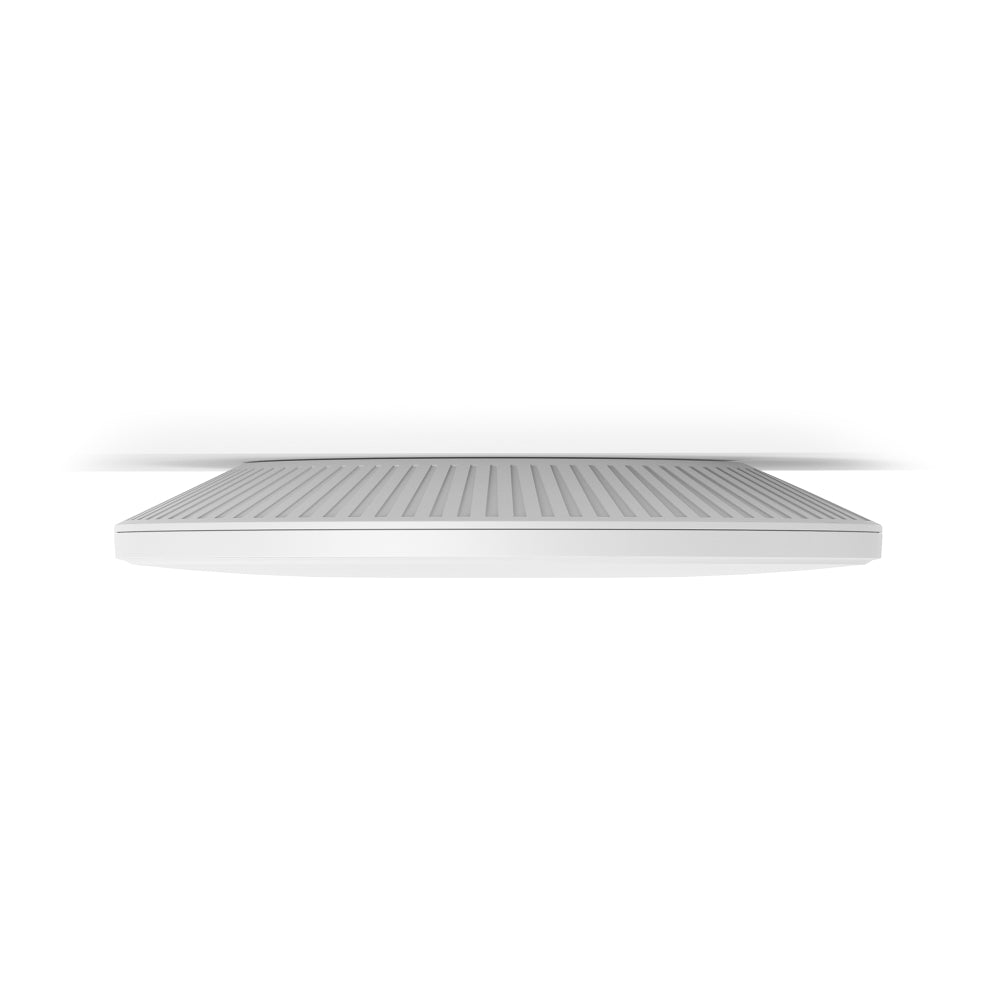

Mounting: Ceiling / Wall / Junction Box (kits included)
WIRELESS FEATURES
Coverage: 1500 ft² (140㎡)§
Concurrent Clients: 380+**
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency: 6 GHz, 5 GHz, 2.4 GHz
Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
Wireless Functions: • MLO‡ • 4K-QAM‡ • MU‑MIMO‡ • 320 MHz Bandwidth‡ • Mesh△ • Seamless Roaming (802.11k/v/r)△ • BSS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs (24 total: 8 per band) • Wireless Schedule • Reboot Schedule • QoS (WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security: • Captive Portal△ • Access Control • MAC Filter Limit: 4,000 • Client Isolation • VLAN • Rogue AP Detection • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power: <25 dBm (2.4 GHz), <25 dBm (5 GHz), <23 dBm (6 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes (requires Omada controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1/v2c/v3
System Logging: Local/Remote Syslog
Web-based Management: Yes
OTHERS
Certification: CE, FCC, RoHS, IC
Package Content: • Omada Ceiling Mount Access Point EAP770 • Installation Guide • Power Adapter • Ceiling/Wall/Junction Box Kits
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% • Storage Humidity: 5–90%
