Product Description

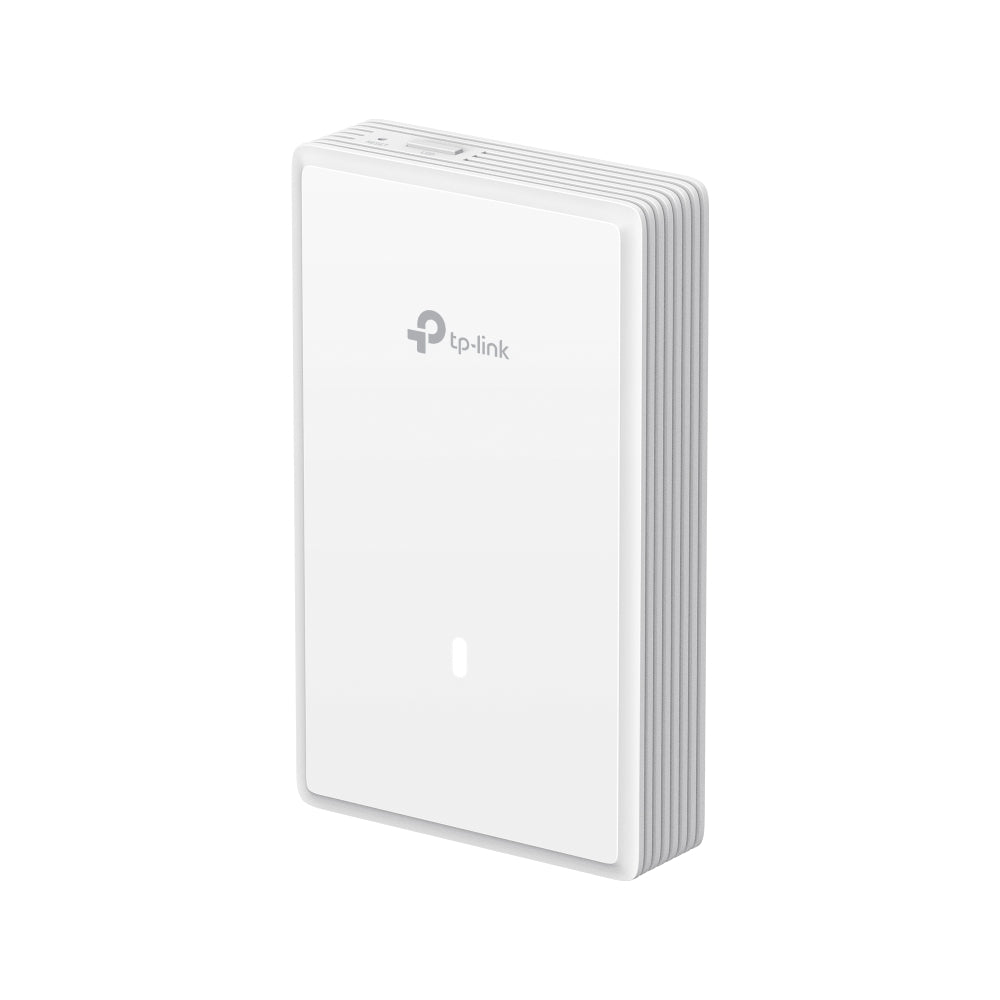

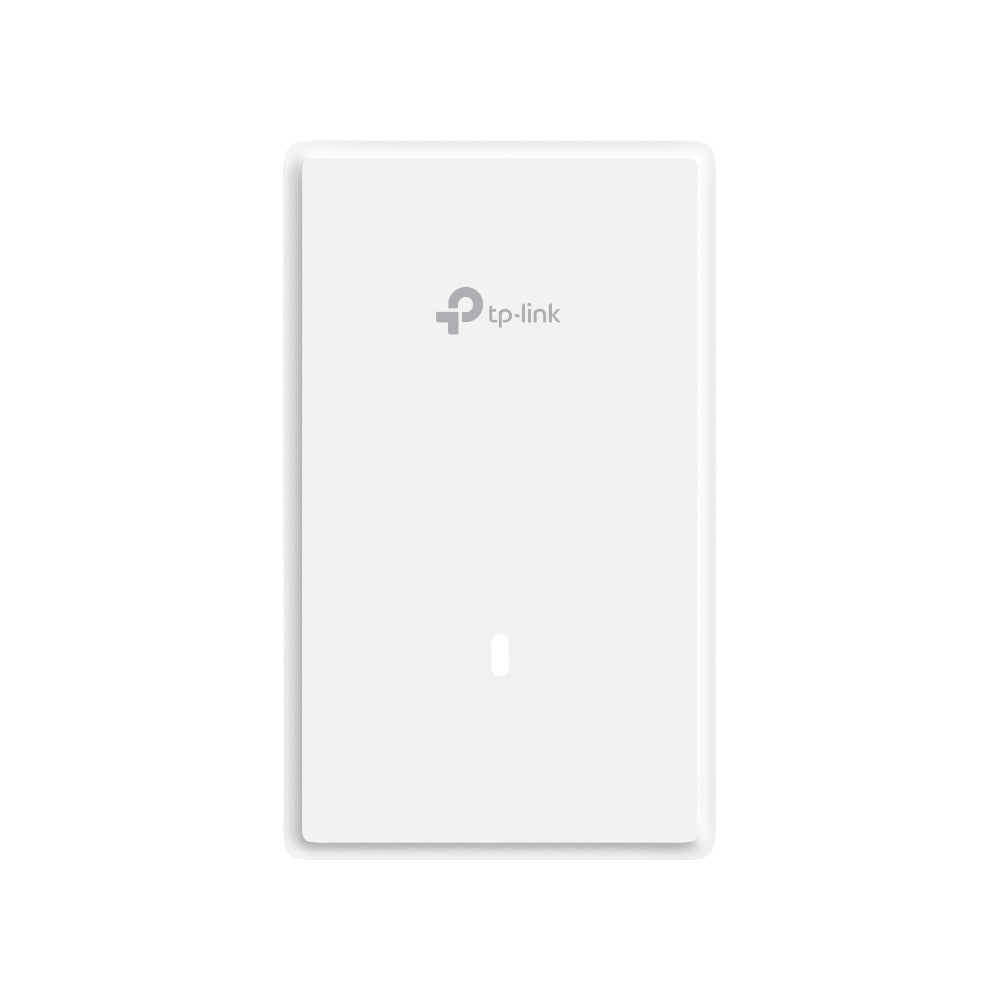

EAP725-Wall
BE5000 Wall Plate Wi-Fi 7 Access Point
- BE5000 Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 240 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Specifications:
HARDWARE FEATURES

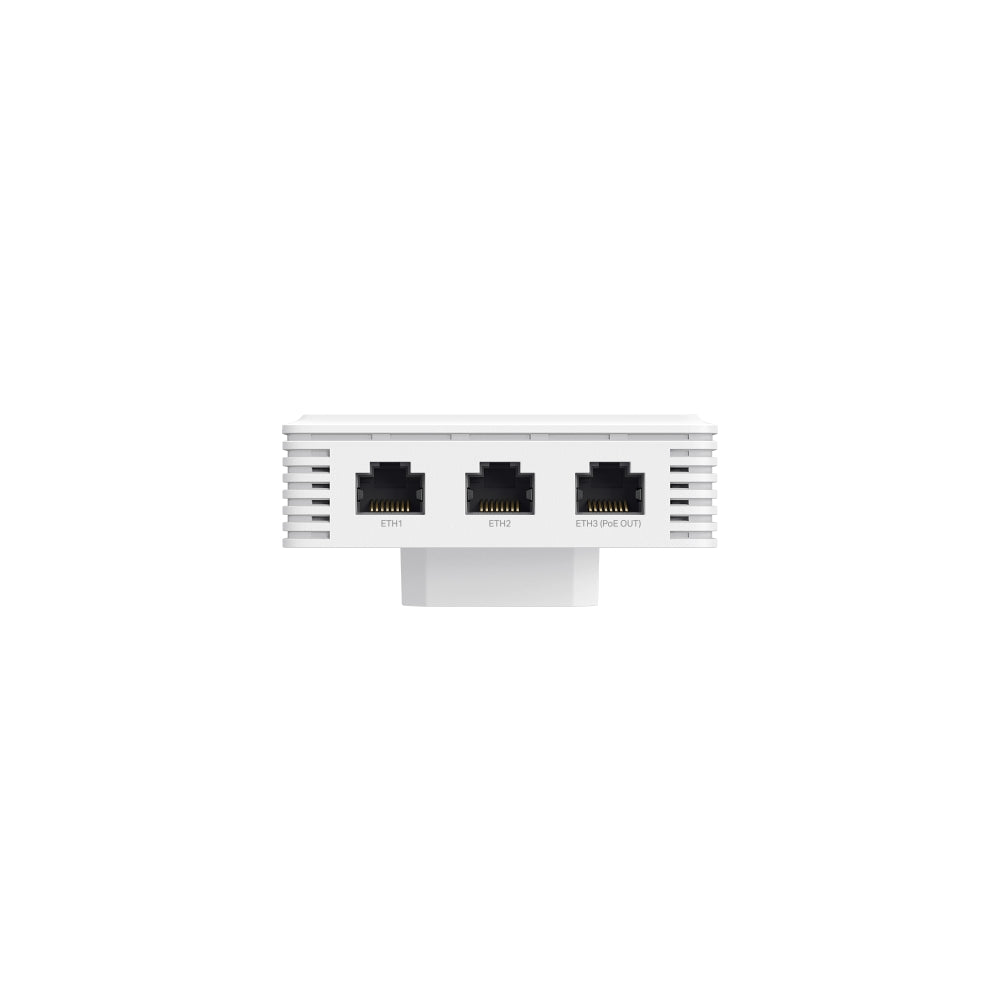

Interface: • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out—dual PoE or single PoE+ output; requires 802.3bt input.)
Physical Security Lock: Yes
Button: Reset
Power Supply: 802.3at/bt PoE
PoE Out: Two Gigabit ports offer dual‑PoE or single‑PoE+ output (requires 802.3bt input)
Max. Power Consumption: 43.35W (with 25W PoE Out)
Dimensions: 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)
Antenna: 6× Internal Antennas • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 5.5 dBi • 6 GHz: 2× 5.5 dBi
Bluetooth: V5.2
Mounting: Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage: 1050 ft² (100 m²)*
Concurrent Clients: 380+**
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency: 2.4 GHz, 5 GHz, 6 GHz
Signal Rate: • 6 GHz: Up to 5765 Mbps • 5 GHz: Up to 2882 Mbps • 2.4 GHz: Up to 688 Mbps
Wireless Functions: • MLO‡ • 4K‑QAM‡ • Multi‑RUs‡ • 320 MHz Bandwidth‡ • 24 SSIDs (8 per band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • Seamless Roaming△ • Beamforming • Rate Limit (SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security: • Captive Portal Authentication△ • Access Control • Wireless MAC Address Filtering • Client Isolation • VLAN • Rogue AP Detection • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power: • 6–20 dBm (2.4 GHz ERIP) • 6–23 dBm (5 GHz U‑NII‑1/U‑NII‑2A ERIP) • 6–27.5 dBm (5 GHz U‑NII‑2C ERIP) • 6–23 dBm (6 GHz ERIP)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Hardware Controller • Omada Software Controller • Omada Cloud‑Based Controller
Cloud Access: Yes (requires Omada Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging (Local/Remote Syslog): System Log
SSH: Yes
Web‑based Management: Yes
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller)
OTHERS
Certification: CE, RoHS
Package Content: • EAP775‑Wall • Paintable Cover • Installation Guide • Mounting Kits
System Requirements: Windows XP/Vista/7/8/10/11, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
