Product Description
EAP720
BE5000 Ceiling Mount Wi-Fi 7 Access Point
- Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.
Specifications:
HARDWARE FEATURES

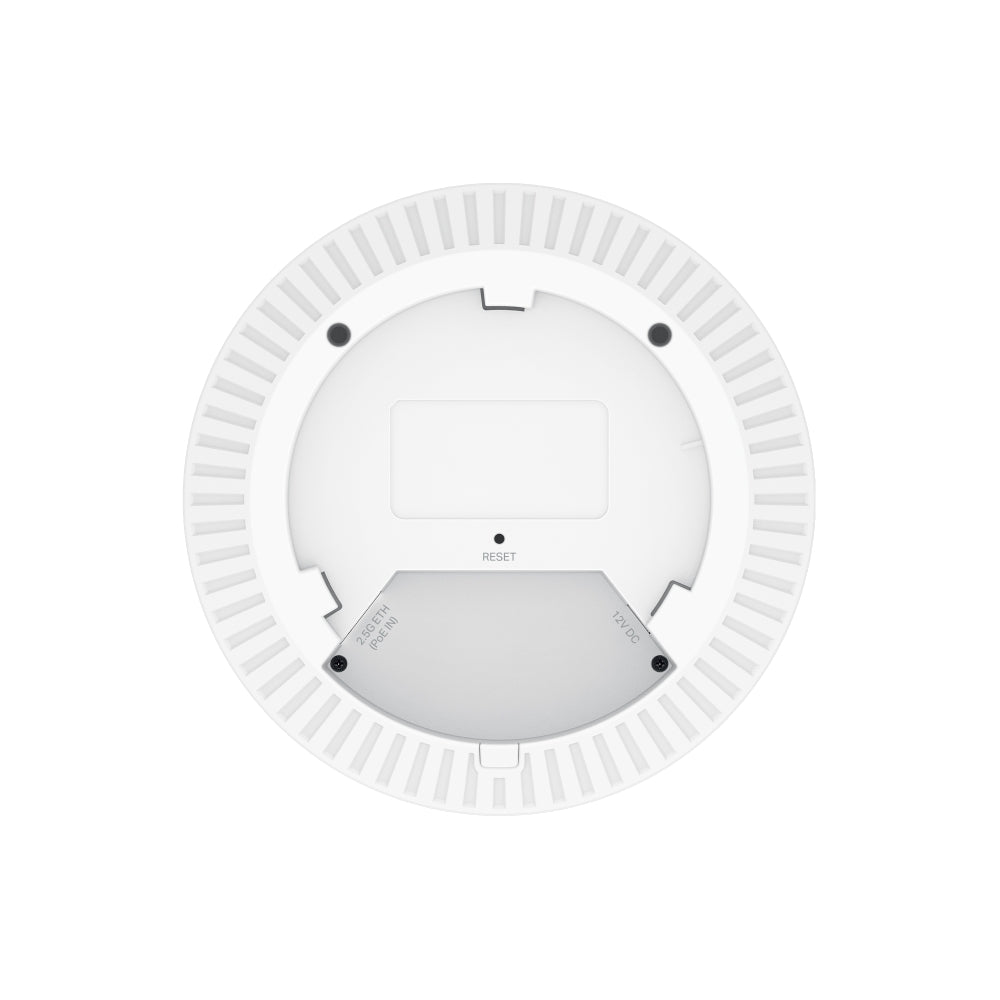

Interface: 1× 2.5G Ethernet Port
Button: Reset
Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Included)
Max. Power Consumption: • 17.83 W (PoE) • 13.99 W (DC)
Dimensions: 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna: • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi

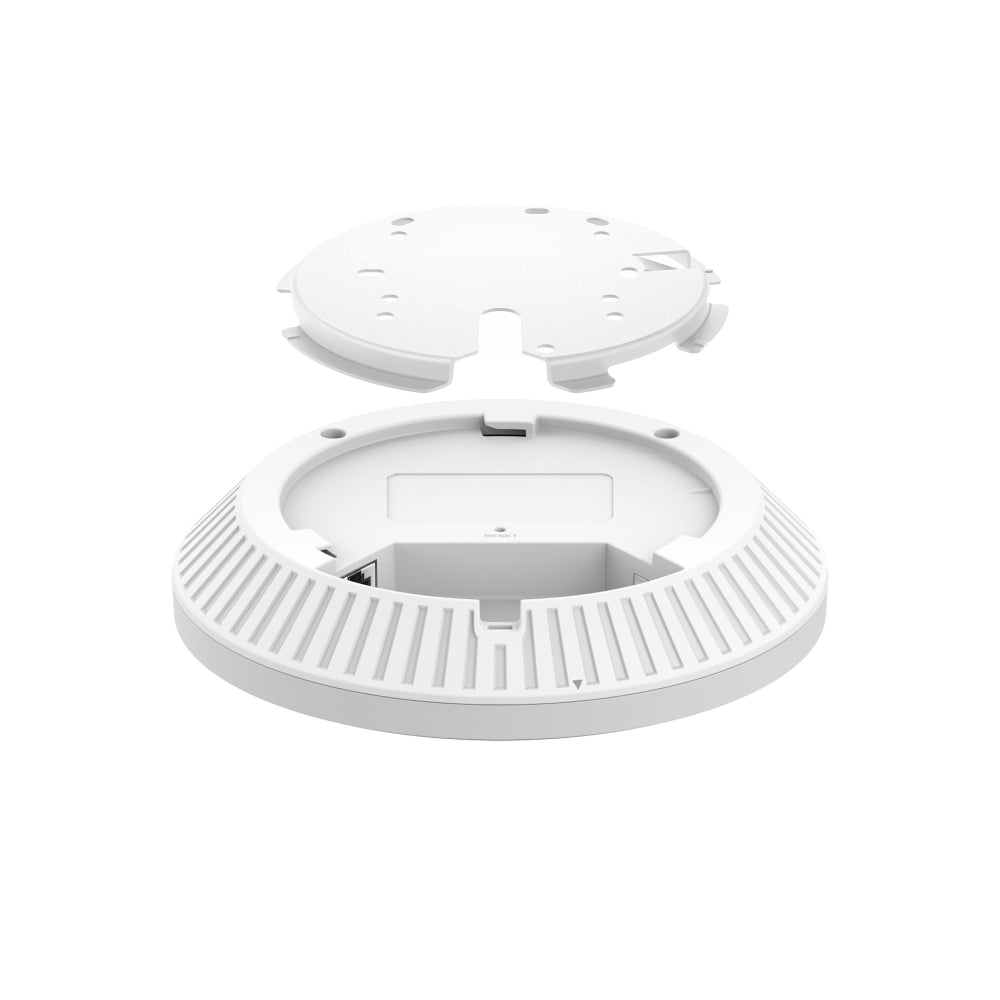

Mounting: Ceiling / Wall / Junction Box (Kits Included)
WIRELESS FEATURES
Coverage: 1500 ft² (140㎡)*
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions: • MLO‡ • 4K-QAM‡ • Seamless Roaming • 240 MHz Bandwidth‡ • Mesh△ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs: 16 (8 per band) • Wireless Schedule • Reboot Schedule • QoS (WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security: • Captive Portal Authentication△ • Access Control • Max MAC Filter: 4,000 • Client Isolation • VLAN • Rogue AP Detection • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power: <25 dBm (2.4 GHz); <25 dBm (5 GHz UNII‑1 & UNII‑4); <24 dBm (5 GHz UNII‑2 & UNII‑3)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes (Omada Controller required)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local / Remote Syslog
Web‑based Management: Yes
OTHERS
Certification: CE, FCC, RoHS, IC
Package Content: • Omada Wi‑Fi 7 Ceiling‑Mount Access Point EAP720 • Installation Guide • Ceiling/Wall/Junction Box Mounting Kit • Power Adapter
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% • Storage Humidity: 5–90%
