Product Description

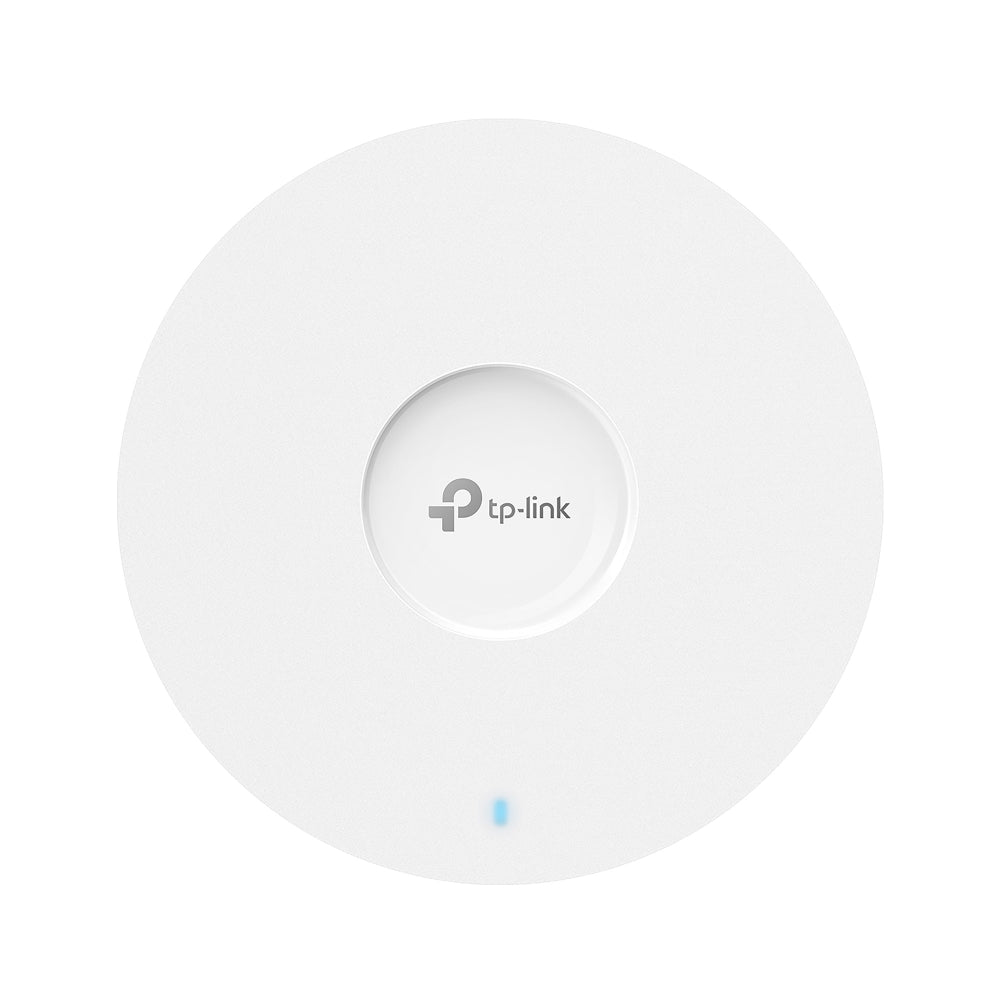

EAP683 UR
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Specifications:
HARDWARE FEATURES

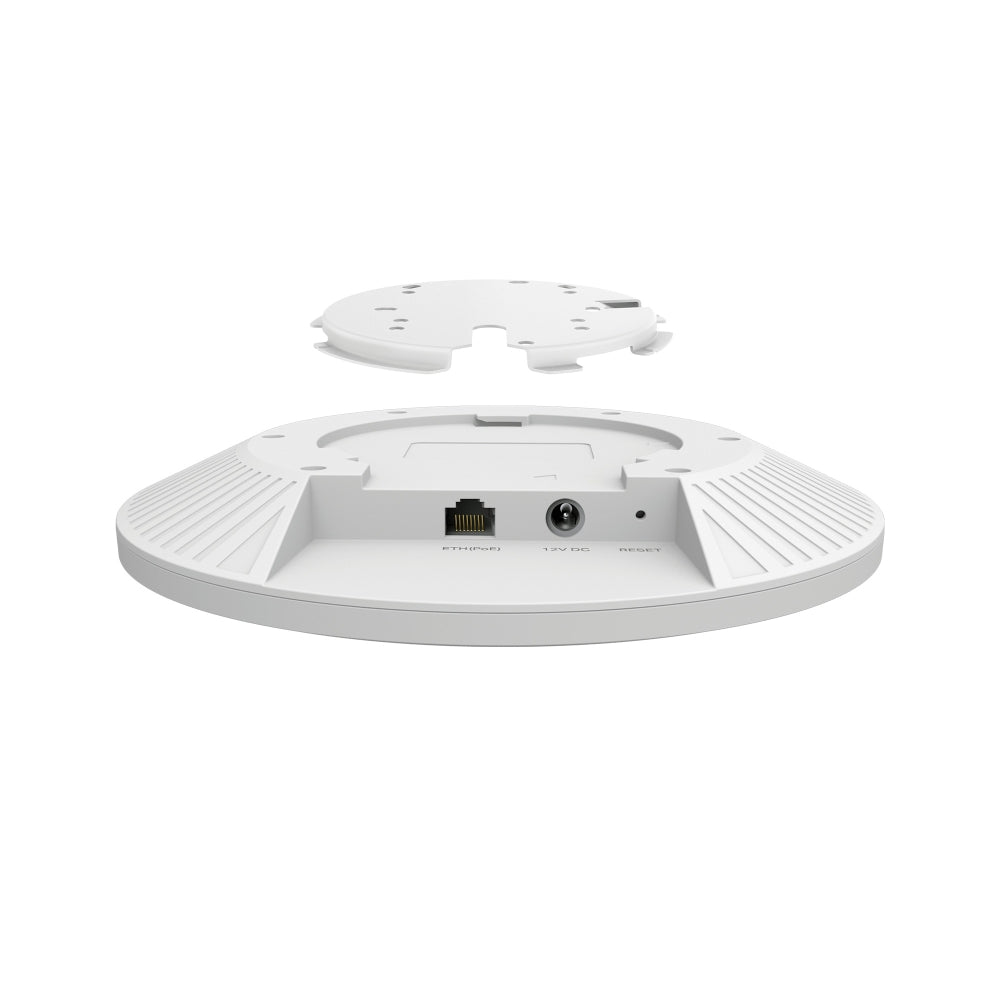

Interface: 1× 2.5 Gigabit PoE+ Port
Button: Reset
Power Supply: • 802.3at PoE • 12V / 2A DC
Note: Power adapter is not included.
Max. Power Consumption: • EU: 20.43W • US: 23.69W

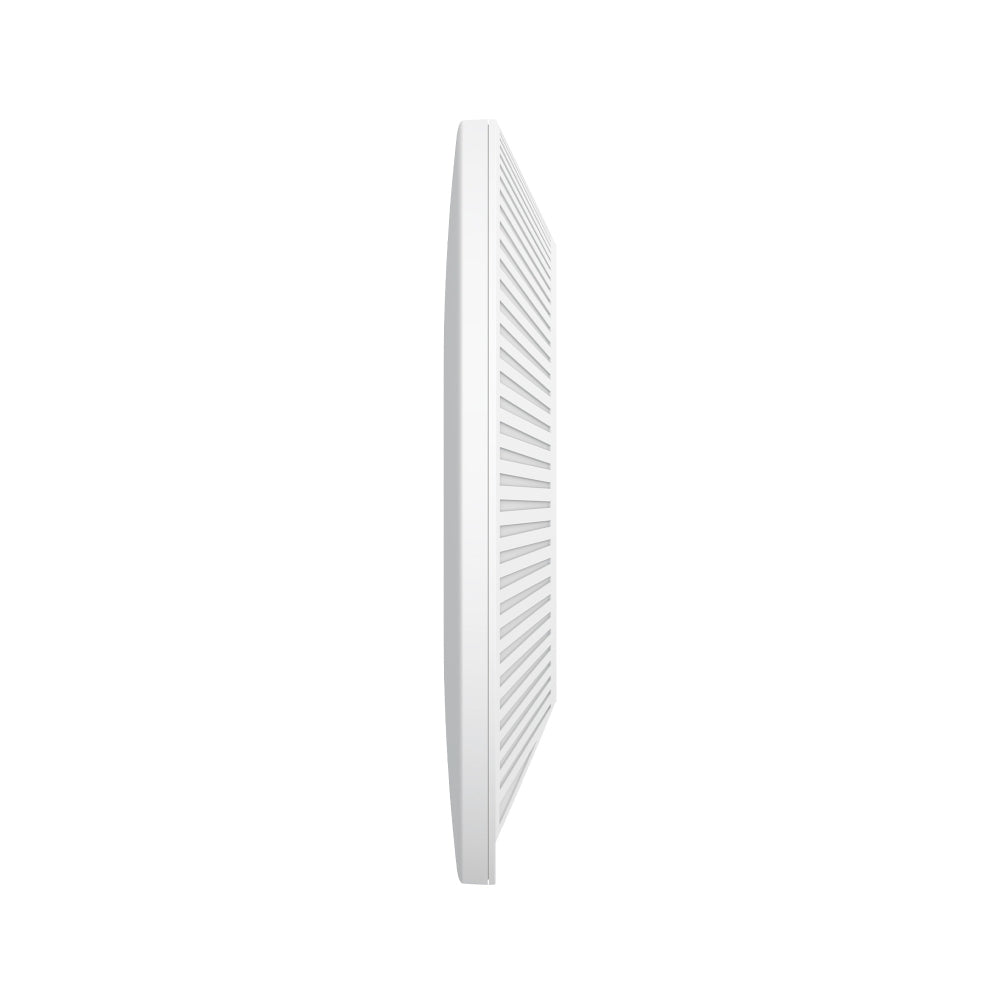

Dimensions: 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna (Internal Omni): • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi
Bluetooth: Yes

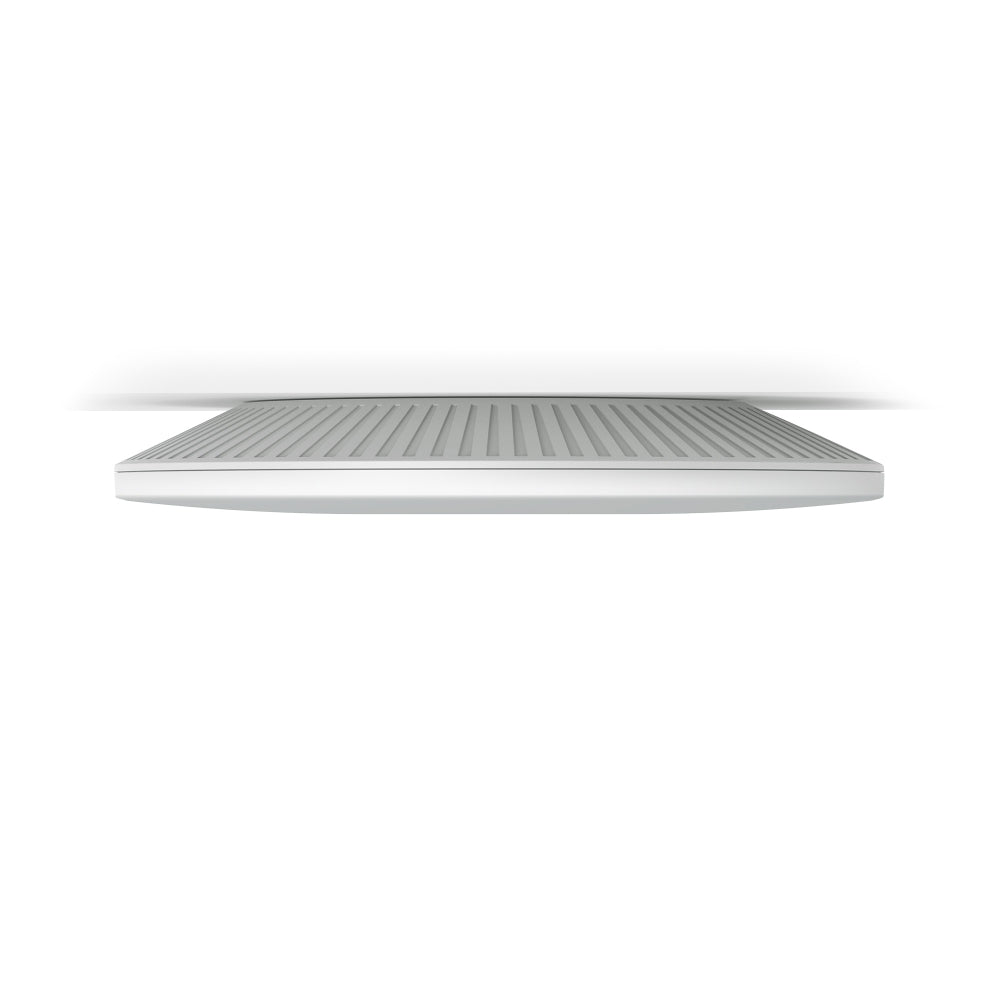

Mounting: Ceiling / Wall (kits included)
WIRELESS FEATURES
Coverage: 185㎡ (2000 ft²)***
Concurrent Clients: 510+**
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps
Wireless Functions: • 1024‑QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (16 total; 8 per band) • Enable/Disable Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • MU‑MIMO • HE160 (160 MHz)‡ • Seamless Roaming§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client) • Static/Dynamic IP
Wireless Security: • Captive Portal Authentication§ • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power:
• CE: <20 dBm (2.4 GHz EIRP); <23 dBm (5 GHz; band 1 & 2 EIRP); <28 dBm (band 3 EIRP)
• FCC: <26 dBm (2.4 GHz); <26 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access: Yes (requires OC300, OC200, Cloud Controller, or Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local/Remote Syslog
SSH: Yes
Web-Based Management: HTTP/HTTPS
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
Zero‑Touch Provisioning: Yes (requires Cloud-Based Controller)
OTHERS
Certification: CE, FCC, RoHS
Package Content: • EAP683 UR • Ceiling/Wall Mounting Kits • Installation Guide
System Requirements: Windows XP/Vista/7/8/10/11, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
