Product Description
EAP673

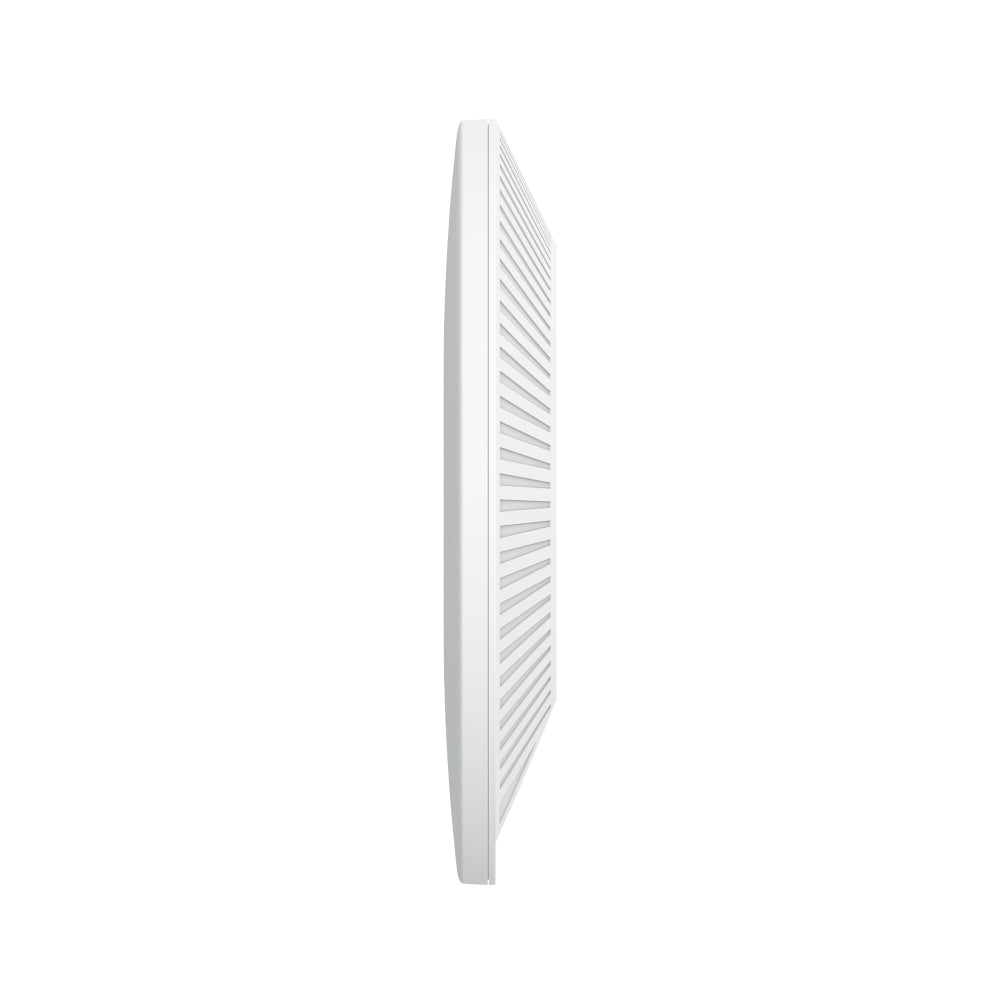

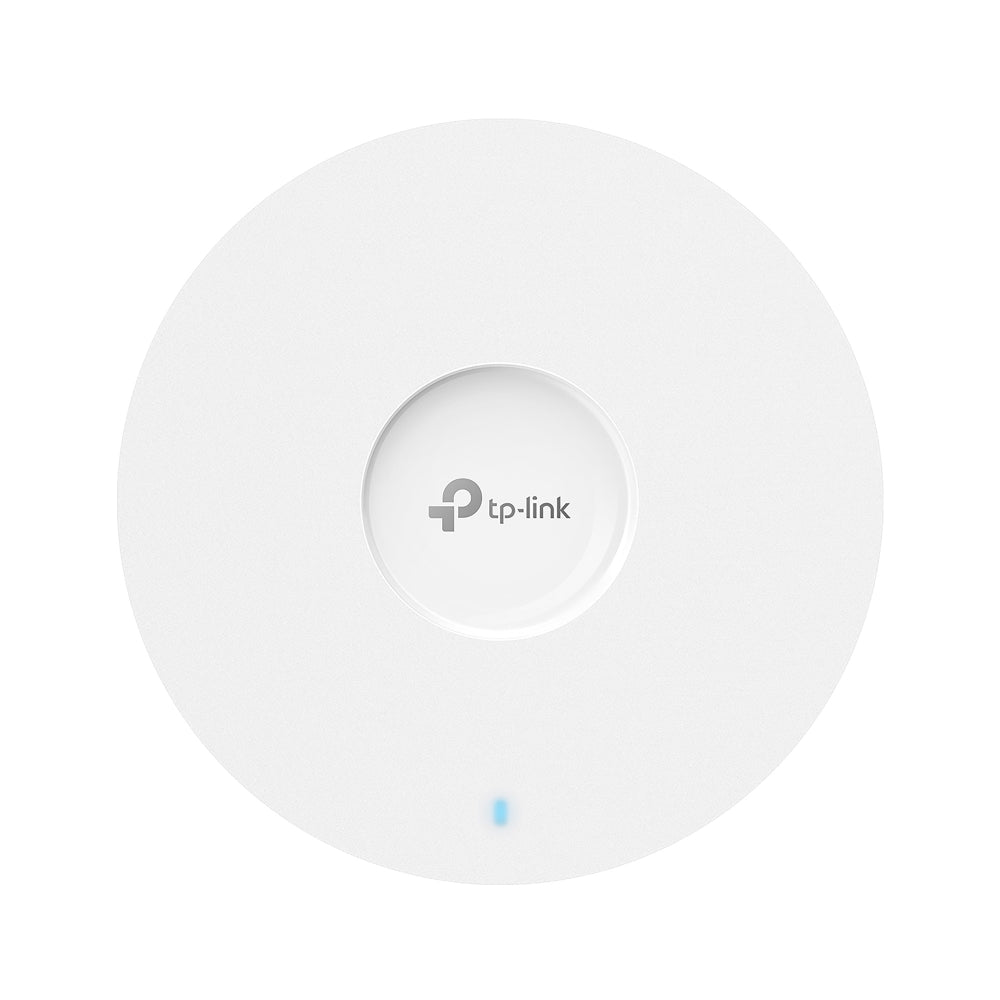

AX5400 Ceiling Mount WiFi 6 Access Point
- Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).†
- Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more.
- 160 MHz Channel double the data at peak transmission times on a single stream.‡
- Advanced features: Supports seamless roaming§,Omada Mesh§, and more.
- Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.
Specifications:
HARDWARE FEATURES

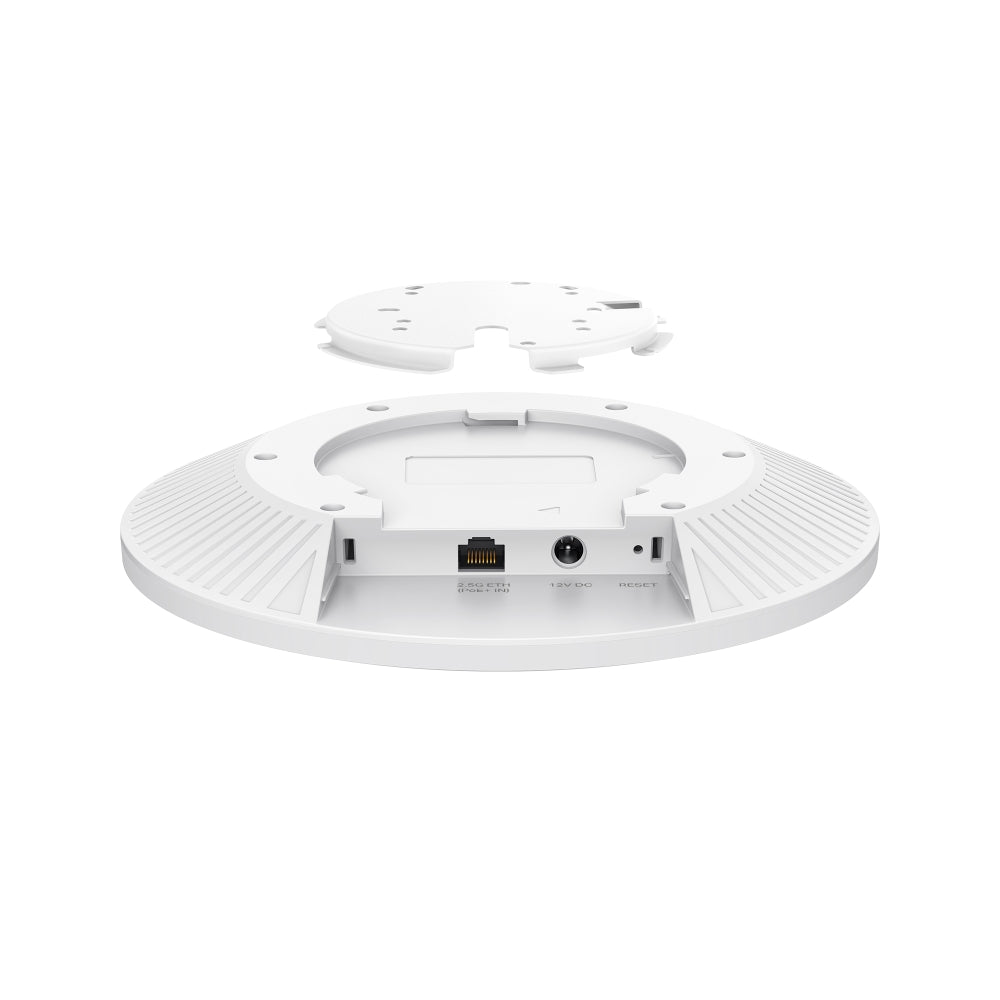

Interface: 1× 2.5 Gigabit Ethernet (RJ‑45) Port (supports IEEE 802.3at PoE)
Button: Reset
Power Supply: • 802.3at PoE • 12 V / 2 A DC (Power adapter not included)
Max. Power Consumption: • EU: 20.8 W • US: 22.3 W
Dimensions: 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna (Internal Omni): • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi
Bluetooth: V5.2

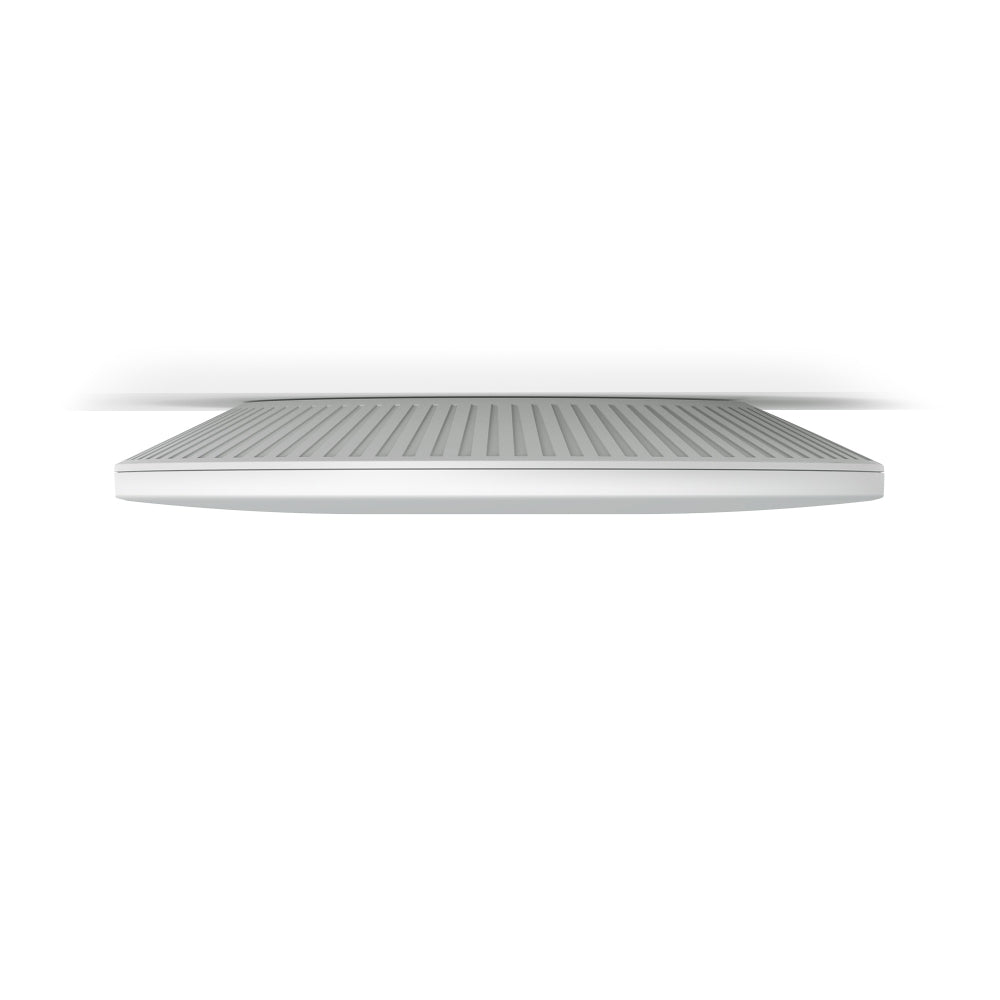

Mounting: Ceiling / Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage: 140㎡ (1500 ft²)***
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions: • 1024‑QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (16 total; 8 per band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • MU‑MIMO (5G: 4×4 DL/UL MU‑MIMO) • HE160 (160 MHz)‡ • Seamless Roaming (802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client) • Static/Dynamic IP
Wireless Security: • Captive Portal Authentication§ • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power:
• CE: <20 dBm (2.4 GHz EIRP); <23 dBm (5 GHz band 1 & 2); <30 dBm (5 GHz band 3)
• FCC: <25 dBm (2.4 GHz); <28 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • OC300 • OC200 • Omada Software Controller • Omada Cloud‑Based Controller
Cloud Access: Yes (requires OC300/OC200/Cloud/Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local / Remote Syslog
SSH: Yes
Web‑based Management: HTTP/HTTPS
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller)
OTHERS
Certification: CE, FCC, RoHS
Package Content: • EAP673 • Ceiling/Wall Mounting Kits • Installation Guide
System Requirements: Windows XP/Vista/7/8/10/11, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
