Product Description
EAP653

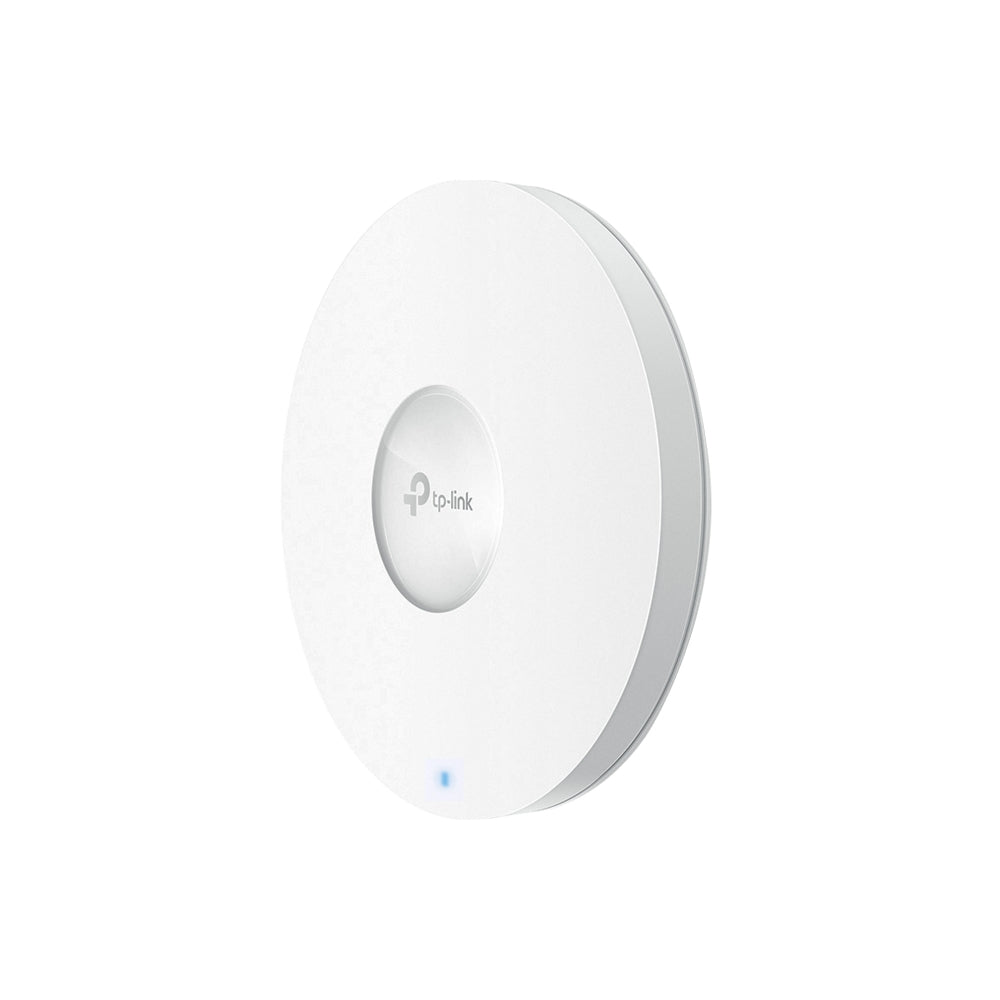

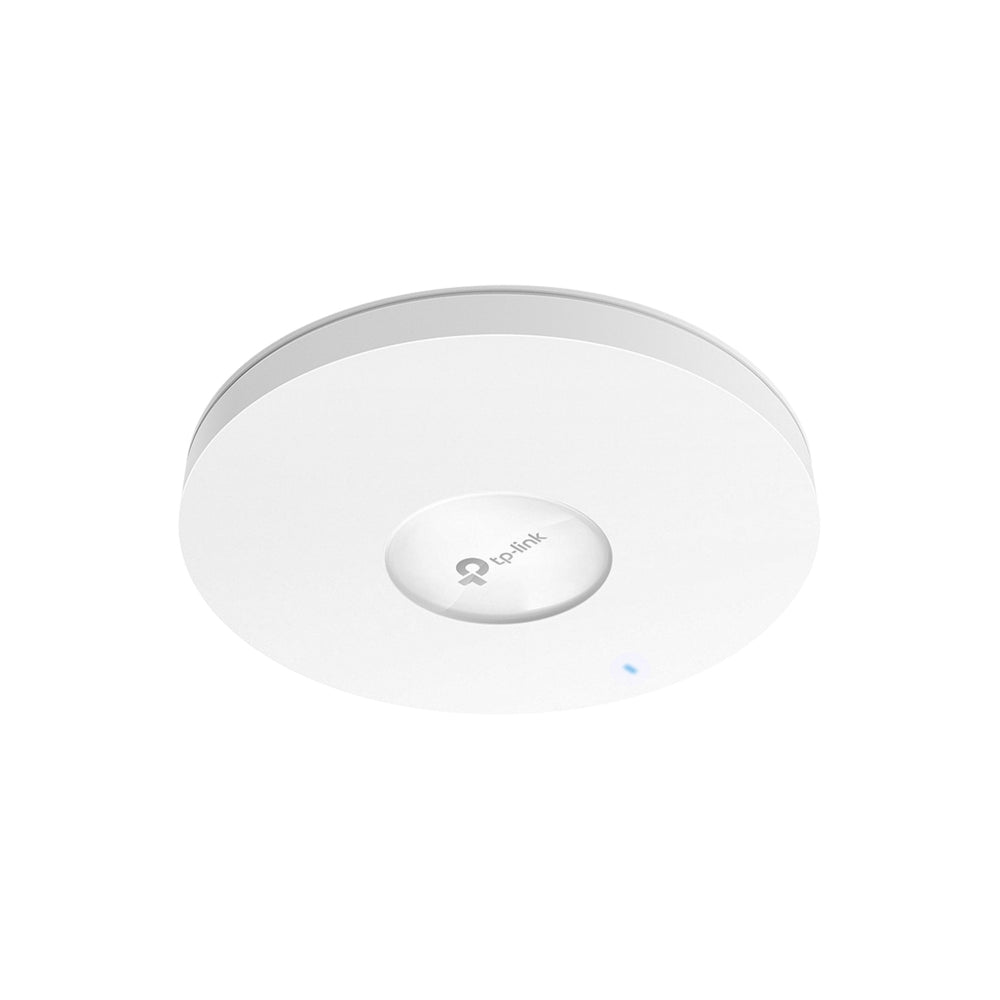

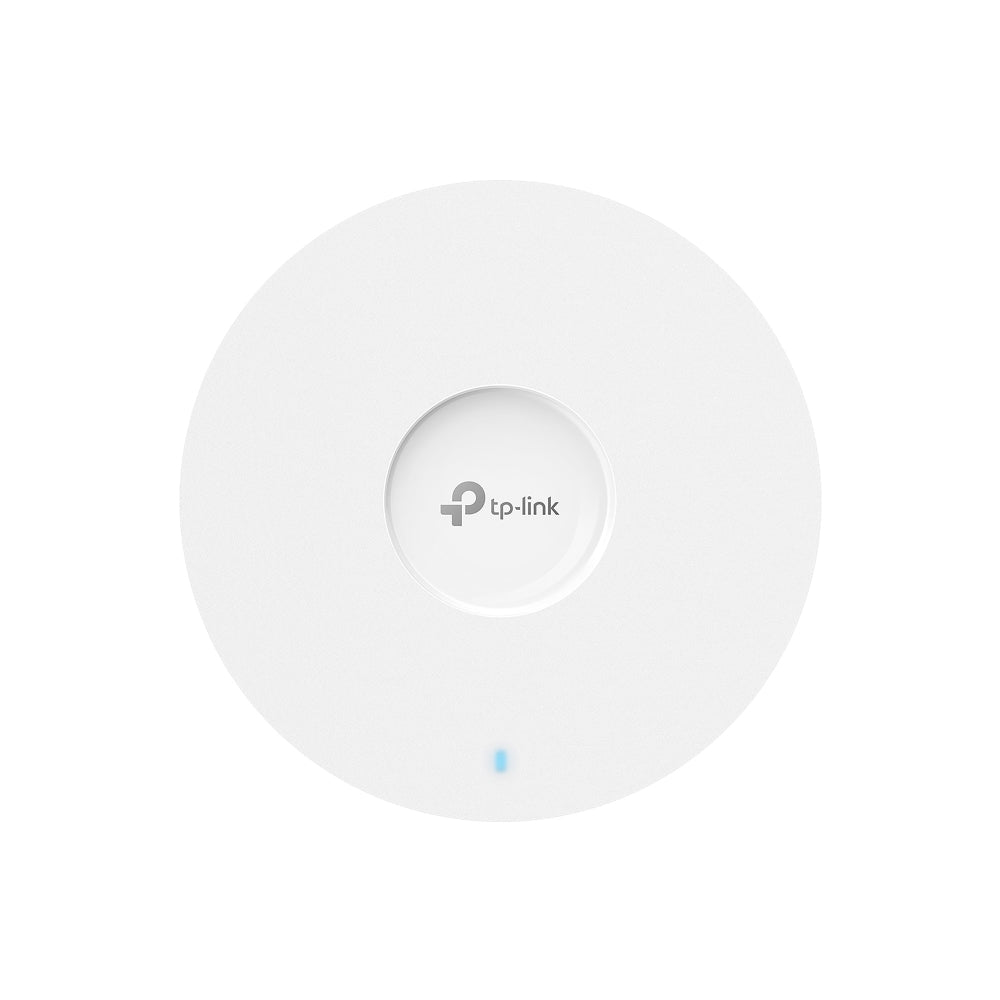

AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.

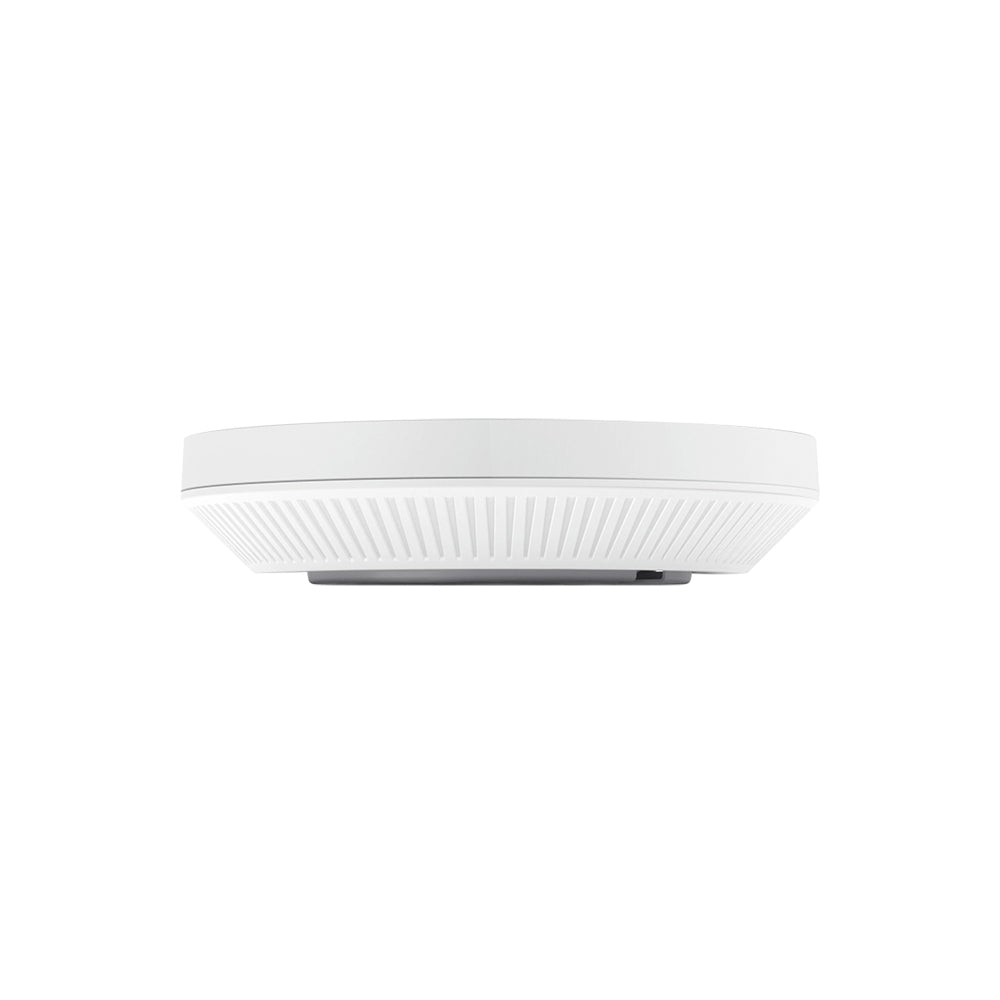

- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
Specifications:
HARDWARE FEATURES

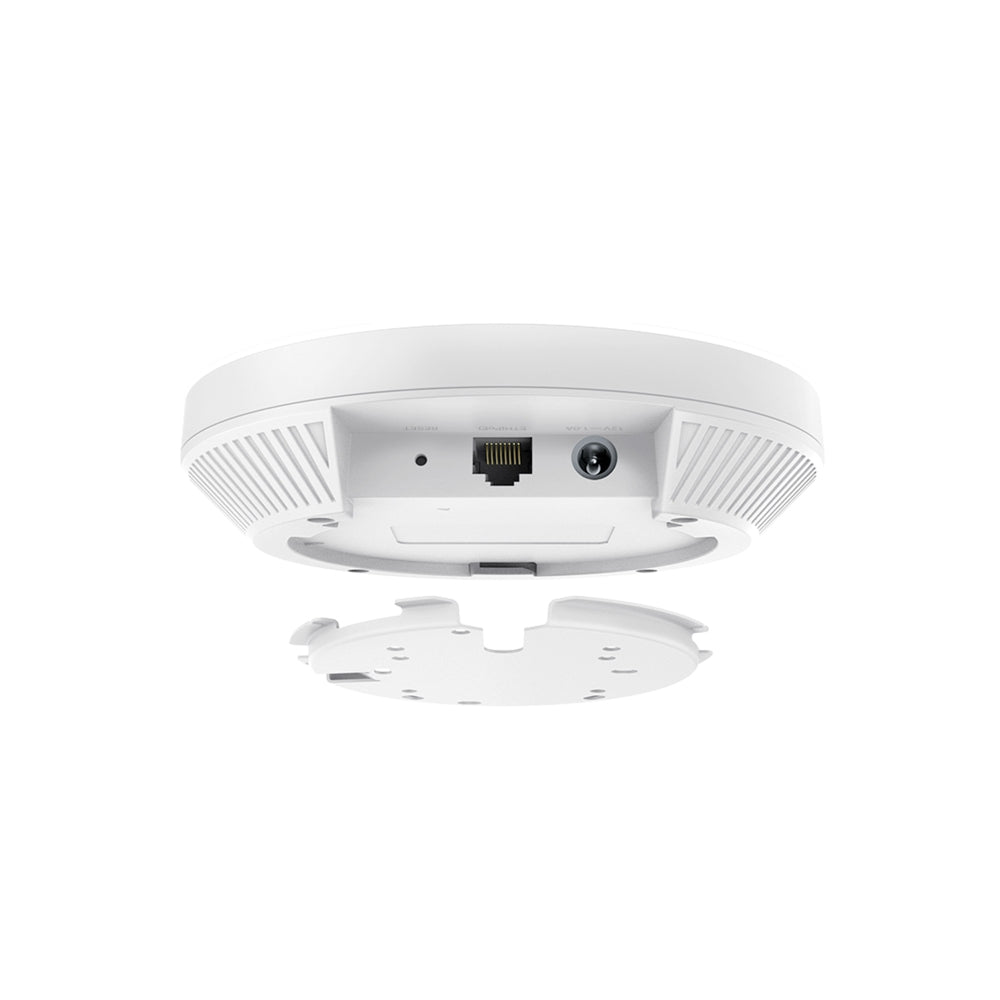

Interface: 1× Gigabit Ethernet (RJ‑45) Port (supports IEEE 802.3at PoE)
Button: Reset
Power Supply: • 802.3at PoE • 12V DC (Power Adapter NOT included) (EU: 12V/1.0A • US: 12V/1.5A) • 48V Passive PoE
Max. Power Consumption: • EU: 13.07 W • US: 13.98 W
Dimensions: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna (Internal Omni): • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Bluetooth: V5.2
Mounting: • Ceiling/Wall (kits included) • Junction Box Mounting
WIRELESS FEATURES
Coverage: 140㎡ (1500 ft²)***
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz: Up to 2402 Mbps† • 2.4 GHz: Up to 574 Mbps†
Wireless Functions: • 1024‑QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (16 total; 8 per band) • Enable/Disable Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • MU‑MIMO • HE160 (160 MHz)‡ • Seamless Roaming§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client) • Static/Dynamic IP
Wireless Security: • Captive Portal Authentication§ • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power:
• CE: <20 dBm (2.4 GHz EIRP); <23 dBm (5 GHz Band1 & Band2 EIRP); <27 dBm (5 GHz Band3 EIRP)
• FCC: <22 dBm (2.4 GHz); <22 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • OC300 • OC200 • Omada Software Controller • Omada Cloud‑Based Controller
Cloud Access: Yes (requires OC300/OC200/Cloud/Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local/Remote Syslog
SSH: Yes
Web‑based Management: HTTP/HTTPS
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
Zero‑Touch Provisioning: Yes (requires Cloud‑Based Controller)
OTHERS
Certification: CE, FCC, RoHS
Package Content: • EAP653 • Ceiling/Wall Mounting Kits • Installation Guide
Note: DC adapter is not included and sold separately.
System Requirements: Windows XP/Vista/7/8/10/11, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
