Product Description

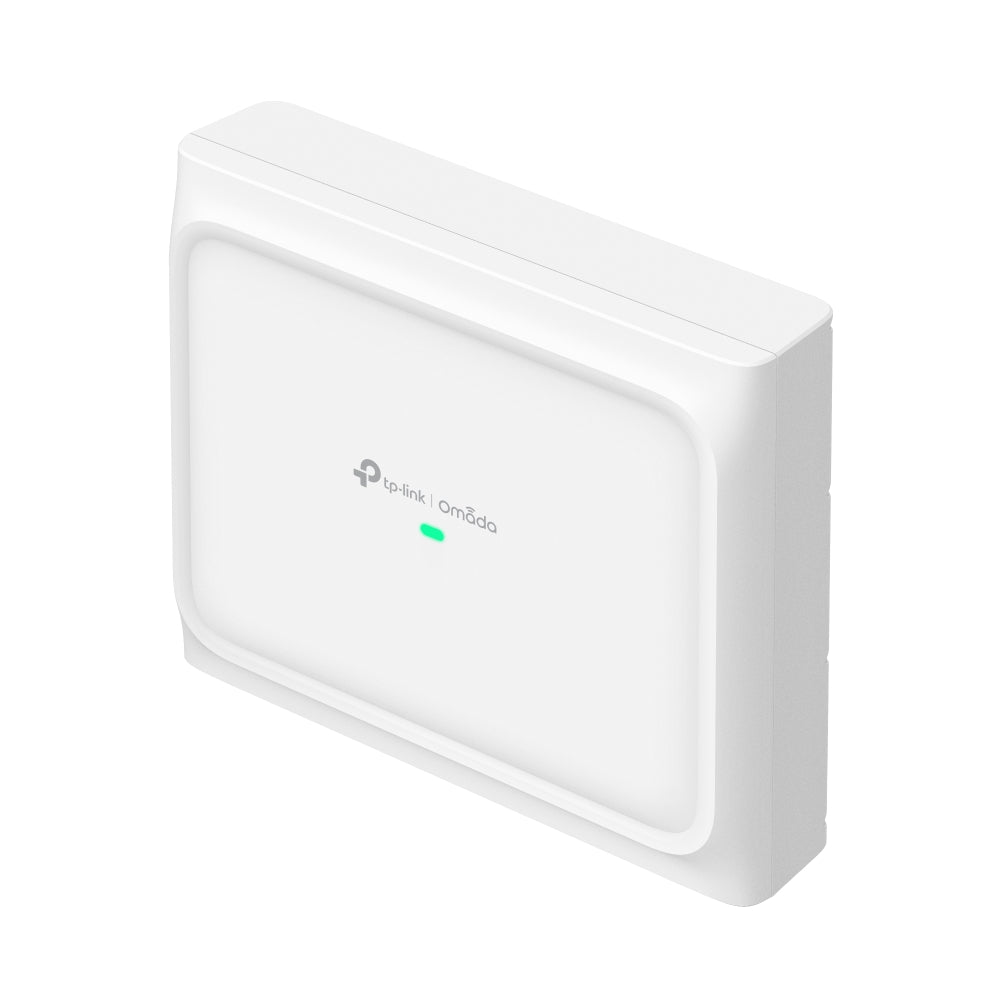

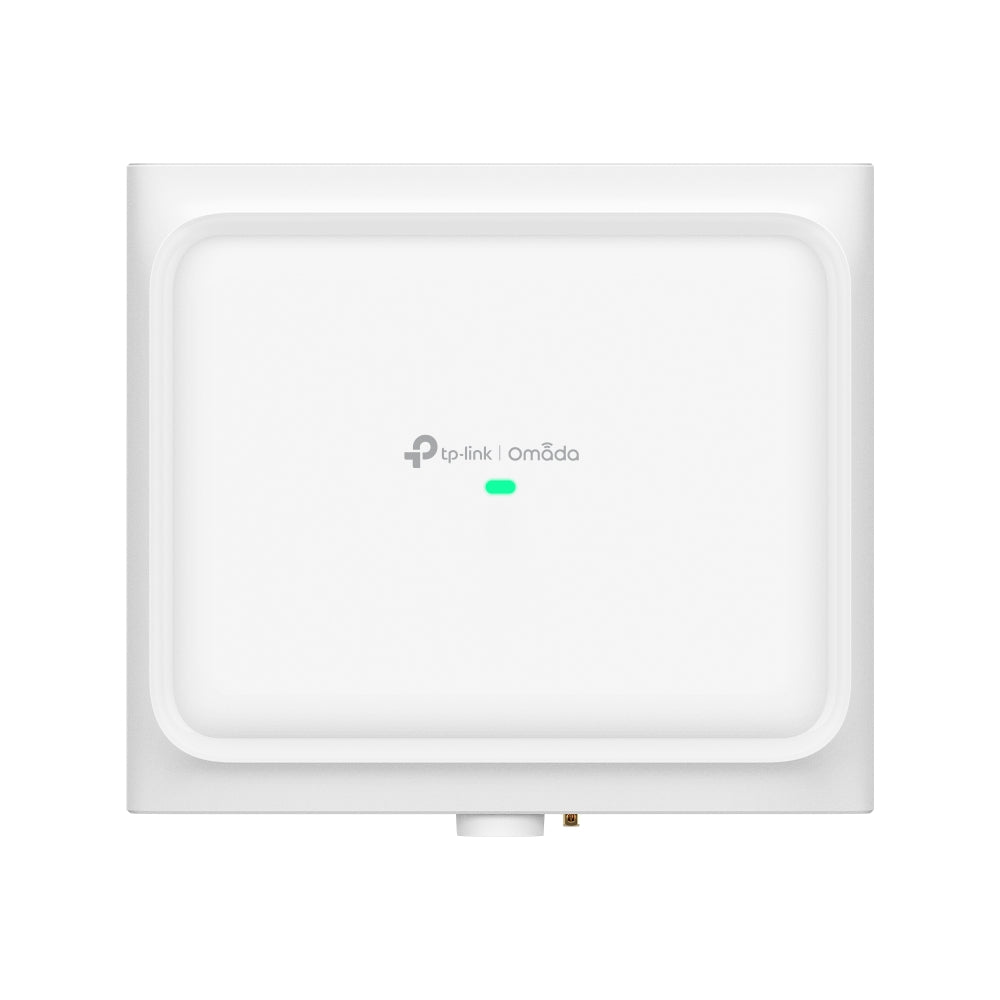

EAP650 D120-Outdoor
AX3000 Indoor/Outdoor WiFi 6 Access Point
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
-
Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.*
-
Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
-
802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.§
-
Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
-
Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.
Specifications:
HARDWARE FEATURES

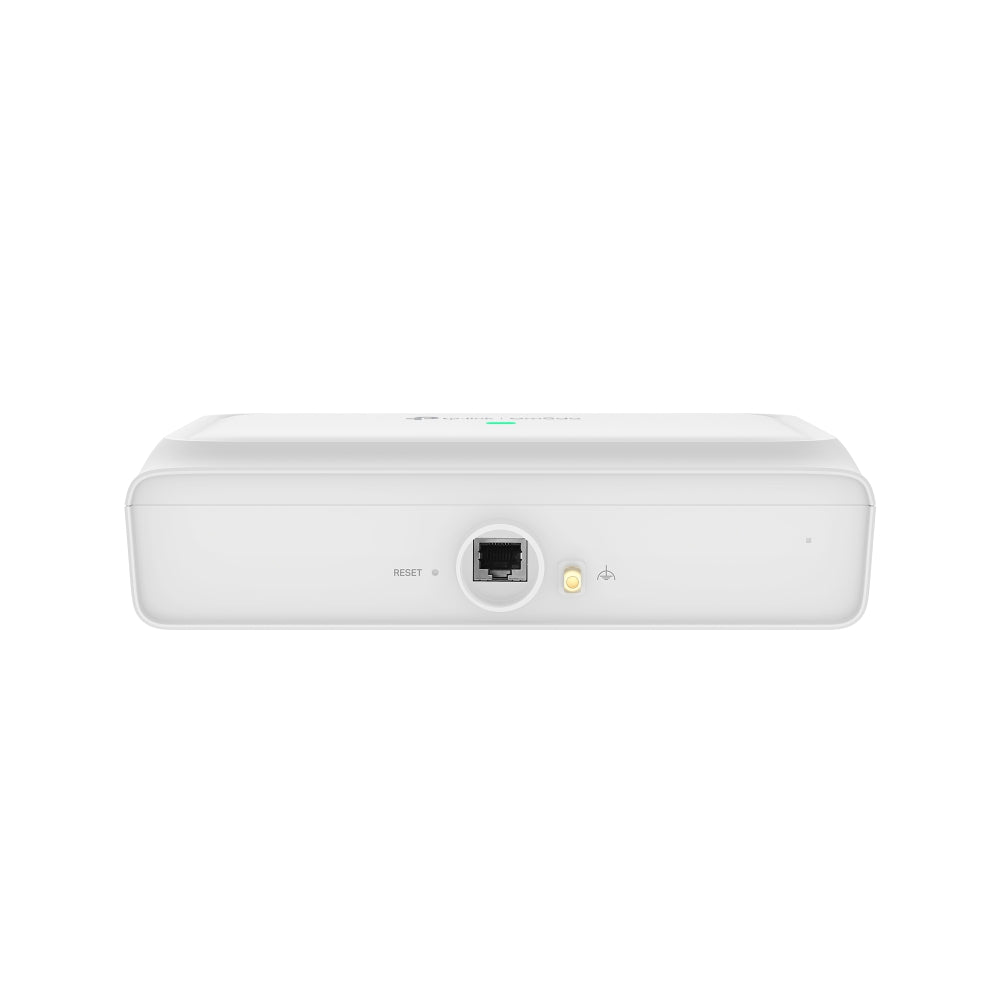

Interface: 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
Button: Reset
Power Supply: • 802.3at PoE • 48V Passive PoE
Max. Power Consumption: • EU: 12.5W • US: 14.7W
Dimensions: 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm)
Antenna (Built‑in Directional): • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi • Beamwidth: 120° Horizontal; 30° Vertical
Bluetooth: Yes
Weatherproof Enclosure: IP68
Mounting: Optional bracket APM‑100 (vertical ±45°, horizontal ±45°). Accessory sold separately.
WIRELESS FEATURES
Coverage: • 2.4 GHz: 200+ m* • 5 GHz: 500+ m*
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
Frequency: 2.4 GHz, 5 GHz
Signal Rate: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)†
Wireless Functions: • 1024‑QAM • DL/UL OFDMA • 16 SSIDs (8 per band) • Enable/Disable Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • 2×2 MU‑MIMO (DL/UL) • Omada Mesh§ • Seamless Roaming (802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static/Dynamic IP
Wireless Security: • Captive Portal Authentication§ • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power:
• CE: <20 dBm (2.4 GHz EIRP); <23 dBm (5 GHz band1/2 EIRP); <30 dBm (5 GHz band3 EIRP)
• FCC: <30 dBm (2.4 GHz); <30 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Restore & Backup: Yes
NTP: Yes
Centralized Management: • Omada Hardware Controller • Omada Software Controller • Omada Cloud‑Based Controller • Omada App
Cloud Access: Yes (requires Omada controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging (Local/Remote): Yes
SSH: Yes
Web-Based Management: Yes
Multi‑Site Management: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller)
OTHERS
Certification: CE, FCC, RoHS
Package Content: • Access Point EAP650 D120‑Outdoor • Mounting Kits • Installation Guide
System Requirements: Windows XP/Vista/7/8/10/11, Linux
Environment: • Operating Temp: −30–70°C (−22–158°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
