Product Description

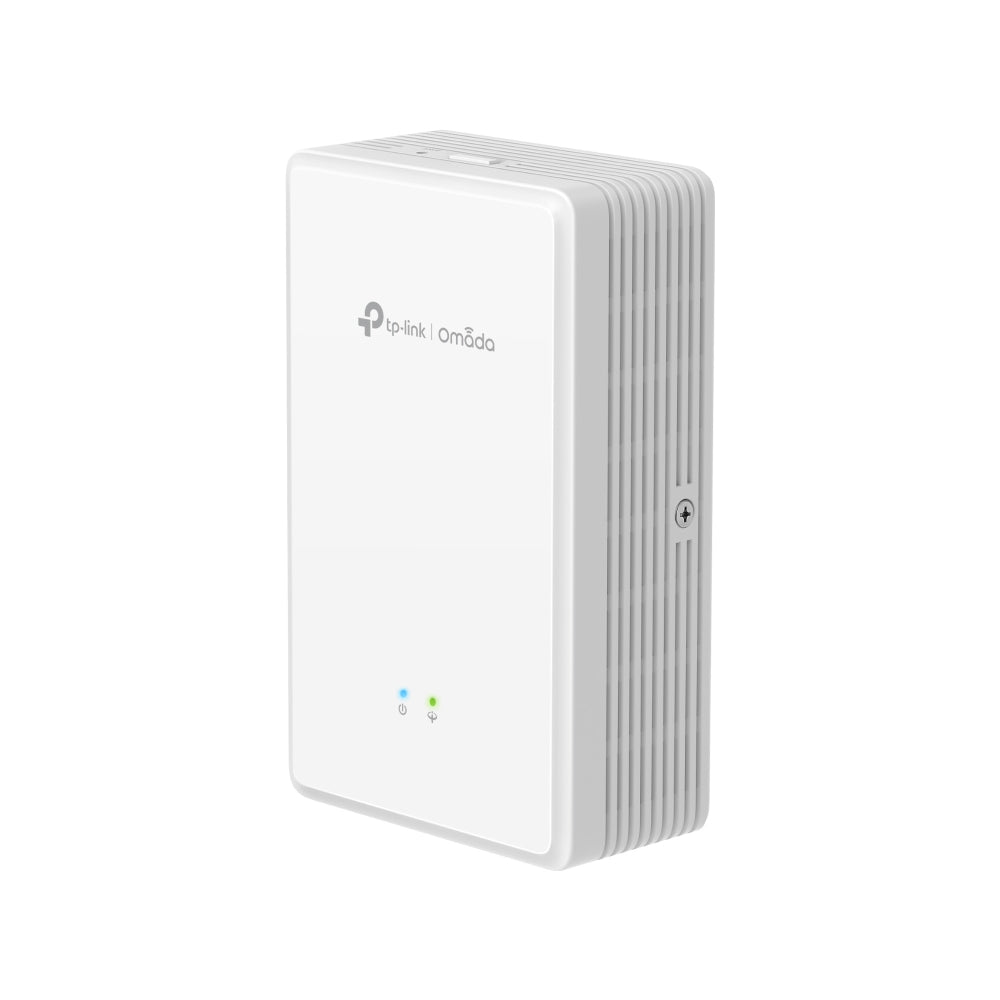

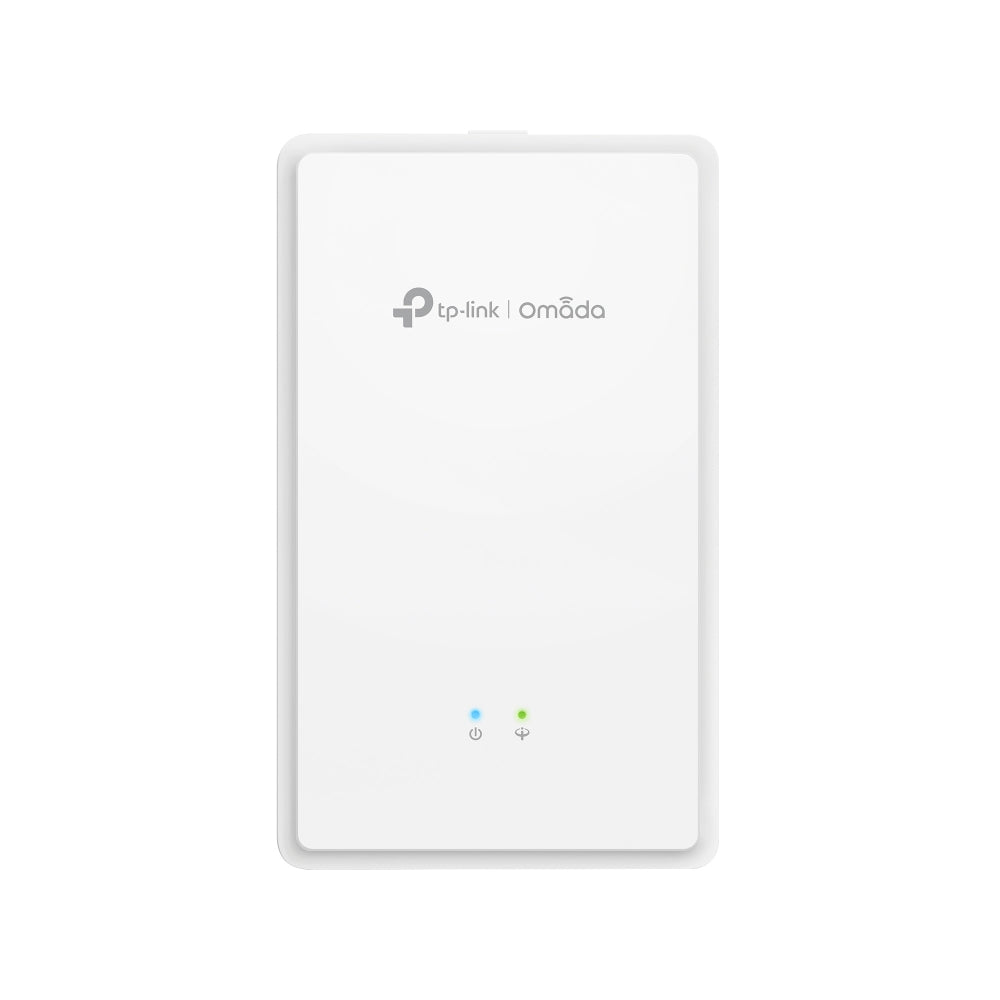

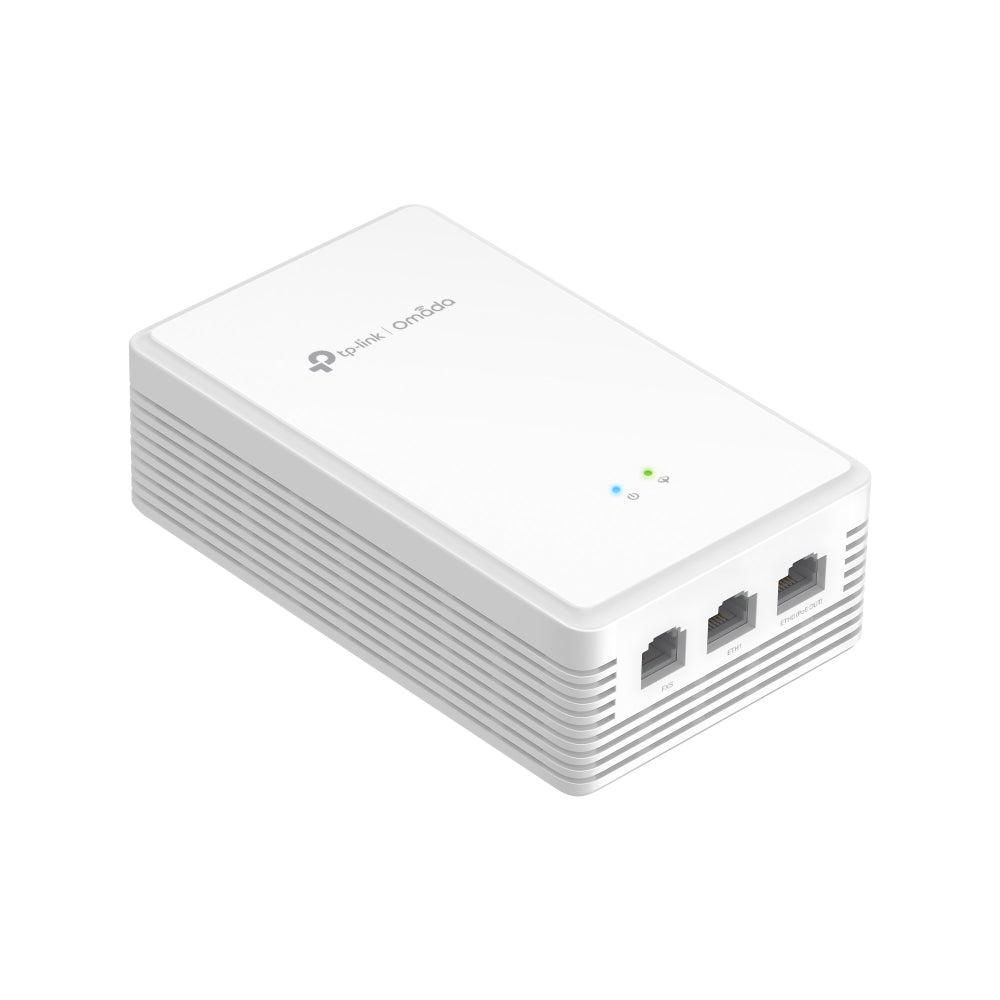

EAP625GP-Wall
Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
- Multiple Ports: 1× GPON port for high-speed, ultra-range access and 2× Gigabit RJ45 ports (one supporting 802.3af PoE out) for flexible deployment
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- Advanced Functions: Unified Management for OLT^ and Omada Devices, Omada Mesh, and 802.11k/v/r Seamless Roaming
Specifications:
HARDWARE FEATURES

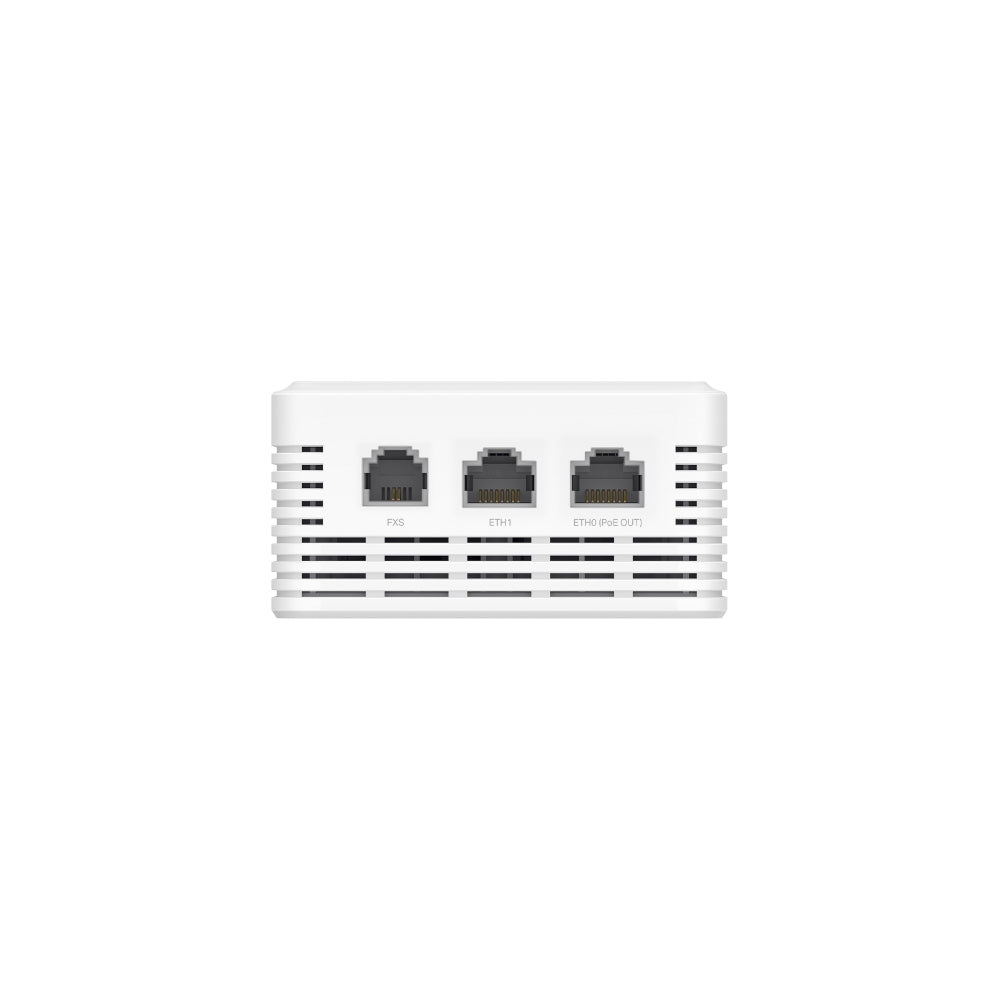

Interface: • 1× GPON Port • 1× FXS Port • 2× Gigabit RJ45 Ports (1× supporting 802.3af PoE Out)
GPON Interface: • Port Type: SC‑APC • Standards: ITU‑984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream), 1.244 Gbps (Upstream) • Fiber Type: 9/125 μm SMF • Max Cable Length: 20 km
Button: • Reset • LED
Power Supply: 100–240 V~ 50/60 Hz, 0.5A
Max. Power Consumption: 30.5 W (PoE Out full load 15 W)
Weight: 350 g
Dimensions: 5.6 × 3.4 × 1.8 in (143 × 86 × 44.6 mm)
Antenna: Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6.5 dBi

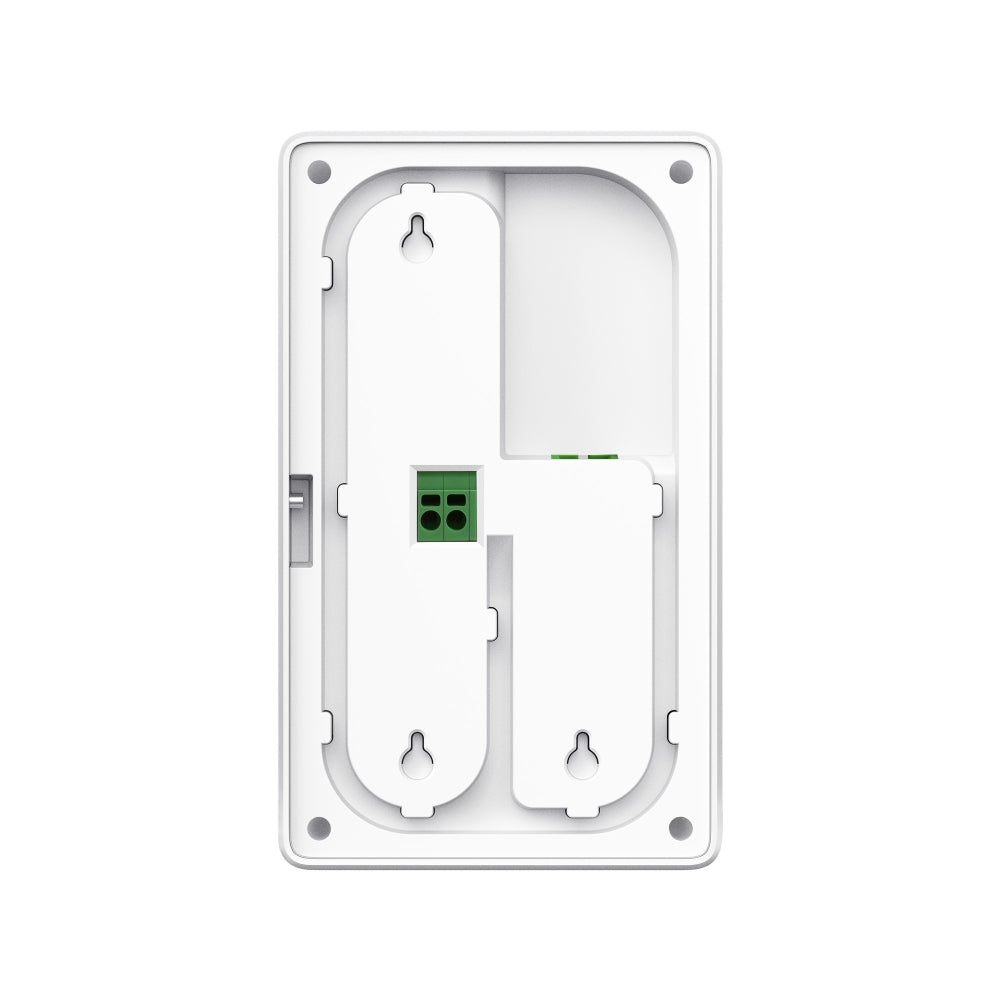

Mounting: Wall Mounting (kits included)
WIRELESS FEATURES
Coverage: 50 ㎡ (600 ft²)**
Concurrent Clients: 120+*
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz: 1201 Mbps† • 2.4 GHz: 574 Mbps
Wireless Functions: • 2×2 MU‑MIMO‡ • HE80 (80 MHz)‡ • OFDMA‡ • Mesh § • Seamless Roaming § • 16 SSIDs (8 per band) • SSID Broadcast On/Off • Wireless Radio On/Off • Guest Network • Auto Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule & Statistics • Static/Dynamic IP
Wireless Security: • Captive Portal Authentication § • Access Control • Wireless MAC Filtering • Wireless Client Isolation • VLAN • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3 (Personal/Enterprise)
Transmission Power:
• CE: <20 dBm (2.4 GHz EIRP), <23 dBm (5 GHz band 1 & 2), <24 dBm (5 GHz band 3)
• FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Cloud‑Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes (requires Omada controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local/Remote Syslog
SSH: Yes
Web‑based Management: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller)
OTHERS
Certification: CE, FCC, RoHS, IC
Package Content: • EAP625GP‑Wall • Wall Mounting Kit • Installation Guide
System Requirements: Windows XP–Windows 11, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
