Product Description
EAP613

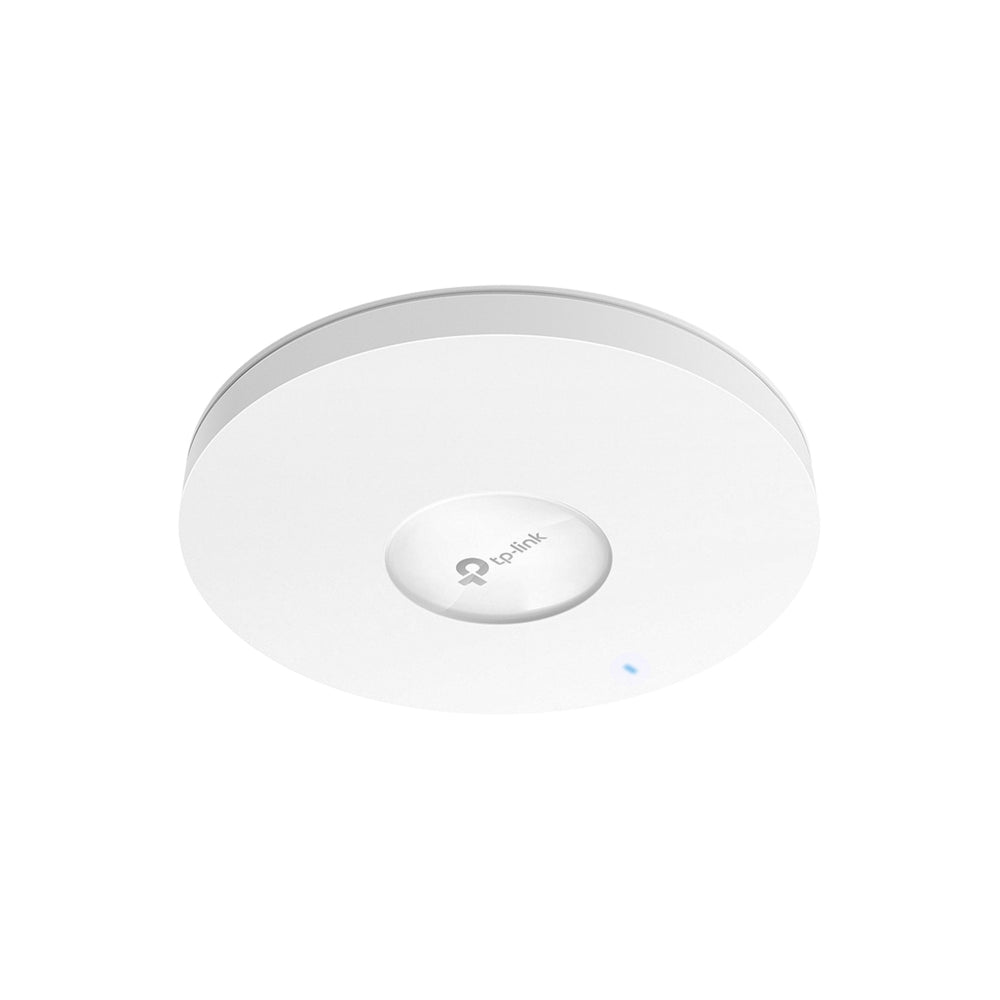

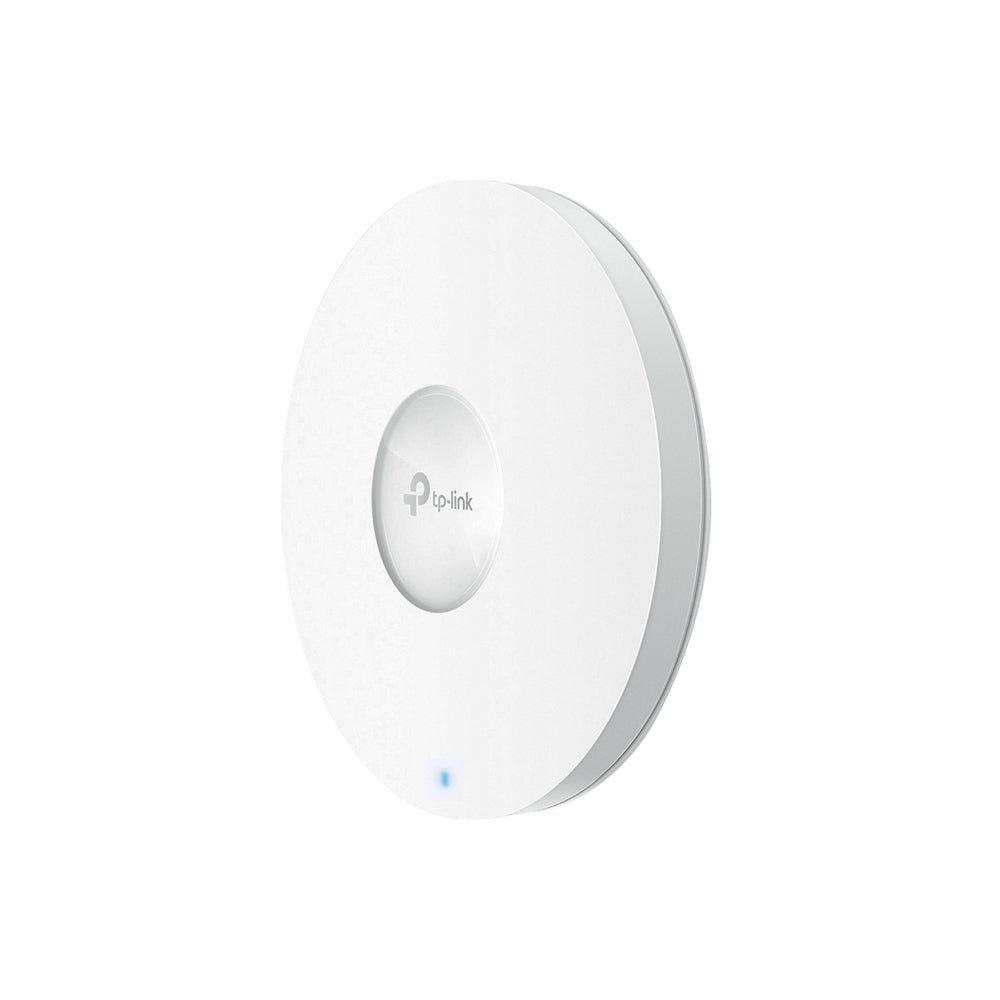

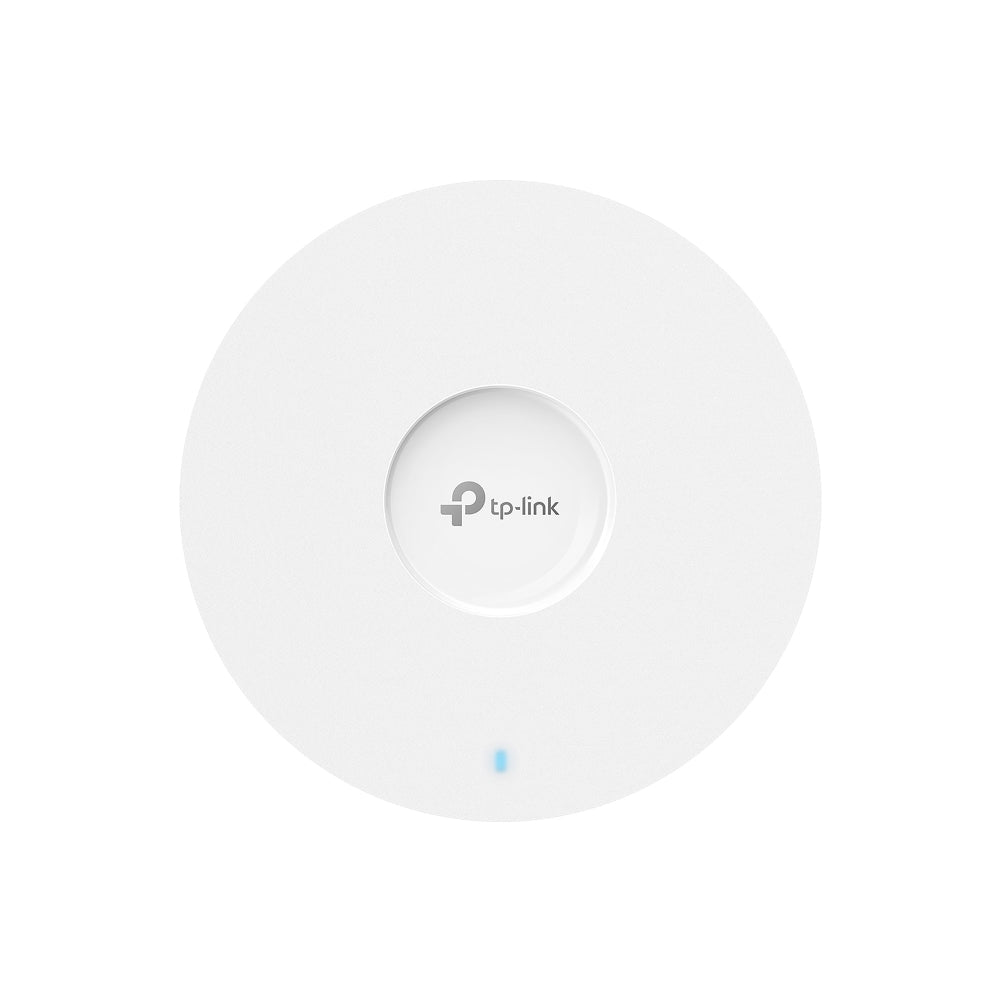

AX1800 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.

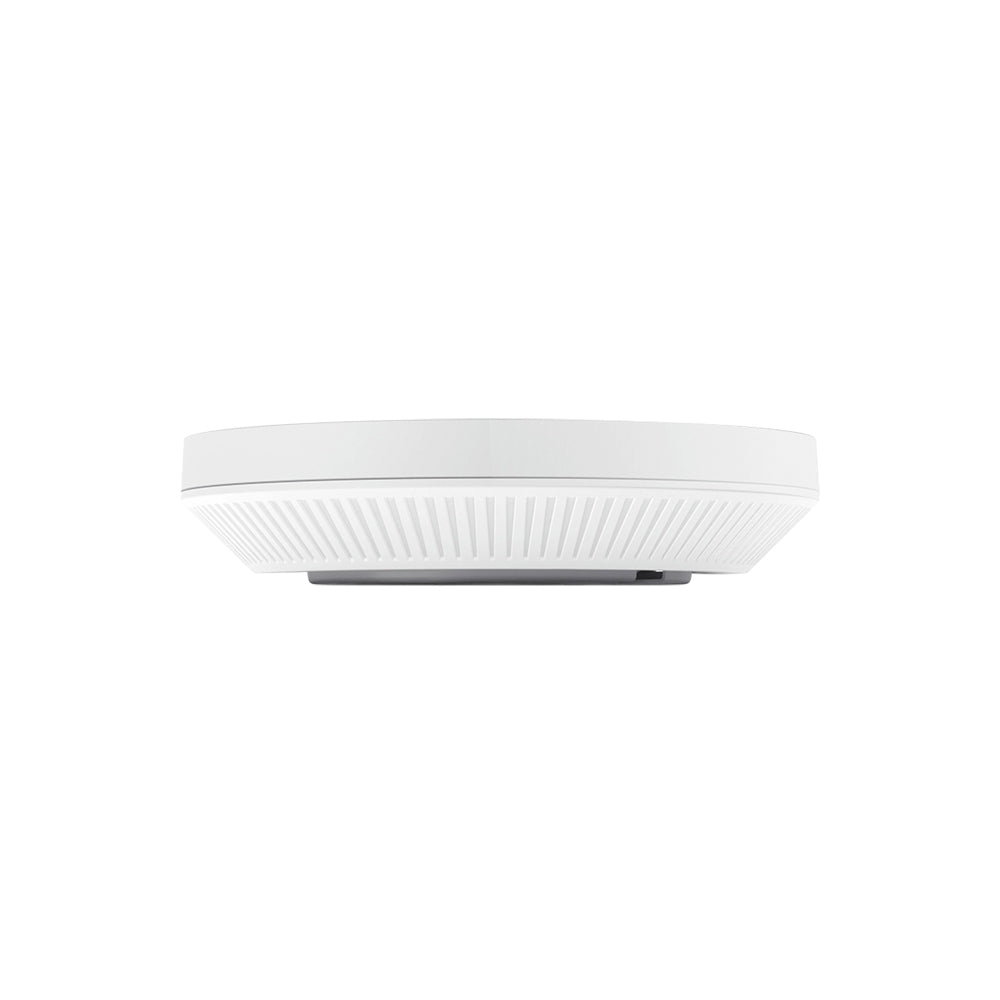

- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
Specifications:
HARDWARE FEATURES

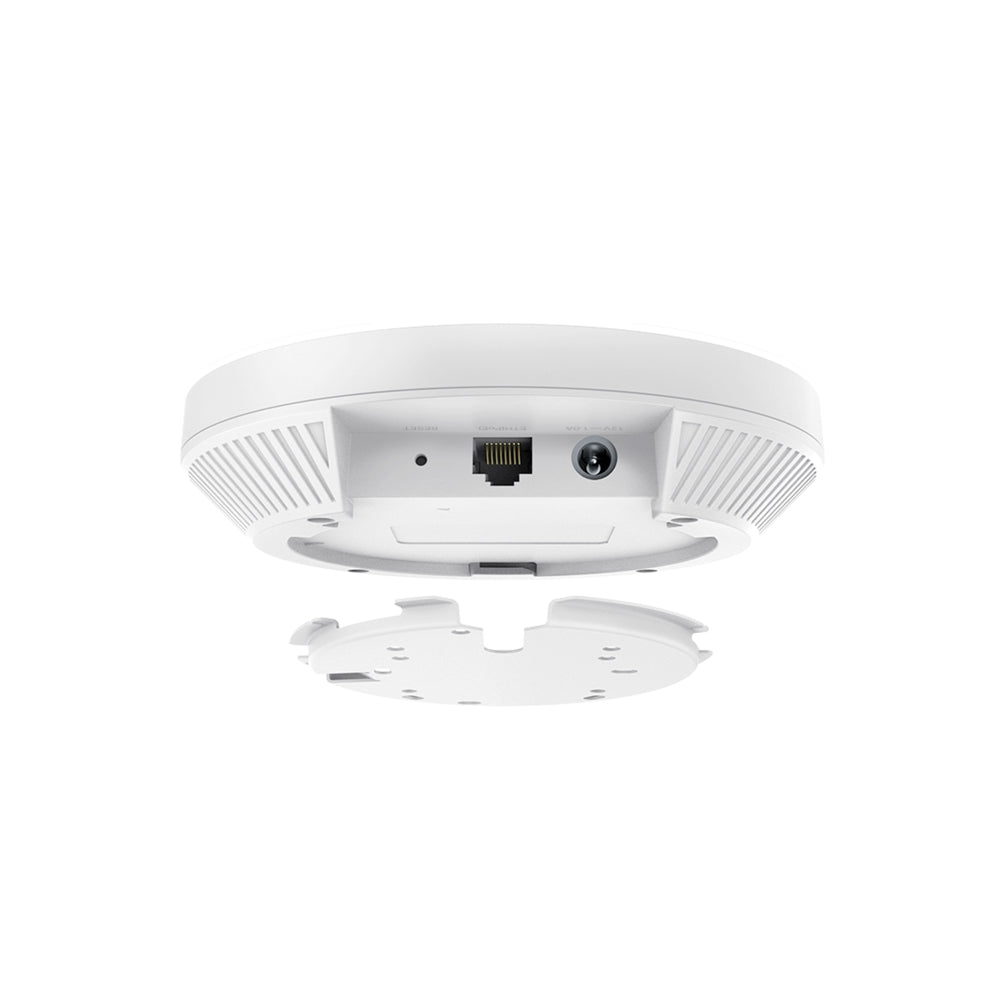

Interface: 1× Gigabit Ethernet (RJ‑45) Port
Button: Reset
Power Supply: • 802.3at PoE • 48V Passive PoE • 12V / 1A DC (Power adapter NOT included) (EU: 12V/1A • US: 12V/1.5A)
Max. Power Consumption: 11.0W (PoE); 9.9W (DC)
Dimensions: V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna (Internal Omni): • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Mounting: • Ceiling/Wall Mounting (kits included) • Junction Box Mounting
WIRELESS FEATURES
Coverage: 115㎡ (1250 ft²)***
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions: • 1024‑QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (16 total; 8 per band) • Enable/Disable Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • MU‑MIMO • Seamless Roaming§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client) • Static/Dynamic IP
Wireless Security: • Captive Portal Authentication§ • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3 Personal/Enterprise
Transmission Power:
• CE: <20 dBm (2.4 GHz EIRP); <23 dBm (5 GHz band1/2 EIRP); <25 dBm (5 GHz band3)
• FCC: <25 dBm (2.4 GHz); <25 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Cloud‑Based Controller • OC300 • OC200 • Omada Software Controller
Cloud Access: Yes, via OC300/OC200/Cloud/Omada Software Controller
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local/Remote Syslog
SSH: Yes
Web‑based Management: HTTP/HTTPS
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller)
OTHERS
Certification: CE, FCC, RoHS
Package Content: • EAP613 • Ceiling/Wall Mounting Kits • Installation Guide
Note: DC adapter is not included.
System Requirements: Windows XP, Vista, 7, 8, 10, 11; Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
