Product Description

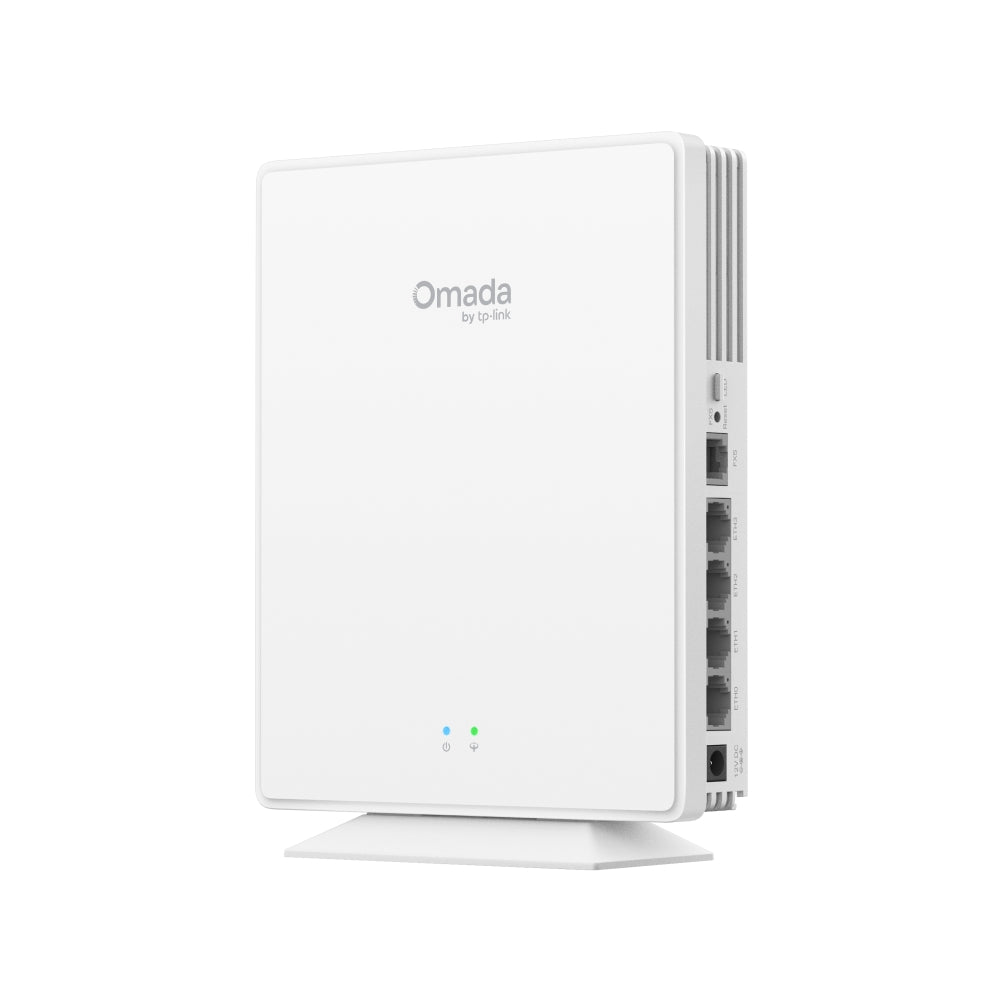

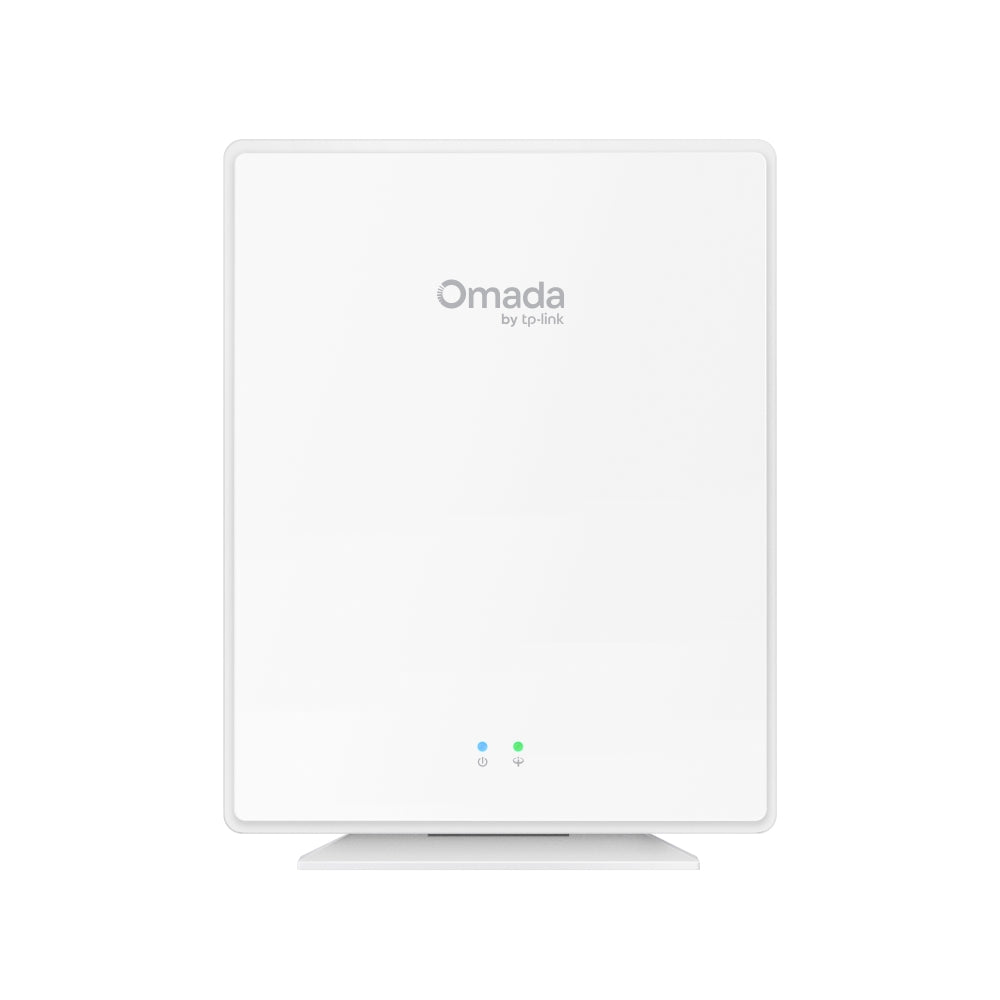

EAP603GP-Desktop
Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
- Multiple Ports for More Devices: 1× GPON port for high-speed, long-range access and 4× Gigabit RJ45 ports provide high-speed connections to more devices
- One Fiber for Multiple Services: Wired, wireless, voice, data, and HD video services
- Easy Use: One-click pairing and automatic adoption
- High Flexibility: Supports both desktop and wall mounting setups
- Advanced Features: Unified management for Omada devices and OLT^, PPSK△, multiple portals, Omada mesh, and seamless roaming
Specifications:
HARDWARE FEATURES

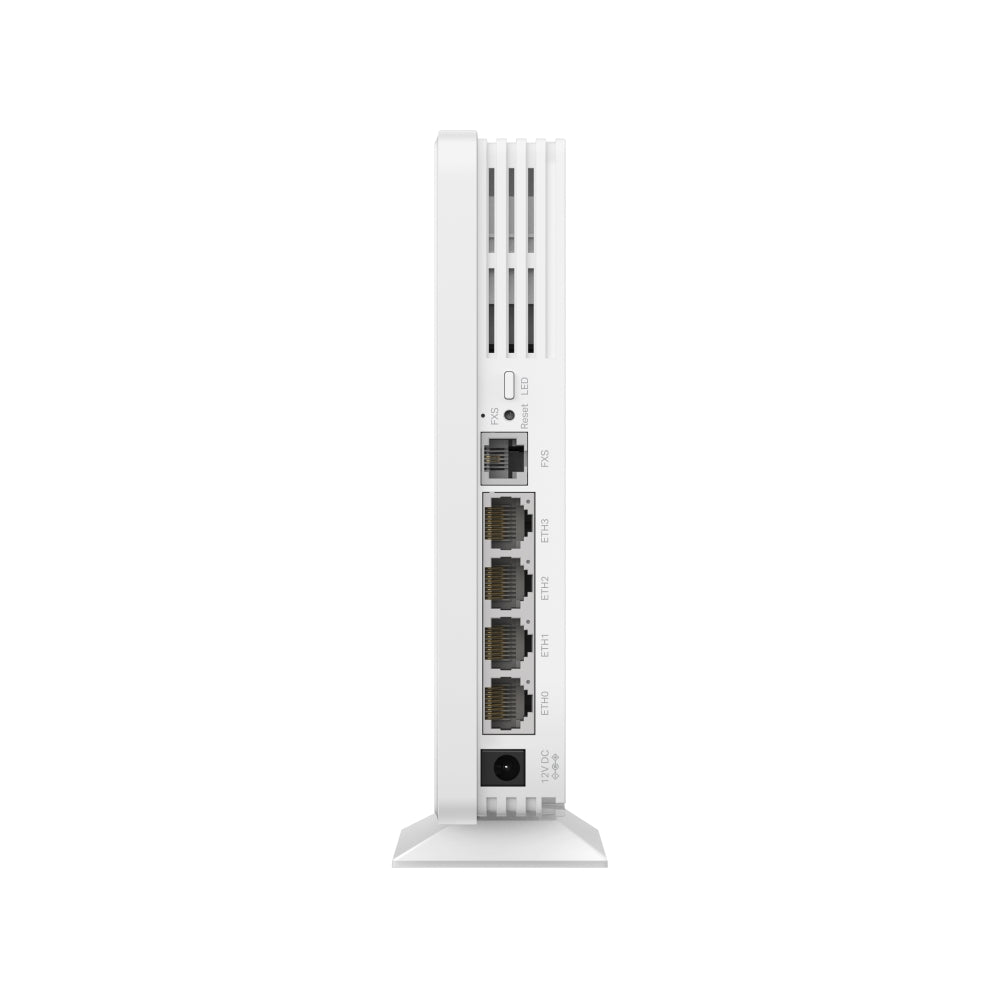

Interface: • 1× GPON Port • 1× FXS Port • 4× Gigabit Ethernet Ports
GPON Interface: • Port Type: SC‑APC • Standards: ITU‑984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream) / 1.244 Gbps (Upstream) • Fiber Type: 9/125 μm SMF • Max Cable Length: 20 km
Button: • Reset • LED
Power Supply: 12V / 1.5A DC
Max. Power Consumption: 15.5 W
Weight: 437 g
Dimensions: 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna: Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 4.5 dBi

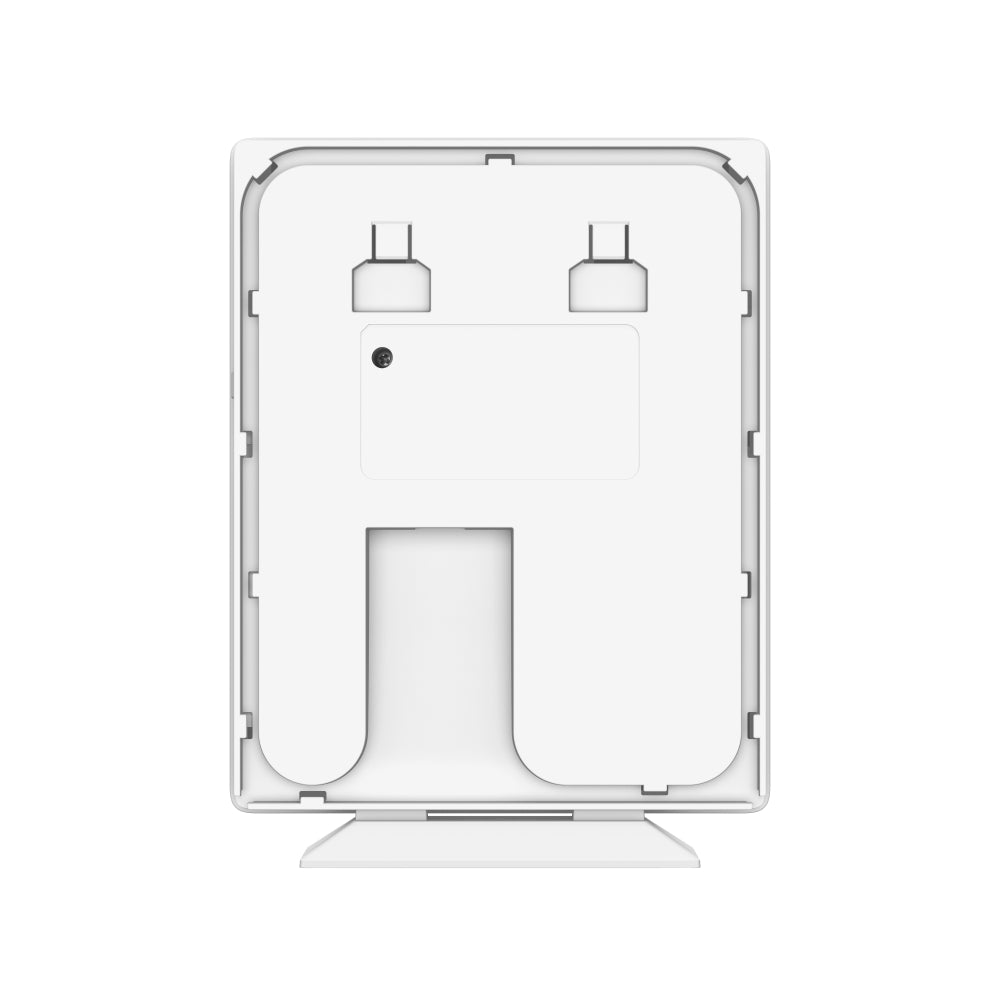

Mounting: Desktop / Wall mounting (kits included)
WIRELESS FEATURES
Coverage: 140 ㎡ (1500 ft²)**
Concurrent Clients: 120+*
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz: 1201 Mbps† • 2.4 GHz: 574 Mbps
Wireless Functions: • 2×2 MU‑MIMO‡ • HE80 (80 MHz)‡ • OFDMA‡ • Seamless Roaming § • Mesh § • SSID Broadcast On/Off • Wireless Radio On/Off • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule & Statistics • Static/Dynamic IP
Wireless Security: • Captive Portal Authentication § • Access Control • Wireless MAC Filtering • Client Isolation • VLAN • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3 (Personal/Enterprise)
Transmission Power:
• CE: <20 dBm (2.4 GHz EIRP), <23 dBm (5 GHz bands 1&2), <27 dBm (5 GHz band 3)
• FCC: <25 dBm (2.4 GHz & 5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Cloud‑Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes (requires Omada controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local/Remote Syslog
SSH: Yes
Web‑based Management: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud‑Based Controller)
OTHERS
Certification: CE, FCC, RoHS, IC
Package Content: • EAP603GP‑Desktop • Desktop/Wall Mount Kit • Installation Guide
System Requirements: Windows XP–Windows 11, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
