Product Description

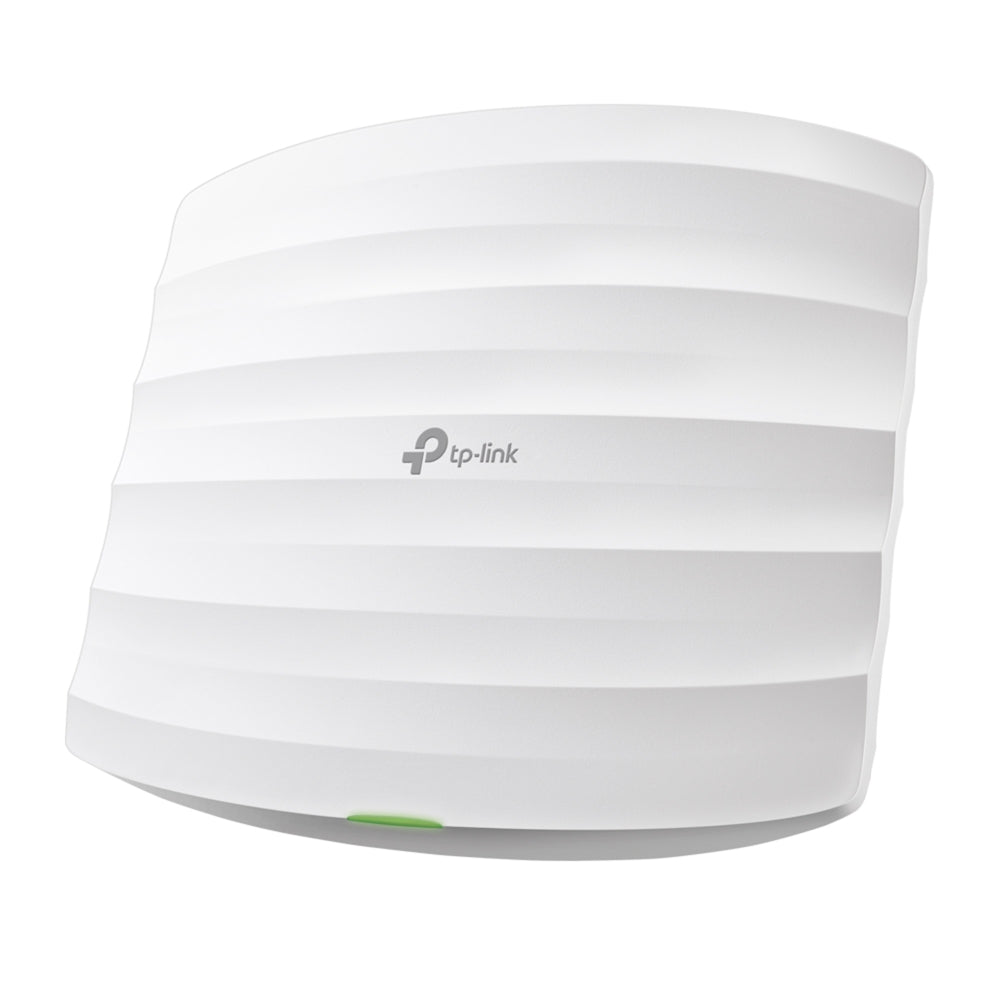

EAP223
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
Specifications
HARDWARE FEATURES

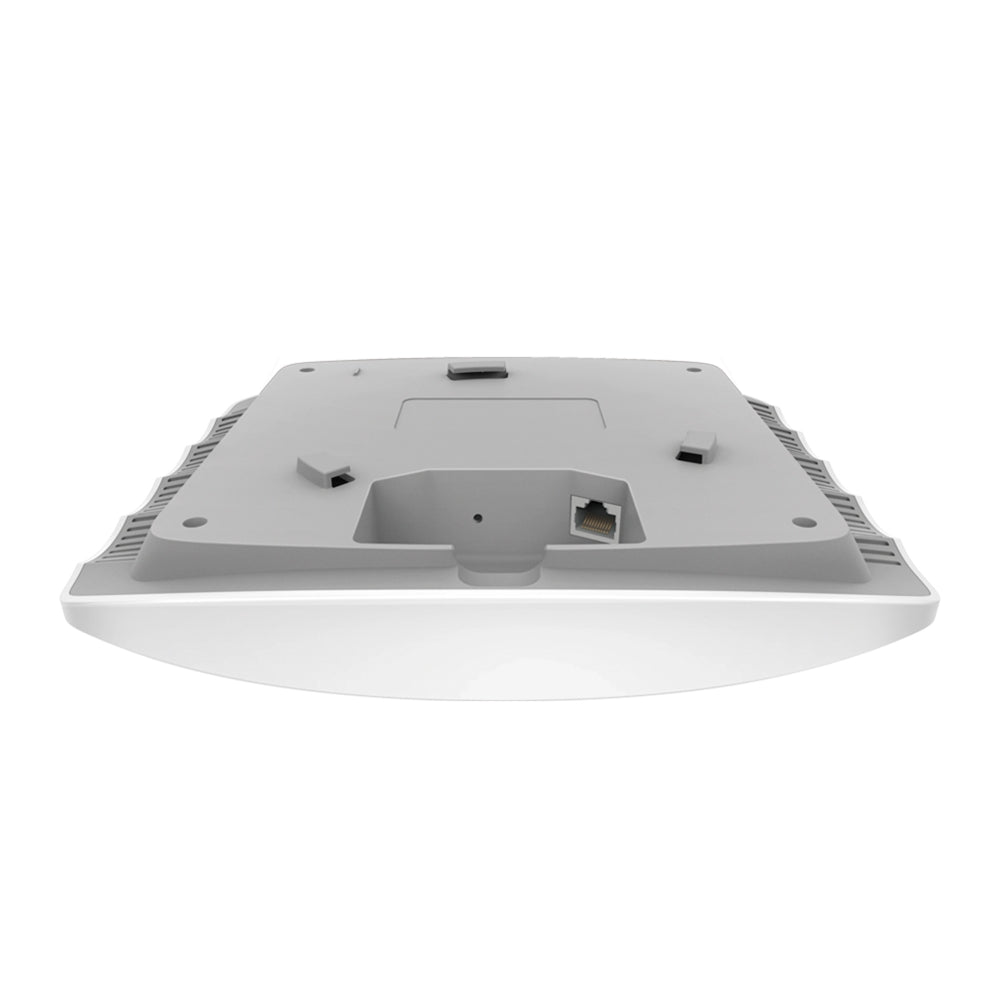

Interface: 1× Gigabit Ethernet (RJ‑45) Port (supports IEEE 802.3af/at PoE and Passive PoE)
Physical Security Lock: Yes
Button: Reset
Power Supply: • 802.3af/at PoE • 48V Passive PoE (+4,5 pins; –7,8 pins; PoE Adapter NOT included) • 12V / 1A DC (Power Adapter NOT included)
Max. Power Consumption: EU: 9.7W; US: 12.1W
Dimensions: 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna (Internal Omni): • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi
Mounting: Ceiling / Wall Mounting (kits included)
WIRELESS FEATURES
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 450 Mbps
Wireless Functions: • Multiple SSIDs (15 total: 8 for 2.4 GHz, 7 for 5 GHz) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU‑MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client)
Wireless Security: • Captive Portal Authentication* • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X Support
Transmission Power:
• CE: ≤20 dBm (2.4 GHz EIRP); ≤23 dBm (5 GHz EIRP)
• FCC: ≤24 dBm (2.4 GHz); ≤22 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • OC300 • OC200 • Omada Software Controller • Omada Cloud‑Based Controller
Cloud Access: Yes, via OC300/OC200/Cloud-Based/Software Controller
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging: Local/Remote Syslog
SSH: Yes
Web‑based Management: HTTP/HTTPS
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
OTHERS
Certification: CE, FCC, RoHS
Package Content: • AC1350 Wireless MU‑MIMO Gigabit Ceiling Mount Access Point EAP223 • Mounting Kits • Installation Guide
System Requirements: Windows XP/Vista/7/8/10/11, Linux
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
