Product Description
EAP110

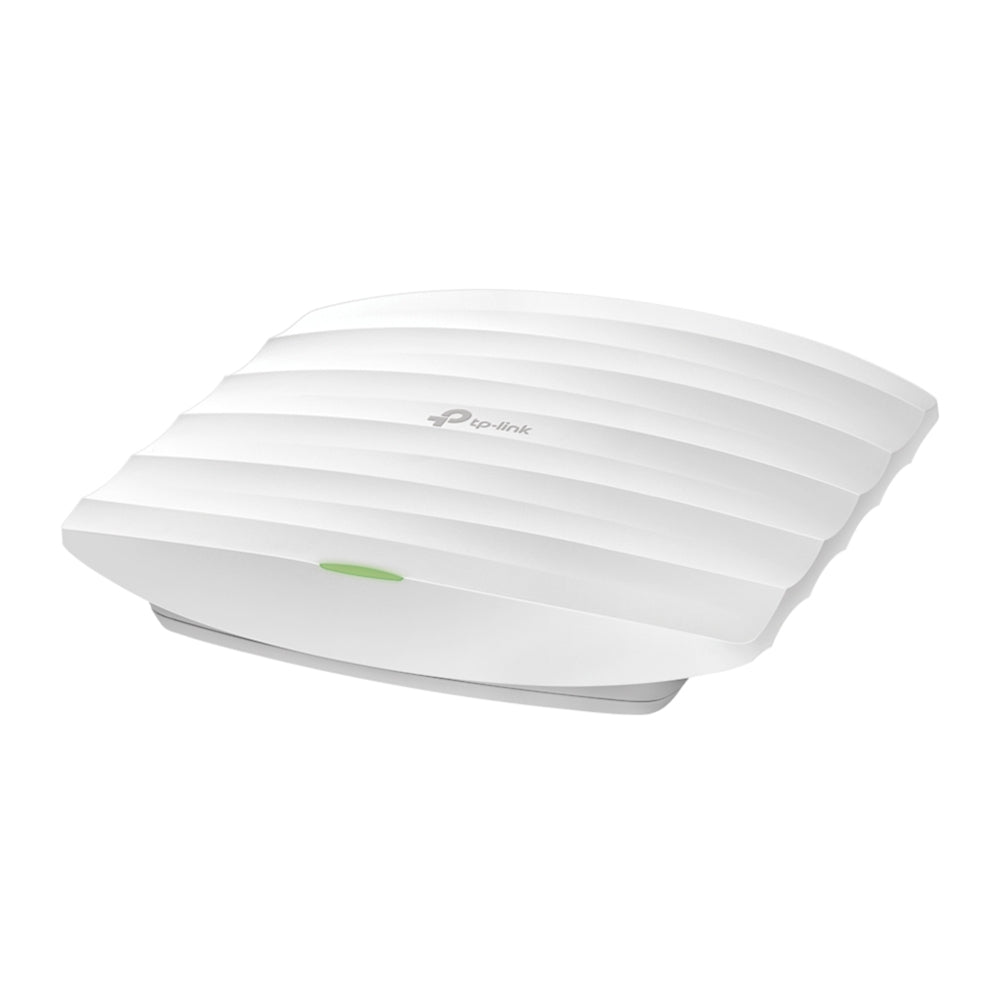

300Mbps Wireless N Ceiling Mount Access Point
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
- Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
- Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
Specifications:
HARDWARE FEATURES

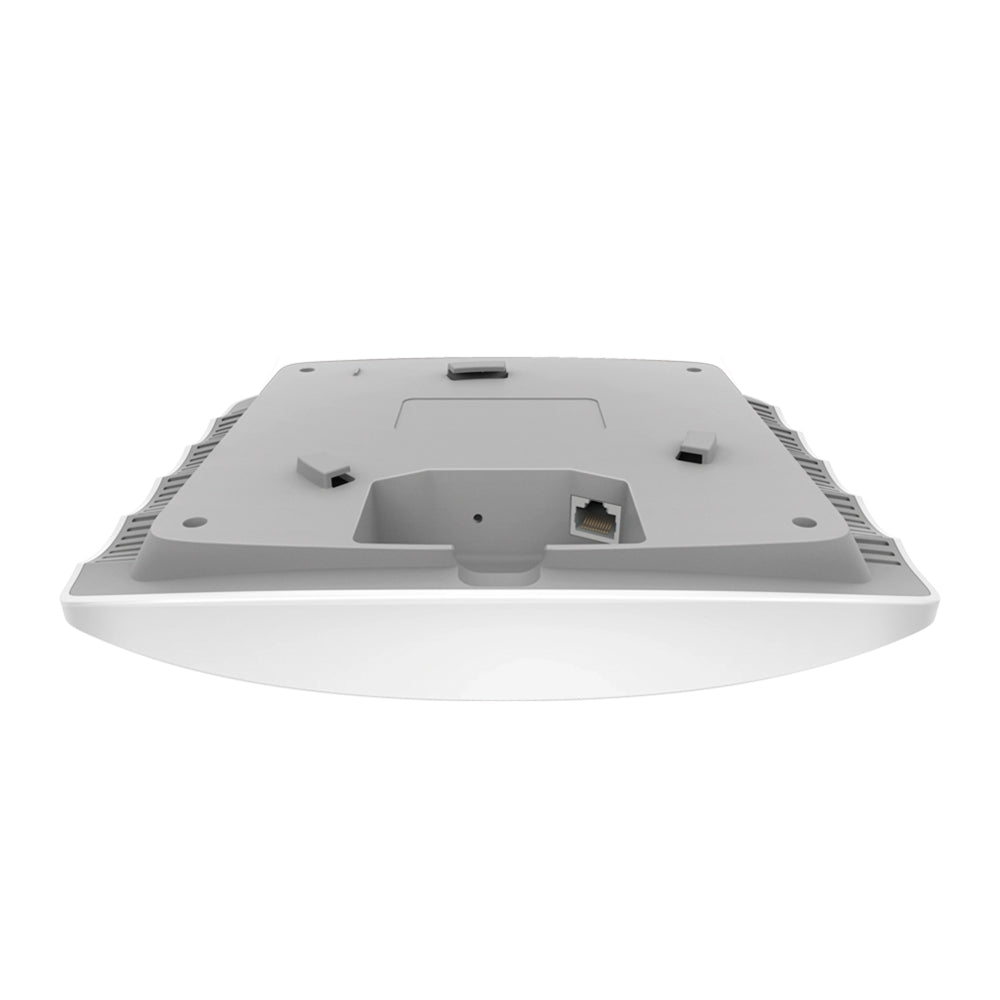

Interface: 1× Fast Ethernet (RJ‑45) Port (Supports Passive PoE)
Button: Reset
Power Supply: 24V Passive PoE (+4,5 pins; −7,8 pins — PoE Adapter Included)
Max. Power Consumption: 2.8 W
Dimensions: 7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7 mm)
Antenna: Internal 2× 4 dBi Omni
Mounting: Ceiling / Wall Mounting (kits included)
WIRELESS FEATURES
Coverage: 60㎡ (650 ft²)§
Concurrent Clients: 100+**
Wireless Standards: IEEE 802.11n/g/b
Frequency: 2.4–2.4835 GHz
Signal Rate: • 11n: Up to 300 Mbps • 11g: Up to 54 Mbps • 11b: Up to 11 Mbps
Reception Sensitivity: • 300M: −71 dBm @10% PER • 150M: −75 dBm @10% PER • 54M: −78 dBm @10% PER • 11M: −93 dBm @8% PER • 6M: −92 dBm @10% PER • 1M: −96 dBm @8% PER
Wireless Functions: • Multiple SSIDs (Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client)
Wireless Security: • Captive Portal Authentication • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152‑bit WEP / WPA / WPA2‑Enterprise / WPA‑PSK / WPA2‑PSK
Transmission Power: • CE: ≤19 dBm (EIRP) • FCC: ≤21 dBm
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes (via OC300, OC200, Omada Cloud‑Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging: Local/Remote Syslog
SSH: Yes
Web‑based Management: HTTP/HTTPS
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
OTHERS
Certification: CE, FCC, RoHS
Package Content: • EAP110 (300Mbps Wireless N Ceiling Mount Access Point) • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide
System Requirements: Microsoft Windows 10/8/7/Vista/XP
Environment: • Operating Temp: 0–40°C (32–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
