Product Description

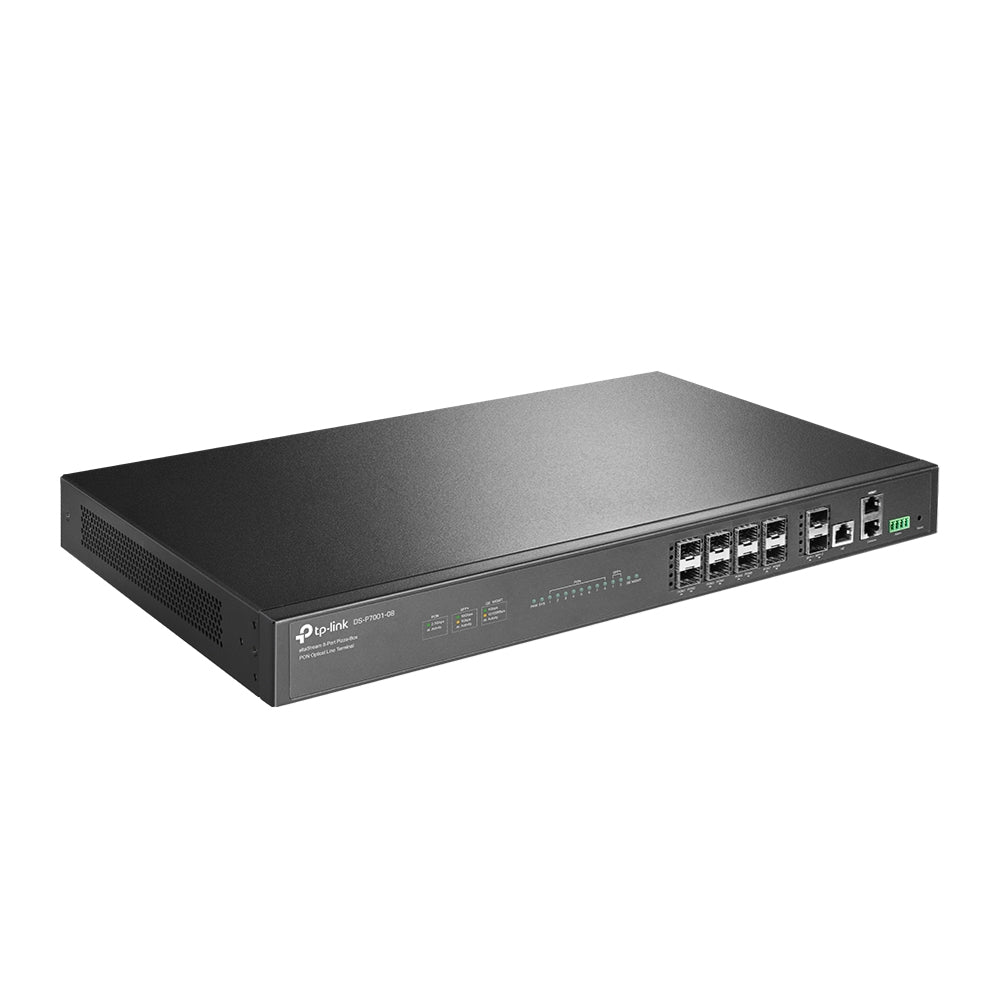

DS-P7001-08
DeltaStream 8-port Pizza-box GPON Optical Line Terminal
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.

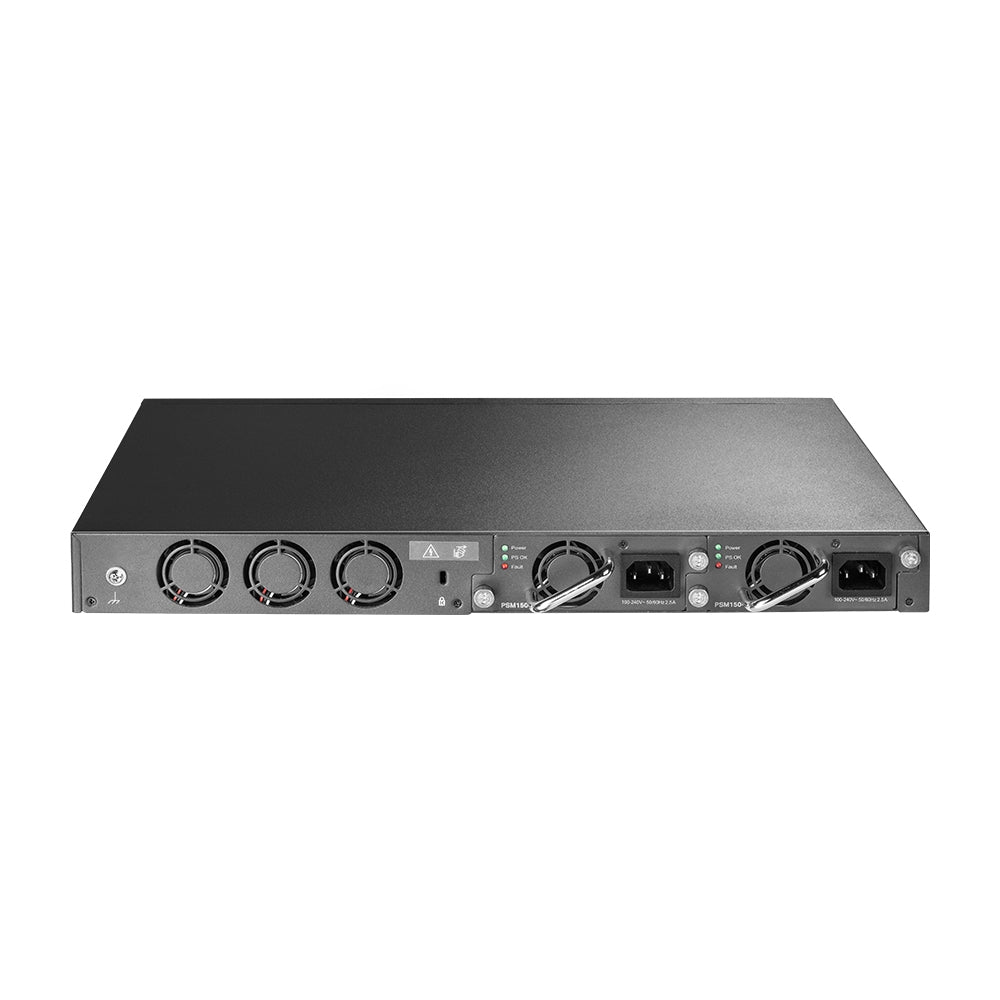

- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
Specifications:
HARDWARE FEATURES

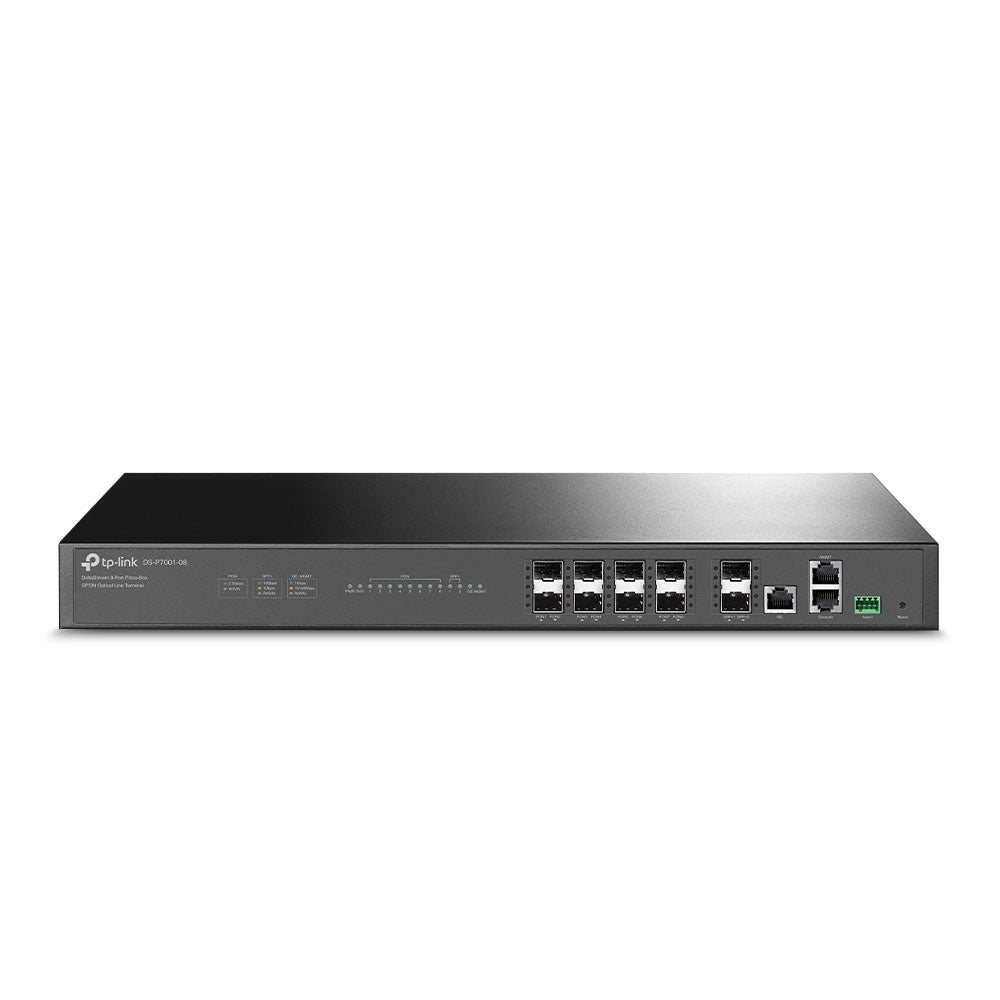

Interface: • 8× 2.5G PON Ports • 2× 10 Gbps SFP+ Uplink Ports • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved)
Button: Reset Button
Power Supply: • Dual Power Supplies: 2 AC, 2 DC or AC+DC • AC: 100V~240V, 50/60Hz • DC: −38.4V~−72V
Max. Power Consumption: Max. 70 W
Dimensions: 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm)
SOFTWARE FEATURES
Security: • ACL • 802.1X Authentication • ARP Inspection • IP Source Guard
DHCP: • DHCP Server • DHCP Relay
OMCI: Standard OMCI Management Supported
ONU Authentication: ONU Auto Authentication
ONU Security: • Rogue ONU Detection and Isolation • Uplink and Downlink Data Encryption
Multi‑Service: Multi‑Service Traffic Identify and Rate Limit
QoS: • IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP
Routing: Static Routing
Multicast: • IGMP Snooping • MLD Snooping
Centralized Management: • Large‑Scale Devices Management • OLT Batch Configure, Upgrade, Reboot • Multi‑Site Management • Intelligent Network Monitoring • Real‑time Network Overview
GPON PORT ATTRIBUTE
Max. Splitting Ratio: 1:128
Transmission Distance: 20 km
Data Rate: • Downstream: 2.5 Gbps • Upstream: 1.25 Gbps
Wave Length: • Tx: 1490 nm • Rx: 1310 nm
Interface Type: SC/UPC
Fiber Type: 9/125 μm SMF (Single Mode Fiber)
Tx Power: Class C+
OTHERS
Certification: CE, FCC
Package Content: • OLT Device • Power Cord and Console Cable • Installation Guide • Mounting Brackets, Screws, Rubber Feet
Environment: • Operating Temp: 0°C~50°C (32°F~122°F) • Storage Temp: −40°C~70°C (−40°F~158°F)
