Product Description
DS-P7001-04

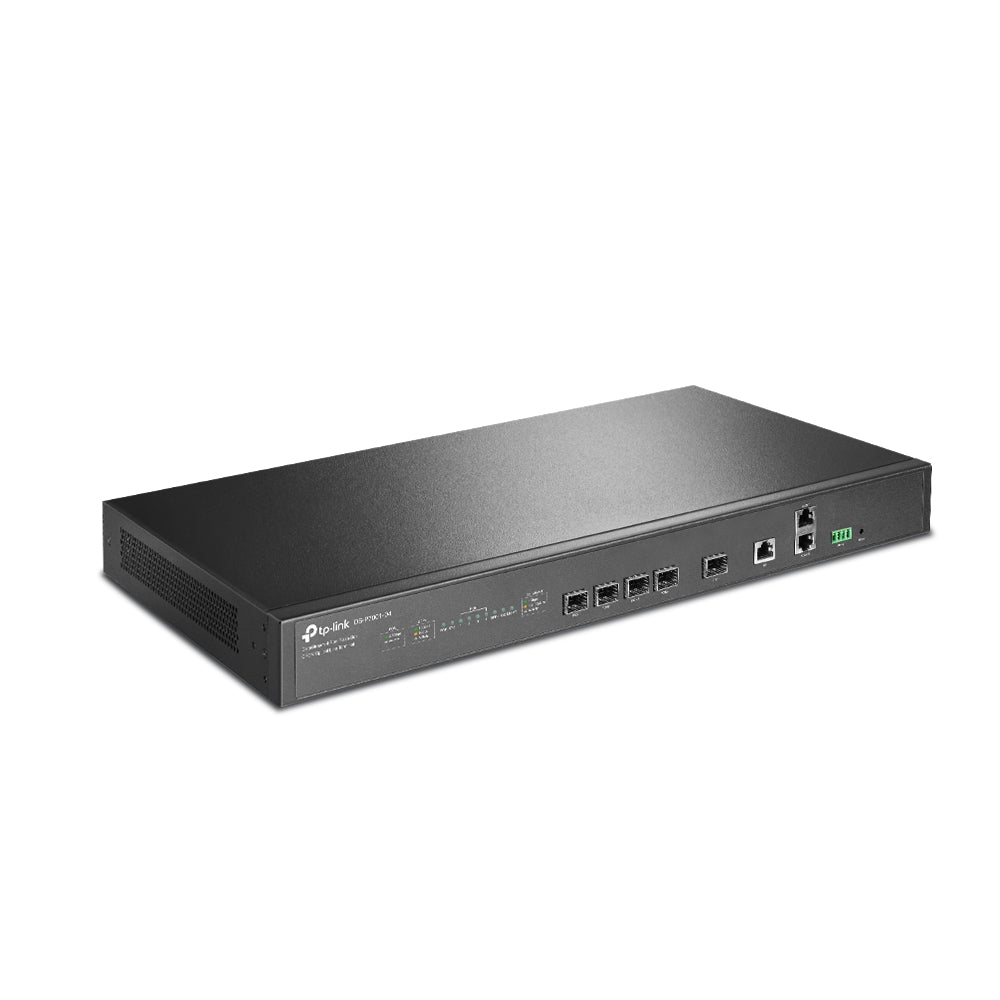

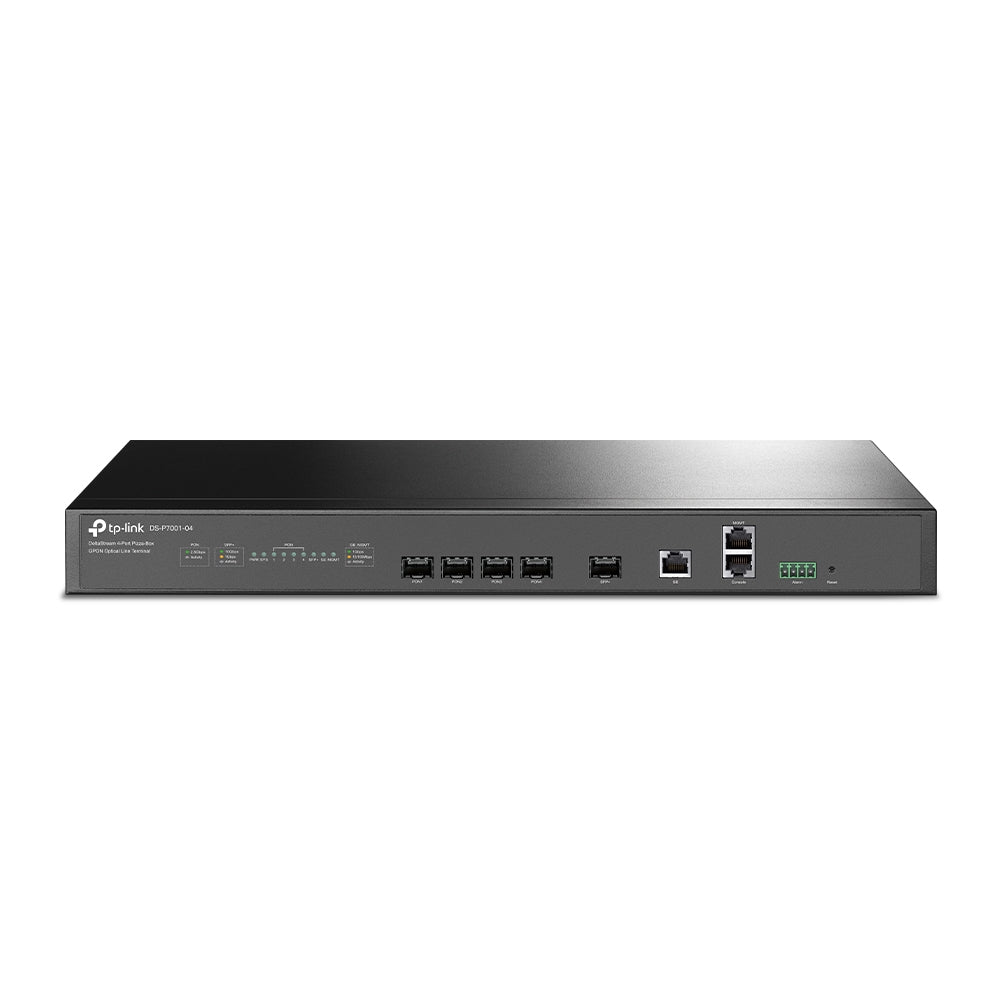

DeltaStream 4-port Pizza-box GPON Optical Line Terminal
- 4 GPON Ports: Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.
- High-Speed Uplink Ports: Provides 1× 10GE SFP+ port and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
Specifications:
HARDWARE FEATURES
Interface: • 4× 2.5G PON Ports • 1× 10 Gbps SFP+ Uplink Port • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved)
Button: Reset Button

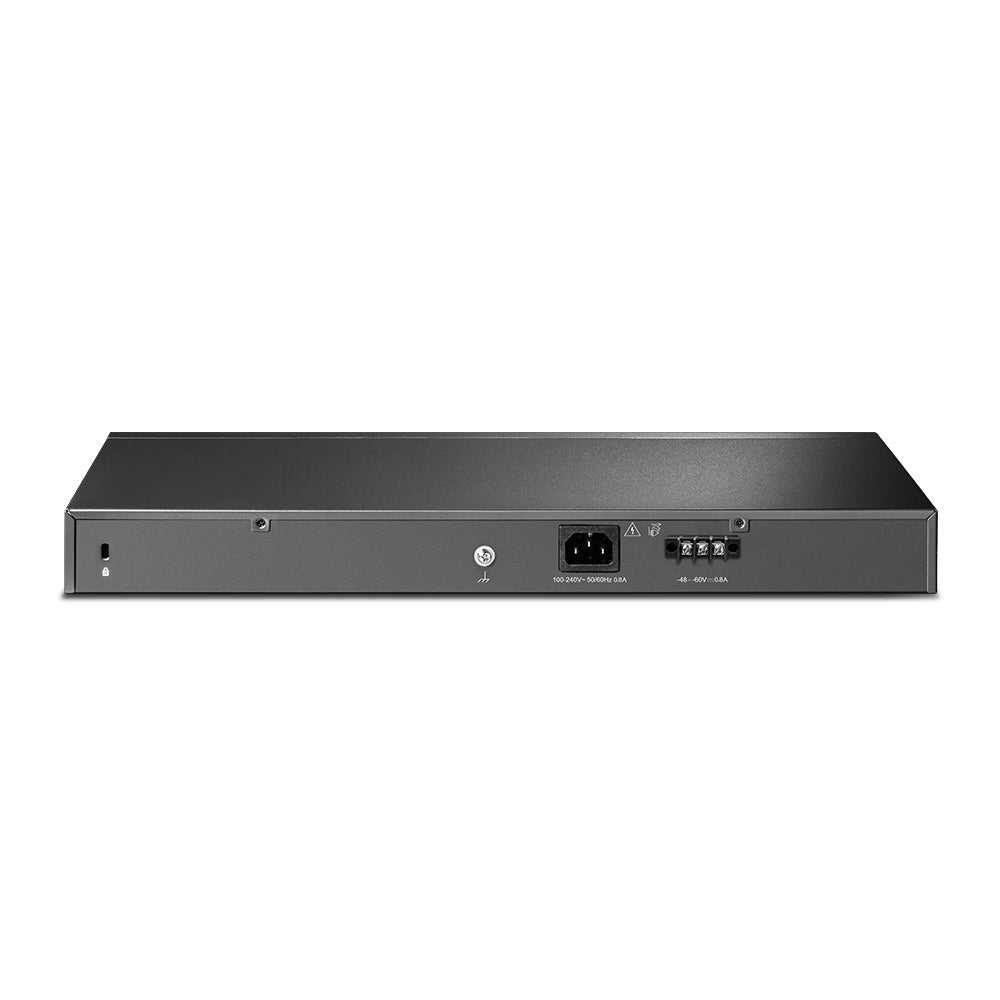

Power Supply: Dual Power Supplies • AC: 100V~240V, 50/60Hz • DC: −38.4V~−72V
Max. Power Consumption: Max. 58 W
Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
SOFTWARE FEATURES
Security: • ACL • 802.1X Authentication • ARP Inspection • IP Source Guard
DHCP: • DHCP Server • DHCP Relay
OMCI: Standard OMCI Management Supported
ONU Authentication: ONU Auto Authentication
ONU Security: • Rogue ONU Detection and Isolation • Uplink and Downlink Data Encryption
Multi‑Service: Multi‑Service Traffic Identify and Rate Limit
QoS: • IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP
Routing: Static Routing
Multicast: • IGMP Snooping • MLD Snooping
Centralized Management: • Large‑Scale Devices Management • OLT Batch Configure/Upgrade/Reboot • Multi‑Site Management • Intelligent Network Monitoring • Real‑time Network Overview
GPON PORT ATTRIBUTE
Max. Splitting Ratio: 1:128
Transmission Distance: 20 km
Data Rate: • Downstream: 2.5 Gbps • Upstream: 1.25 Gbps
Wavelength: • Tx: 1490 nm • Rx: 1310 nm
Interface Type: SC/UPC
Fiber Type: 9/125 μm SMF
Tx Power: Class C+
OTHERS
Certification: CE, FCC
Package Content: • OLT Device • Power Cord and Console Cable • Installation Guide • Mounting Brackets, Screws, Rubber Feet
Environment: • Operating Temp: 0°C~50°C (32°F~122°F) • Storage Temp: −40°C~70°C (−40°F~158°F)
