Product Description

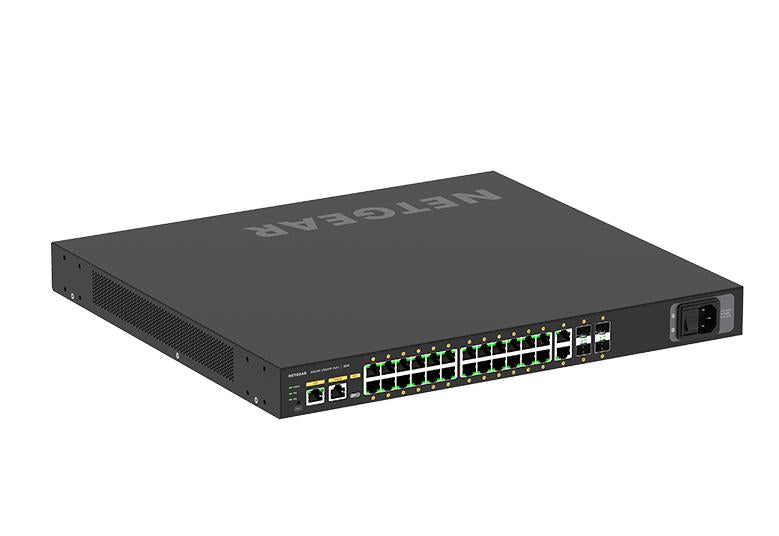

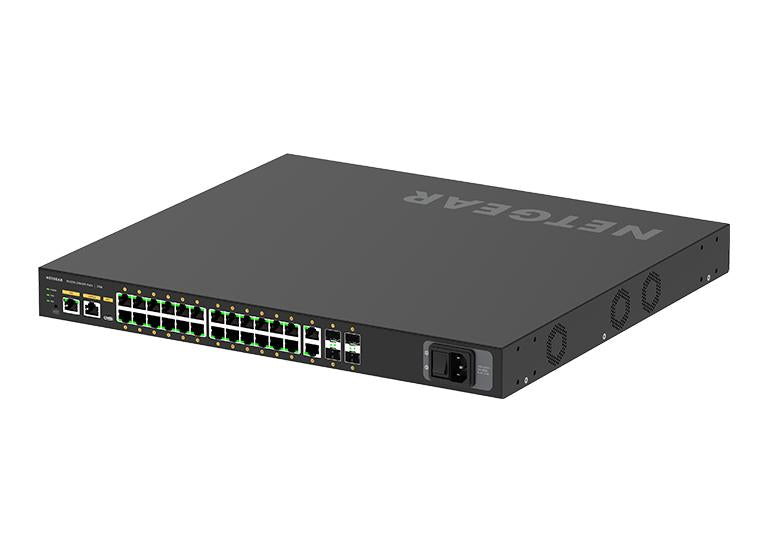

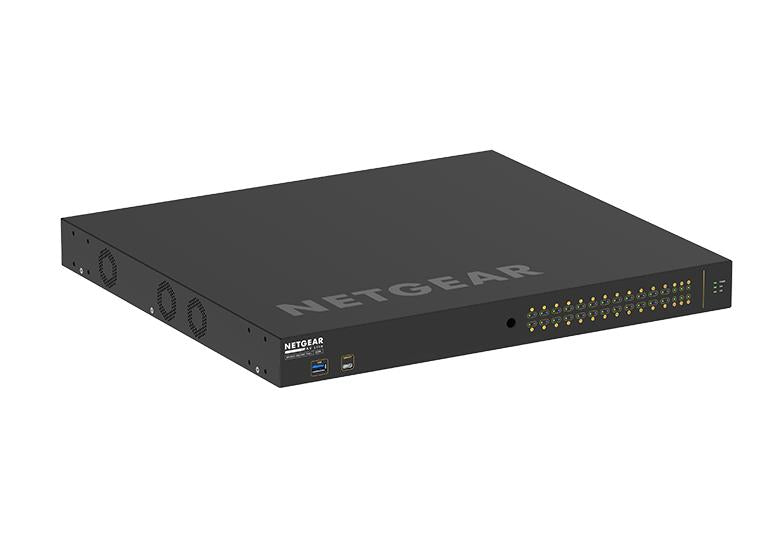

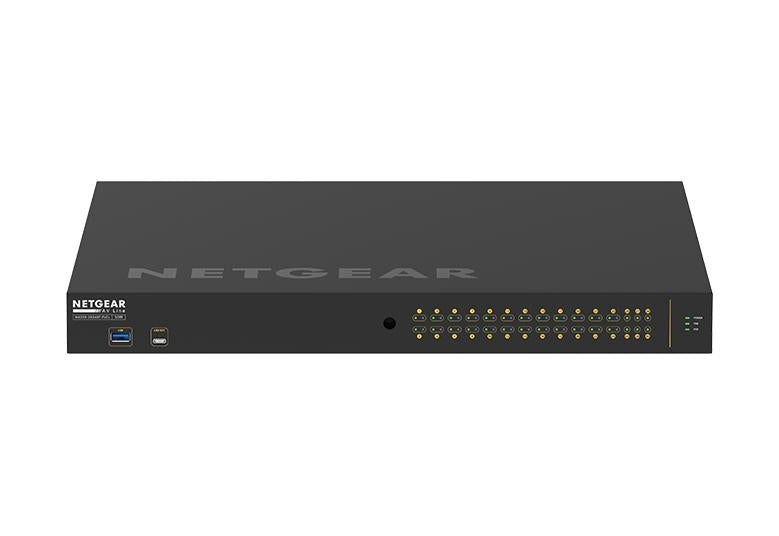

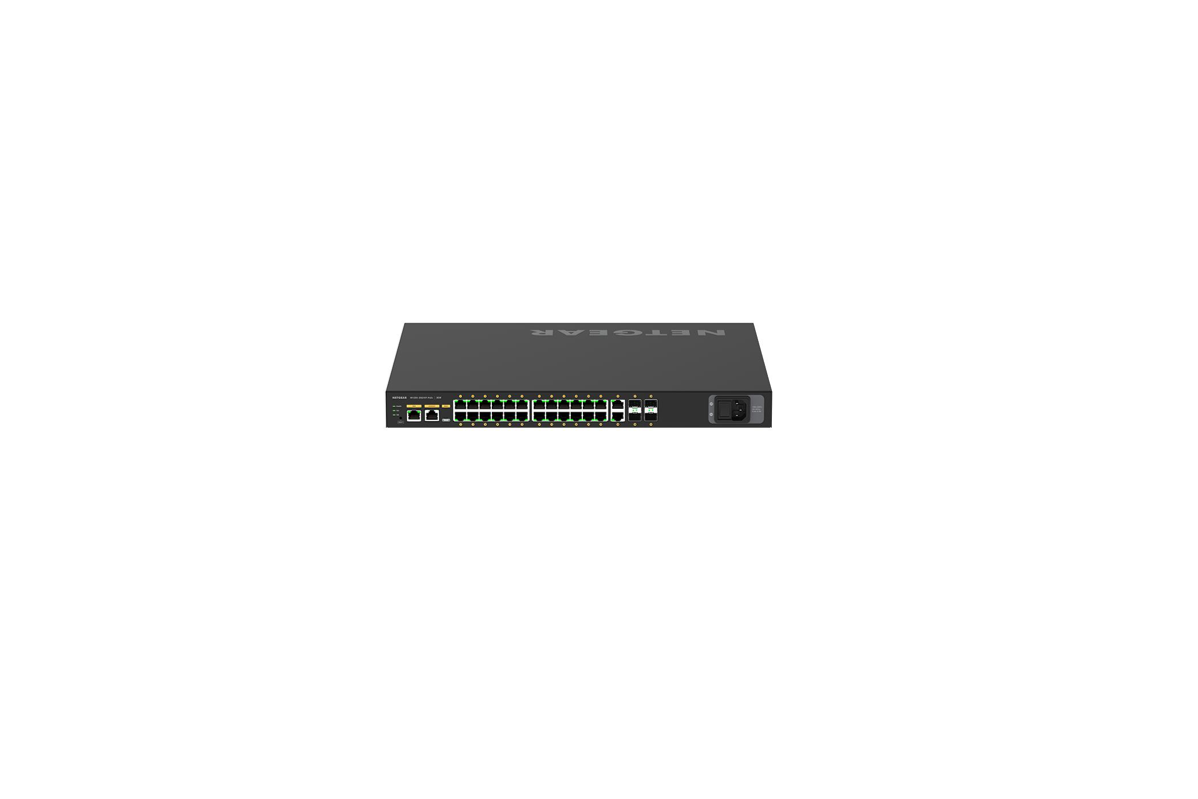

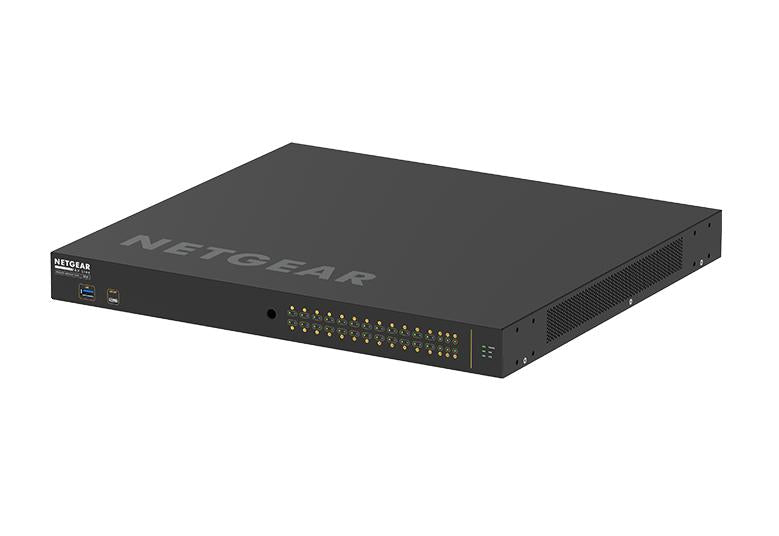

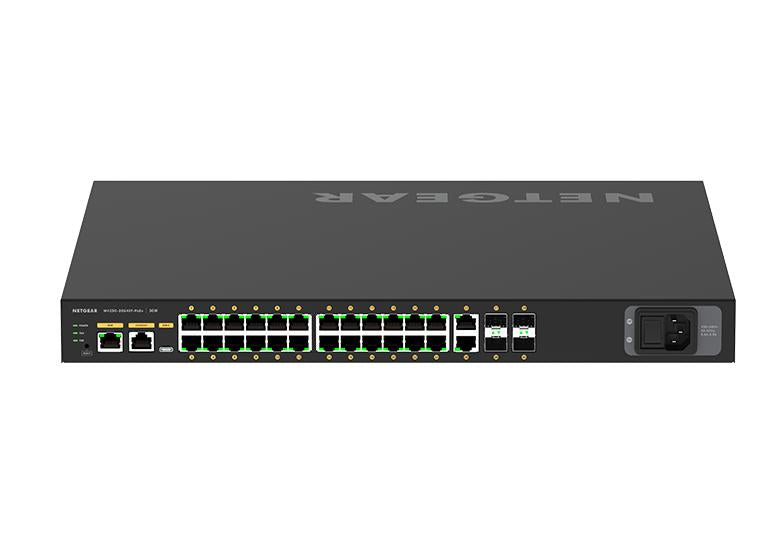

NETGEAR AV Line M4250-26G4XF-PoE+ Managed Switch
GSM4230PX | 24x 1G PoE+ | 480W PoE Budget | 2x 1G Uplink | 4x SFP+ | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-26G4XF-PoE+ (GSM4230PX) is a professional-grade managed switch engineered specifically for AV-over-IP deployments, delivering high-performance connectivity, extensive PoE capabilities, and simplified management for professional audiovisual environments. Designed with industry professionals in mind, it features rear-facing ports for clean AV rack integration and comes pre-configured for out-of-the-box functionality, reducing setup time and deployment complexity.
With 24 Gigabit PoE+ ports, a substantial 480W PoE budget, 2 Gigabit uplink ports, and 4 high-speed SFP+ uplink ports, the M4250-26G4XF-PoE+ provides the power and bandwidth needed for demanding AV installations, including digital signage, PTZ cameras, video distribution, audio systems, and conferencing solutions.
Enhanced multicast handling through NETGEAR IGMP Plus™, optional AVB support, and support for third-party monitoring platforms make this switch an ideal choice for organizations deploying scalable and reliable AV networks.
Key Features
- Purpose-built AV-over-IP managed switch optimized for professional AV deployments
- 24 x Gigabit PoE+ ports with up to 30W power per port
- 480W total PoE budget for powering multiple AV devices
- 2 x Gigabit Ethernet uplink ports
- 4 x 10G SFP+ fiber uplink ports for high-bandwidth connectivity
- NETGEAR IGMP Plus™ for efficient multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation
- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Supports third-party monitoring via Domotz
- Flexible rack mounting and recessed rack installation
- Ideal for digital signage, video conferencing, networked audio, and broadcast applications
Specifications
- M4250-26G4XF-PoE+ (GSM4230PX)
- 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality!
- SKU: GSM4230PX-100EUS
- Dimensions (WxDxH) : 440 x 400 x 43.2 mm
- Weight : 5.45 kg (12.02lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
- PoE Ports / Budget : 24 PoE+ (30W/port), 480W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230PX-10000S)
- Acoustics : Fanless or 42dB@25ºC
- TBD Power Consumption : With PoE: 614W/2096.2Btu/hr
- Without PoE: 46.8W/159.78Btu/hr
- Standby without any port connection: 33.9W/115.73Btu/hr
- Third party support : Domotz
What's in the Box
- M4250-26G4XF-PoE+ (GSM4230PX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
Ideal For: AV-over-IP Networks, Digital Signage Systems, PTZ Cameras, Video Conferencing Deployments, Networked Audio Solutions, Broadcast Studios, Houses of Worship, Educational Institutions, Corporate AV Systems, and Professional Media Production Environments.
