Product Description

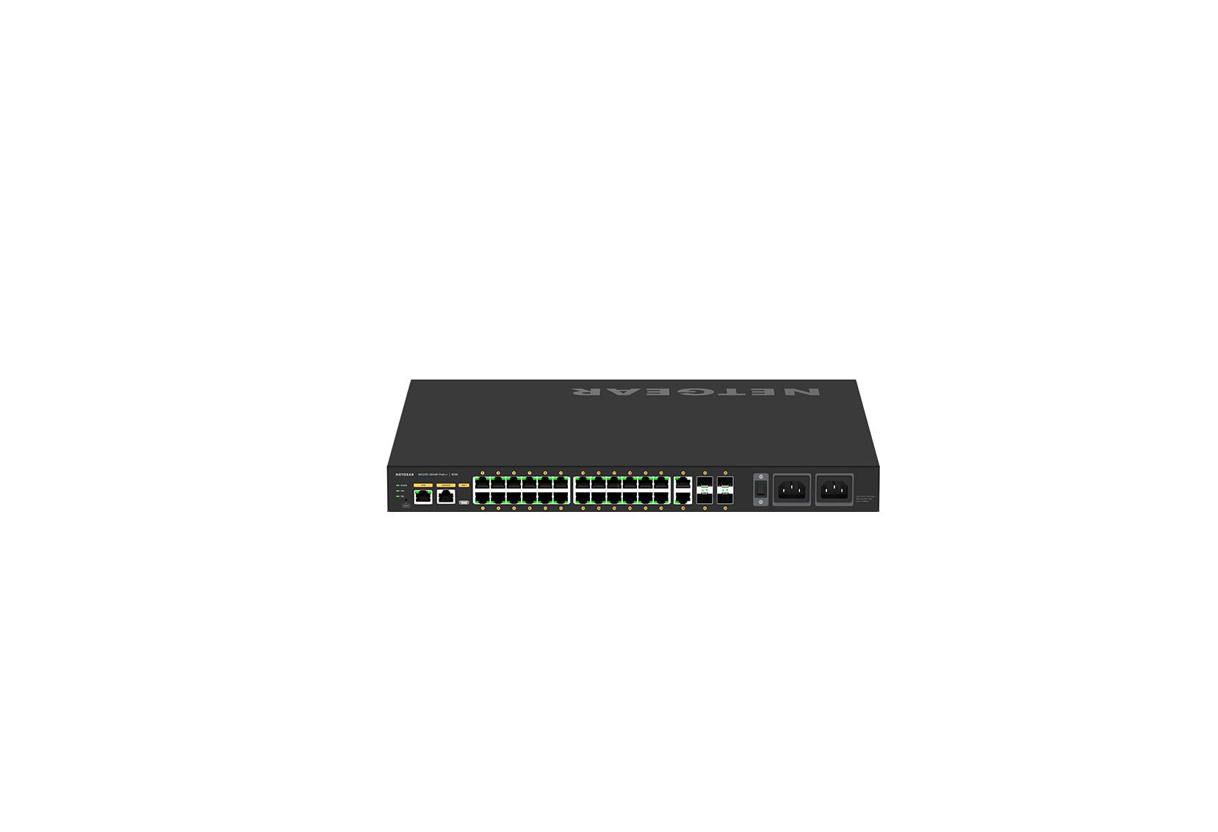

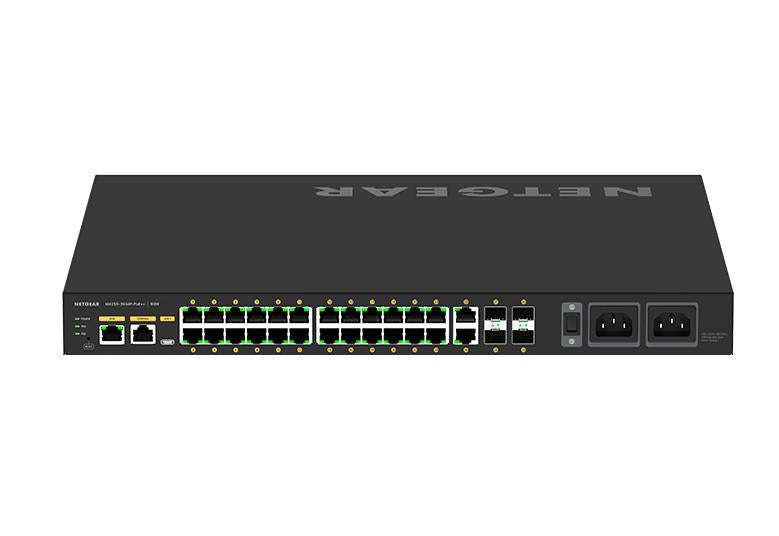

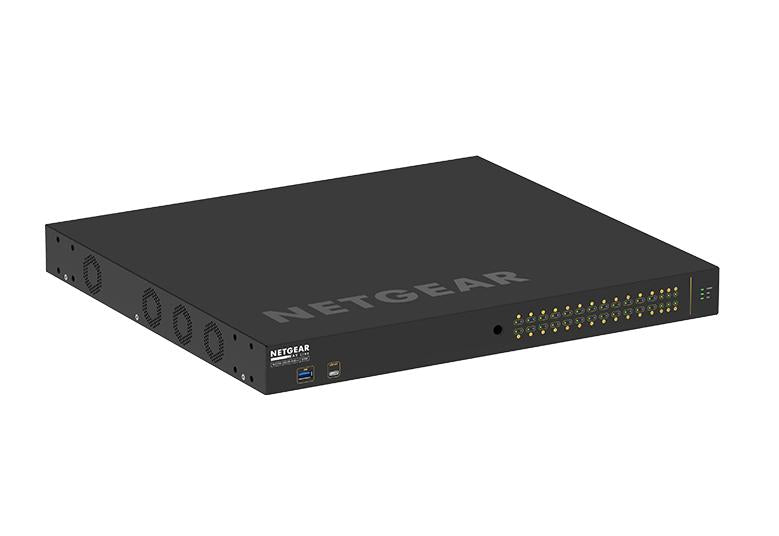

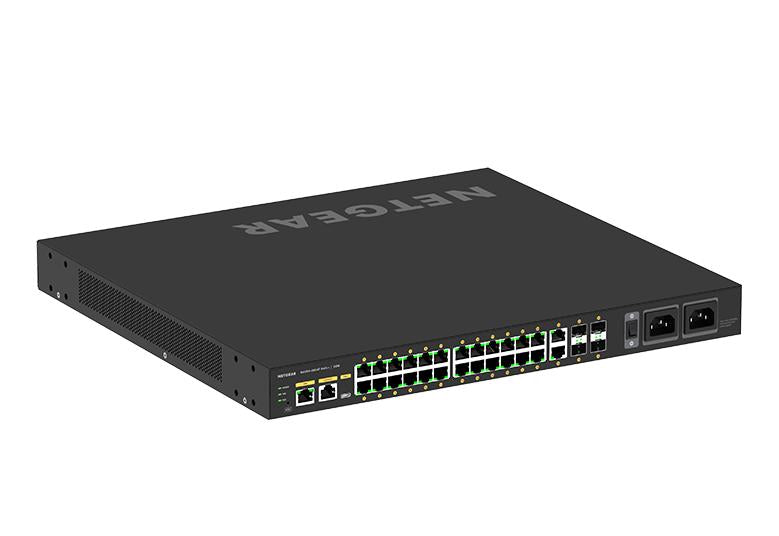

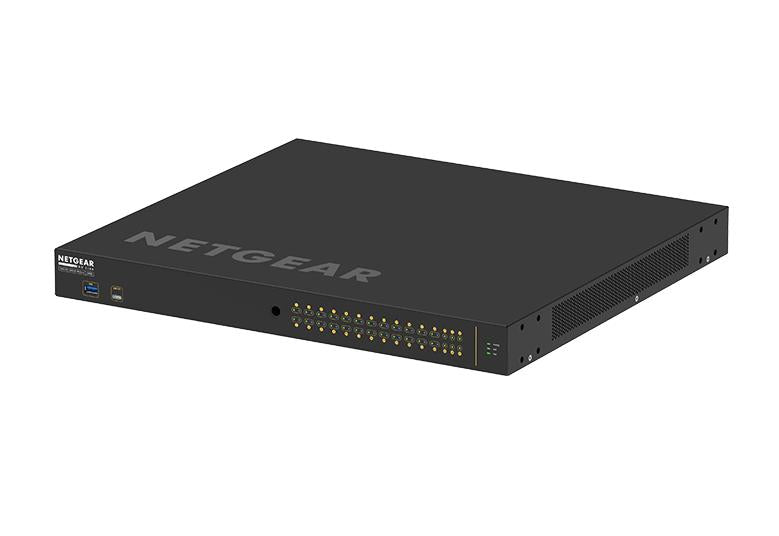

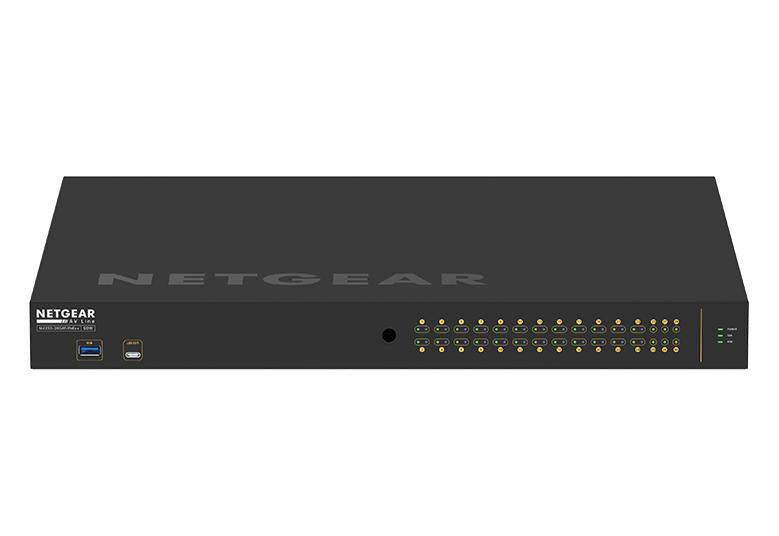

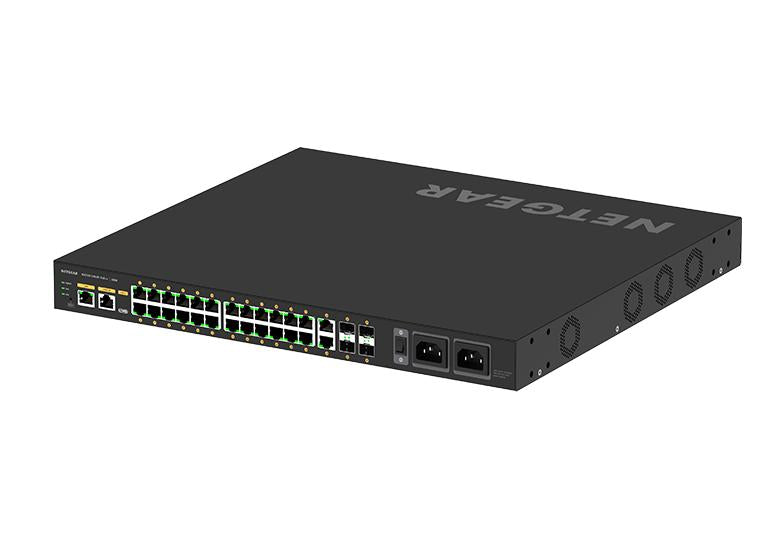

NETGEAR AV Line M4250-26G4F-PoE++ Managed Switch
GSM4230UP | 24x 1G PoE++ | 1,440W PoE Budget | 2x 1G Uplink | 4x SFP | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-26G4F-PoE++ (GSM4230UP) is a high-capacity managed switch engineered specifically for professional AV-over-IP deployments, delivering exceptional power, reliability, and network performance for demanding AV environments. Designed with direct input from AV professionals, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box functionality, minimizing deployment time and simplifying installations.
With 24 Gigabit PoE++ (802.3bt) ports, an industry-leading 1,440W PoE budget, 2 Gigabit uplink ports, and 4 SFP fiber uplink ports, this switch is ideal for powering high-performance AV equipment including PTZ cameras, LED controllers, digital signage displays, wireless access points, video encoders/decoders, and networked audio devices. Enhanced multicast capabilities, AVB readiness, and enterprise-grade management features make the GSM4230UP a powerful solution for large-scale AV networks.
Built for professional AV racks, broadcast facilities, education campuses, houses of worship, and corporate environments, the M4250-26G4F-PoE++ provides the performance and scalability required for today's advanced AV infrastructures.
Key Features
- 24 x Gigabit PoE++ (802.3bt) ports delivering up to 90W per port
- Massive 1,440W PoE power budget for high-power AV and network devices
- 2 x Gigabit Ethernet uplink ports
- 4 x SFP fiber uplink ports for flexible network expansion
- Purpose-built for AV-over-IP deployments
- NETGEAR IGMP Plus™ for optimized multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation
- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Supports third-party monitoring via Domotz
- Optimized for digital signage, conferencing, networked audio, PTZ cameras, and media production environments
- Professional rackmount design with recessed mounting support
Specifications
- M4250-26G4F-PoE++ (GSM4230UP)
- 24x1G PoE++ 1,440W 2x1G and 4xSFP Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality
- SKU: GSM4230UP-100EUS
- Dimensions (WxDxH) : 440 x 400 x 43.2 mm
- Weight : 6.75Kg (14.87lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 30 (24x 1G PoE++, 2x 1G, 4x SFP)
- PoE Ports / Budget : 24 PoE++ (90W/port), 1,440W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S)
- Acoustics : Fanless or 60dB@25ºC
- Power Consumption : Single AC With PoE: 889W/3035.05Btu/hr
- Power Consumption : Dual AC With PoE: 1734W/5919.88Btu/hr
- Power Consumption : Without PoE: 48.8W/166.6Btu/hr
- Standby without any port connection: 36.9W/125.98Btu/hr
- Third party support : Domotz
What's in the Box
- M4250-26G4F-PoE++ (GSM4230UP)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
