Product Description

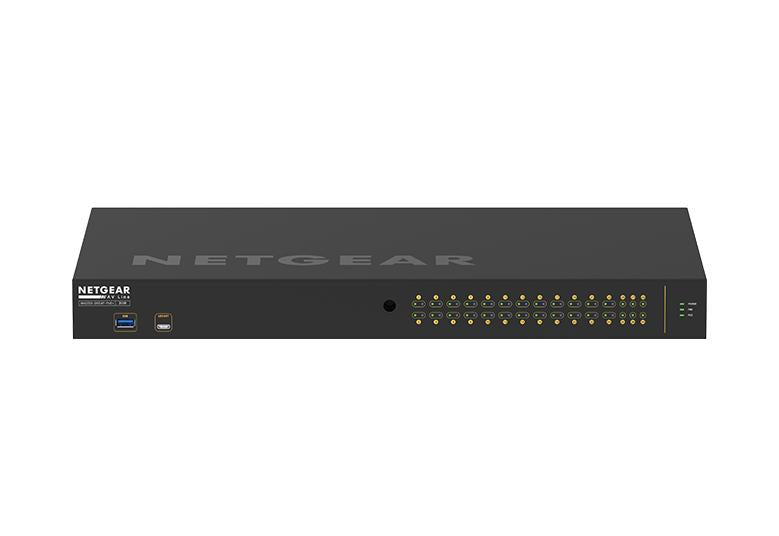

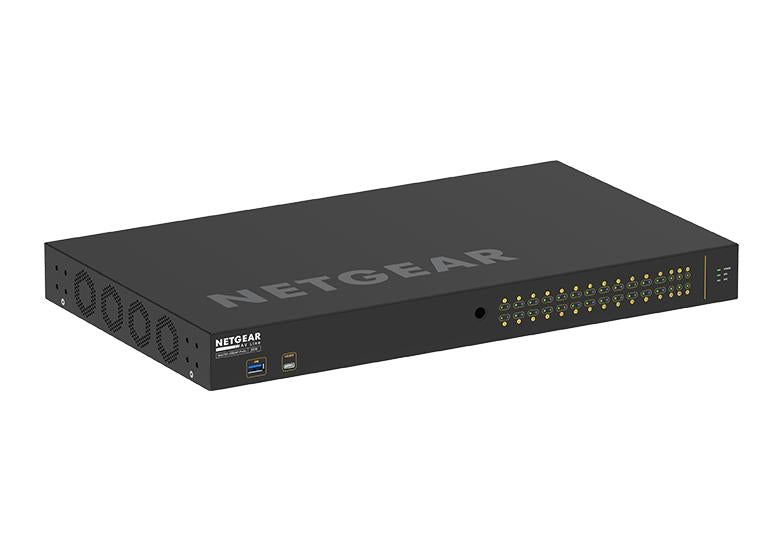

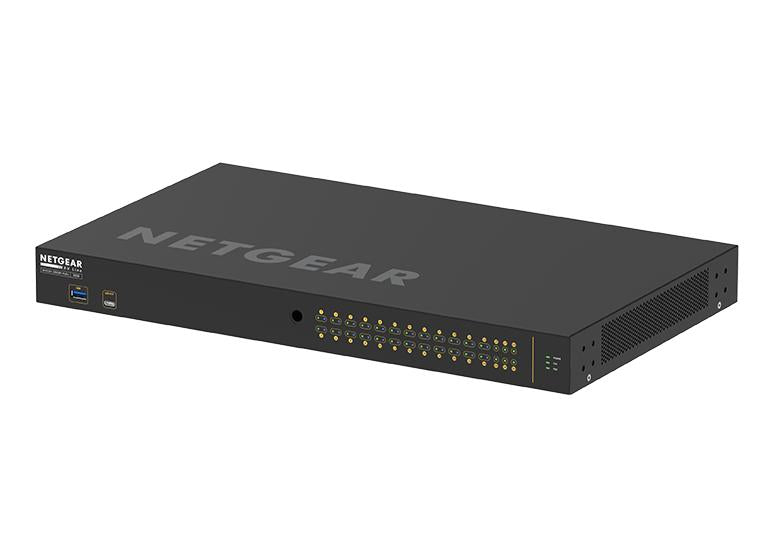

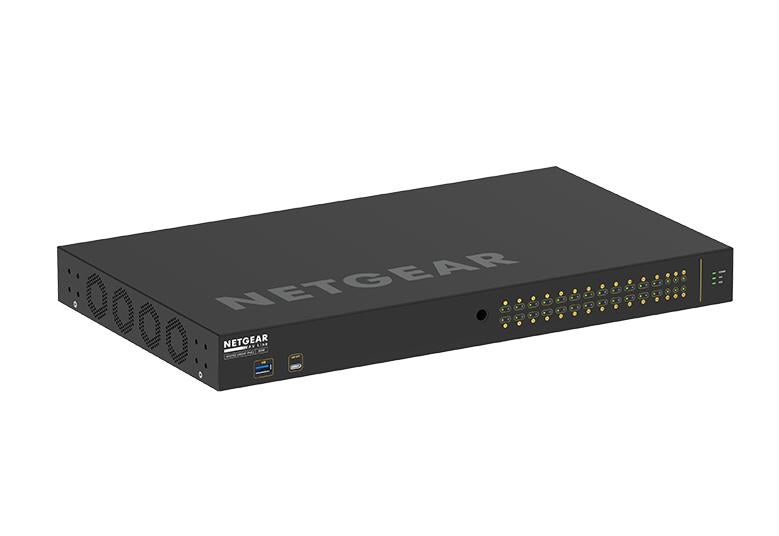

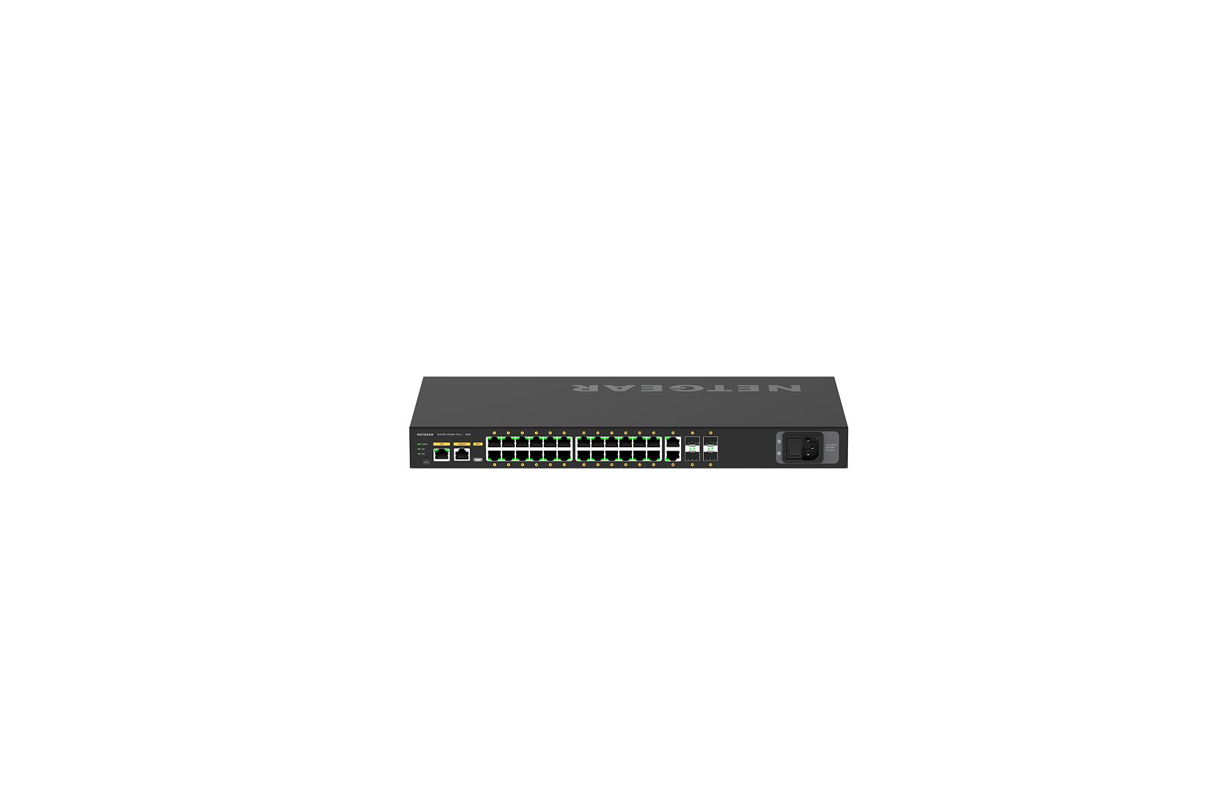

NETGEAR AV Line M4250-26G4F-PoE+ Managed Switch
GSM4230P | 24x 1G PoE+ | 300W PoE Budget | 2x 1G Uplink | 4x SFP | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-26G4F-PoE+ (GSM4230P) is a professional-grade managed switch specifically engineered for AV-over-IP deployments, delivering reliable performance, simplified management, and clean rack integration for professional audiovisual environments. Designed with input from AV industry professionals, it features rear-facing ports for streamlined cable management and comes pre-configured for out-of-the-box AV functionality.
Equipped with 24 Gigabit PoE+ ports, a 300W PoE budget, 2 Gigabit uplink ports, and 4 SFP fiber uplink ports, the M4250-26G4F-PoE+ provides the connectivity and power required for AV encoders, decoders, PTZ cameras, digital signage, wireless access points, and networked audio devices. Enhanced multicast support, optional AVB functionality, and enterprise-grade management capabilities make it an ideal solution for large-scale AV installations.
Built for flexibility and reliability, the GSM4230P supports rack-mounted deployments while maintaining the performance required for modern AV infrastructures.
Key Features
- Purpose-built AV-over-IP managed switch optimized for professional AV deployments
- 24 x Gigabit PoE+ ports with up to 30W power per port
- 300W total PoE budget for powering connected AV devices
- 2 x Gigabit Ethernet uplink ports
- 4 x SFP fiber uplink ports for network expansion
- NETGEAR IGMP Plus™ for efficient multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation

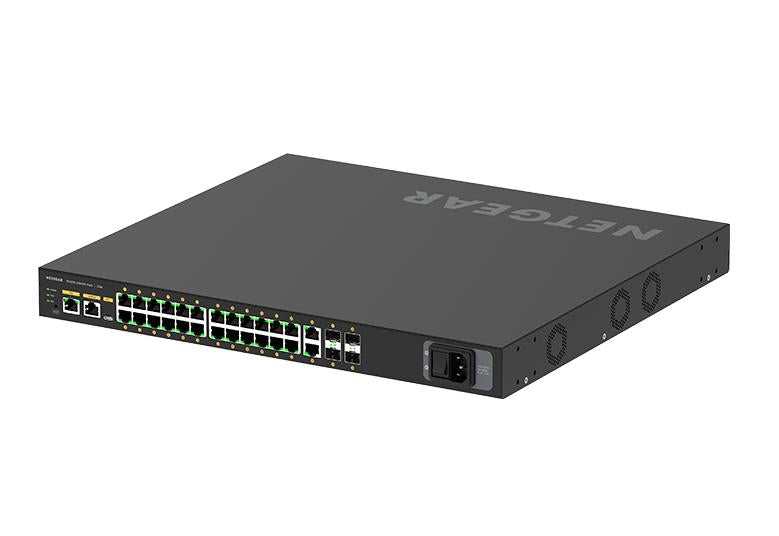

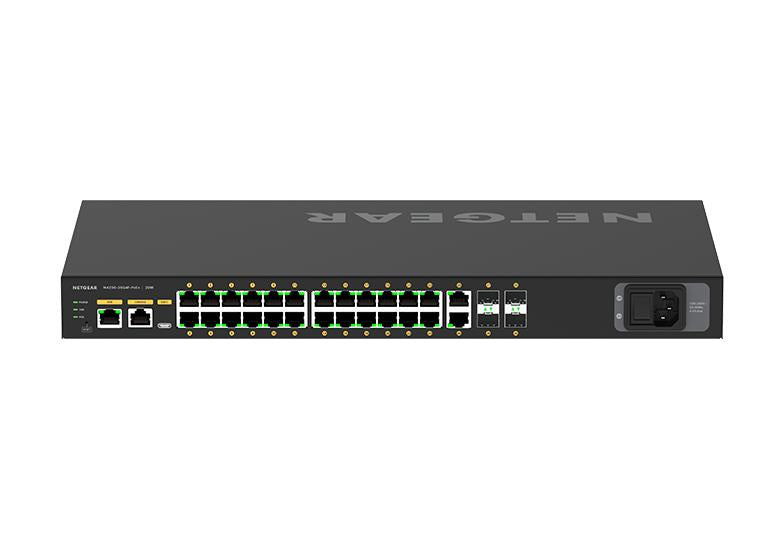

- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box AV functionality
- Fanless or low-noise operation for professional environments
- Third-party monitoring support via Domotz
- Ideal for digital signage, conferencing systems, broadcast, and networked AV deployments
Specifications
- M4250-26G4F-PoE+ (GSM4230P)
- 24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality
- SKU: GSM4230P-100EUS
- Dimensions (WxDxH) : 440 x 257 x 43.2 mm
- Weight : 4.3Kg (9.47lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 30 (24x 1G PoE+, 2x 1G, 4x SFP)
- PoE Ports / Budget : 24 PoE+ (30W/port), 300W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230P-10000S)
- Acoustics : Fanless or 34dB@25ºC
- Power Consumption : With PoE: 401W/1369.01Btu/hr
- Power Consumption : Without PoE: 35.8W/122.22Btu/hr
- Standby without any port connection: 23.4W/79.89Btu/hr
- Third party support : Domotz
What's in the Box
- M4250-26G4F-PoE+ (GSM4230P)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
