Product Description

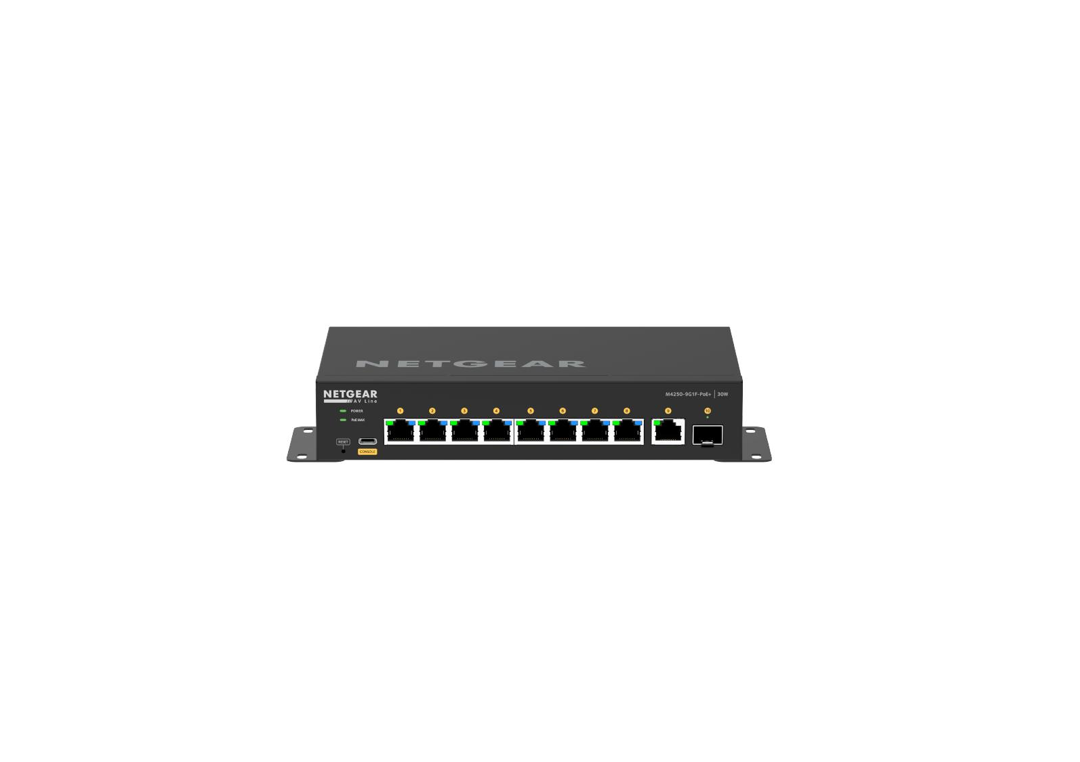

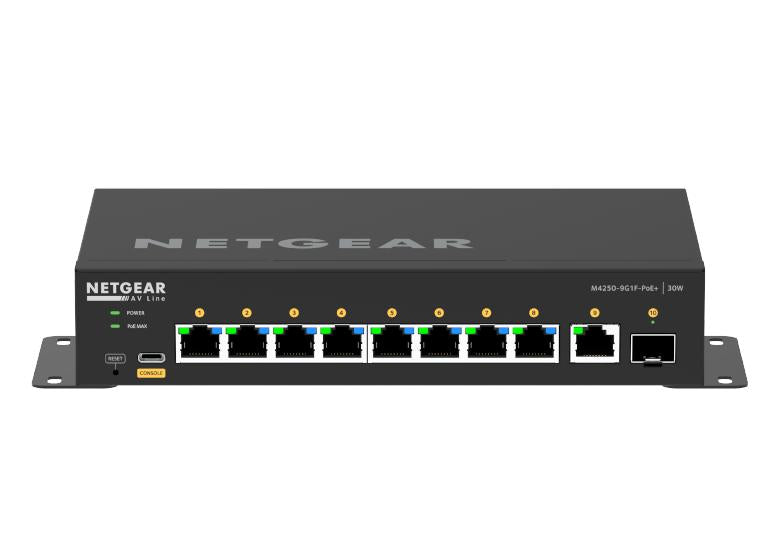

NETGEAR AV Line M4250-9G1F-PoE+ Managed Switch
GSM4210PD | 8x 1G PoE+ | 110W PoE Budget | 1x 1G Uplink | 1x SFP | AV-over-IP Network Switch
The NETGEAR AV Line M4250-9G1F-PoE+ (GSM4210PD) is a professional-grade managed switch purpose-built for AV-over-IP deployments, including video distribution, conferencing systems, digital signage, audio networks, and broadcast environments. Engineered specifically for the AV industry, it comes pre-configured for out-of-the-box functionality, minimizing deployment time and simplifying network setup.
Featuring 8 Gigabit PoE+ ports, a 110W PoE budget, one Gigabit uplink port, and one SFP fiber uplink, the switch provides the flexibility and performance required for modern AV installations. Its fanless design ensures silent operation, making it ideal for meeting rooms, studios, classrooms, and other noise-sensitive environments.
The compact form factor supports versatile mounting options, including under-table, wall, and behind-display installations, providing a clean and professional deployment for AV professionals and system integrators.

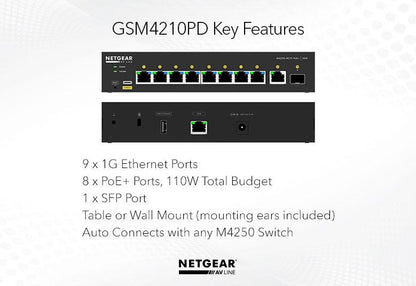

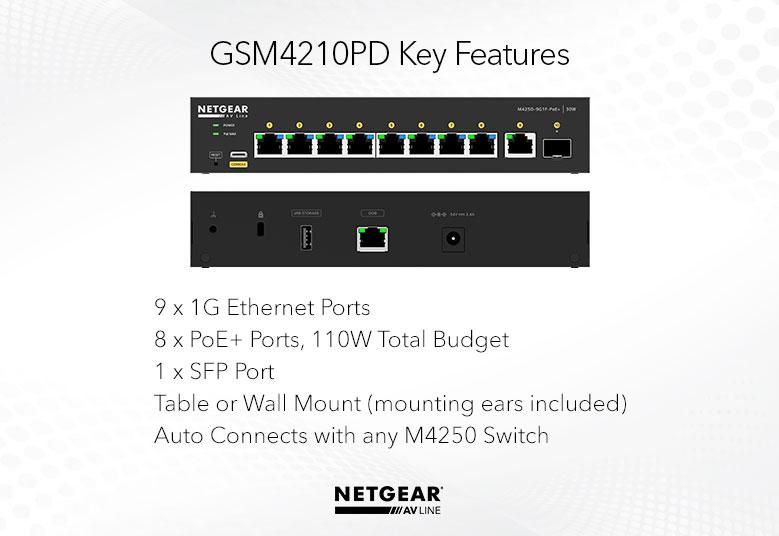

Key Features
- Purpose-built AV-over-IP managed switch with pre-configured AV profiles
- 8 x Gigabit PoE+ ports with up to 30W per port
- 110W total PoE power budget
- 1 x Gigabit Ethernet uplink port
- 1 x SFP port for fiber connectivity
- NETGEAR IGMP Plus™ for optimized multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB (Audio Video Bridging) ready with optional electronic license
- Silent fanless operation for noise-sensitive environments
- Compact design with desktop, wall, and under-table mounting options
- Supports third-party management via Domotz
- Ideal for networked audio, digital signage, video distribution, and conferencing systems
Specifications
- AV Line M4250-9G1F-PoE+ (GSM4210PD)
- 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
- Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display
- Pre-configured for out of the box functionality
Physical Specification
- Dimensions (WxDxH) : 210 x 140 x 40 mm
- Weight : 965g (2.13lb)
Technical Specs
- Primary Port Speed : 1 Gigabit
- Number of Ports : 10 (8x 1G PoE+, 1x 1G, 1x SFP)
- PoE Ports / Budget : 8 PoE+ (30W/port), 110W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4210PD-10000S)
- Acoustics : Fanless
- Power Consumption : With PoE: 132.25W/451.5Btu/hr
- Power Consumption : Without PoE: 9.88W/33.73Btu/hr
- Power Consumption : Standby without any port connection: 6.4W/22.02Btu/hr
- Third party support : Domotz
What's in the Box
- M4250-9G1F-PoE+ (GSM4210PD)
- Power Adapter
- Power cord(s)
- Console USB Type-C cable
- Flat brackets for desktop or wall mounting
- Rubber footpads for tabletop installation
- Installation guide
Warranty: Manufacturer Warranty Included
Ideal For: AV-over-IP Networks, Digital Signage, Video Conferencing, Audio Systems, Corporate Meeting Rooms, Education Facilities, Houses of Worship, and Professional AV Installations.
