Product Description

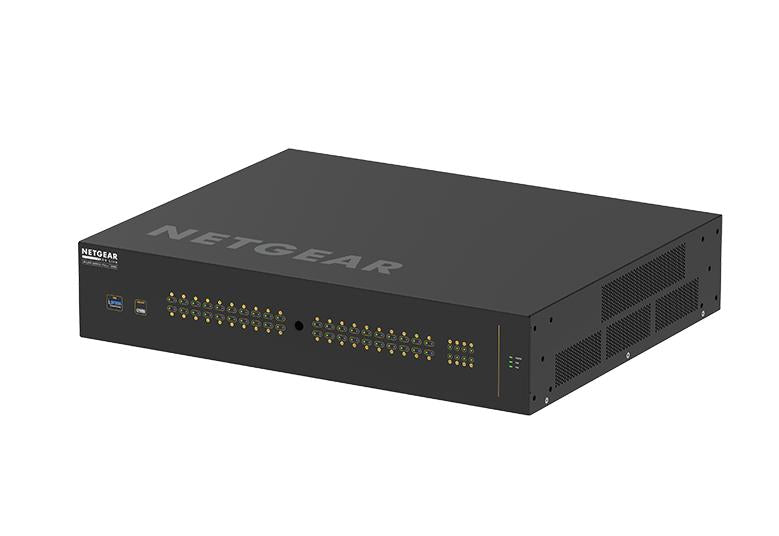

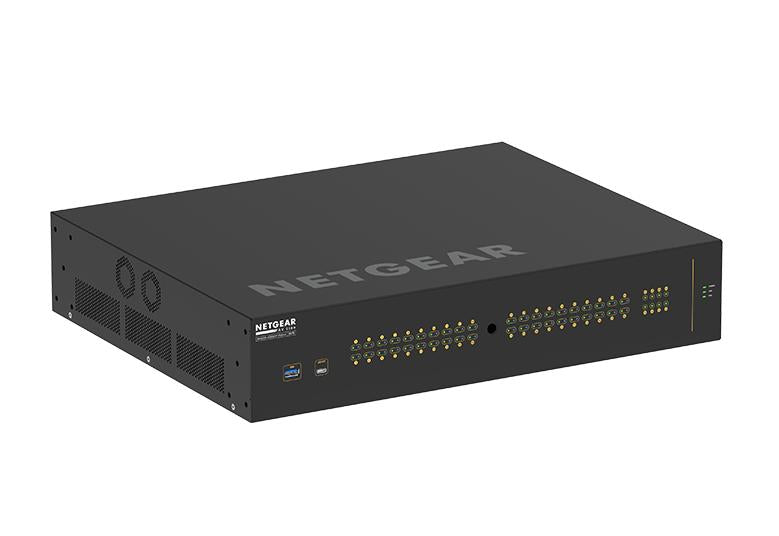

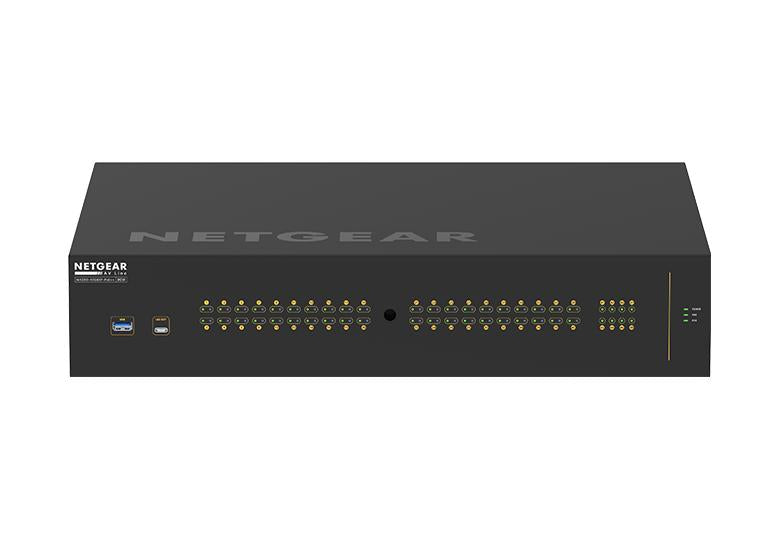

NETGEAR AV Line M4250-40G8XF-PoE++ Managed Switch
GSM4248UX | 40x 1G PoE++ | 2,880W PoE Budget | 8x SFP+ | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-40G8XF-PoE++ (GSM4248UX) is the flagship high-power AV-over-IP managed switch designed for the most demanding professional audiovisual deployments. Engineered specifically for the AV industry, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box functionality, helping installers and integrators deploy AV networks quickly and efficiently.
With an impressive 40 Gigabit PoE++ (802.3bt) ports, a massive 2,880W PoE budget, and 8 high-speed SFP+ uplink ports, the M4250-40G8XF-PoE++ is ideal for powering large numbers of PTZ cameras, LED walls, digital signage displays, wireless access points, AV encoders/decoders, and other high-powered network devices. Combined with NETGEAR IGMP Plus™, optional AVB support, and enterprise-grade management capabilities, this switch provides the bandwidth, power, and reliability required for large-scale AV installations.
Designed for broadcast studios, corporate AV systems, education campuses, houses of worship, and mission-critical AV deployments, the GSM4248UX delivers exceptional scalability and performance for modern AV-over-IP infrastructures.
Key Features
- 40 x Gigabit PoE++ (802.3bt) ports with up to 90W per port
- Massive 2,880W PoE budget for powering high-demand AV and network devices
- 8 x 10G SFP+ uplink ports for high-speed fiber connectivity
- Purpose-built for AV-over-IP deployments
- NETGEAR IGMP Plus™ for optimized multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation

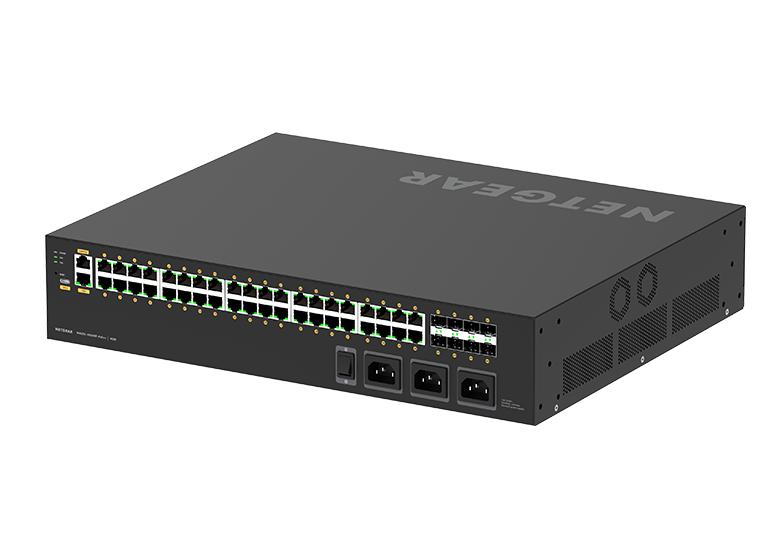

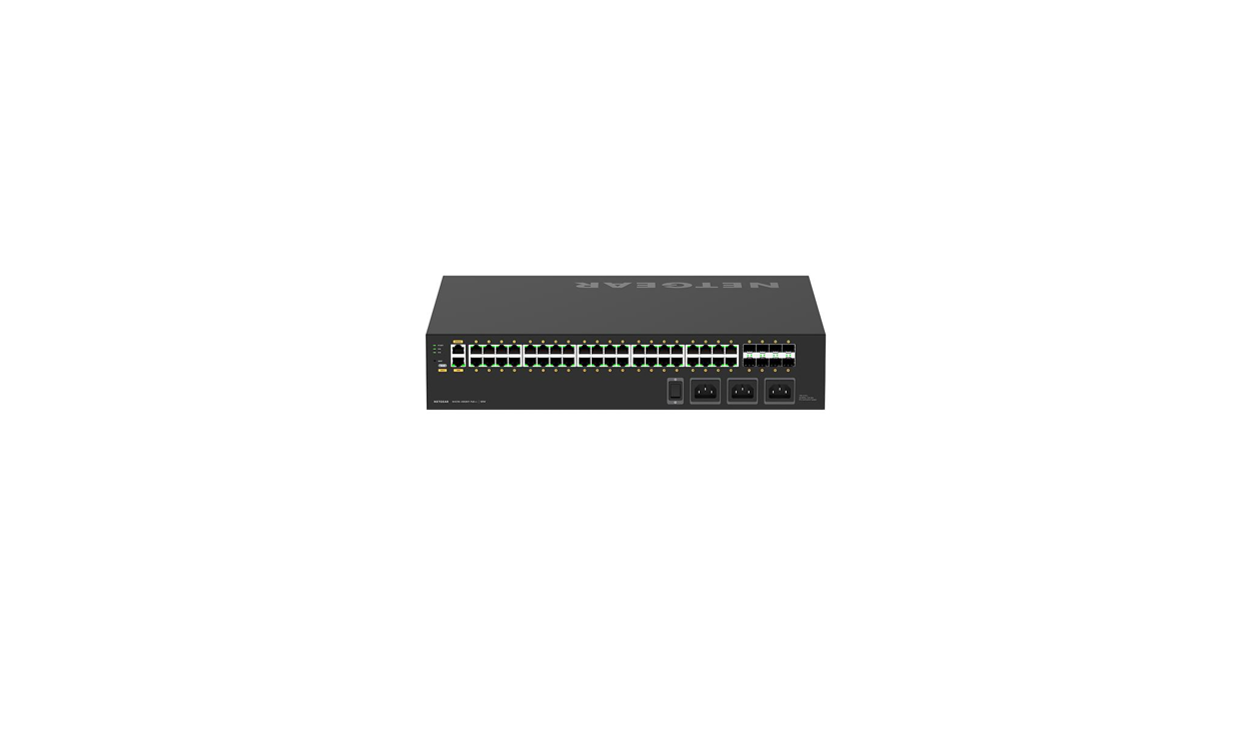

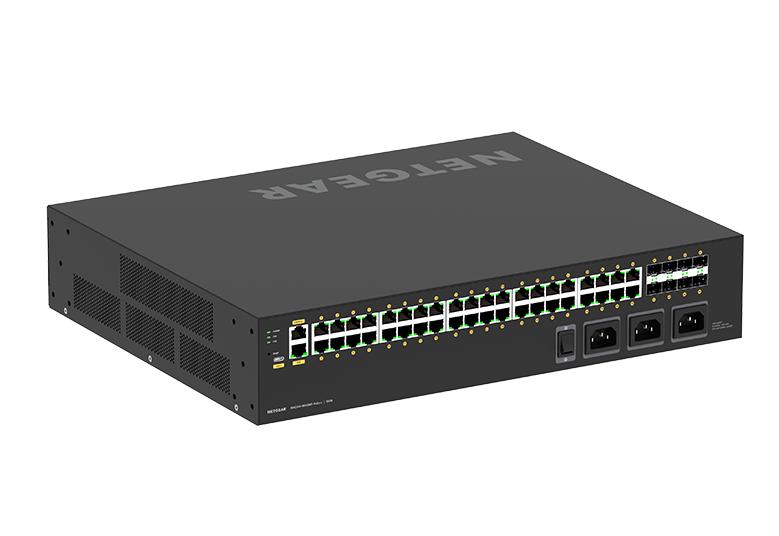

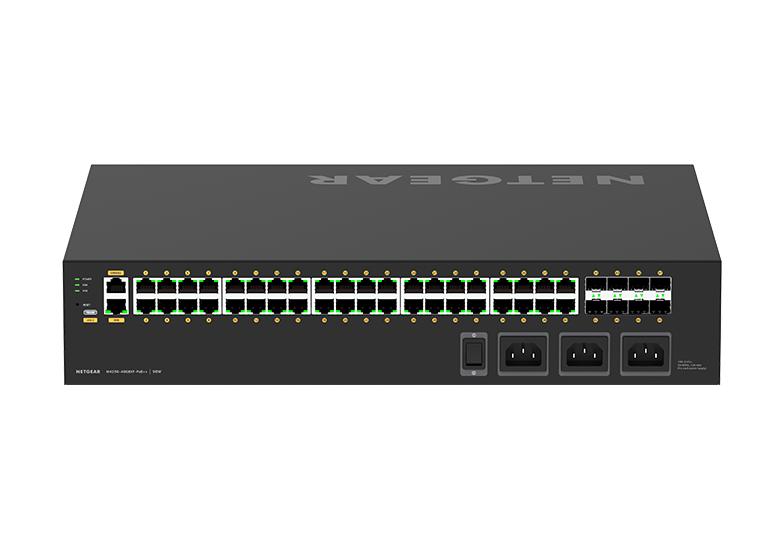

- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Supports third-party monitoring via Domotz
- High-density 48-port design for large-scale AV networks
- Ideal for PTZ cameras, LED displays, digital signage, video distribution, conferencing systems, and networked audio
- Professional rackmount design with recessed mounting support
Specifications
- AV Line M4250-40G8XF-PoE++ (GSM4248UX)
- 40x1G PoE++ 2,880W and 8xSFP+ Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality!
- SKU: GSM4248UX-100EUS
- Dimensions (WxDxH) : 440 x 350 x 86.4 mm
- Weight : 9.76Kg (21.51lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 48 (40x 1G PoE++, 8x SFP+)
- PoE Ports / Budget : 40 PoE++ (90W/port), 2,880W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4248UX-10000S)
- Acoustics : Fanless or 60dB@25ºC
- Power Consumption : Single AC With PoE: 912W/3113.57Btu/hr
- Power Consumption : Dual AC With PoE: 1998W/6821.17Btu/hr
- Power Consumption : Tripple AC With PoE: 3523W/12027.52Btu/hr
- Power Consumption : Without PoE: 82.6W/282Btu/hr
- Standby without any port connection: 68.5W/233.86Btu/hr
- Third party support : Domotz
What's in the Box
- M4250-40G8XF-PoE++ (GSM4248UX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
