Product Description

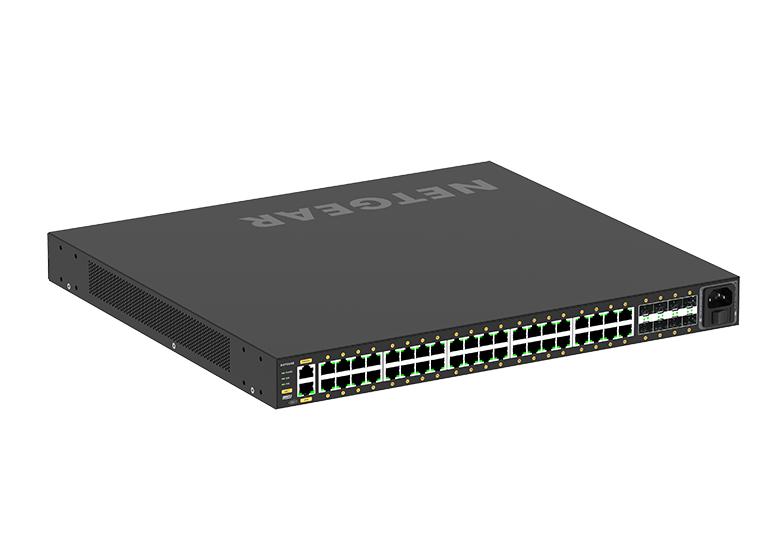

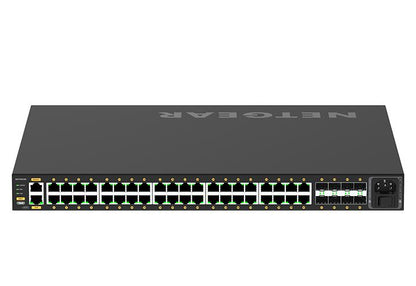

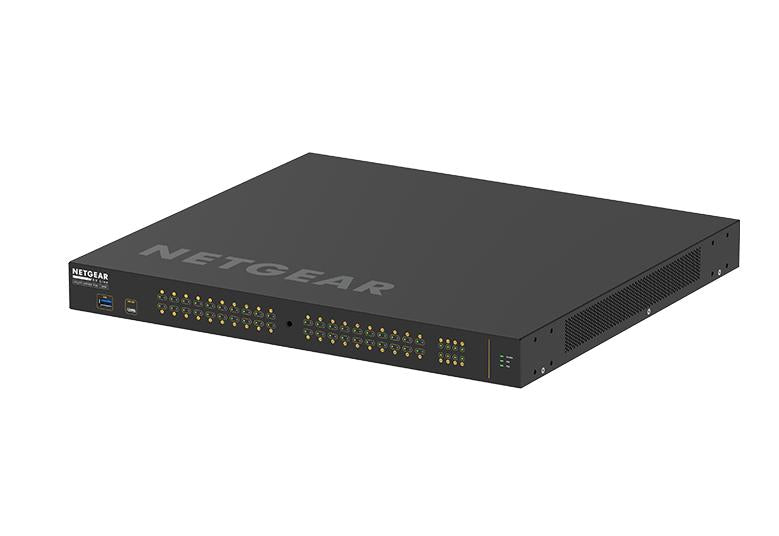

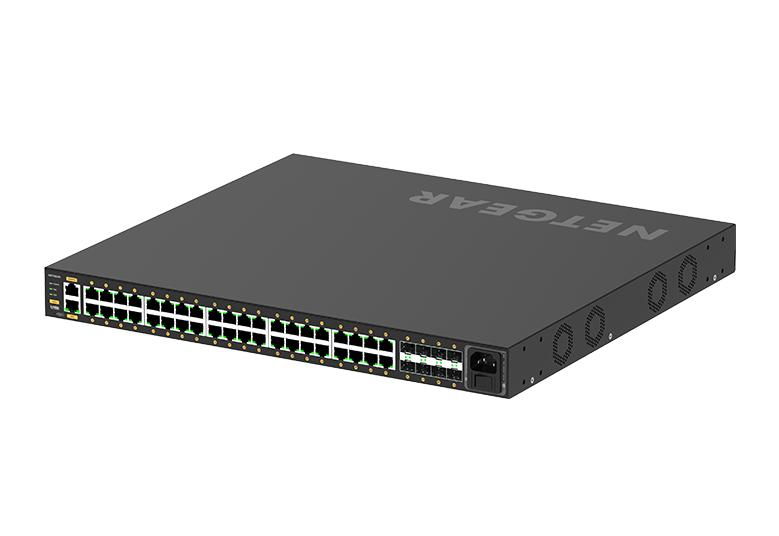

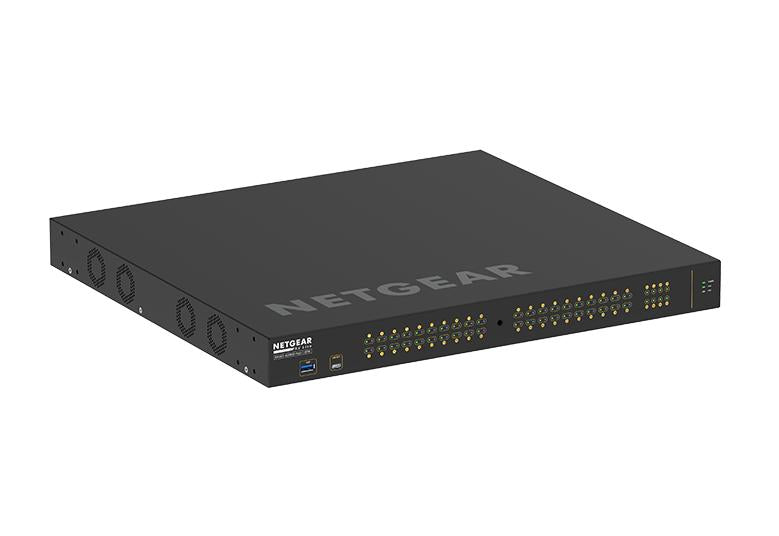

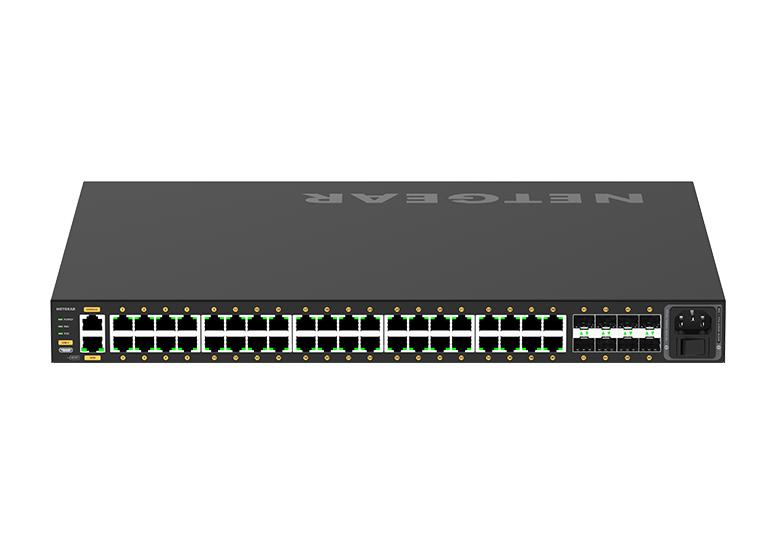

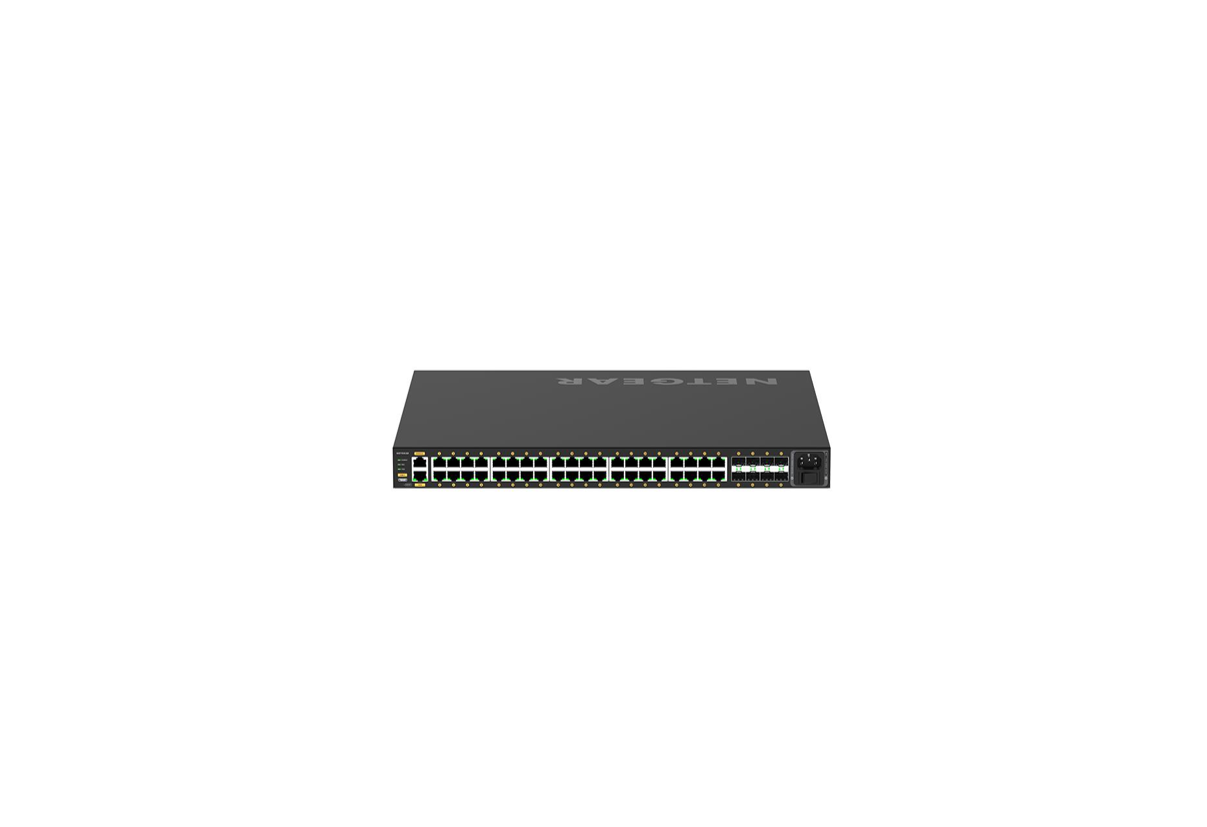

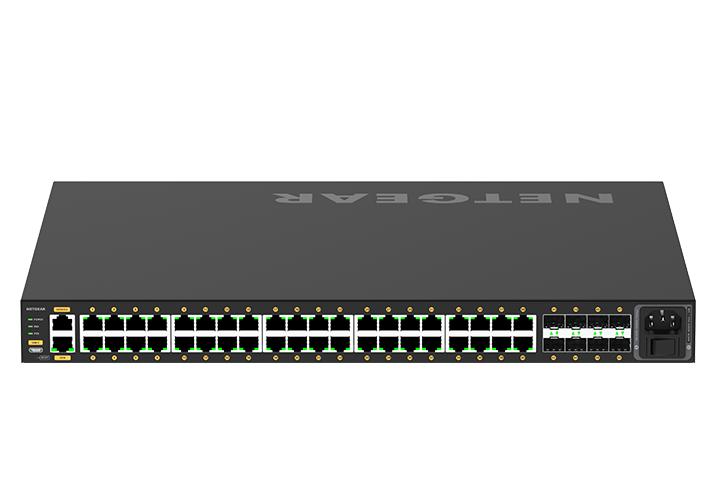

NETGEAR AV Line M4250-40G8XF-PoE+ Managed Switch
GSM4248PX | 40x 1G PoE+ | 960W PoE Budget | 8x SFP+ | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-40G8XF-PoE+ (GSM4248PX) is a high-capacity managed switch purpose-built for professional AV-over-IP deployments, delivering exceptional power, scalability, and network performance for demanding audiovisual environments. Engineered specifically for the AV industry, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box functionality, simplifying installations and reducing deployment time.
Featuring 40 Gigabit PoE+ ports, a massive 960W PoE budget, and 8 high-speed SFP+ uplink ports, the M4250-40G8XF-PoE+ is ideal for powering and connecting a large number of AV devices including PTZ cameras, digital signage displays, AV encoders/decoders, wireless access points, and networked audio systems. Built-in support for NETGEAR IGMP Plus™, Jumbo Frames, and optional AVB functionality ensures reliable multicast performance across complex AV networks.
Designed for enterprise AV installations, broadcast facilities, educational campuses, houses of worship, and corporate environments, the GSM4248PX provides a powerful and scalable foundation for modern AV infrastructures.
Key Features
- 40 x Gigabit PoE+ ports with up to 30W per port
- 960W total PoE power budget for large-scale AV deployments
- 8 x 10G SFP+ uplink ports for high-bandwidth connectivity
- Purpose-built for professional AV-over-IP applications
- NETGEAR IGMP Plus™ for optimized multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation

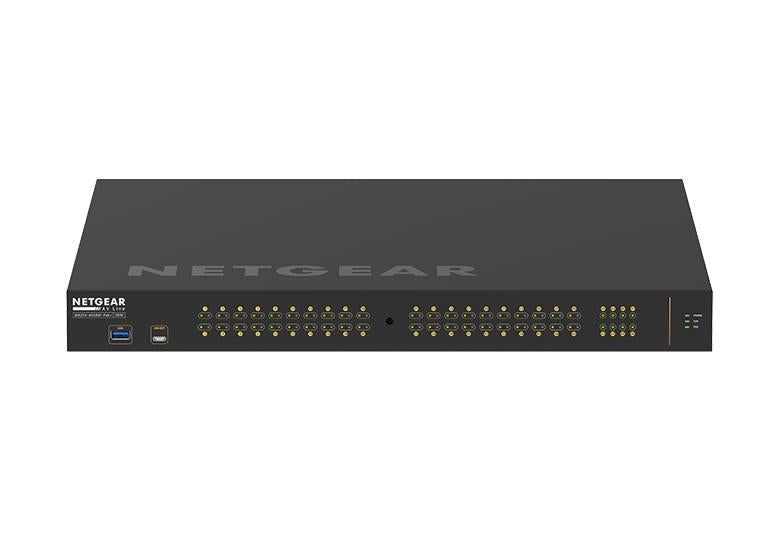

- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Supports third-party monitoring via Domotz
- High-density 48-port design for enterprise AV networks
- Ideal for digital signage, networked audio, PTZ cameras, conferencing systems, and media production environments
Specifications
- AV Line M4250-40G8XF-PoE+ (GSM4248PX)
- 40x1G PoE+ 960W and 8xSFP+ Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality!
- SKU: GSM4248PX-100EUS
- Dimensions (WxDxH) : 440 x 400 x 43.2 mm
- Weight : 6.31 kg (13.91lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 48 (40x 1G PoE+, 8x SFP+)
- PoE Ports / Budget : 40 PoE+ (30W/port), 960W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4248PX-10000S)
- Acoustics : Fanless or 59dB@25ºC
- Power Consumption : With PoE: 1197W/4086.56Btu/hr
- Without PoE: 89.2W/304.53Btu/hr
- Standby without any port connection: 74.5W/254.34Btu/hr
- Third party support : Domotz
What's in the Box
- M4250-40G8XF-PoE+ (GSM4248PX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
