Product Description
NETGEAR AV Line M4250-40G8F-PoE+ Managed Switch
GSM4248P | 40x 1G PoE+ | 480W PoE Budget | 8x SFP | AV-over-IP Managed Switch

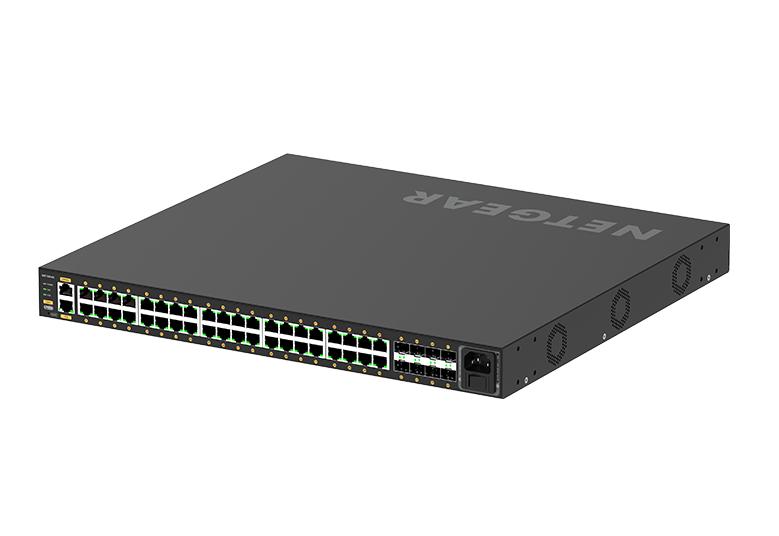

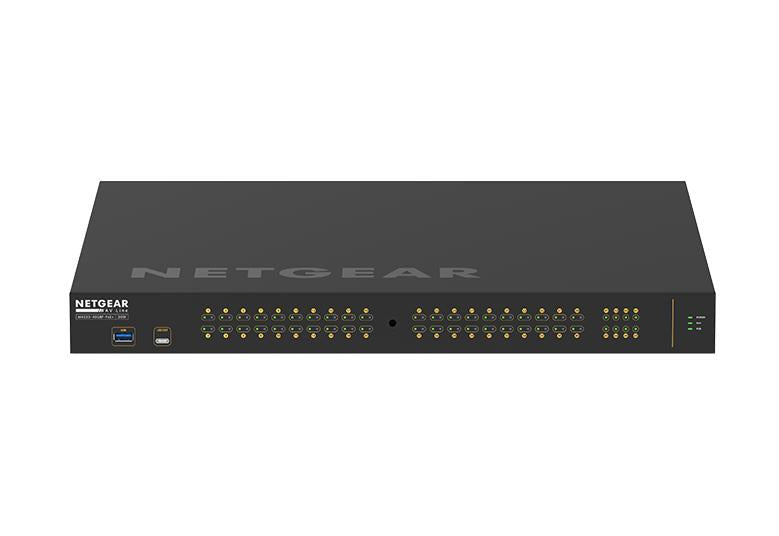

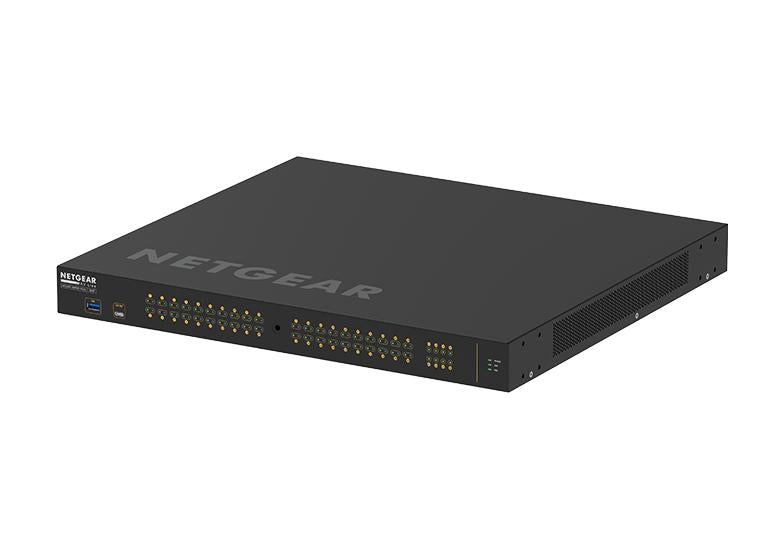

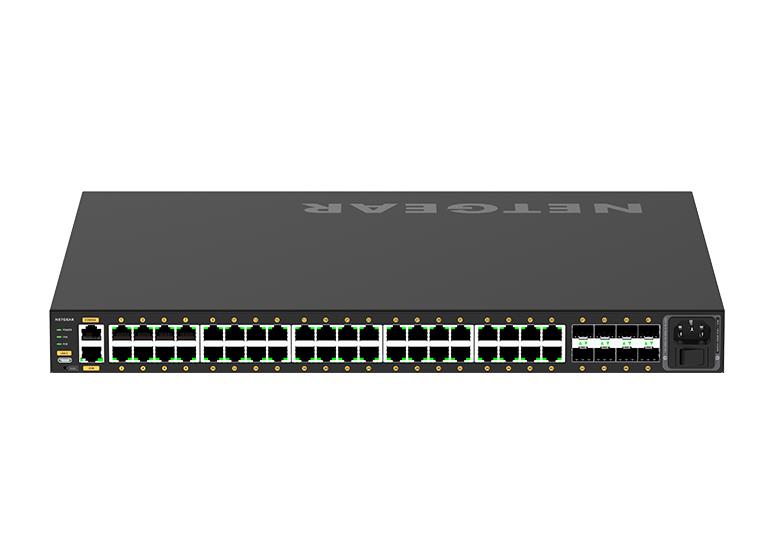

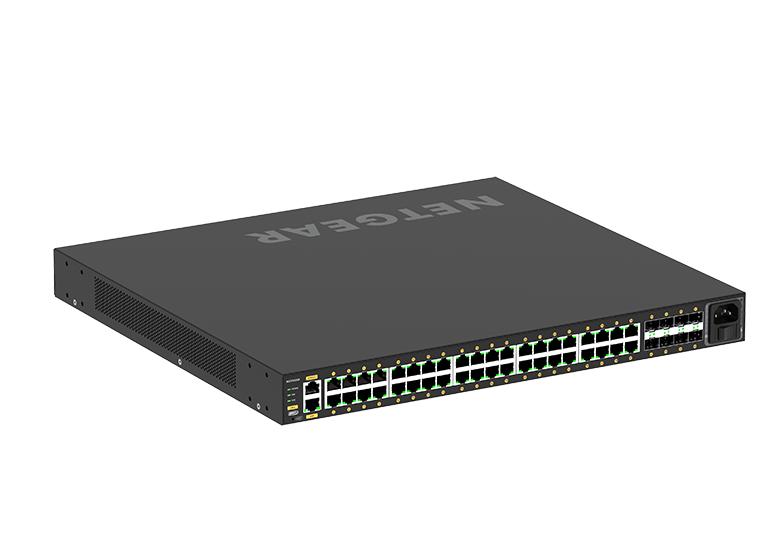

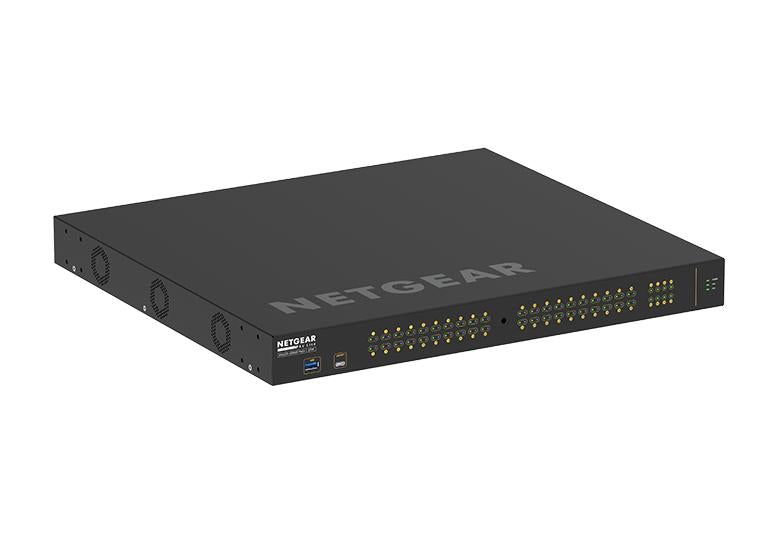

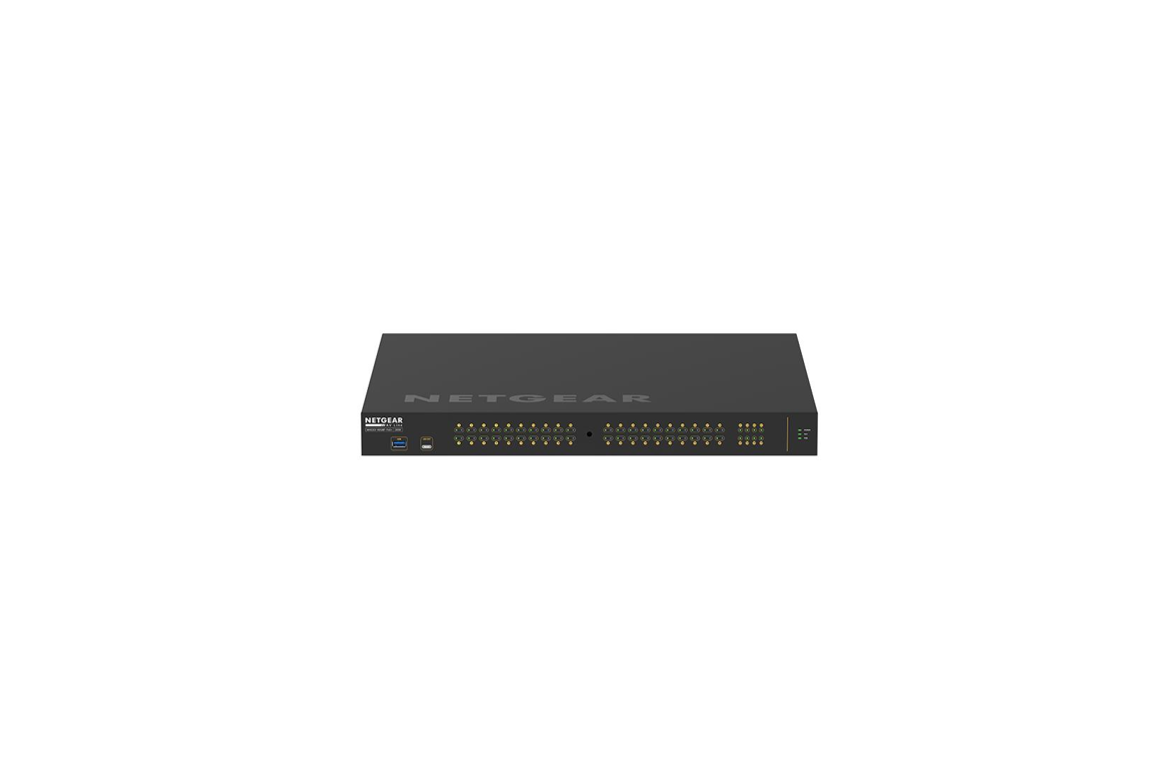

The NETGEAR AV Line M4250-40G8F-PoE+ (GSM4248P) is a high-density managed switch purpose-built for professional AV-over-IP deployments, delivering reliable Gigabit connectivity, extensive PoE capabilities, and streamlined installation for demanding audiovisual environments. Designed with input from AV industry professionals, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box functionality, reducing deployment complexity and setup time.
Equipped with 40 Gigabit PoE+ ports and 8 SFP fiber uplink ports, the M4250-40G8F-PoE+ provides the scalability and connectivity required for large AV installations, including digital signage, networked audio, video distribution, PTZ cameras, conferencing systems, and broadcast environments. With a substantial 480W PoE budget, enhanced multicast management, and optional AVB support, this switch is engineered to meet the demands of modern AV infrastructures.
Designed for professional rack installations, the GSM4248P offers enterprise-grade performance while maintaining the flexibility required for growing AV networks.
Key Features
- Purpose-built AV-over-IP managed switch optimized for professional AV deployments
- 40 x Gigabit PoE+ ports with up to 30W per port
- 480W total PoE budget for powering multiple AV devices
- 8 x SFP fiber uplink ports for flexible network expansion
- NETGEAR IGMP Plus™ for optimized multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation
- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- High-density 48-port design for large-scale AV networks
- Third-party monitoring support via Domotz
- Ideal for digital signage, video conferencing, broadcast, education, and networked audio applications
Specifications
- AV Line M4250-40G8F-PoE+ (GSM4248P)
- 40x1G PoE+ 480W and 8xSFP Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality!
- SKU: GSM4248P-100EUS
- Dimensions (WxDxH) : 440 x 400 x 43.2 mm
- Weight : 5.85Kg (12.9lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 48 (40x 1G PoE+, 8x SFP)
- PoE Ports / Budget : 40 PoE+ (30W/port), 480W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4248P-10000S)
- Acoustics : Fanless or 47dB@25ºC
- Power Consumption : With PoE: 624.8W/2133.07Btu/hr
- Power Consumption : Without PoE: 59.5W/203.13Btu/hr
- Standby without any port connection: 46.4W/158.41Btu/hr
- Third party support : Domotz
What's in the Box
- M4250-40G8F-PoE+ (GSM4248P)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
