Product Description

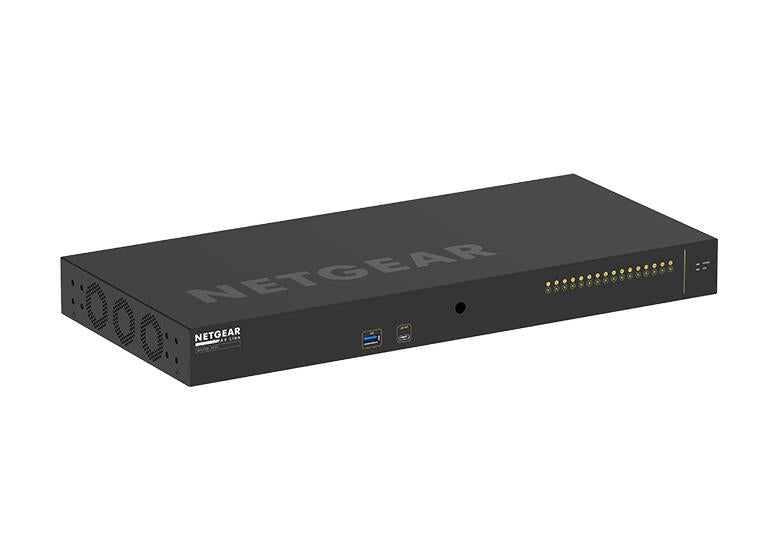

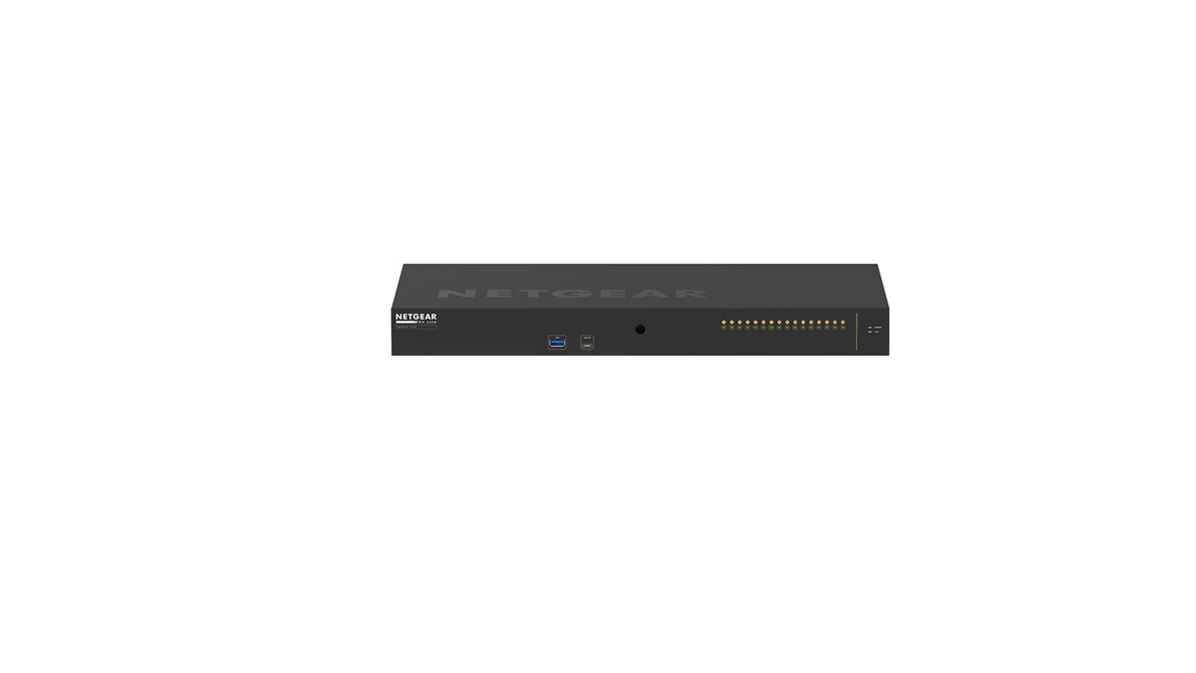

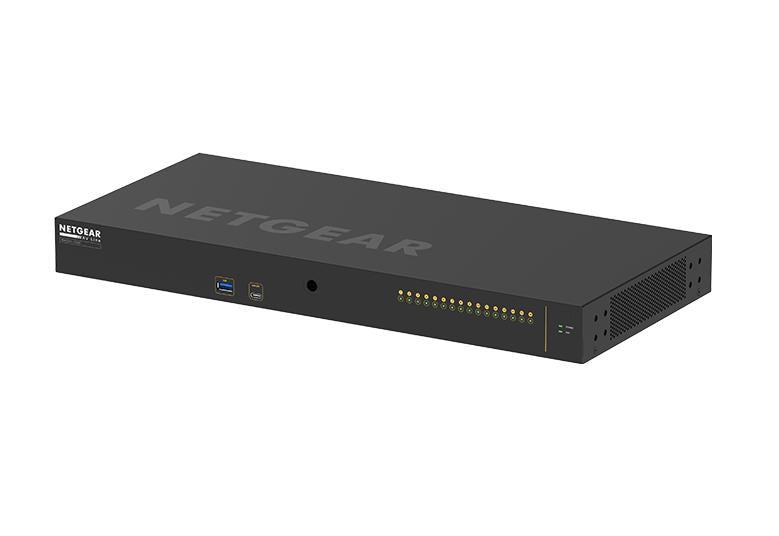

NETGEAR AV Line M4250-16XF Managed Switch
XSM4216F | 16x 1G/10G SFP+ Fiber Ports | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-16XF (XSM4216F) is a professional-grade managed switch purpose-built for AV-over-IP deployments, delivering high-speed fiber connectivity and enterprise-grade network performance for demanding audiovisual environments. Designed with direct input from AV industry professionals, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box functionality, simplifying deployment and reducing installation time.
Equipped with 16 SFP+ fiber ports supporting 1G and 10G speeds, the M4250-16XF is ideal for high-bandwidth AV networks, video distribution systems, broadcast environments, digital signage deployments, and networked audio infrastructures. Enhanced multicast handling through NETGEAR IGMP Plus™, support for Jumbo Frames, and optional AVB licensing ensure reliable performance for professional AV applications.
Its rackmount-ready design, flexible mounting options, and support for third-party management platforms make the XSM4216F an excellent choice for modern AV and media production environments.
Key Features

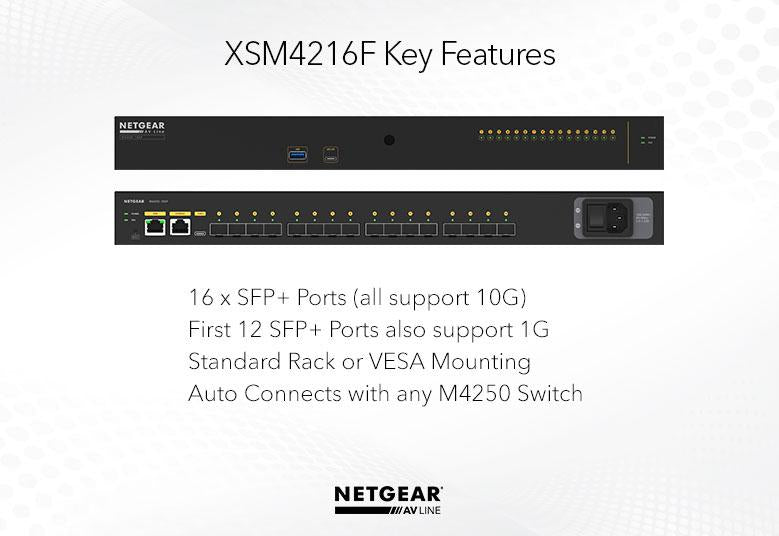

- 16 x 1G/10G SFP+ fiber ports for high-speed network connectivity
- Purpose-built AV-over-IP managed switch optimized for professional AV deployments
- NETGEAR IGMP Plus™ for efficient multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation

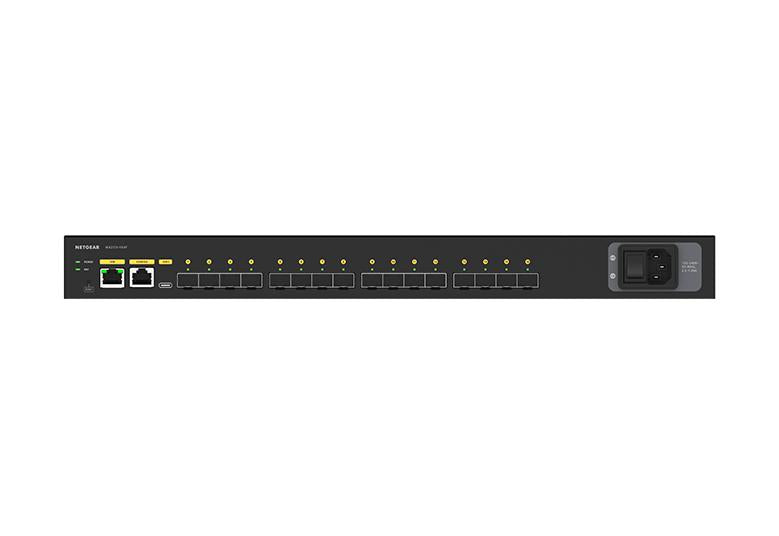

- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Supports high-bandwidth fiber networking for video, audio, and broadcast workflows
- Supports third-party monitoring via Domotz
- Rackmount-ready design with recessed mounting options
- Ideal for broadcast studios, digital signage, video distribution, and enterprise AV networks
- Low power consumption and enterprise-grade reliability
Specifications
- AV Line M4250-16XF (XSM4216F)
- 16x1G/10G Fiber SFP+ Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
- SKU: XSM4216F-100EUS
- Dimensions (WxDxH) : 440 x 200 x 43.2mm
- Weight : 2.80Kg (6.17lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 16 (1G/10G Fiber SFP+)
- PoE Ports / Budget : None
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 56.7dB@25ºC
- Power Consumption : System Full Load: 47.84W/163.33Btu/hr
- Standby without any port connection: 19.269W/65.78Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4216F-10000S)
- Third party support : Domotz
What's in the Box
- M4250-16XF (XSM4216F)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
