Product Description

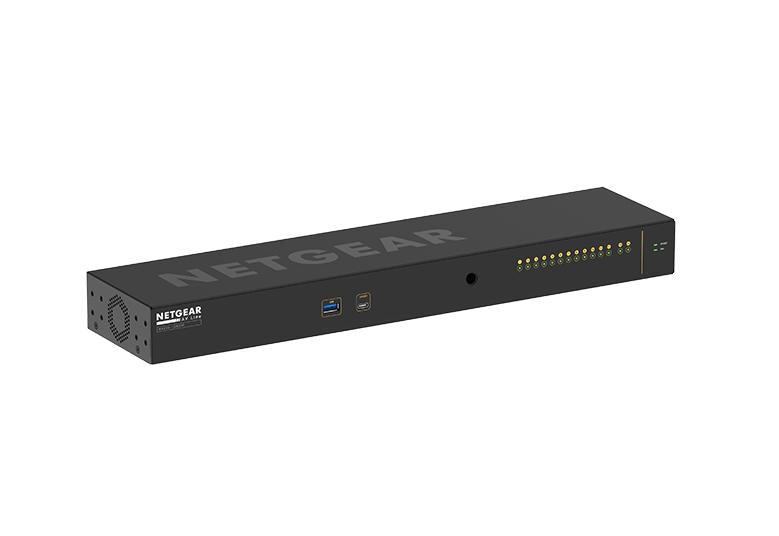

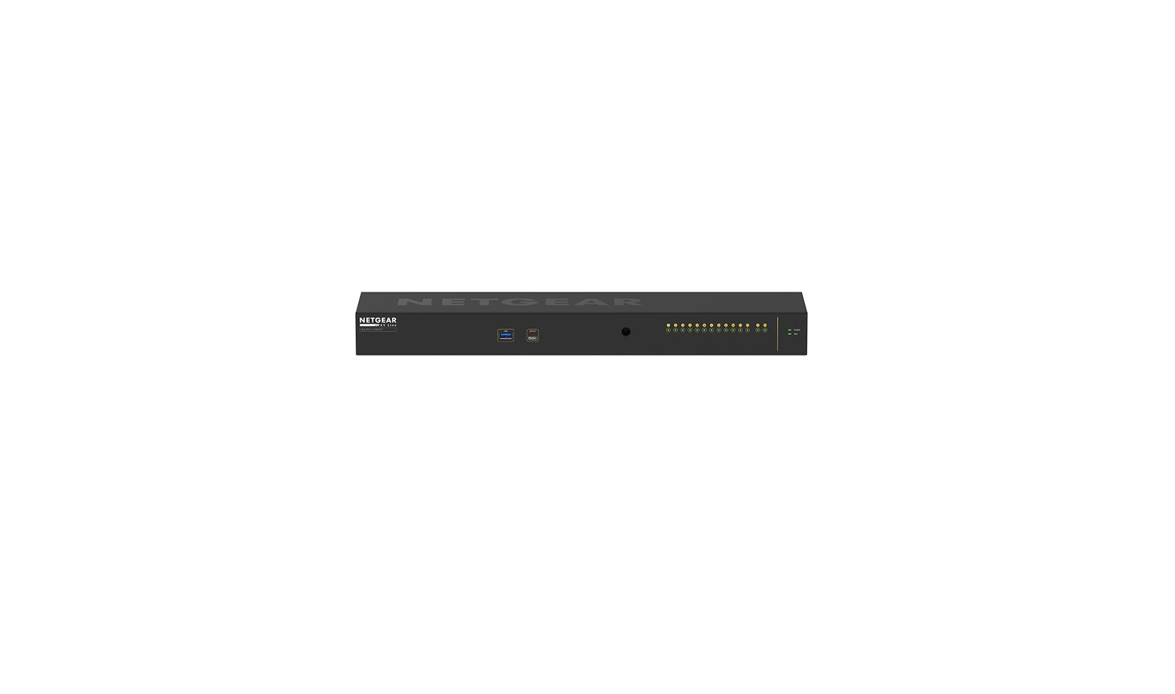

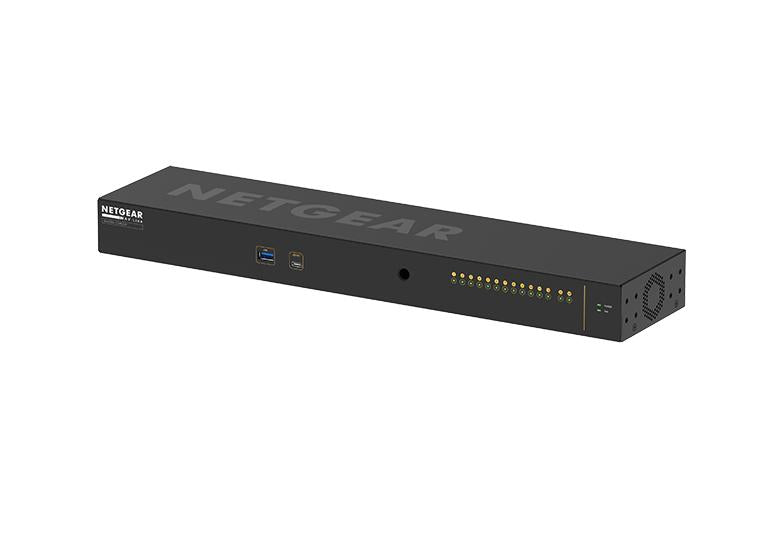

NETGEAR AV Line M4250-12M2XF Managed Switch
MSM4214X | 12x 2.5G Multi-Gigabit Ports | 2x SFP+ | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-12M2XF (MSM4214X) is a professional AV-over-IP managed switch designed for high-performance audiovisual networking applications. Engineered specifically for AV professionals, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box functionality, making deployment faster and simpler.
Equipped with 12 Multi-Gigabit 2.5G Ethernet ports and 2 high-speed 10G SFP+ uplink ports, the M4250-12M2XF provides the bandwidth required for demanding AV-over-IP deployments, including digital signage, video distribution, networked audio, conferencing systems, and broadcast production environments.
With advanced features such as NETGEAR IGMP Plus™, AVB support, Jumbo Frames, and third-party monitoring through Domotz, the M4250-12M2XF is an ideal solution for professional AV installations that require reliable and scalable network performance.

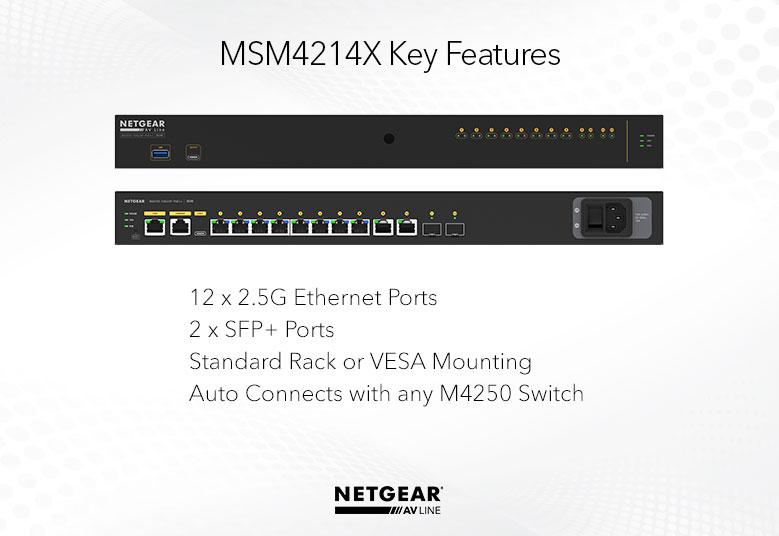

Key Features
- 12 x 2.5 Gigabit Multi-Gig Ethernet ports for higher bandwidth AV applications
- 2 x 10G SFP+ uplink ports for high-speed fiber connectivity
- Purpose-built for professional AV-over-IP deployments
- NETGEAR IGMP Plus™ for optimized multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation

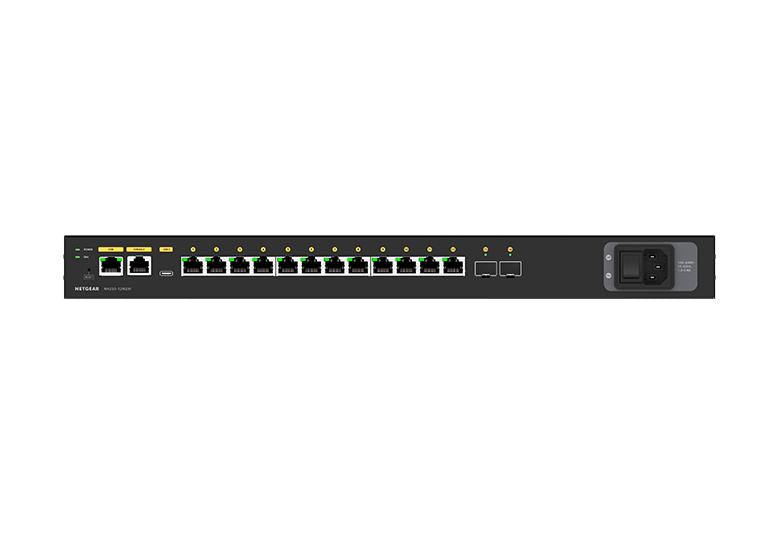

- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Compact rack-mountable design
- Low power consumption for efficient operation
- Supports third-party monitoring via Domotz
- Ideal for digital signage, conferencing, video distribution, and networked audio systems
Specifications
- AV Line M4250-12M2XF (MSM4214X)
- 12x2.5G and 2xSFP+ Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality!
- SKU: MSM4214X-100EUS
- Dimensions (WxDxH) : 440 x 100 x 43.2mm
- Weight : 1.745Kg (3.85lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 12 (12x 2.5G, 2x SFP+)
- PoE Ports / Budget : None
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 46.4dB@25ºC
- Power Consumption : System Full Load: 37.9W/129.39Btu/hr
- Standby without any port connection: 14.1W/48.14Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4214X-10000S)
- Third party support : Domotz
What's in the Box
- M4250-12M2XF (MSM4214X)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
