Product Description

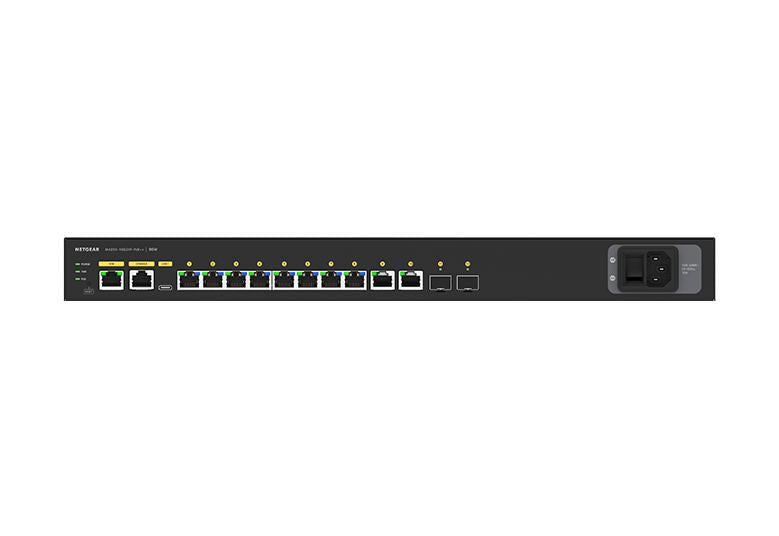

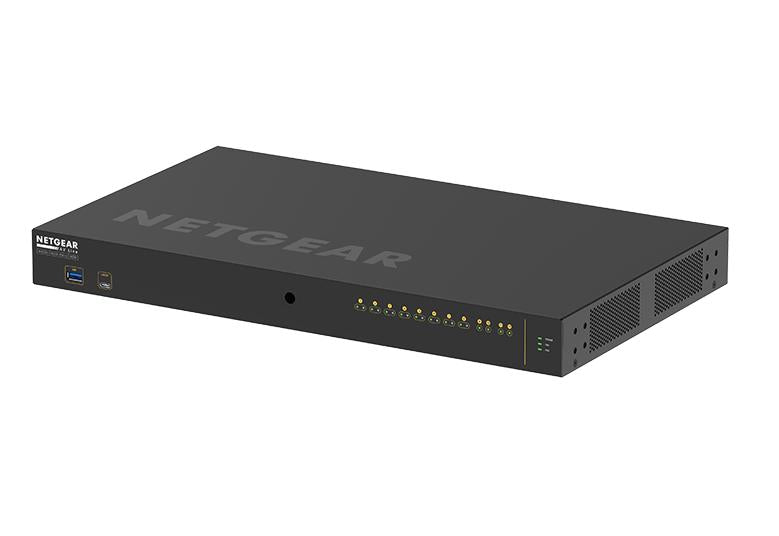

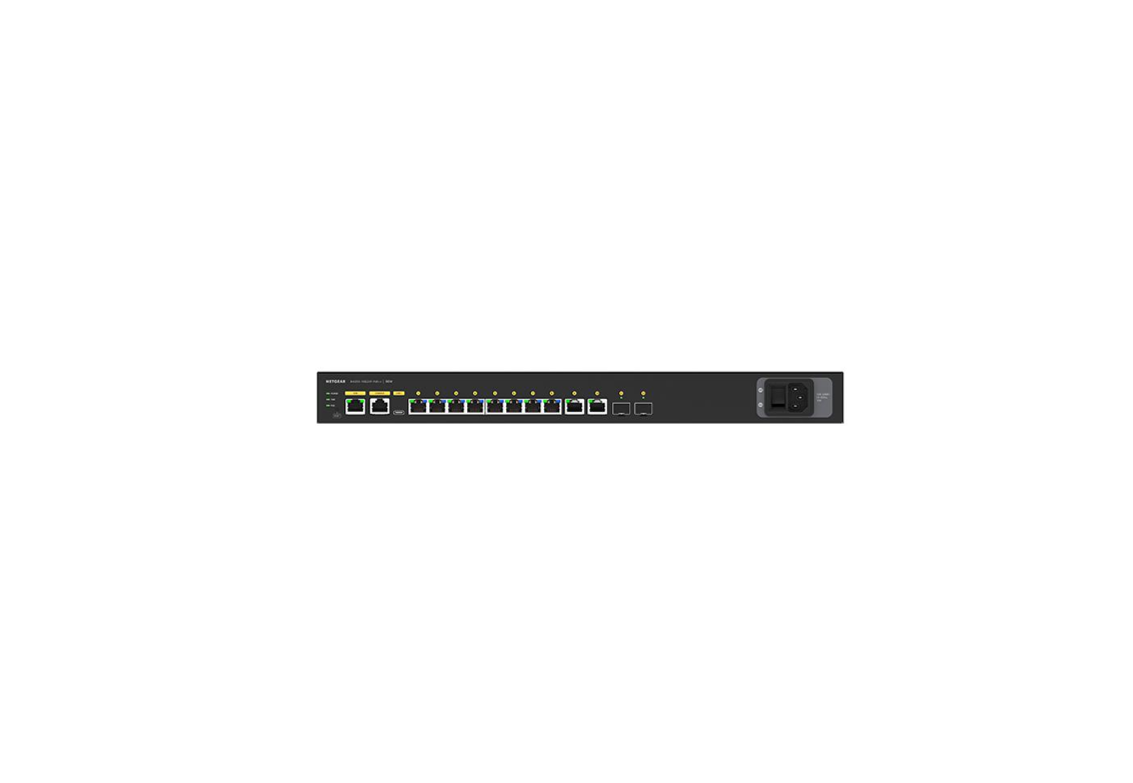

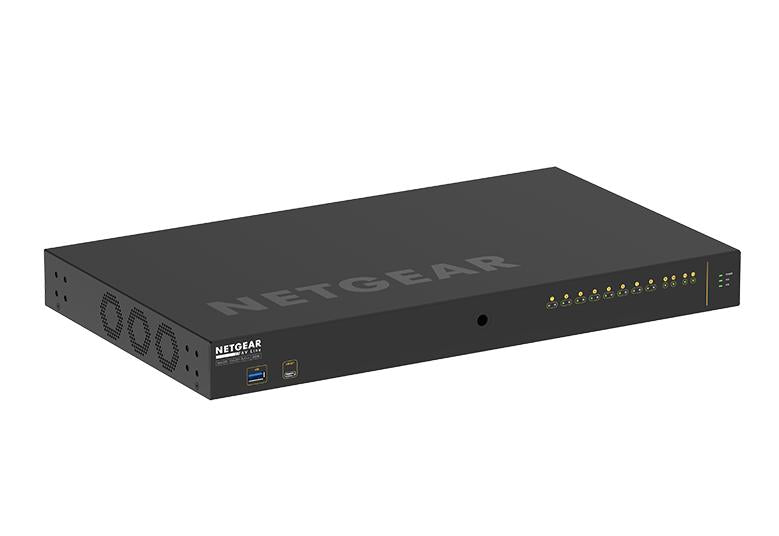

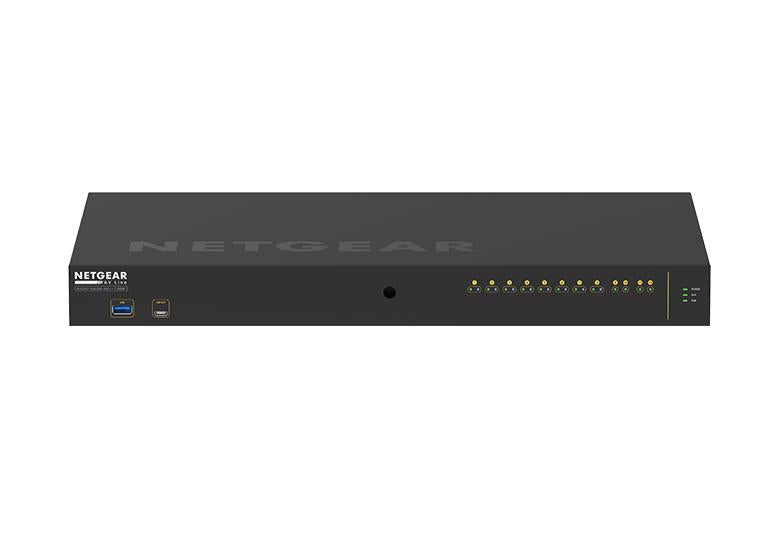

NETGEAR AV Line M4250-10G2XF-PoE++ Managed Switch
GSM4212UX | 8x 1G Ultra90 PoE++ | 720W PoE Budget | 2x 1G Uplink | 2x SFP+ | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-10G2XF-PoE++ (GSM4212UX) is a high-performance managed switch purpose-built for professional AV-over-IP deployments, delivering exceptional power, bandwidth, and reliability for demanding AV environments. Designed with direct input from industry professionals, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box operation, simplifying installation and deployment.
Equipped with 8 Ultra90 PoE++ (802.3bt) ports, a massive 720W PoE budget, 2 Gigabit uplink ports, and 2 SFP+ uplink ports, the M4250-10G2XF-PoE++ is ideal for powering high-performance devices such as PTZ cameras, LED controllers, AV encoders/decoders, wireless access points, and other power-intensive network equipment. Enhanced multicast support, AVB readiness, and enterprise-grade management features make it a powerful networking solution for modern AV infrastructures.
Key Features
- Purpose-built AV-over-IP managed switch designed for professional AV deployments
- 8 x Ultra90 PoE++ (802.3bt) ports delivering up to 90W per port
- Large 720W total PoE power budget for power-hungry AV devices
- 2 x Gigabit Ethernet uplink ports
- 2 x SFP+ uplink ports for high-speed fiber connectivity
- NETGEAR IGMP Plus™ for optimized multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation
- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Supports third-party monitoring via Domotz
- Designed for digital signage, AV-over-IP, video conferencing, networked audio, and broadcast applications
- Flexible rack mounting with recessed installation support
Specifications
- AV Line M4250-10G2XF-PoE++ (GSM4212UX)
- 8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality
- SKU: GSM4212UX-100EUS
- Dimensions (WxDxH) : 440 x 200 x 43.2mm
- Weight : 3.83Kg (8.44lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 12 (10x 1G, 2x SFP)
- PoE Ports / Budget : 8 PoE++ (90W/port), 720W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 50.5dB@25ºC
- Power Consumption : With PoE: 837.7W/2859.91Btu/hr
- Power Consumption : Without PoE: 26.3W/89.79Btu/hr
- Standby without any port connection: 18W/61.45Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212UX-10000S)
- Third party support : Domotz
What's in the Box
- M4250-10G2XF-PoE++ (GSM4212UX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
Ideal For: AV-over-IP Networks, Digital Signage, PTZ Cameras, Networked Audio Systems, Video Conferencing, Broadcast Studios, Houses of Worship, Educational Campuses, Corporate AV Deployments, and Professional Media Production Environments.
