Product Description

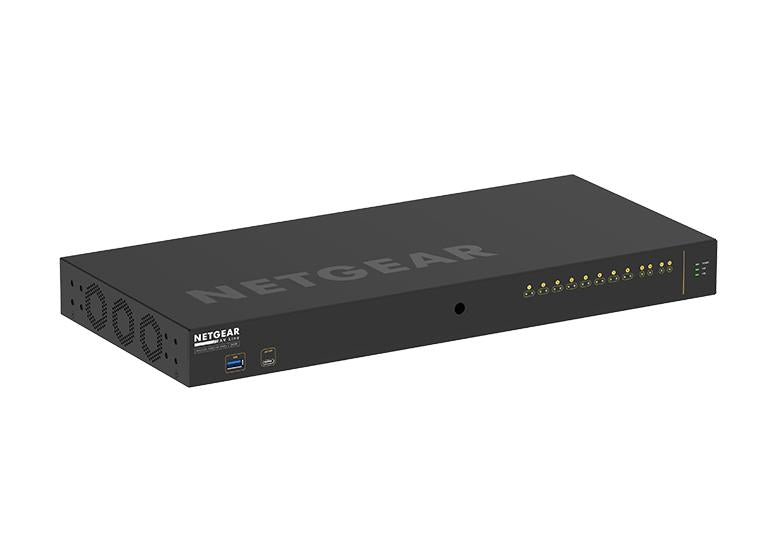

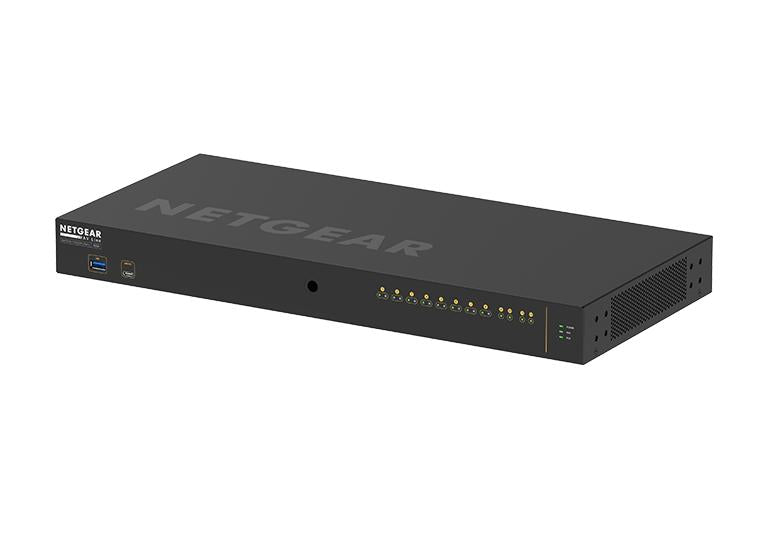

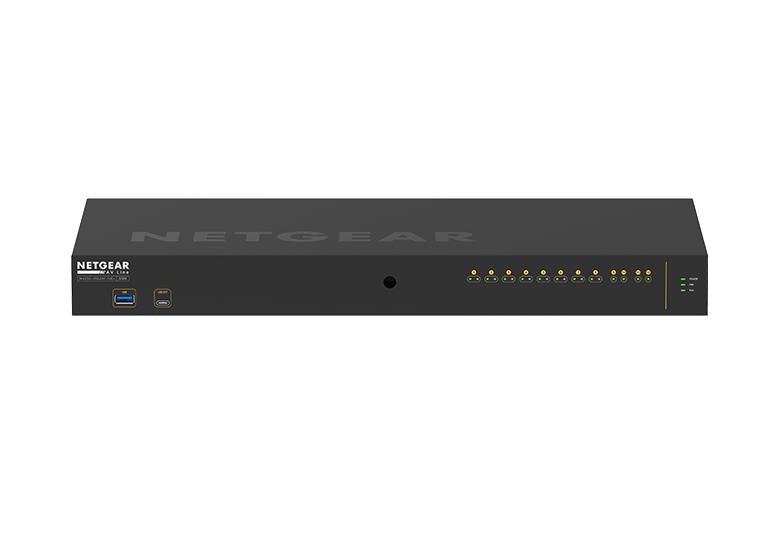

NETGEAR AV Line M4250-10G2XF-PoE+ Managed Switch
GSM4212PX | 8x 1G PoE+ | 240W PoE Budget | 2x 1G Uplink | 2x 10G SFP+ | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-10G2XF-PoE+ (GSM4212PX) is a professional-grade managed switch purpose-built for AV-over-IP deployments, delivering reliable performance for video distribution, digital signage, conferencing systems, networked audio, and broadcast environments. Designed specifically for AV professionals, it features rear-facing ports for clean rack integration and comes pre-configured for out-of-the-box functionality, reducing setup time and simplifying deployment.
With 8 Gigabit PoE+ ports, a generous 240W PoE budget, 2 Gigabit uplink ports, and 2 high-speed 10G SFP+ uplink ports, the M4250-10G2XF-PoE+ provides the power and bandwidth required for demanding AV networks. Enhanced multicast support, Jumbo Frame capability, and optional AVB functionality make it an ideal solution for modern AV installations requiring reliable and efficient network performance.
Its rack-friendly design, flexible mounting options, and support for third-party monitoring platforms ensure seamless integration into professional AV environments.
Key Features
- Purpose-built AV-over-IP managed switch optimized for professional AV installations
- 8 x Gigabit PoE+ ports with up to 30W power per port
- 240W total PoE budget for powering AV devices and network equipment
- 2 x Gigabit Ethernet uplink ports
- 2 x 10G SFP+ uplink ports for high-bandwidth connectivity
- NETGEAR IGMP Plus™ for efficient multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation

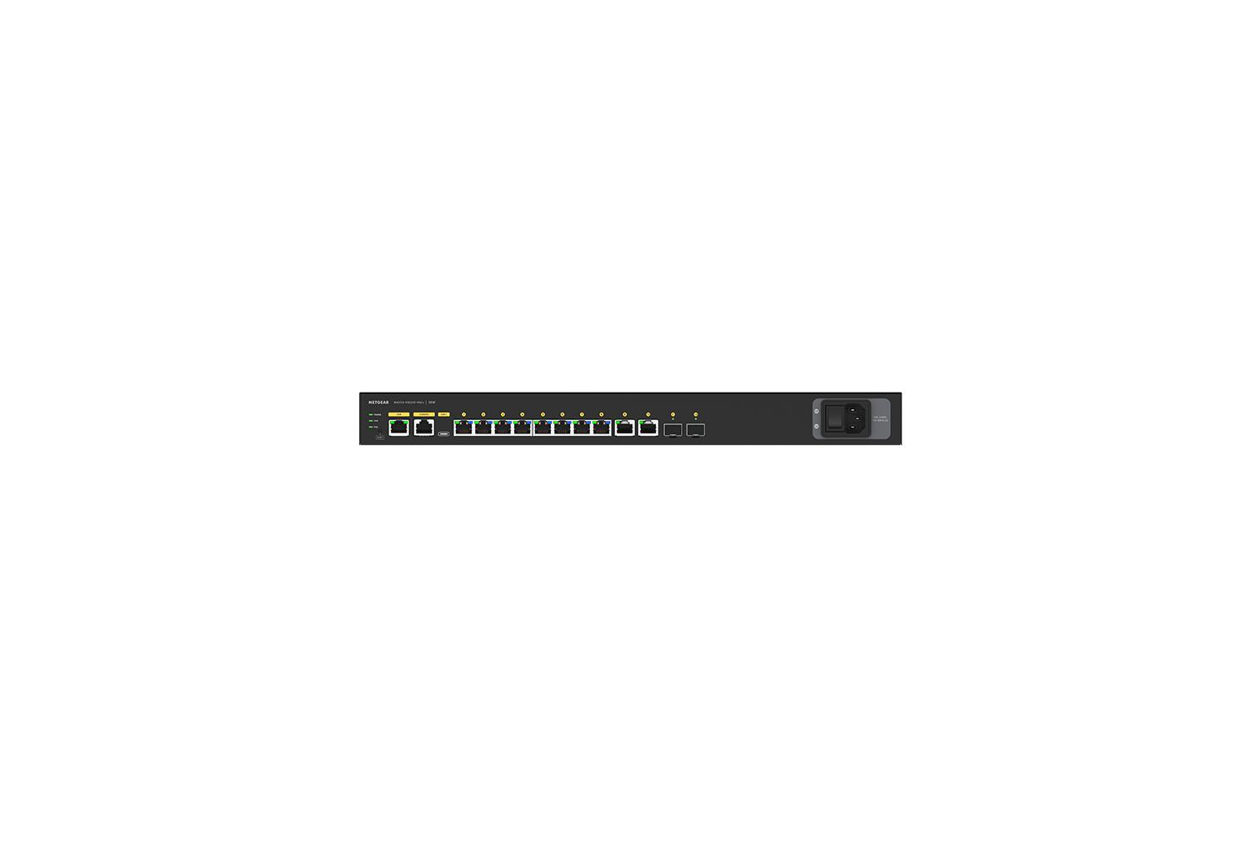

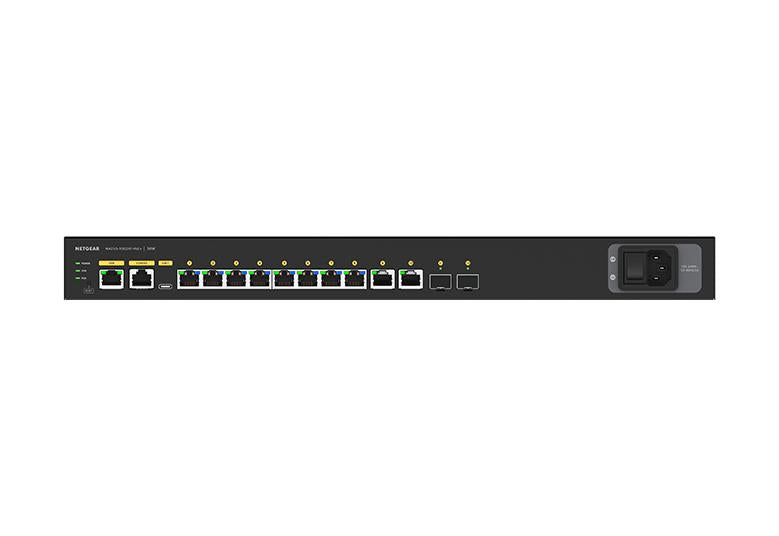

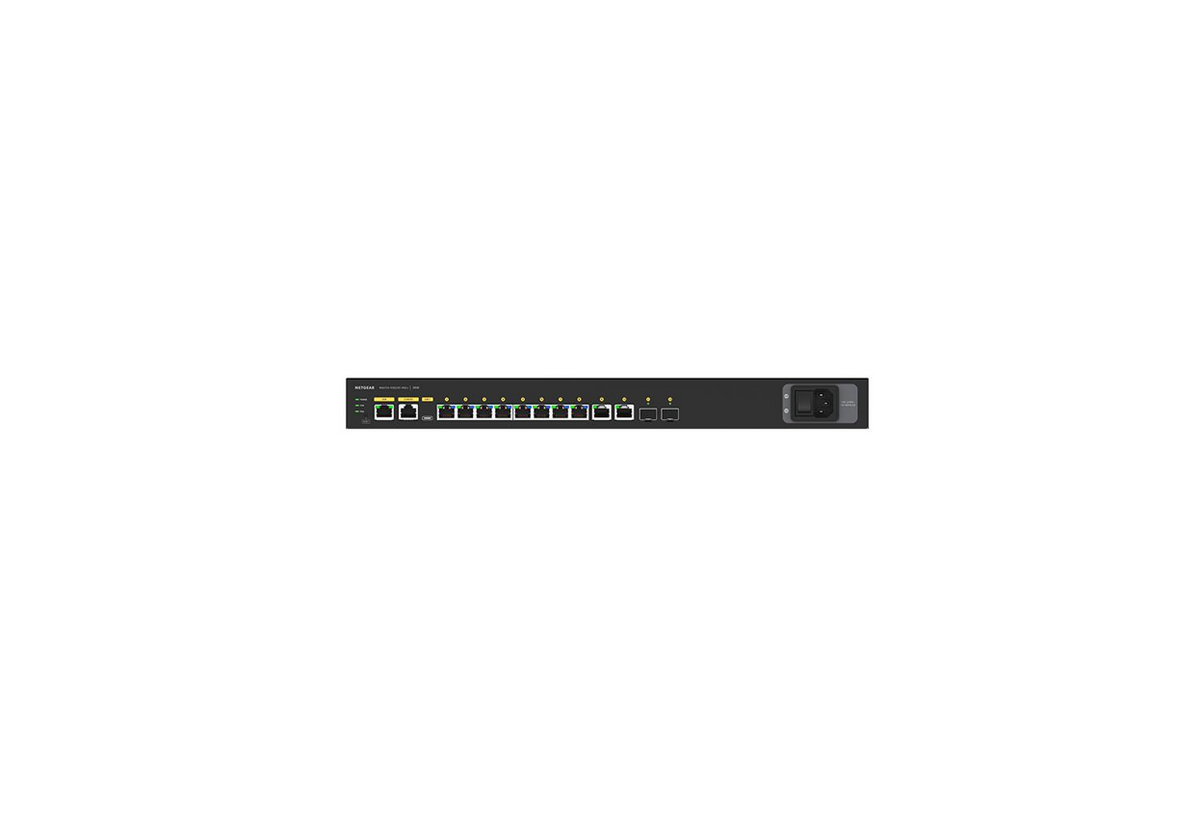

- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box deployment
- Flexible rackmount and recessed rack mounting options
- Third-party monitoring support via Domotz
- Ideal for digital signage, video conferencing, broadcast, and networked AV systems
Specifications
- AV Line M4250-10G2XF-PoE+ (GSM4212PX)
- 8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switch
- Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks
- Pre-configured for out of the box functionality
- SKU: GSM4212PX-100EUS
- Dimensions (WxDxH) : 440 x 200 x 43.2mm
- Weight : 2.9Kg (6.39lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 12 (10x 1G, 2x SFP+)
- PoE Ports / Budget : 8 PoE+ (30W/port), 240W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 39.22dB@25ºC
- Power Consumption : With PoE: 306.4W/1046.050Btu/hr
- Power Consumption : Without PoE: 25W/85.35Btu/hr
- Standby without any port connection : 12.96W/44.245Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212PX-10000S)
- Third party support : Domotz
What's in the Box
- M4250-10G2XF-PoE+ (GSM4212PX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
Ideal For: AV-over-IP Networks, Digital Signage, Video Conferencing, Networked Audio, Broadcast Studios, Corporate Meeting Rooms, Education Facilities, Houses of Worship, and Professional AV Deployments.
