Product Description

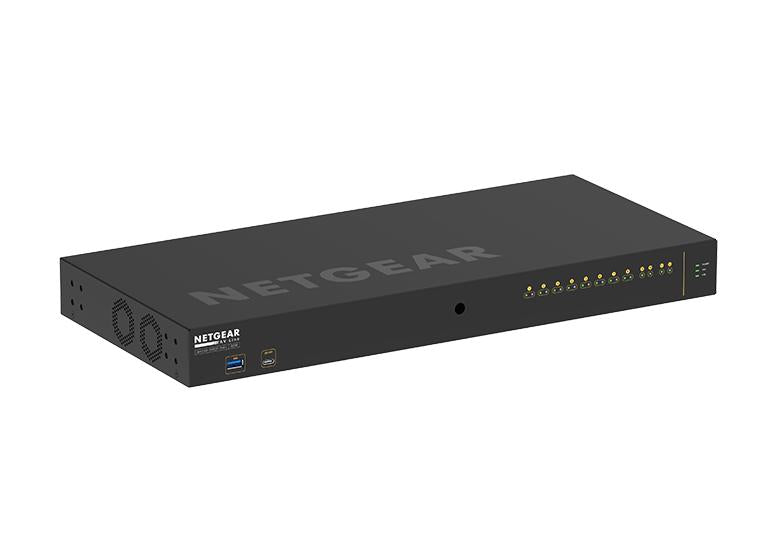

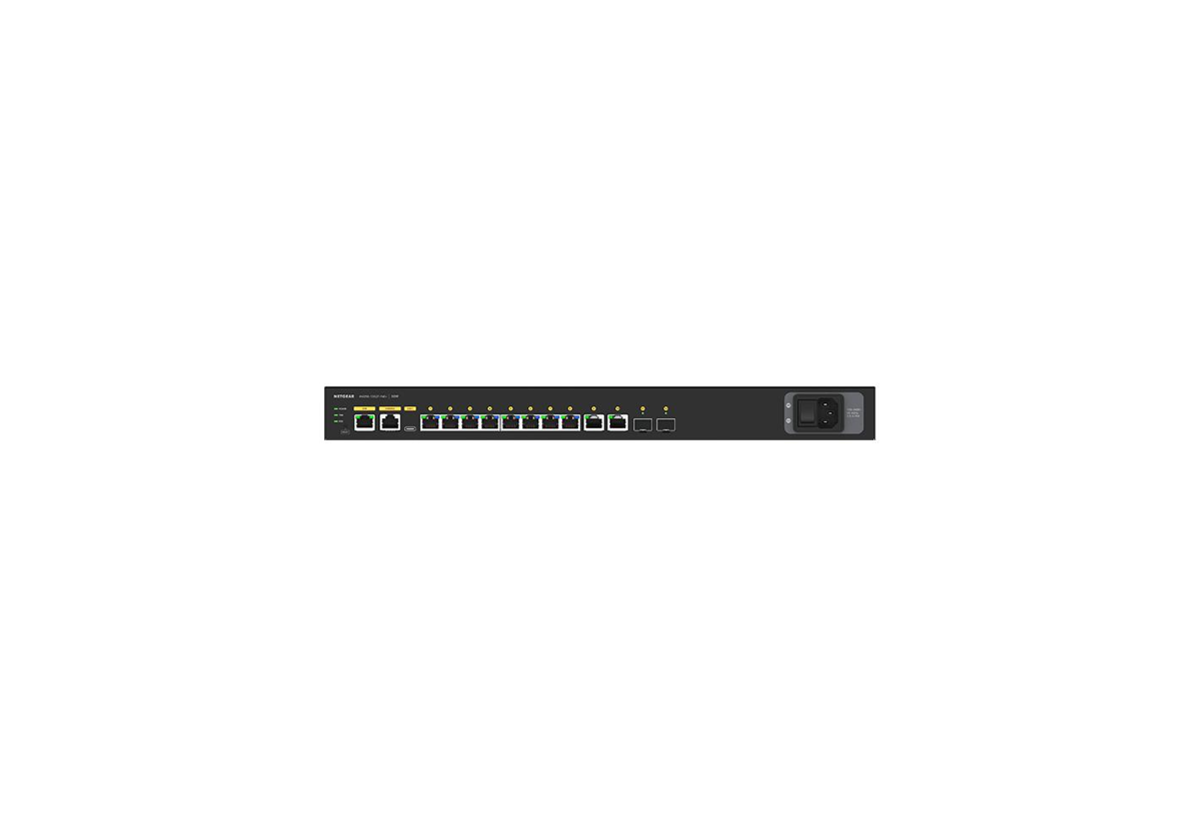

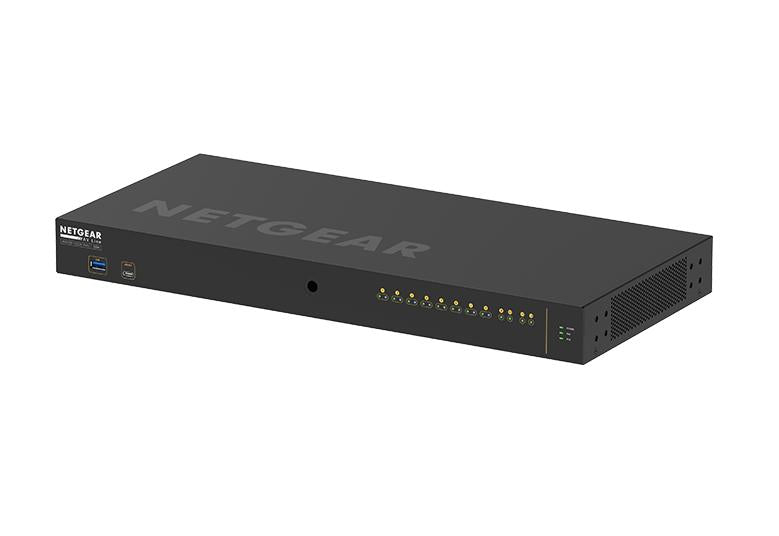

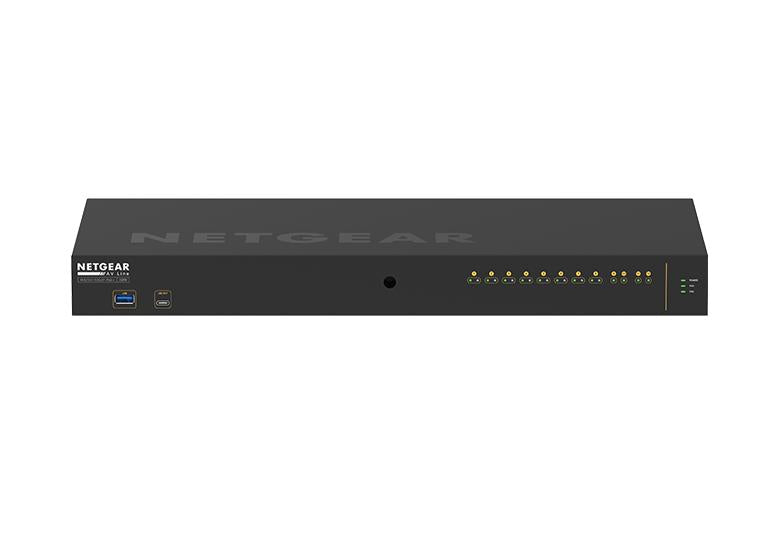

NETGEAR AV Line M4250-10G2F-PoE+ Managed Switch
GSM4212P | 8x 1G PoE+ | 125W PoE Budget | 2x 1G Uplink | 2x SFP | AV-over-IP Managed Switch
The NETGEAR AV Line M4250-10G2F-PoE+ (GSM4212P) is a professional managed switch purpose-built for AV-over-IP deployments, delivering reliable performance for digital signage, video distribution, conferencing systems, networked audio, and broadcast environments. Designed with direct input from AV industry professionals, it features rear-facing ports for cleaner rack integration and comes pre-configured for out-of-the-box AV functionality.
Equipped with 8 Gigabit PoE+ ports, 2 Gigabit uplink ports, 2 SFP fiber ports, and a 125W PoE budget, the M4250-10G2F-PoE+ provides the flexibility and power required for connected AV devices such as IP cameras, audio processors, video encoders, decoders, and wireless access points.
With enhanced multicast support through NETGEAR IGMP Plus™, optional AVB support, and a rackmount-friendly design, the GSM4212P is an ideal network switch for professional AV installations and enterprise environments.
Key Features
- Purpose-built AV-over-IP managed switch optimized for professional AV deployments
- 8 x Gigabit PoE+ ports with up to 30W per port
- 125W total PoE budget for powering connected devices
- 2 x Gigabit Ethernet uplink ports
- 2 x SFP fiber uplink ports for flexible network expansion
- NETGEAR IGMP Plus™ for efficient multicast traffic management
- Supports Jumbo Frames up to 12KB
- AVB-ready with optional electronic license activation

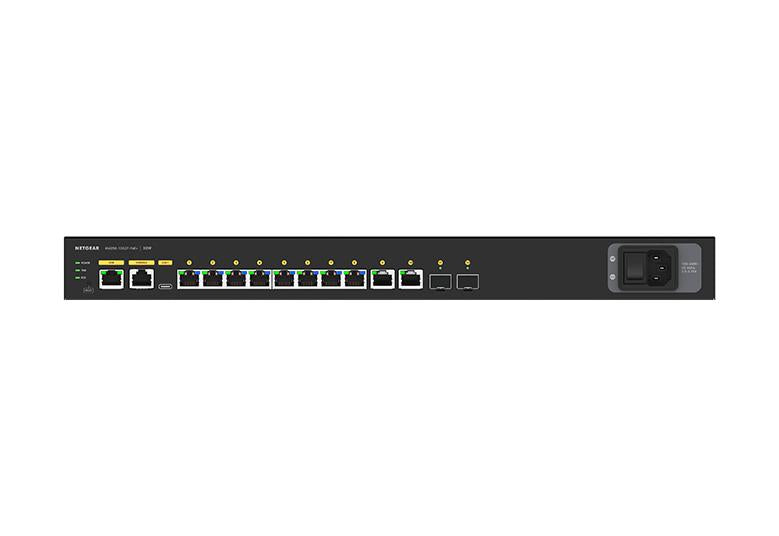

- Rear-facing ports for clean AV rack integration
- Pre-configured for out-of-the-box AV functionality
- Flexible rack, recessed rack, or tabletop deployment
- Third-party monitoring support via Domotz
- Ideal for digital signage, video conferencing, broadcast, and AV-over-IP networks
Specifications
- AV Line M4250-10G2F-PoE+ (GSM4212P)
- 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch
- Designed with input from industry professionals, this switch is engineered for 1G AV over IP
- Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality
- SKU: GSM4212P-100EUS
- Dimensions (WxDxH) : 440 x 200 x 43.2mm
- Weight : 2.85Kg (6.28lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 12 (10x 1G, 2x SFP)
- PoE Ports / Budget : 8 PoE+ (30W/port), 125W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 30dB@25ºC
- Power Consumption : With PoE: 163.9W/559.555Btu/hr
- Power Consumption : Without PoE: 17.32W/59.13Btu/hr
- Power Consumption : Standby without any port connection: 8.53W/29.121Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212P-10000S)
- Third party support : Domotz
What's in the Box
- M4250-10G2F-PoE+ (GSM4212P)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
Ideal For: AV-over-IP Networks, Digital Signage, Video Conferencing Systems, Networked Audio Deployments, Education Facilities, Houses of Worship, Corporate Meeting Rooms, Broadcast Environments, and Professional AV Installations.
