Product Description

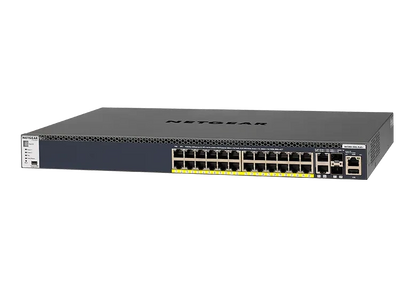

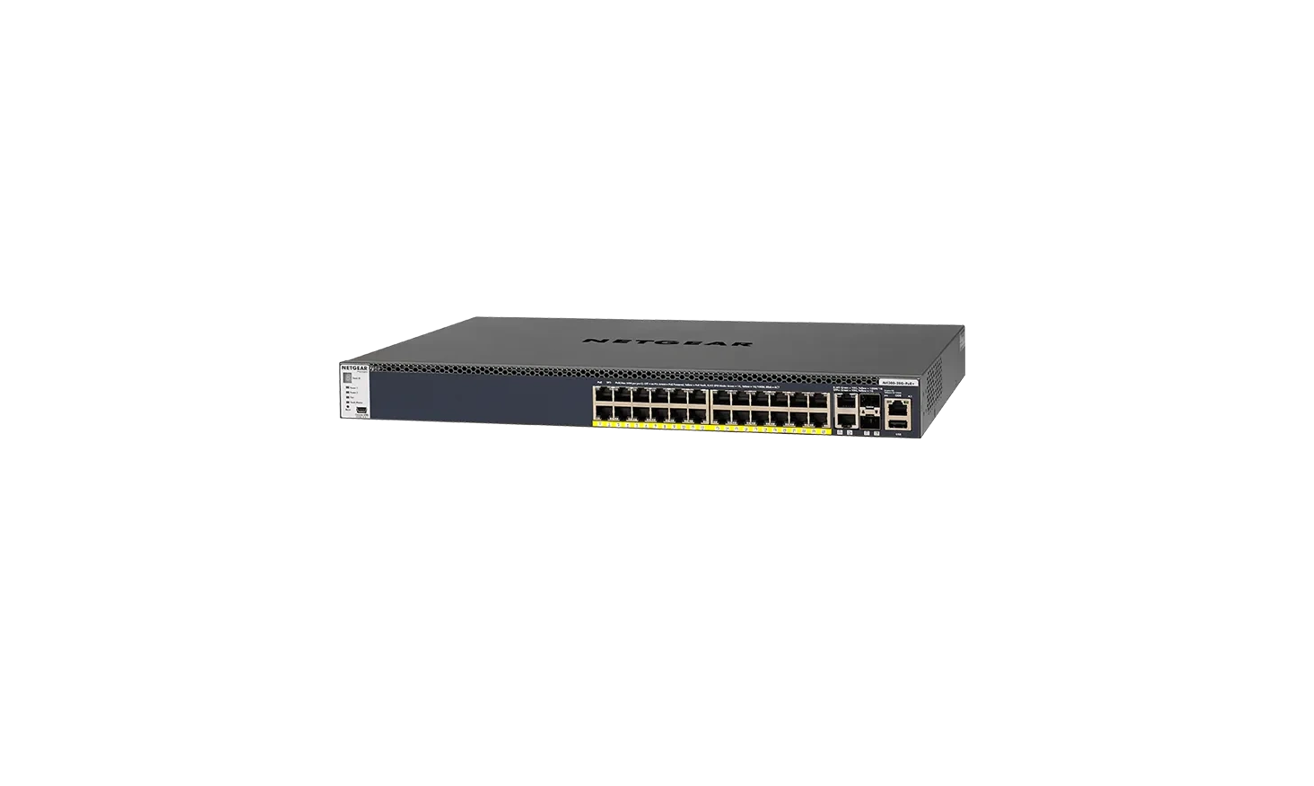

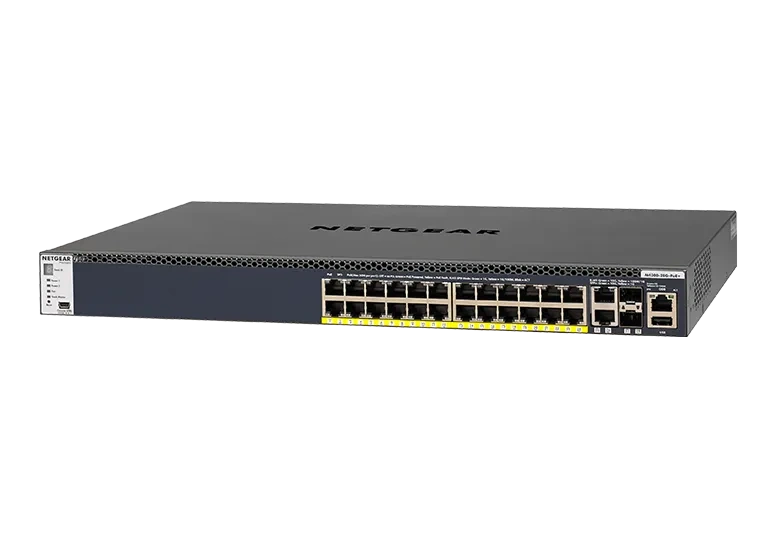

NETGEAR M4300-28G PoE+ Stackable Managed Switch
GSM4328PB | 24x 1G PoE+ | 630W PoE Budget | 2x 10GBASE-T | 2x SFP+ | Fully Managed Stackable Switch
The NETGEAR M4300-28G PoE+ (GSM4328PB) is a fully managed and stackable enterprise switch designed for demanding business, AV, surveillance, and campus network deployments. Featuring 24 Gigabit PoE+ ports, 2 x 10GBASE-T uplink ports, and 2 x 10G SFP+ ports, this switch delivers high-performance connectivity and flexible expansion for growing network infrastructures.
With a powerful 630W PoE budget and support for stacking, the M4300-28G PoE+ is ideal for powering IP phones, wireless access points, IP cameras, and other PoE-enabled devices. The switch includes advanced management capabilities, redundant power support options, and NETGEAR's robust Layer 2 and Layer 3 networking features, making it a reliable solution for enterprise and professional deployments.
Built with a high-performance switching fabric and comprehensive management options, the GSM4328PB provides the scalability, resiliency, and performance required for mission-critical networking environments.
Key Features
- 24 x Gigabit PoE+ ports with up to 630W power budget
- 2 x 10GBASE-T uplink ports for high-speed network connectivity
- 2 x 10G SFP+ fiber uplink ports
- Stackable architecture for scalable network deployments
- 128 Gbps switching fabric for high-performance data transfer
- 1,000W modular power supply included
- Supports redundant power configurations
- Fully managed enterprise-class switch
- Dedicated out-of-band management port
- USB storage and console management ports
- Single-pane-of-glass NMS300 management platform support
- Dual firmware images and configuration files for minimal downtime during upgrades
- Ideal for enterprise networks, AV deployments, IP surveillance, and wireless infrastructure
Specifications
- Fully Managed M4300-28G PoE+ (GSM4328PB)
- GSM4328PB
- Ports: 28 Ports
- Port Types
- 24 x 1G PoE+ 630W
- 2 x 10G
- 2 x SFP+
- Details
- 24x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ 1,000W PSU (GSM4328PB)
Technical Specs
- Model Number: GSM4328PB
- PoE Budget (110V): 630W w/1 PSU, 630W w/2 PSUs in RPS mode, 720W w/2 PSUs in EPS mode
- 24 Ports PoE+ Copper 10M / 100M / 1G
- 2 Ports Copper 100M / 1G / 10G
- 2 Ports SFP+ 1G / 10G
- 2 Modular Bays with One (1) 1000W Modular PSU included APS1000W
- 128 Gps Switching Fabric
- Fixed Fan Front-to-Back 39.8dB
Management Options
- Ethernet: Out-of-band 1G port (Front)
- Console: RJ45 RS232 (Back)
- Console: Mini-USB (Front)
- Storage: USB (Front)
- Single-pane-of-glass NMS300 management platform with mass-configuration support
- Dual firmware image and configuration file for updates with minimum service interruption
SKU
- GSM4328PB-100AJS
What's in the Box
- NETGEAR M4300-28G PoE+ (GSM4328PB)
- 1000W Modular PSU (APS1000W)
- Power supply components
- Management and console connectivity interfaces
- Installation documentation
