Overview

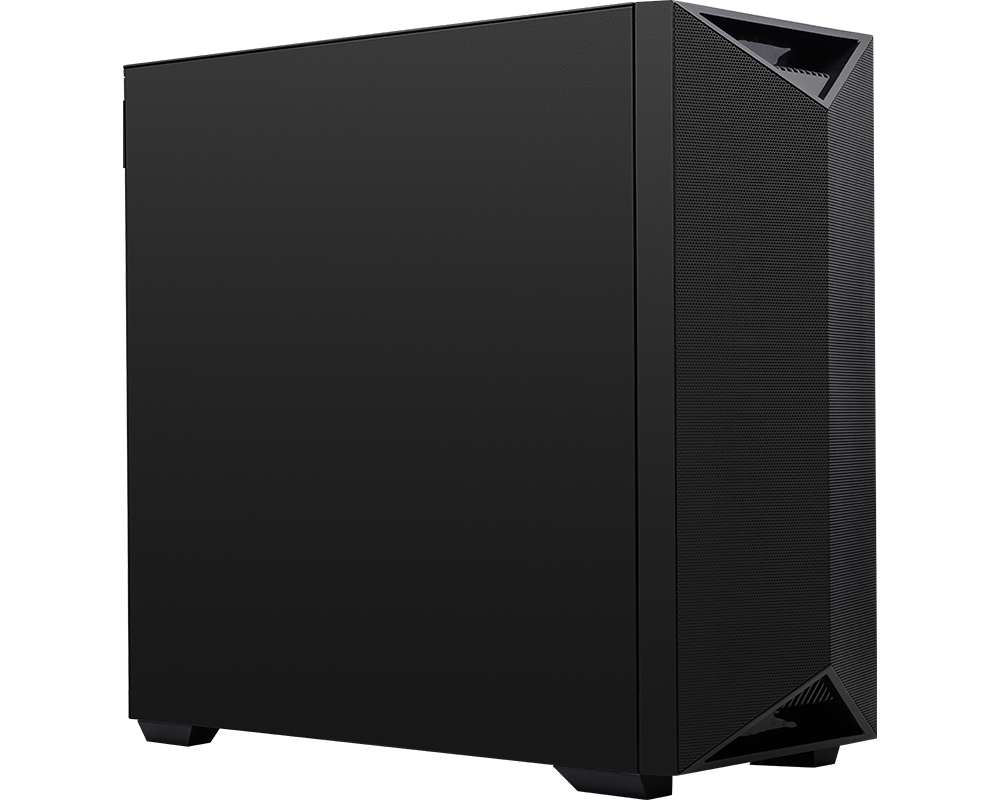

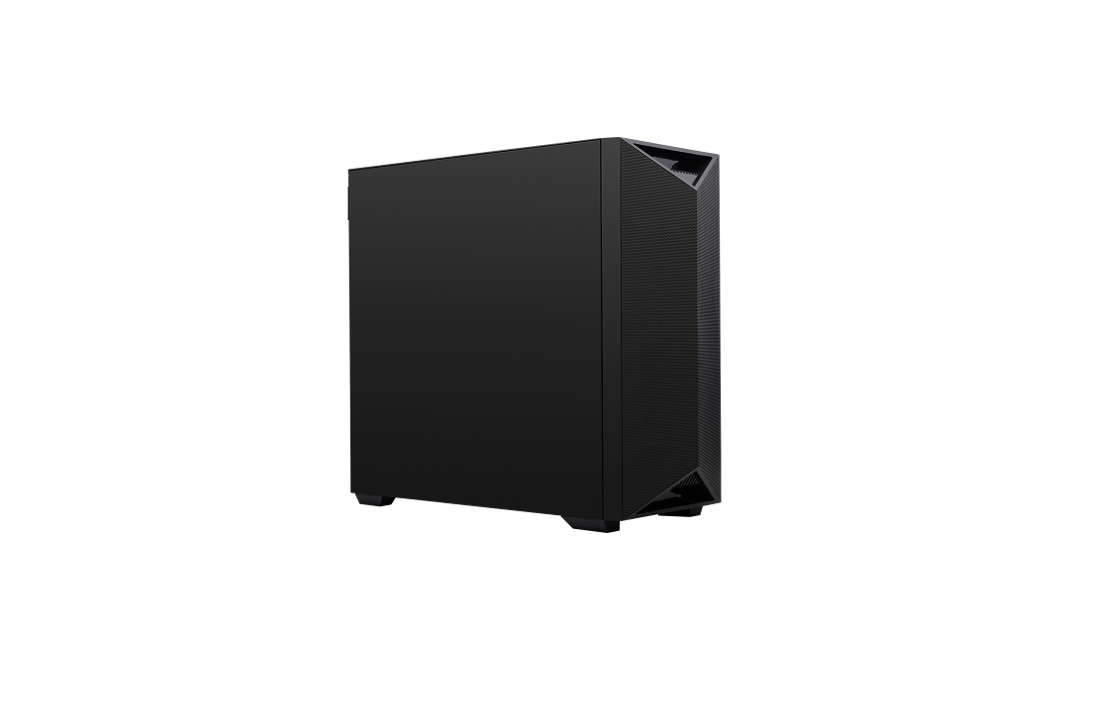

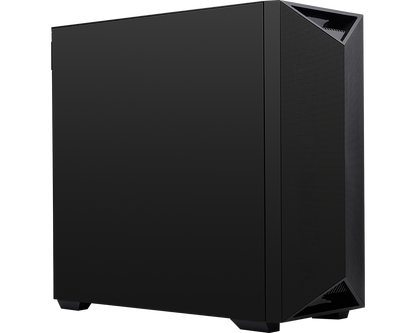

The WS300T60L NVIDIA DGX Station™ is a powerful AI workstation designed for AI development, data science, inference, and private AI cloud deployments. Powered by the NVIDIA Grace™ CPU Superchip and NVIDIA Blackwell Ultra GPU, it delivers exceptional compute performance with 748GB of coherent unified memory, enterprise-grade networking, and advanced security features.

Ideal Applications

• AI Development
• Data Science
• AI Inference
• Personal AI Cloud
• Large Language Models (LLMs)
• Generative AI
• Machine Learning
• Deep Learning Workloads

---

Key Features

✅ NVIDIA Grace™ CPU Superchip with 72 Arm® Neoverse V2 Cores

✅ NVIDIA Blackwell Ultra GPU

✅ 748GB Unified Coherent Memory

✅ Ubuntu 24.04 LTS with NVIDIA AI Developer Tools Pre-Installed

✅ Dual NVIDIA ConnectX-8 SuperNIC 400G QSFP112 Connectivity

✅ 10GbE Networking

✅ PCIe Gen5 Expansion Slots

✅ Hardware Root of Trust & TPM 2.0 Security

✅ Enterprise Remote Management via IPMI 2.0 & Redfish API

✅ High-Efficiency 1600W 80 PLUS Platinum Power Supply

✅ Advanced Liquid Cooling Solution

---

Technical Specifications

Form Factor

• Tower

Dimensions

• Width: 247.8 mm (9.76")
• Height: 527.9 mm (20.78")
• Depth: 582.7 mm (22.94")

---

Processor

• Single NVIDIA Grace™ CPU Superchip
• 72 Arm® Neoverse V2 CPU Cores

---

Graphics

• Single NVIDIA Blackwell Ultra GPU

---

Memory

Total Coherent Memory

• 748GB

CPU Memory

• 496GB LPDDR5X
• 396GB/s Memory Bandwidth

GPU Memory

• 252GB HBM3e
• 7.1TB/s Memory Bandwidth

---

Storage

Installed Storage

• 2 × 2TB NVMe M.2 SSD
• Configured in RAID 1 for Operating System

M.2 Ports

• 2 × PCIe 5.0 x4 NVMe M.2 (CPU Connected)
• 2 × PCIe 6.0 x4 NVMe M.2 (CX8 Connected)

Additional Features

• Heatsinks included for all M.2 slots
• Ubuntu 24.04 LTS pre-installed
• NVIDIA AI Developer Tools pre-installed

---

Expansion Slots

• 1 × PCIe 5.0 x16 FHFL Double-Wide Slot
• 2 × PCIe 5.0 x16 FHFL Single-Wide Slots (x8 Signal)
• 1 × PCIe 2.0 x1 M.2 2230 Slot (WiFi/Bluetooth)

---

Networking

High-Speed Networking

• 2 × QSFP112 Ports
• NVIDIA ConnectX-8 SuperNICs

Ethernet

• 1 × 10GBase-T Ethernet Port
• Marvell AQC113 Controller

---

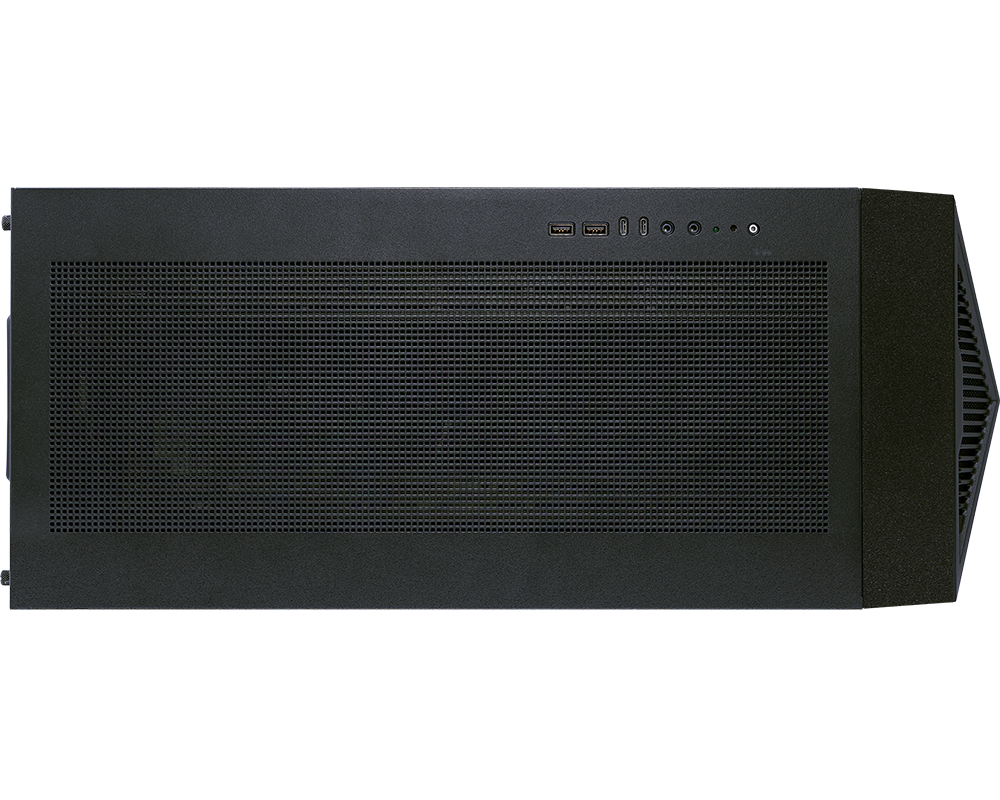

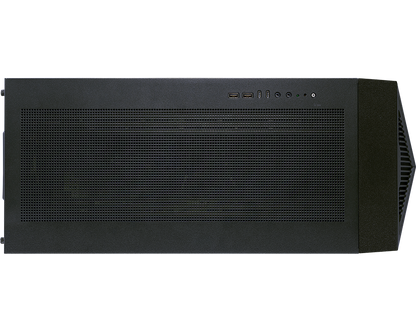

Front I/O

• 1 × Power Button
• 1 × Reset Button
• 1 × HDD Activity LED
• 1 × 2-Way Audio Port
• 2 × USB Type-C Ports
• 2 × USB 3.0 Type-A Ports

---

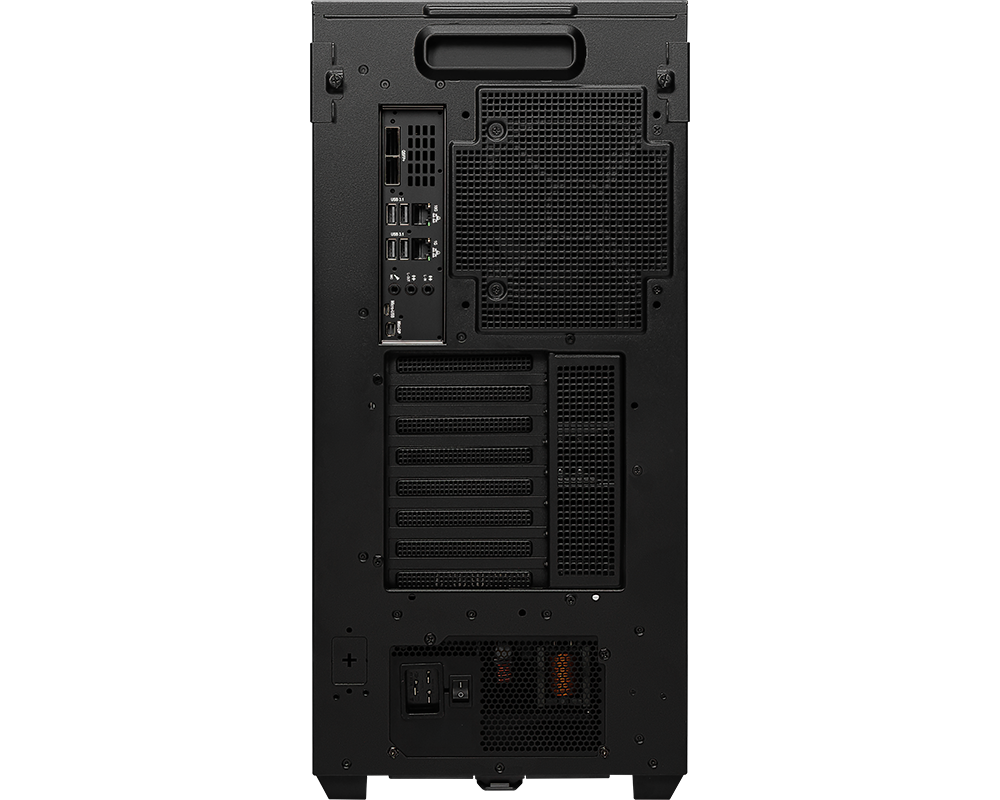

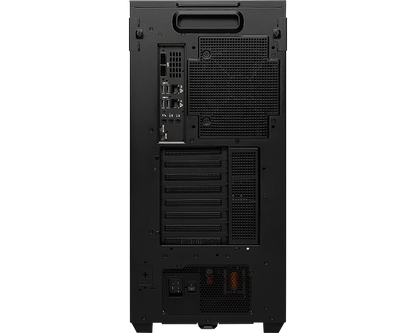

Rear I/O

• 1 × Dedicated 1000Base-T Management Port
• 2 × QSFP112 Ports
• 1 × 10GBase-T Ethernet Port
• 4 × USB 3.1 Type-A Ports
• 1 × Mini DisplayPort
• 1 × Audio Port
• 1 × Micro USB COM Port

---

Security Features

• Chassis Intrusion Detection
• TPM 2.0
• Hardware Root of Trust
• Microchip CEC1736 Security Controller

---

Server Management

• Dedicated 1GbE Management Port
• ASPEED AST2600 BMC
• AMI MegaRAC Firmware
• IPMI 2.0 Support
• DMTF Redfish API Support
• Onboard eMMC for BMC Storage

---

Cooling System

• Liquid Cooling Module
• Supports up to 1400W CPU + GPU Thermal Load
• 1 × 120mm System Fan

---

Power Supply

Included

• 1 × 1600W ATX 80 PLUS Platinum Power Supply

Power Requirements

100V–114V AC

• Maximum Output: 1300W

115V–240V AC

• Maximum Output: 1600W

Important Notes

• C19 Power Cord Required
• Power Cord Sold Separately

---

Operating Environment

Operating Conditions

• Temperature: 10°C to 30°C
• Humidity: 10% to 80% Non-Condensing

Non-Operating Conditions

• Temperature: 5°C to 40°C
• Humidity: 10% to 80% Non-Condensing

---

Certifications

• CE
• FCC Class A

---

Package Contents

• 1 × WS300T60L Barebone System
• 1 × Quick Start Guide

---

Optional Accessories

Professional Graphics Cards

• NVIDIA RTX PRO 6000 Blackwell Workstation Edition
• NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition
• NVIDIA RTX PRO 4000 Blackwell SFF Edition
• NVIDIA RTX PRO 2000 Blackwell

Networking Accessories

• QSFP112 Transceiver
• MPO12 APC to MPO12 APC Fiber Cable (3m)

Power Cords

• US C19 250V/15A
• EU C19 250V/16A
• CN C19 250V/16A
• JP C19 250V/15A
