Product Description

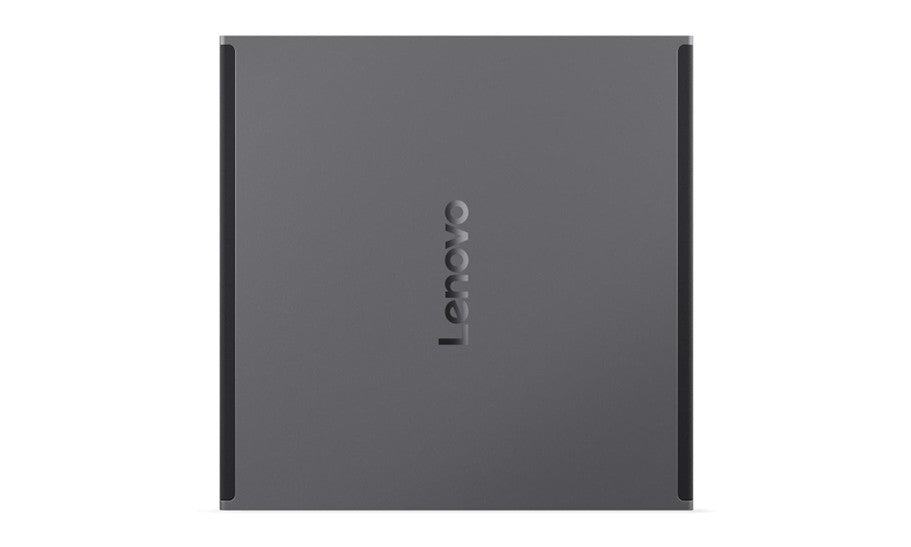

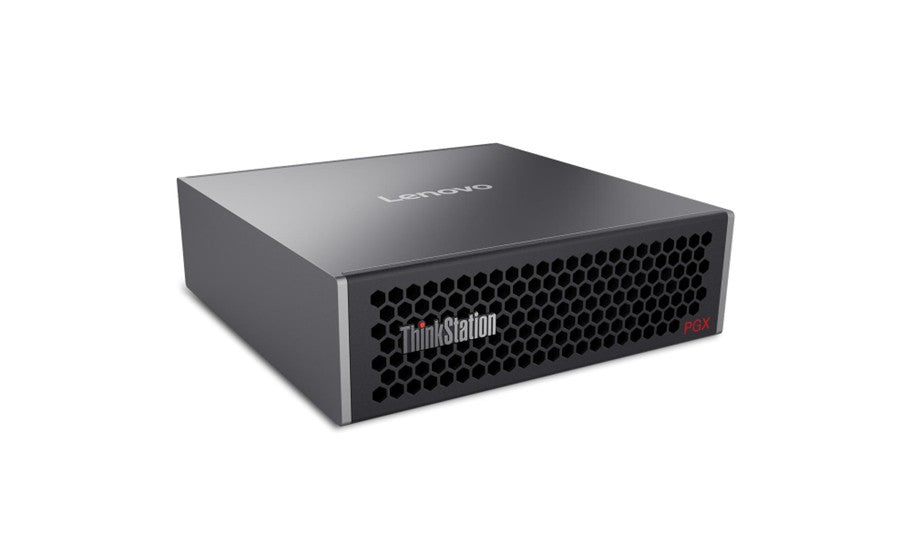

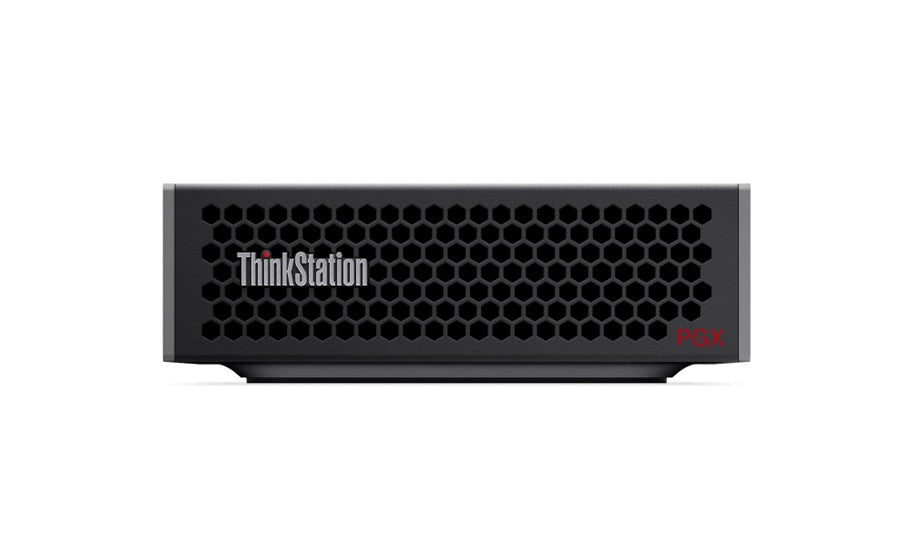

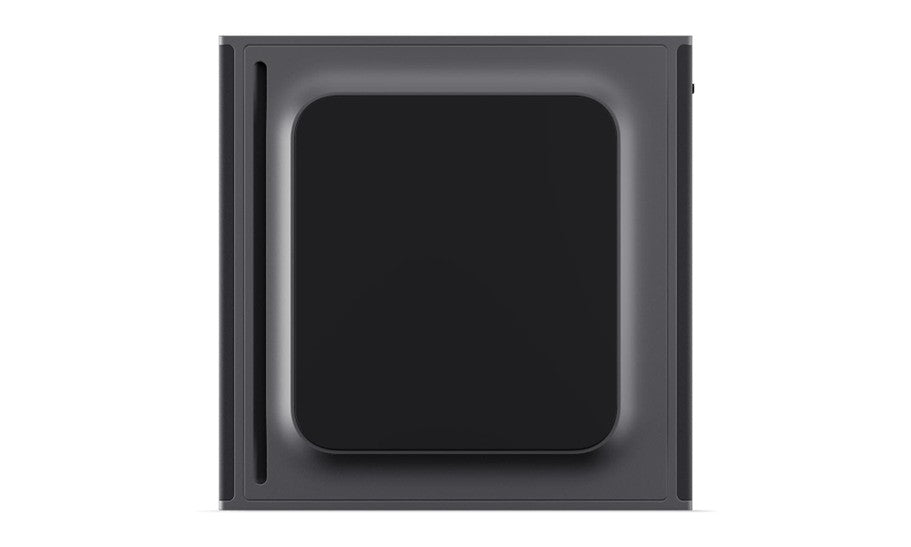

ThinkStation PGX 1TB
Model: 30KL0002SG
Built into NVIDIA GB10 Grace Blackwell Superchip, 20 core Arm, 10x Cortex-X925 + 10x Cortex-A725
128GB LPDDR5x, 256-bit, Unified System Memory
1TB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0
NVIDIA Blackwell Architecture, Built into NVIDIA GB10 Grace Blackwell Superchip
NVIDIA DGX OS1Y Premier Support Upgrade from 1Y Onsite
Model Configurations:
PERFORMANCE
Processor
Built into NVIDIA® GB10 Grace Blackwell Superchip, 20 core Arm, 10x Cortex-X925 + 10x Cortex-A725
Integrated Graphics
NVIDIA® Blackwell Architecture, Built into NVIDIA GB10 Grace Blackwell Superchip
Chipset
NVIDIA® GB10 Grace Blackwell Superchip
Memory
128GB LPDDR5x, 256-bit, Unified System Memory
PCIe NVMe Drive
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0
Audio Chip
HDMI® multichannel audio output
Power Supply
240W Adapter
DESIGN
Dimensions (WxDxH)
150 x 150 x 50.5 mm (5.91 × 5.91 × 1.99 inches)
Weight
1.2 kg (2.65 lbs)
CONNECTIVITY
Onboard Ethernet
ConnectX-7 Smart NIC, 1x 10GbE RJ-45
WLAN + Bluetooth
Wi-Fi® 7, 802.11be + BT5.3

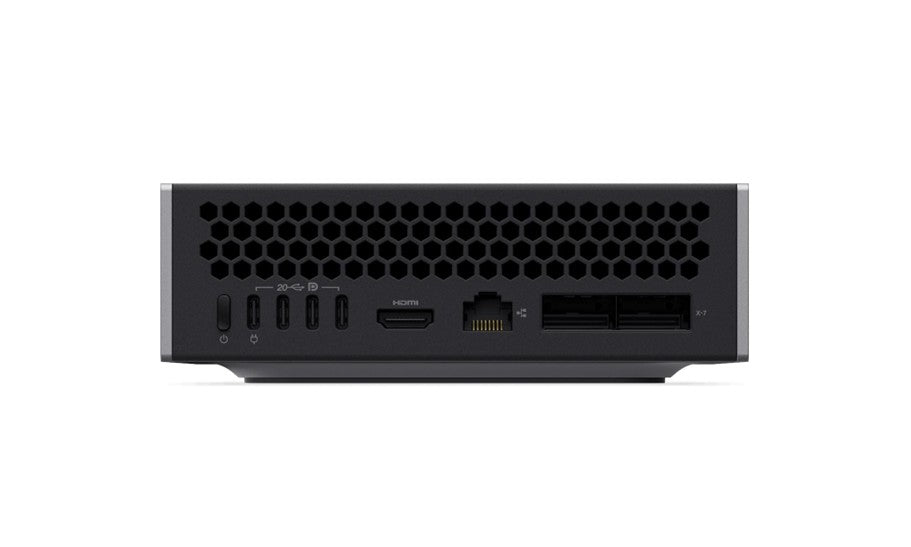

Rear Ports
1x USB-C® (USB 20Gbps / USB4®), with USB PD 3.1 in and DisplayPort™ 2.1
3x USB-C® (USB4® 20Gbps), with DisplayPort™ 2.1
1x HDMI®
1x Ethernet (10GbE RJ-45)
2x QSFP (200Gbps each, for connecting two ThinkStation® PGX units)
SERVICE
Base Warranty
1-year, Onsite
Included Upgrade
1Y Premier Support Upgrade from 1Y Onsite
SOFTWARE
Operating System NVIDIA® DGX OS
