Product Description

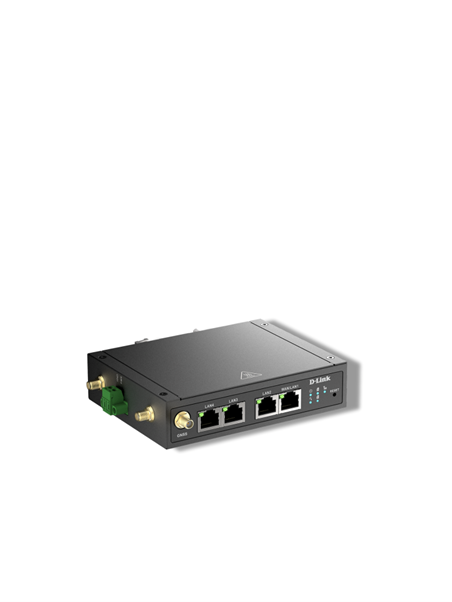

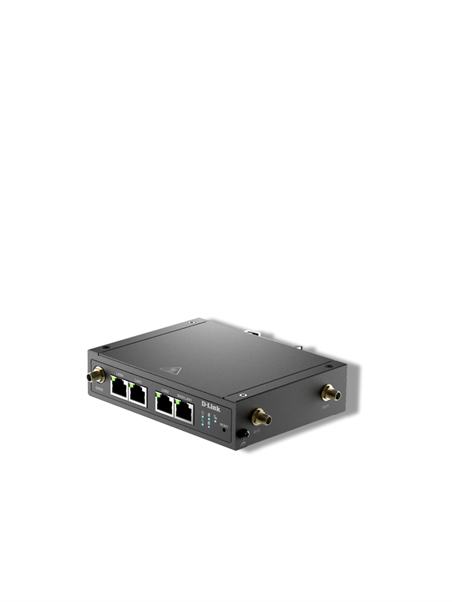

4G M2M Router
DWM-530-T
• 4G LTE speeds of up to 150 Mbps1 for fast Internet access and data transfer
• Wi-Fi speeds of up to 300 Mbps1 to connect multiple Wi-Fi devices
• 1 x Micro SD card slot is specifically designed for data log storage
• 1 x Fast Ethernet WAN/LAN port configurable as wired WAN access
• 3 x Fast Ethernet LAN ports for reliable wired connectivity
• 2 x SIM slots for cellular WAN failover redundancy
• 1 x GNSS for GPS/GLONASS
• No set up required, simply plug it in and your network is ready to go
• Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
• -30 to 70°C operating temperature to resist harsh environments
• DIN-rail mounting allows for optimal device placement
User Benefits
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Ethernet & 4G Redundancy
Seamless failover between Ethernet WAN and 4G for reliable connectivity.
SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Reliable Wired & Wireless Connectivity For Virtually Any Device
Ideal for various applications including ATMs, NVRs, kiosks, and industrial PCs, this router supports extensive IoT needs in sectors like retail stores and mobile offices. Its versatility and reliable performance make it suitable for both small and large IoT deployments, ensuring efficient operations and security.
Specifications:
Device Interface
• Cellular Module: 4G LTE-Cat.4
• SIM Slot: 2*SIM(Micro SIM)
• Ethernet: 1*WAN/LAN FE, 3*LAN FE
• WiFi: WiFi N300(2.4GHz)
• GNSS: GPS/GLONASS
• Micro SD Slot: 1*Micro SD for log.
• Power Input: DC 9-36V (TB)(2-pin)
• Antenna Connector: 2*SMA(F)-Cellular, 2*SMA(RP-F)-WiFi, 1*SMA(F)-GPS
Performance1
• Maximum Cellular Data Throughput:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
WAN
• Multi-WAN: Cellular, Ether-WAN, Failover
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Network Monitor: ICMP Check/DNS Query
Network
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: DMZ, Virtual Server & Computer, VPN Pass-through
• Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
• DDNS: DynDNS, No-IP, Dynamic DO
• IGMP, IPv4/v6
Wi-Fi
• Standard: IEEE 802.11 n/b/g
• Modes: AP Router• Function: Multi SSID, WMM
• Security: WEP,WPA,WPA2,WPA-PSK,WPA2-PSK, 802.1x
• 2.4GHz Data Rate: 300 Mbps
Service
• Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan
• Event Handling: Event Management, Notifying Events
• Scheduling: reboot rule policy, working day
External Server
Ext. Server: Email, Syslog Server
VPN
• VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE
• IPsec Scenario: Site/Host to Site/host; Dynamic VPN
Security
• Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
• Access Control: Packet Filter, URL Blocking, MAC Control
Administration
• Configuration: Web UI, CLI, Command Script
• Management: SNMPv1/2/3, D-Link D-ECS2
• System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log, NTP
Service
• Diagnostic: Diagnostic Tools, Packet Analyzer
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: WAN & LAN Interface Network Status, Cellular Modem Status
• Security: VPN Status, Firewall Status
• Statistics&Reports: Connection Session, Login Statistics, Cellular Usage, Cellular Signal
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 131 x 99 x 31mm
Standard Package:
• 2* Cellular SMA Antennas
• 2* WiFi RP-SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* DIN-Rail kit
