Product Description

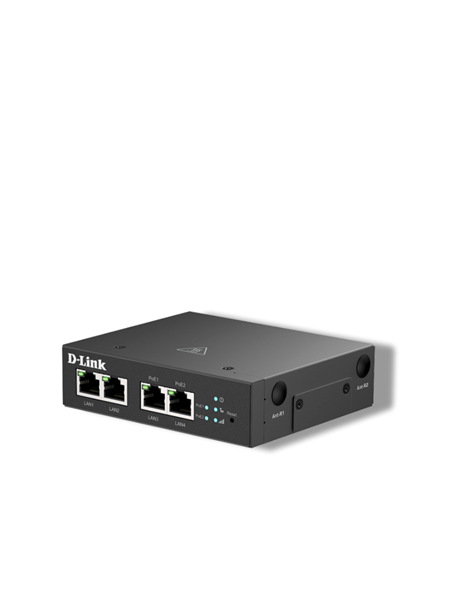

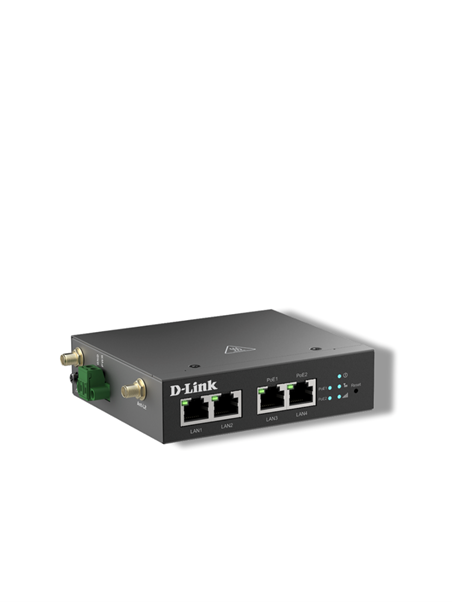

4G Multi-Connect PoE Modem
DWM-314-TP
- Experience 4G LTE speeds up to 150 Mbps1 for swift internet connectivity and efficient data transfer
- Equipped with 2 x 10/100 Fast Ethernet LAN ports for stable wired network connections
- Includes 2 x 10/100 Fast Ethernet PoE LAN ports to support PoE devices
- Features a single SIM slot enabling quick and easy WAN setup
- Plug-and-play design requires no configuration, allowing immediate network operation
- Constructed with a corrosion-resistant zinc-plated steel housing for enhanced durability
- Operates reliably within a wide temperature range of -30 to 70°C to withstand challenging conditions
- Flexible installation options with wall or DIN-rail mounting for ideal placement
Plug & Play
Simplifies setup, enhances security, and ensures reliable performance for critical applications.
PoE Connectivity (PSE)
Two Fast Ethernet PoE LAN ports to connect PD devices for M2M various application.
SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Specification:
Device Interface
• Cellular Module: 4G LTE-Cat.4
• SIM Slot: 1*SIM(4FF Nano)
• Ethernet: 2*LAN FE, 2*LAN FE with PoE-PSE 802.3at
• Power Input: DC 48-57V (TB)(2-pin)
• Antenna Connector: 2*SMA(F)-Cellular
Performance1
• Maximum Cellular Data Throughput:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
WAN
• Cellular: NAT
• Network Monitor: ICMP Checking
Network
• DHCP : DHCP Server
• Port Forward: Virtual Server
• DDNS: DynDNS, No-IP, Dynamic DO
• Routing: Static route, Routing information
• PoE: Power Control, ON/OFF by Network checking, Scheduled ON/OFF
• IPv4/v6
VPN
• VPN Tunnel: OpenVPN
• VPN Usage: Client mode
Security
• Firewall: IPS
• Access Control: Packet Filter, MAC Filter
Administration
• Configuration: Web UI, SSH, Command Script
• Management: D-Link D-ECS2
• System: FW Upgrade, Reboot & Reset, System Time, NTP Service
• Scheduling: reboot rule policy, working day
• SMS Service: SMS Inbox, SMS Event Management
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: Cellular Modem Information/Status, Cellular Network Status,
Cellular Signal Quality
• Security: VPN Status
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 115 x 99 x 31 mm
Standard Package:
• 2* Cellular SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* DIN-Rail kit
