Product Description

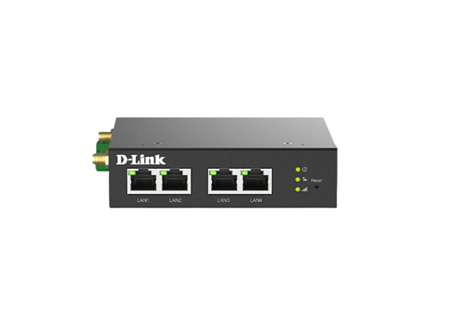

4G Multi-Connect Modem
DWM-314-T
• 4G LTE speeds of up to 150 Mbps1 for fast internet access and data transfer
• 4 x 10/100 Fast Ethernet LAN ports for reliable wired connectivity
• 1 x SIM slot for plug-and-play WAN connectivity
• No set up required, simply plug it in and your network is ready to
• Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
• -30 to 70°C operating temperature to resist harsh environments
• Wall or DIN-rail mounting allow for optimal device placement
Features
Connectivity
• Blazing fast Cat 4 LTE speeds up to 150 Mbps1
• Four 10/100 Ethernet LAN ports to connect
wired devices
• IEEE 802.11ac uses new 5GHz band to achieve
faster speeds with higher data throughput
while reducing interference
Simplicity
• Plug-and-Play with Ethernet interface
• Easy-to-use web interface for advanced cases
Rugged and Flexible
• Zinc-plated steel case for durability
• Wide operating temperature and humidity
tolerance
• Wall-mounts(optional) allow optimal
placement
Advanced VPN Features
• Supports VPN tunnels for OpenVPN
connections
Remote Management
• Compatible with D-ECS3
for remote device
management
D-Link’s DWM-314-T 4G LTE Modem is a robust 4G LTE modem that provides an instant
4G connection for embedded Machine-to-Machine (M2M) applications. The single mode
LTE modem provides an economical and reliable high speed connection operating at
LTE Cat. 4 bands and 3G bands. It also features Fast Ethernet and Wi-Fi connectivity that
facilitates connections required for centralized data integration and management on
premises or over the cloud.
Robust
The industrial-grade casing and versatile mounting options make the DWM-314-T suitable
for industrial deployment even the most demanding M2M applications. The corrosionresistant zinc-plated steel case can stand harsh conditions, allowing it to operate in the
range from -30 to 70 ˚C. Wall mount and din-rail mount options allow the DWM-314-T to
be mounted directly onto a wall or inside an electrical enclosure or cabinet. For example,
it can be installed inside a wind turbine or an IoT device in manufacturing plants.
Flexible
The DWM-314-T’s Ethernet and Wi-Fi interfaces extend connectivity to any industrial
equipment installed in remote areas or facilities. This connectivity extension
accommodates the foreseen increases in data traffic generated from wired and wireless
devices over the coming years. This also makes DWM-314-T ideal for M2M applications in
industrial IoT, smart factories and manufacturing, smart energy, and more.
Technical Specifications
General
Mobile Network Support2 SKU 1 (EU)
• LTE Cat. 4 Bands 1/3/7/8/20/28A/38/40/41
• 3G Bands 1/8
SKU 2 (AF)
• LTE Cat. 4 Bands 2/4/5/12/13/14/66
• 3G Bands 2/4/5
Maximum Cellular Data Throughput1 • LTE: 150 Mbps (DL) / 50 Mbps (UL) • 3G: 42 Mbps (DL) / 5.76 Mbps (UL)
Device Interfaces • 1 x Nano-SIM (4FF)
• 4 x 10/100 Ethernet LAN Ports
• 2 x Cellular Antenna
• 1 x Wi-Fi Antenna
Wi-Fi • 802.11ac
VPN • OpenVPN (1 tunnel)
Advanced Features • D-ECS for remote device management3
• Web-based UI
• SMS reboot function
Physical
Power • 2-pin terminal block for DC 9- 36 V Power
Enclosure • Metallic
Dimensions • 115 x 99 x 31 mm (4.52 x 3.9 x 1.22 in)
Temperature • Operating: -30 to 70 ˚C (-22 to 158 ˚F) • Storage : -40 to 85 ˚C (-40 to 185 ˚F)
Humidity • Operating: 10% to 95% non-condensing
Certifications • CE • RoHS
Order Information
Part Number Description
DWM-314-T 4G Multi-Connect Modem
